FIP sprocket nut?

I am going to take down the front cover and replace the chains.
Following RAVE when coming to the point where the FIP Sprocket are to be kept in place by the tool, but first to remove the FIP nut, I am not able to find any nut!!!!

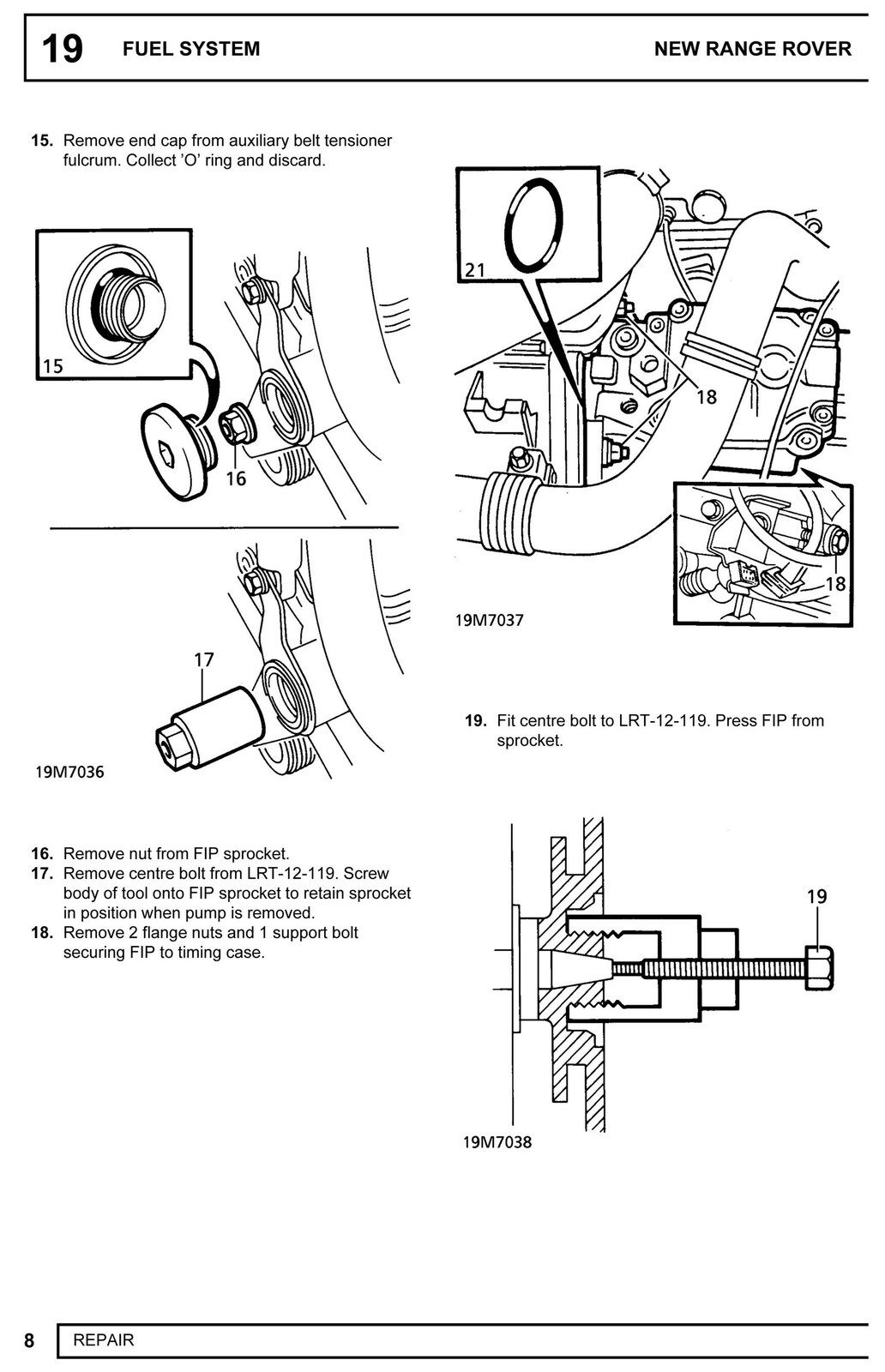

See point #16 in the attachment.

Has the nut come loose and are lying in the sump? or are there engines where this nut does not exist?
The tool for holding the sprocket just threads on the sprocket as it should do.

Anyway the sump will come down as I am pulling off the front cover.

The sun finally came for a visit today.
Larsern

I assure you there should be a nut and a pretty tight one at that. I find it hard to believe that your car is running without one.

have you got the correct size socket for the nut? :welcome: put in your location please.

Strangely enough I have had that very nut off twice today and retightened to 50Nm.

The tensioner cover comes off nicely with a 17mm bolt held in a pair of mole-grips (thanks for that tip, kds!). After that the nut is on the end of the FIP shaft. Think it might have been 18mm.

Grrrrrr said:

Strangely enough I have had that very nut off twice today and retightened to 50Nm.

The tensioner cover comes off nicely with a 17mm bolt held in a pair of mole-grips (thanks for that tip, kds!). After that the nut is on the end of the FIP shaft. Think it might have been 18mm.

Click to expand...

do the mole grips have a torque meter for when you refit the tensioner cover ?

tomcat59alan said:

do the mole grips have a torque meter for when you refit the tensioner ?

Click to expand...

Refit the tensioner? I only took the cover off?

Grrrrrr said:

Refit the tensioner? I only took the cover off?

Click to expand...

edited.

tomcat59alan said:

edited.

Click to expand...

Needs 30 lb ft Mole grips.

wammers said:

Needs 30 lb ft Mole grips.

Click to expand...

Think Grrrr is going for the "dogged up" approach

tomcat59alan said:

Think Grrrr is going for the "dogged up" approach

Click to expand...

It's a demonstration of how to make a two or three hour job last a week.

Atleast he is trying.....more than some who come on this forum do....

We learn by doing

Saint.V8 said:

Atleast he is trying.....more than some who come on this forum do....

We learn by doing

Click to expand...

Morning Ant, well he's got the right car for "trying" eh. Nobody's knocking him, perhaps a few nuts run down the bolt so a torque wrench could be used to tighten the cover may have been a better idea.

Saint.V8 said:

Atleast he is trying.....more than some who come on this forum do....

We learn by doing

Click to expand...

This is true. It's about how much damage you do trying though.

No damage to my tensioner cap. It only nips up. I don't think there are even any advised torque settings for it.

Then the nut has been found, it was still in place, but so rounded by a previous mechanic's attempt to remove it. Had to take off the tube that is the base of the tensioner to see it.
Then it came lose with some gentle persuasion

Larsern said:

Then the nut has been found, it was still in place, but so rounded by a previous mechanic's attempt to remove it. Had to take off the tube that is the base of the tensioner to see it.
Then it came lose with some gentle persuasion

Click to expand...

It should only be done up to 50Nm force.

Maybe he got mixed up between imperial and metric. I found some 5/8" and 11/16" bolts in the mix yesterday!

Grrrrrr said:

It should only be done up to 50Nm force.

Maybe he got mixed up between imperial and metric. I found some 5/8" and 11/16" bolts in the mix yesterday!

Click to expand...

5/8" is roughly 16mm and 11/16" 17 mm.
