Few questions about things I found not unconnected

Andrew hope · Jul 10, 2017

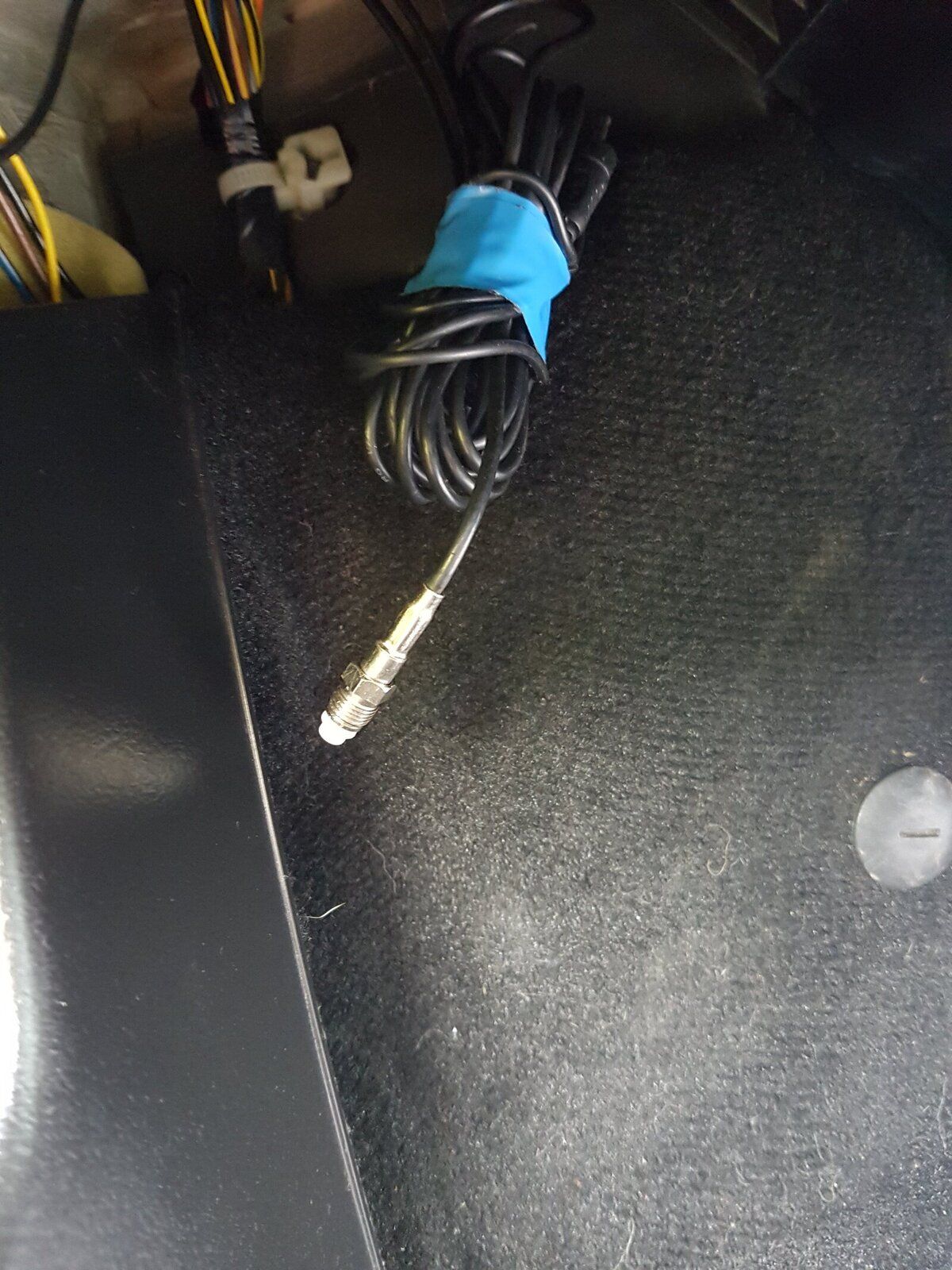

1st off just done my pollen filter and seen this cable and don't know what it is

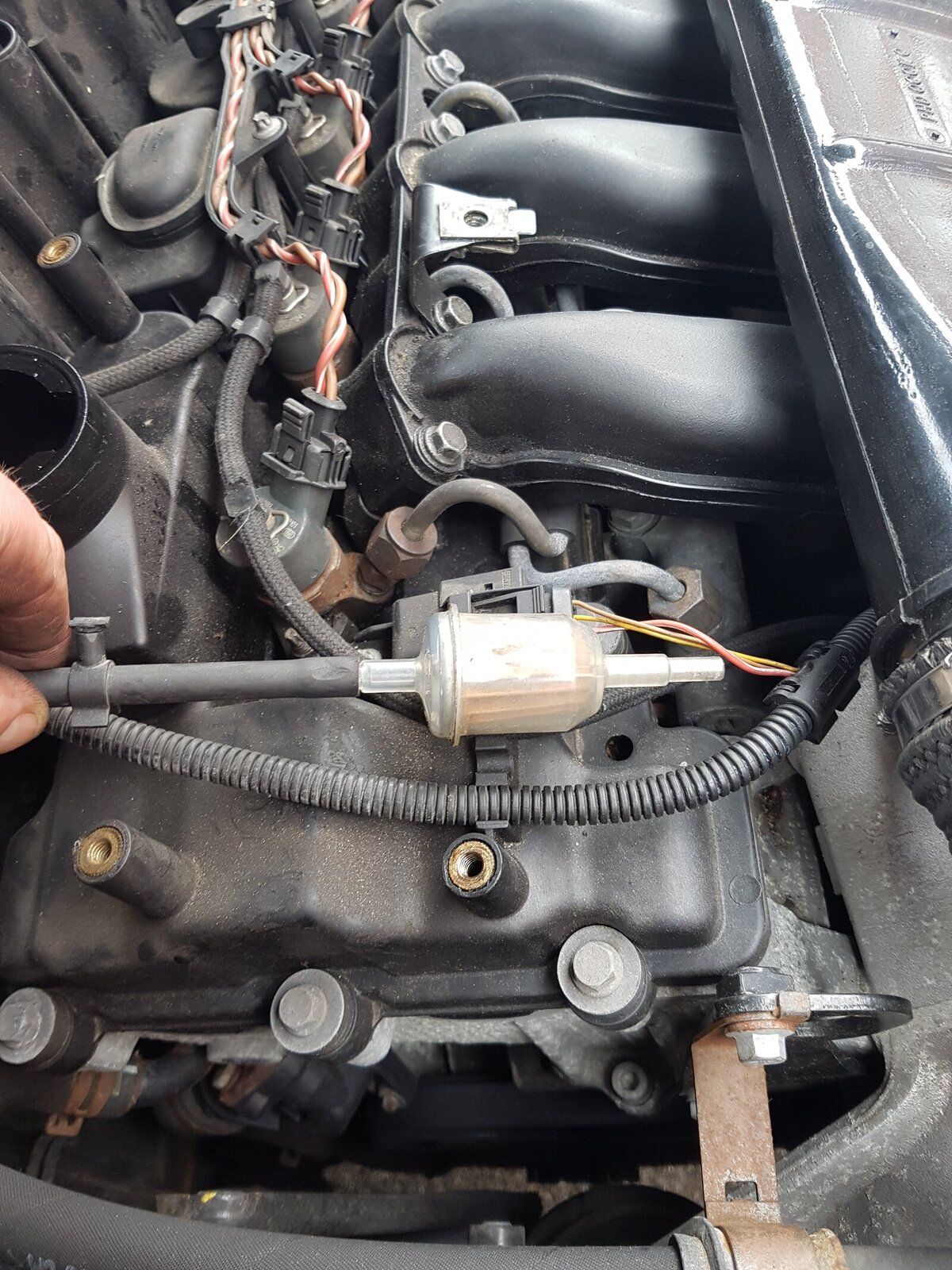

2nd is a filleter on top of engine pipe on one end nothing on other

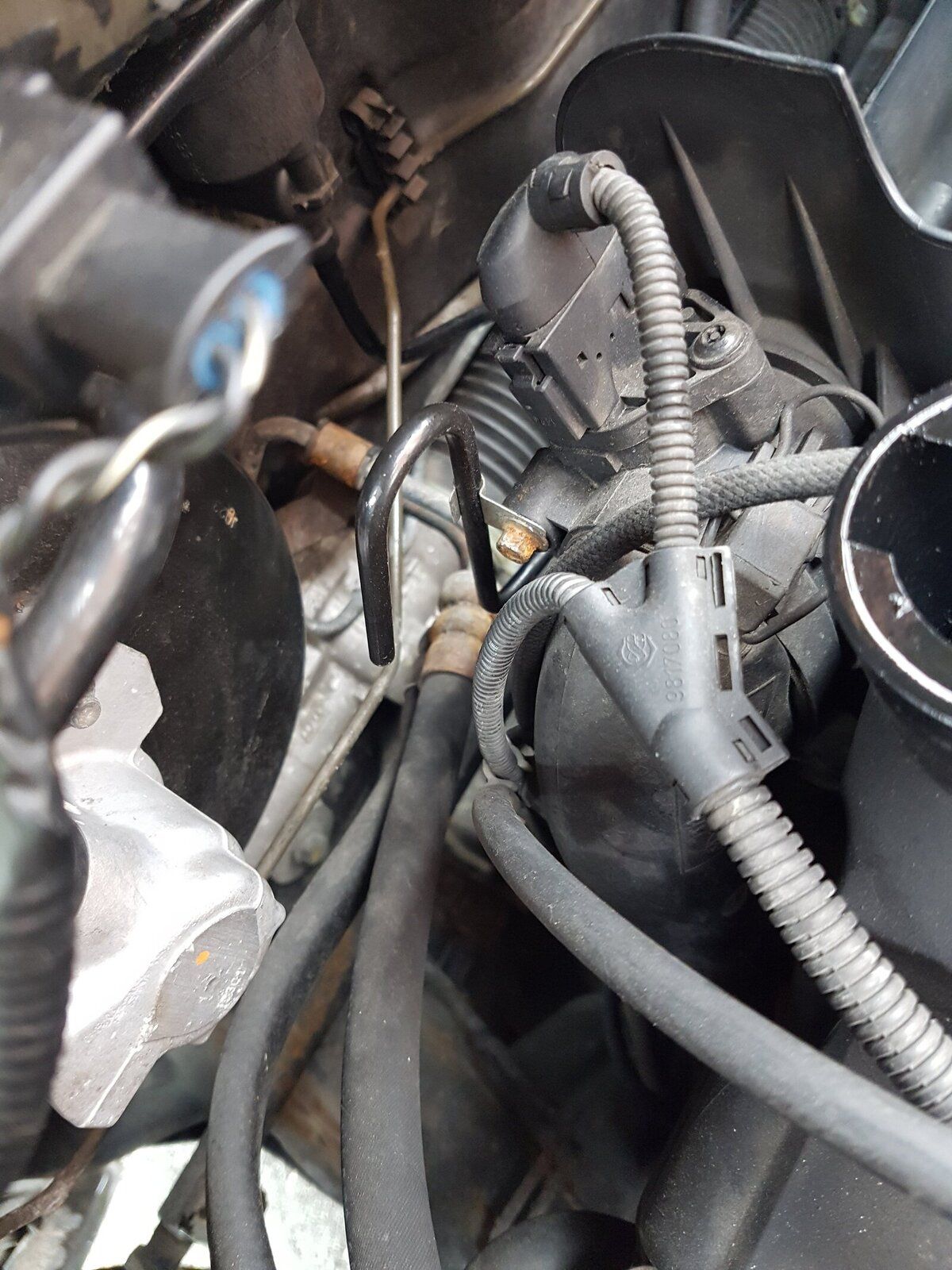

3rd thin black metal pipe behind maf sensor and it don't go anywhere

neilly · Jul 10, 2017

I do not know what engine or vehicle this is.

But I would hazard a gues the black pipe that is bent backwards is a wading / breather for one of the following, GBOX, T BOX Diffs.

Cheers

Andrew hope · Jul 10, 2017

neilly said:
I do not know what engine or vehicle this is.

But I would hazard a gues the black pipe that is bent backwards is a wading / breather for one of the following, GBOX, T BOX Diffs.

Cheers

Sorry it's a go 1 td4

Paul D · Jul 10, 2017

pic 1 looks like a gps cable fitting. Is it quite a tiny connector, less than 1/2" diameter, maybe 1/4" (6mm) ?

pic 2 looks, as @neilly says, a breather pipe.

pic 3 looks like an inline fuel filter, so maybe someone has been trouble shooting fuelling issues. I'd follow the connected pipe back and see where it goes ...

Andrew hope · Jul 10, 2017

Paul D said:
pic 1 looks like a gps cable fitting. Is it quite a tiny connector, less than 1/2" diameter, maybe 1/4" (6mm) ?

pic 2 looks, as @neilly says, a breather pipe.

pic 3 looks like an inline fuel filter, so maybe someone has been trouble shooting fuelling issues. I'd follow the connected pipe back and see where it goes ...

Yes

Paul D said:
pic 1 looks like a gps cable fitting. Is it quite a tiny connector, less than 1/2" diameter, maybe 1/4" (6mm) ?

pic 2 looks, as @neilly says, a breather pipe.

pic 3 looks like an inline fuel filter, so maybe someone has been trouble shooting fuelling issues. I'd follow the connected pipe back and see where it goes ...

Yes wire is tiny but has std head unit as it is only the S model and as for filter it is a dry filter and looks like it's meant to lead up over the top of engine it's got me neat can't see where it leads grr

brianp38dse · Jul 10, 2017

The filter is probably a breather as well seen a few asked about fitted to range rovers.

Andrew hope · Jul 10, 2017

brianp38dse said:
The filter is probably a breather as well seen a few asked about fitted to range rovers.

It's the turbo filter from what I have read

gstuart · Jul 12, 2017

Andrew hope said:
View attachment 127157 View attachment 127159 View attachment 127160 1st off just done my pollen filter and seen this cable and don't know what it is

2nd is a filleter on top of engine pipe on one end nothing

3rd thin black metal pipe behind maf sensor and it don't go anywhere

hi

1/ not sure about the wire,is there a push button on the end of it, can't quite see , reminded me of a tuning box switch , but can't tell

2/ is a turbo solonoid filter,

3/ is the gearbox breather pipe

Colthebrummie · Jul 12, 2017

The cable in pic one looks like a CB ariel lead.

Col
