Disco 2 Faulty Rear Side Light

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

0writer

Member
Posts
64
Location
High Wycombe
Hi All,

One of the rear side lights on the mrs disco 2 isn't working and it's not the bulb. The other side is working fine. I can see three wires going into the top bulb holder which is brake/side light but need a wiring diagram or some information to identify the wires used for the side light so that I can trace the fault as I believe it's potential a break in a wire.

Thanks

There are two fuses to check first, fuse F11 and fuse F33 on the fuseboard in the passenger's compartment; behind the panel below the steering wheel. both are 10 Amp.

I agree with @neilly in that you should download a copy of RAVE from:-

http://www.green-oval.com/data/lr/rave01.iso

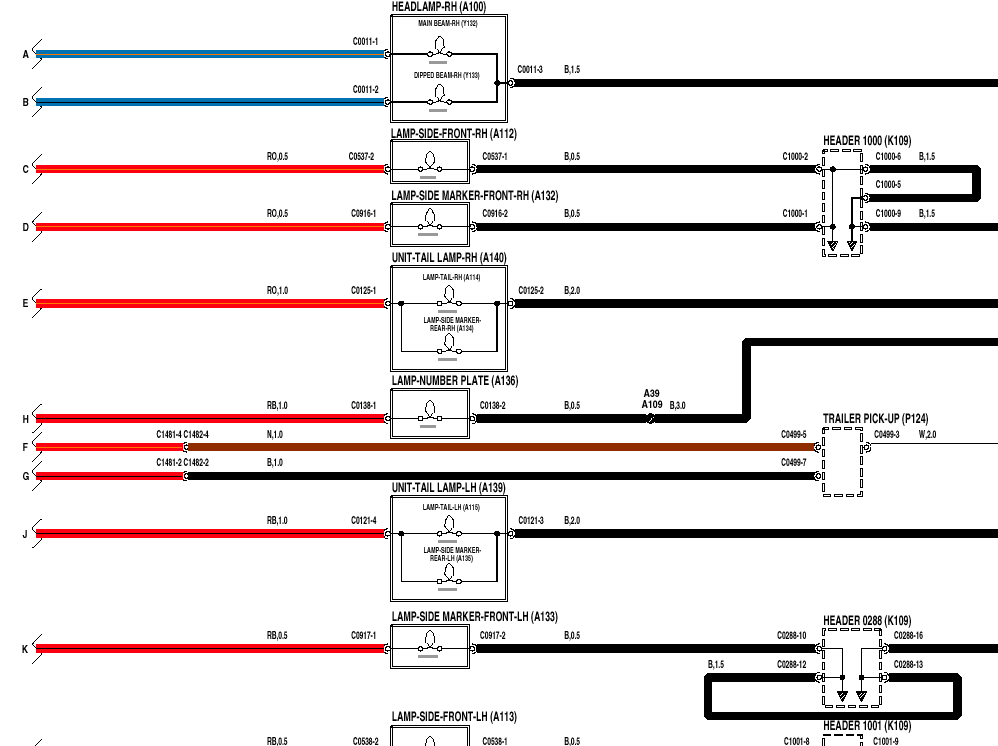

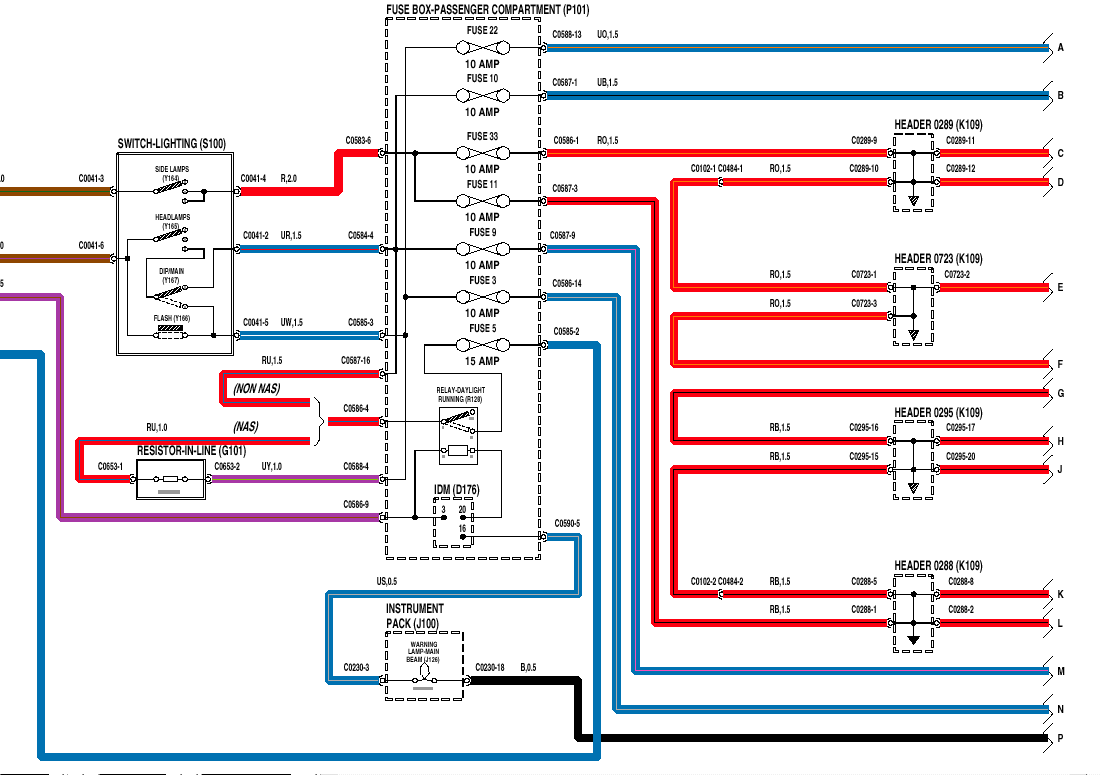

In the meantime, here are the wiring diagrams which might help.
