Face Lift Reversing Sensors

Discussion in 'Land Rover Freelander' started by Harleydee, Oct 27, 2010.

  1. Harleydee

    Harleydee New Member

    Joined:
    Oct 4, 2010
    Posts:
    70
    Likes Received:
    0
    Hiya, bought a generic reversing sensor kit for my 2004 sport but when I came to fit it this aft I found that the rear bumper is not vertical and if I fit them to it they will point down somewhat and false trigger.

    Has anyone overcome this problem? what does the factory fit look like for this model please ?

    Cheers
    Paul

  2. Mantamad

    Mantamad New Member

    Joined:
    Sep 9, 2006
    Posts:
    1,067
    Likes Received:
    5
    Location:
    Fife Scotland
    I don't have them on mine but understand your problem - I wonder if the factory fit ones have in effect a moulded in wedge so when mounted on the bumper, they will be vertical

  3. Harleydee

    Harleydee New Member

    Joined:
    Oct 4, 2010
    Posts:
    70
    Likes Received:
    0
    yep, thats what I was wondering. The ones I have bought have an angled sensor but on testing before fitting I found the angle was not acute enough. They need a pod or well slanted spacer. Interested how Land Rover have overcome this !

  4. TD John

    TD John New Member

    Joined:
    Oct 11, 2008
    Posts:
    343
    Likes Received:
    0
    Location:
    Essex
    Hi Harleydee,

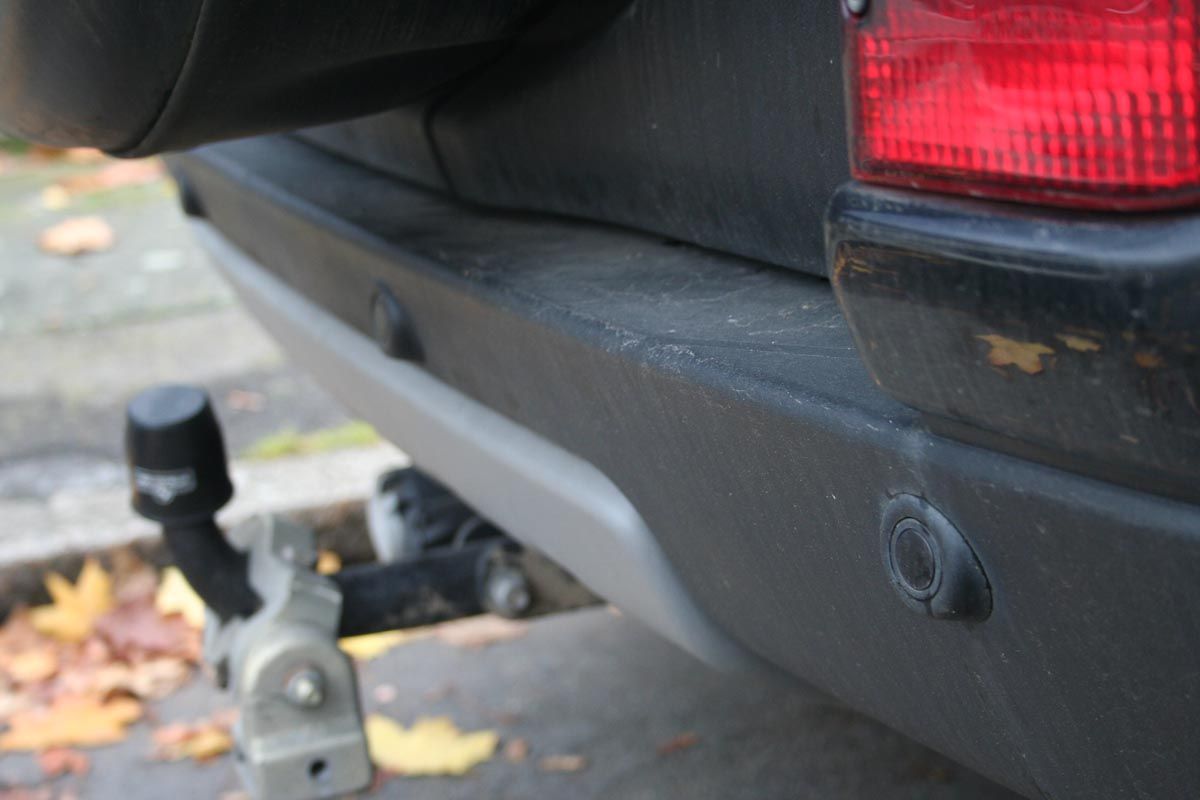

    Just popped out and took a picy. :)
    Ours are standard factory fit.
    They are mounted on angled pods as you suspected. ;)
    TD John


    Attached Files:

  5. Harleydee

    Harleydee New Member

    Joined:
    Oct 4, 2010
    Posts:
    70
    Likes Received:
    0
    Many Thanks for your efforts TD John, will now see if Land Rover will sell me some without the rest of the reversing kit !

    Cheers
    Paul

  6. Mantamad

    Mantamad New Member

    Joined:
    Sep 9, 2006
    Posts:
    1,067
    Likes Received:
    5
    Location:
    Fife Scotland
    If not, you could use plastic or metal pipe of a suitable diameter to act as a spacer but cut to the correct angle then paint it black to match.

  7. Harleydee

    Harleydee New Member

    Joined:
    Oct 4, 2010
    Posts:
    70
    Likes Received:
    0
    Thanks to Ben at Brit-car I have managed to get 4 genuine spacers.

    Product Code: DXB500250PMA

    Britcar (UK) Ltd > DXB500250PMA BEZEL

    After market sensors seem to fit them but have not fitted them to the freelander yet.
