Extended breather kit.

Boris113 · Jan 21, 2011

Hi guys, just about to order an extended breather kit for my 90, I've found this one on flea bay that seems to fit the bill: eBay.ie: LANDROVER DEFENDER ultimate wading kit BREATHER KIT (item 130473511263 end time 08-Feb-11 17:49:43 GMT)

My question is, this kit doesn't include a breather for the front of the timing case. Looking at mine (300 Tdi) The plate that is on it doesn't have a hole so do I need to fit a breather or is that only for engines that have a hole on the little cover?

Harry

Defender90Dave · Jan 21, 2011

that kit only replaces the both axle breathers and the gear box, transfer box breathers. it gives you blanking bungs for the bell housing and timing case.

if you intend on doing deep wading you will need extended breathers for.

font axle
back axle
gearbox
transfer box
bell housing
timing case
fuel tank breather
injector pump breather

Boris113 · Jan 23, 2011

Thanks very much

So I do still need a breather for the front of the timing case then? Also where abouts is the breather on the injector pump? I will probably make one for the fuel tank myself.
Harry

andy mcd · Jan 24, 2011

i plug the bell housing and the timming case, but do have a fuel tank one fitted, I bought the bits seperately off of ebay, that kit puts them all in to the one breather pipe at about bonnet level, so depending on what your doing it could be possible for diesel to mix with your oils.

Never heard of an injector pump breather?? new one to me

bobbler · Jan 24, 2011

asked this question myself a while back but was told there is no need for a timing case breather.

in most ebay kits you get the bungs for the bell housing and timing case thrown in.

andy mcd · Jan 24, 2011

The plugs are 1/4 BSP and are about a £1 for t2 from toolstation, On ebay you can buy 1/4bsp elbows to 8mm pneumatic hose and make your own breather kit, I did i joined the 2 axles and the gearbox/tranny box together up at the bulkhead and then ran the 2 up the side of my snorkal and got a push fit connector to connectthe fuel one and ran that up the snorkal as well, Think it cost me about £15 from ebay including delivery

bobbler · Jan 24, 2011

this one is cheaper too

LANDROVER DEFENDER WADING KIT(AXLES,GEARBOX,TRANS BOX) on eBay (end time 26-Jan-11 13:37:49 GMT)

Hamsterberg · Jan 24, 2011

Defender90Dave said:
that kit only replaces the both axle breathers and the gear box, transfer box breathers. it gives you blanking bungs for the bell housing and timing case.

if you intend on doing deep wading you will need extended breathers for.

font axle
back axle
gearbox
transfer box
bell housing
timing case
fuel tank breather
injector pump breather

Do you need all of these for a td5 ??

Defender90Dave · Jan 24, 2011

Hamsterberg said:
Do you need all of these for a td5 ??

all except timing case as the td5 has a timing chain and the injection pump one as a td5 is common rail.
but you will need to relocate the ecu to a higher location out of waters way.

andy mcd said:
Never heard of an injector pump breather?? new one to me

its in the back of the bosh injection pump the bit with a rubber boot thing on it.
cant remember what you do as its been a while since i done one, think there is a special size fitting needed.

Hamsterberg · Jan 24, 2011

Defender90Dave said:
all except timing case as the td5 has a timing chain and the injection pump one as a td5 is common rail.
but you will need to relocate the ecu to a higher location out of waters way.

Nice one mate, thanks

kvnsmth · Sep 10, 2012

anyone have any pics as to were on the gearbox ,bell housing, transfer box and fuel tank these are located, can find the axle ones no problem

Boris113 · Sep 10, 2012

kvnsmth said:
anyone have any pics as to were on the gearbox ,bell housing, transfer box and fuel tank these are located, can find the axle ones no problem

I forgot about this thread

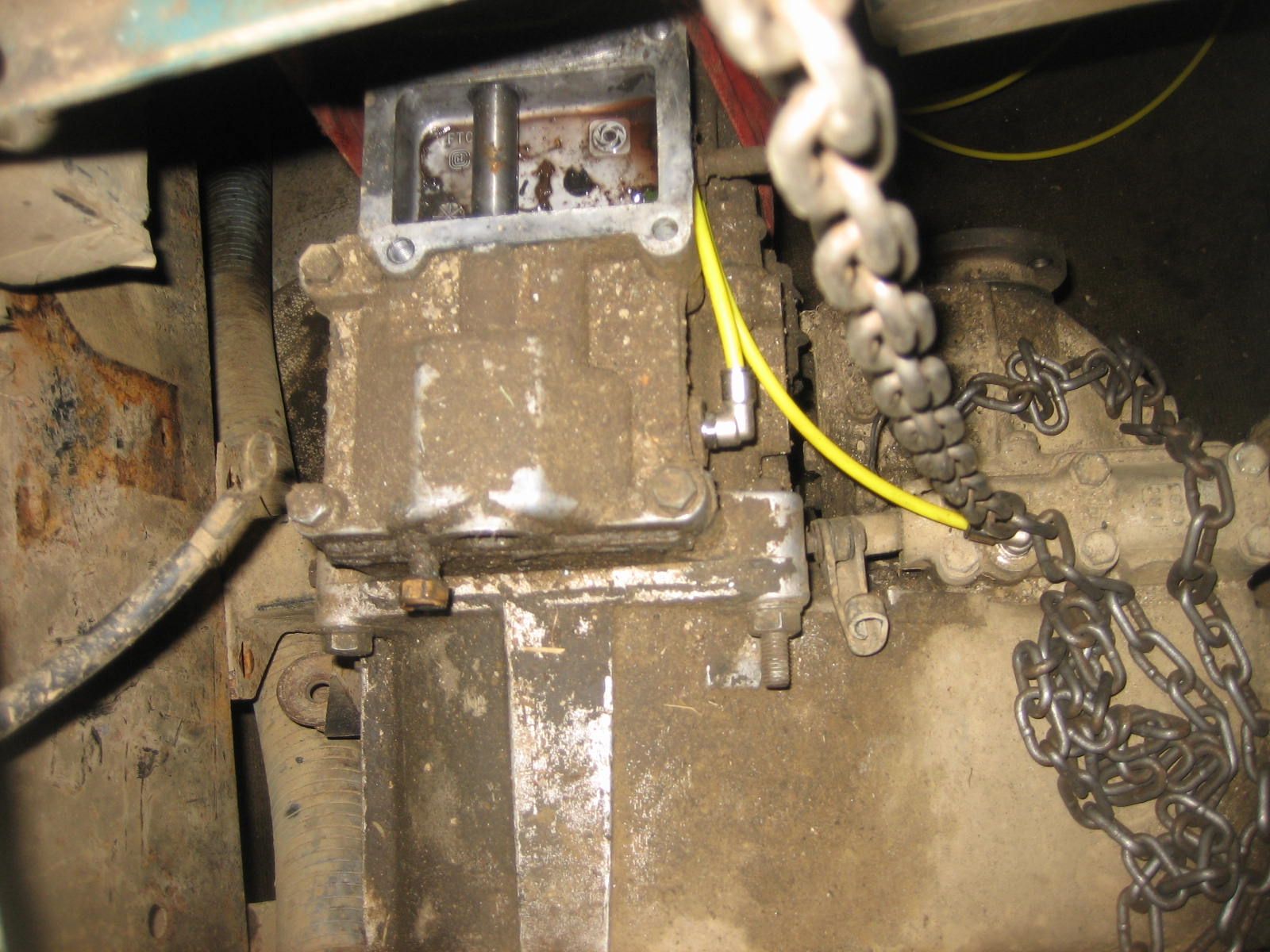

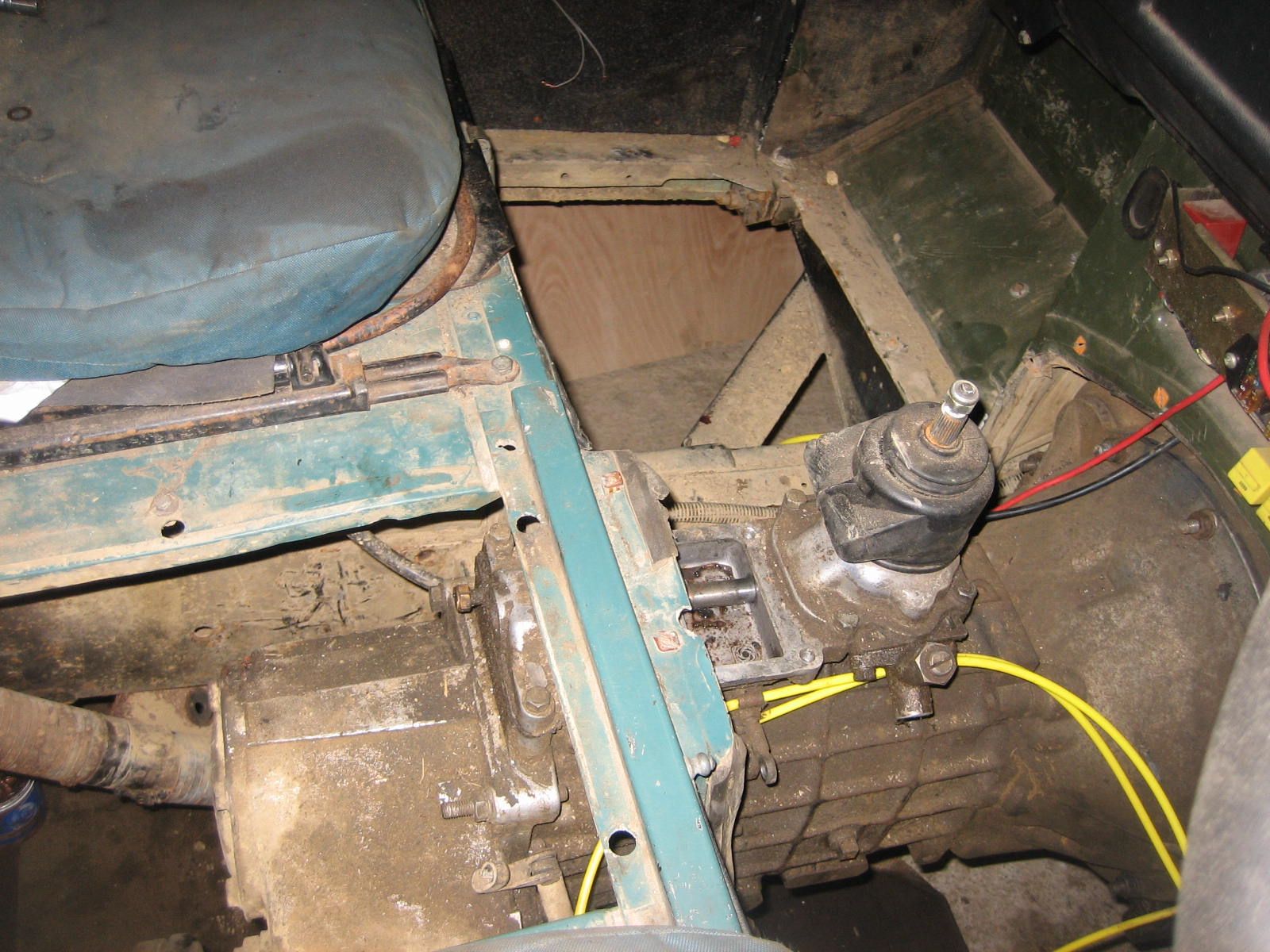

Gearbox and transfer box are almost next to each other. You will find them on the top, slightly to the drivers side (where the yellow pipes end in the pics) Bellhousing is found on the bottom of the gearbox directly below where the clutch is - you should see a hole on the bottom unless there is a plug already installed. Not sure on fuel tank, I was under the impression that they used the filler cap as a breather, but i'm sure someone else will clarify that

kvnsmth · Sep 10, 2012

Boris113 said:
I forgot about this thread

Gearbox and transfer box are almost next to each other. You will find them on the top, slightly to the drivers side (where the yellow pipes end in the pics) Bellhousing is found on the bottom of the gearbox directly below where the clutch is - you should see a hole on the bottom unless there is a plug already installed. Not sure on fuel tank, I was under the impression that they used the filler cap as a breather, but i'm sure someone else will clarify that

thanks for that, helped no end
