Exhaust Mods

Discussion in 'Land Rover Freelander' started by phoebecp, Dec 2, 2016.

< Previous Thread | Next Thread >
  1. phoebecp

    phoebecp Active Member

    Joined:
    Oct 11, 2016
    Posts:
    55
    Likes Received:
    30
    Location:
    Oxfordshire
    Just wondering what you guys had one to modify the exhaust system in your freelanders?
    My silencer is on its way out so I was thinking about options for what it can be replaced with, or is it better keeping it standard? I'm liking the idea of a straight pipe but wasn't sure about noise levels, has anyone done this and if so is it much louder?
    Cheers,
    Phoebe

  2. saxavordian

    saxavordian Well-Known Member

    Joined:
    Jun 8, 2015
    Posts:
    2,706
    Likes Received:
    1,435
    Location:
    outside london influence in manchester
    Standard is the cheaper option. while modifying routes mean a trip to the insurance cash machine cow to alter the docs.

    Joe_H likes this.
  3. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    If replacing the back box, I'd give serious thought to have a custom one made. You can't drive with the rear window down because the exhaust gas is recirculated into the car.

    Not keen on carbon monoxide myself.

    Perhaps a rear/side exit design?

  4. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    15,798
    Likes Received:
    10,470
    Location:
    Christchurch, New Zealand
    Glad you said that cos that's exactly what I get - but others recon it doesn't happen on their cars.

    Bit like wheel spin in 2WD, I don't get it, others do.

    Another of those Marmite type characteristics of the Freelander!

  5. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,603
    Likes Received:
    566
    Location:
    London
    Lol maybe GG

    I'm thinking of a transverse back box on the standard location, smaller diameter perhaps (more clearance) and an exit to the side of the car, dehind the rear wheel...

    Someone may have do e it already?

  6. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,301
    Likes Received:
    344
    Location:
    Bradford u.k.
    for the td4 .. a straight thru back-box works well
    and it's not too noisy .. just about right if one likes listening to the motor at work
    i'd like a side-exit exhaust .. rekon i'd have it just in front of the ns rear wheel
    ( although having the cab fan on 3 or 4 does seem to work at deflecting exhaust ingress
    ( when the rear window is wide open
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  7. Joe_H

    Joe_H Well-Known Member

    Joined:
    Dec 30, 2015
    Posts:
    1,486
    Likes Received:
    252
    Location:
    Brit in Northern Portugal
    Agreed Saxa, also - who the H£LL wants to drive with the rear door window down ?:rolleyes::D

  8. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    15,798
    Likes Received:
    10,470
    Location:
    Christchurch, New Zealand
    In hot weather it would be nice to have some air flow in the back or the dog. Even in not so hot weather, it would be nice to try and get rid of wet dog smells if he's been in water!

  9. dwalsh1

    dwalsh1 Active Member

    Joined:
    Jun 9, 2015
    Posts:
    308
    Likes Received:
    51
    Location:
    Harrow, Middlesex.
    Me. Specially with a brown smelly Labrador in the back :)

    Last edited: Dec 2, 2016
  10. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,301
    Likes Received:
    344
    Location:
    Bradford u.k.
    yeah .. +1 at that ..
    ~~~~~~~~~~~~~~~~

    GrumpyGel likes this.
  11. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    21,440
    Likes Received:
    4,816
    Location:
    Near Newquay
    I have a straight through back box. Makes a huge difference to the torque available, for a small increase in sound output. Oh. It increases ground clearance at the rear too.

    Last edited: Dec 3, 2016
  12. phoebecp

    phoebecp Active Member

    Joined:
    Oct 11, 2016
    Posts:
    55
    Likes Received:
    30
    Location:
    Oxfordshire
    Where did you get yours from? did you make it yourself?

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    21,440
    Likes Received:
    4,816
    Location:
    Near Newquay

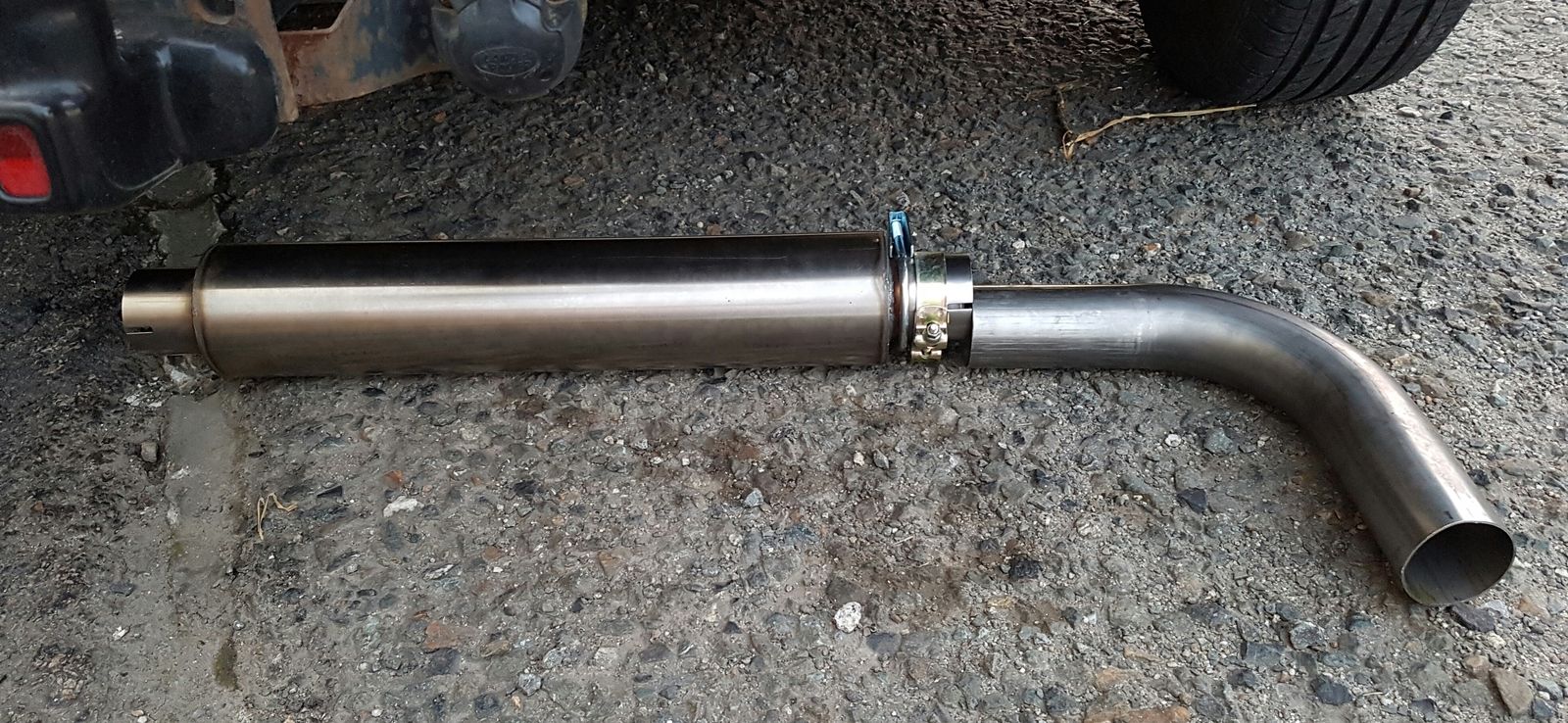

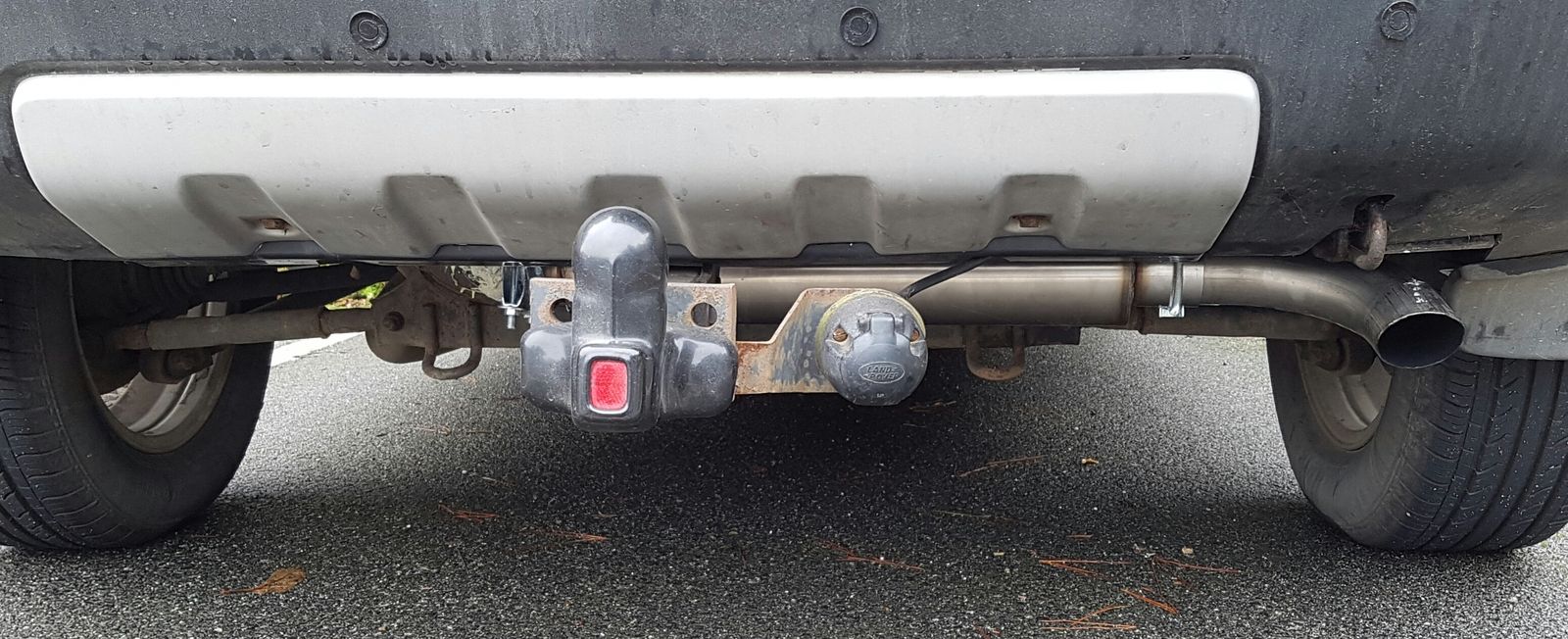

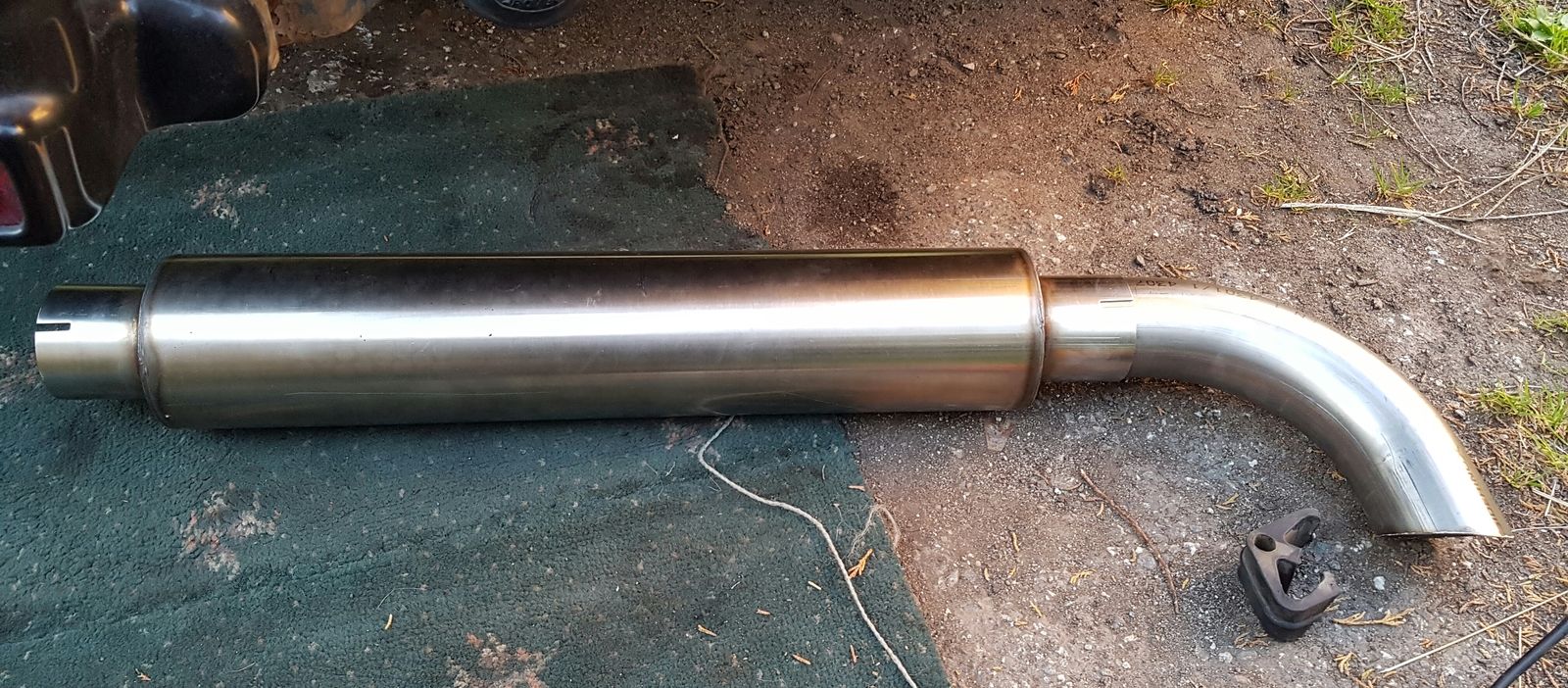

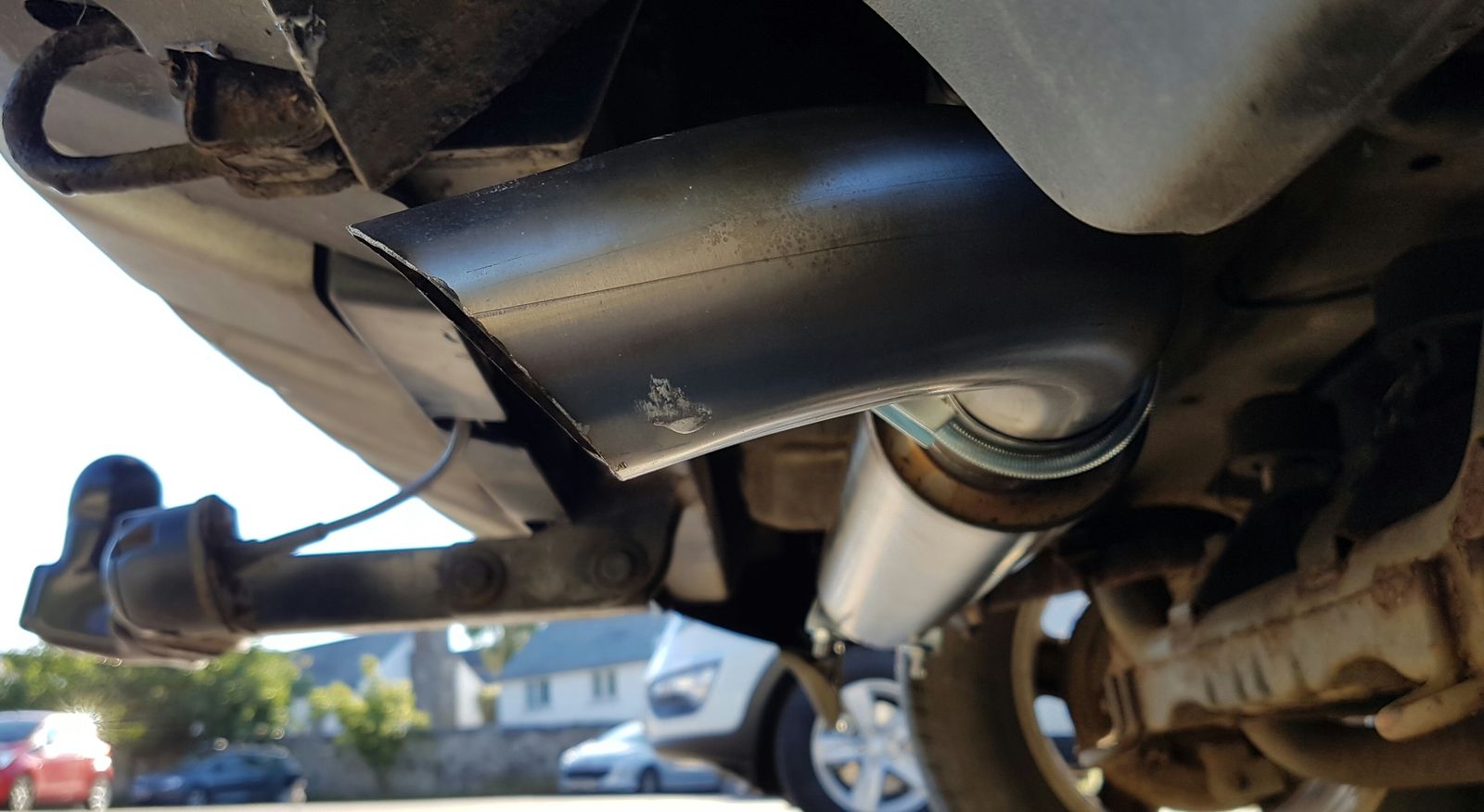

    Made it myself from a selection of stainless exhaust parts. The silencer is a 500mm straight through box with 57mm bore. The 90° elbow is 57mm OD trimmed to make it fit the body.
    U used the clamps, modified into hangers to fix it in the position I waned it.
    It works well, fits well and should outlast the car.
