dph full hose kit

Discussion in 'Land Rover Freelander' started by rich31, Sep 30, 2014.

< Previous Thread | Next Thread >
  1. rich31

    rich31 Active Member

    Joined:
    Jun 29, 2014
    Posts:
    162
    Likes Received:
    0
    hi guys , got my dph silicone hose kit today but got afew questions, so first one was they seem too big so is it ok to cut them down abit? Suprised as i thought they would fit perfectly , second question was i bought the full five piece kit but cant work out where the small straight one goes, got two in today but the lower two are going to be fun fitting as there very akward to get too, getting there now guys, got those an my mudflaps sorted next is a nice new clutch from ebay for £130 an then my side steps an fancy in car entertainment, after that some nice Bridgestone tyres then my remap at amd lakeside.

  2. SES88

    SES88 Well-Known Member

    Joined:
    Jun 29, 2013
    Posts:
    2,055
    Likes Received:
    3
    Location:
    North East
    little one goes after your MAP sensor at the front of the engine, if you don't have a map sensor then you don't need it

  3. DuncanS

    DuncanS Active Member

    Joined:
    Aug 15, 2012
    Posts:
    368
    Likes Received:
    1
    The small straight one bout an inch or two long is for the sensor on the air intake on later TD4s. They should all be the right length, certainly my kit from there was. If you purchased the 5 piece kit and you dont have a sensor then the air intake hose might be too long or short.

  4. rich31

    rich31 Active Member

    Joined:
    Jun 29, 2014
    Posts:
    162
    Likes Received:
    0
    Cheers mate, yea they all seem just a tad too long so need alittle trim

  5. Epicuser

    Epicuser Ex Freelander Owner

    Joined:
    Aug 14, 2013
    Posts:
    2,393
    Likes Received:
    8
    Location:
    North East Surrey

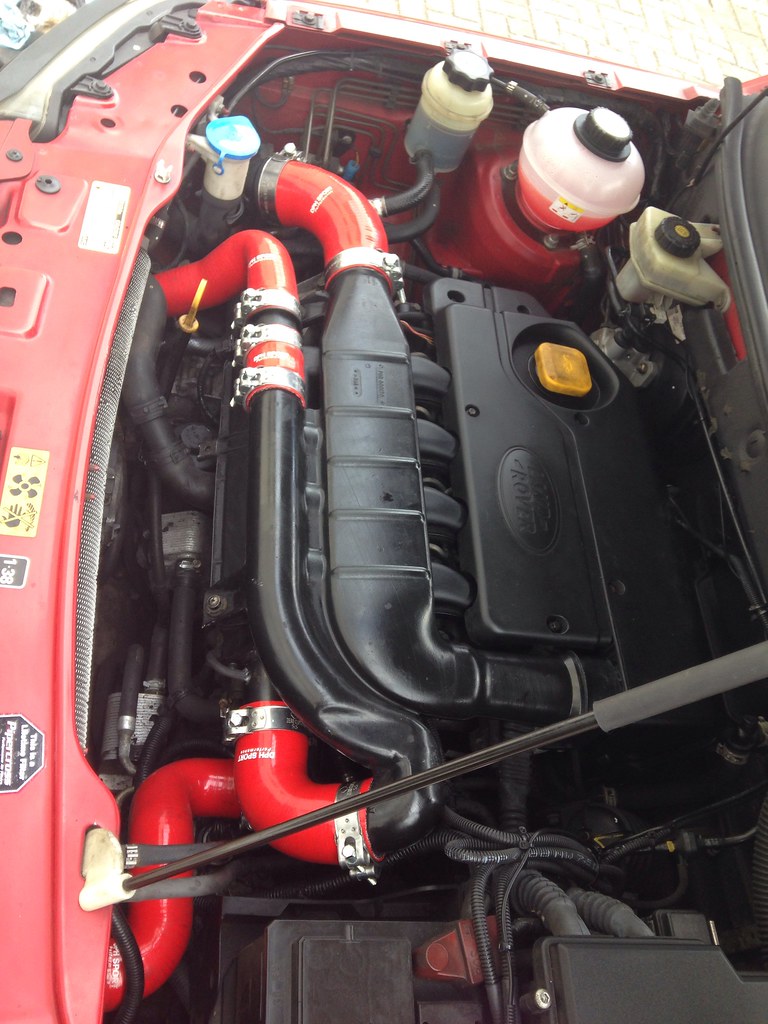

    Odd. My 5 piece were perfect. My issue was with the T bolt clamps as they all seemed too big, but they were just about perfect. Just need to tighten them right down.

    [​IMG]

  6. SES88

    SES88 Well-Known Member

    Joined:
    Jun 29, 2013
    Posts:
    2,055
    Likes Received:
    3
    Location:
    North East
    I doubt they're too long, just make sure they're pushed on far enough!

  7. Epicuser

    Epicuser Ex Freelander Owner

    Joined:
    Aug 14, 2013
    Posts:
    2,393
    Likes Received:
    8
    Location:
    North East Surrey
  8. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    mine seem to be leaking a tiny bit as there is residue all over them I have checked the clips and they are tight. I will have to have a steam clean.

  9. rich31

    rich31 Active Member

    Joined:
    Jun 29, 2014
    Posts:
    162
    Likes Received:
    0
    Ohhh the joys hey guys , ok i fitting 3 of the 5 the straight small one doesn't go on my td4 2002 but in having problems getting to the last bendy one attached to the radiator, in the pic above its the top one on the left, any tips? ive also got the red, i hear the 10 mph faster than the blue ones hahaha

  10. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    that one is a pig to get to the clip make sure the nut to it is facing towards the engine

  11. Epicuser

    Epicuser Ex Freelander Owner

    Joined:
    Aug 14, 2013
    Posts:
    2,393
    Likes Received:
    8
    Location:
    North East Surrey
    Yep. It's very fiddly and takes a long time. Persevere.

  12. SES88

    SES88 Well-Known Member

    Joined:
    Jun 29, 2013
    Posts:
    2,055
    Likes Received:
    3
    Location:
    North East
    Took me 3 hours to change all my hoses and egr, of which 2 hours was on that one hose, its a pig!!

  13. Ian jones

    Ian jones Well-Known Member

    Joined:
    May 24, 2010
    Posts:
    1,104
    Likes Received:
    9
    Location:
    north east england
    From memory , I had to shorten one of mine to reduce a kink :eek:

  14. rich31

    rich31 Active Member

    Joined:
    Jun 29, 2014
    Posts:
    162
    Likes Received:
    0
    Did you have to take of the front bumper etc to get to that one? At first i thought i may get to it from above if i unplugged the small thin hose above it but don't think that will work now as the bolt is facing the wrong way for me to get at it.

  15. Epicuser

    Epicuser Ex Freelander Owner

    Joined:
    Aug 14, 2013
    Posts:
    2,393
    Likes Received:
    8
    Location:
    North East Surrey
    No just grazed my knuckles a lot....

  16. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,224
    Likes Received:
    10,006
    Location:
    Swanley , Kent
    hi

    was there one where the plastic part of the engine was removed and extra hoses, pipes etc were fitted

    wondering as the plastic is narrow in certain parts as to whether it would help the engine breath a bit better or make no difference

    mines a td4 and been thinking of doing the silocone hoses but also thinking of removing the plastic unit and adding the extra hoses and pipes in

    thks guys and hope u didn't mind me pinching the post abit

  17. Epicuser

    Epicuser Ex Freelander Owner

    Joined:
    Aug 14, 2013
    Posts:
    2,393
    Likes Received:
    8
    Location:
    North East Surrey

    Nobody does a kit to remove the air inlet side, but one of the guys on here made his own along with fitting a massive intercooler. Don't remember his name.
