Discovery 2 Driver Side Air Bag rear wont inflate

pauldisco2 · Feb 22, 2020

Good evening, I am paul new to this thread I have a discovery 2 2001 the rear air bag on the driver side isn't inflating but the rear passenger side is inflating. I have blown 2 of the 30amp fuses for the air suspension in less than 1 hour and now the rear driver side wont inflate at all, tried jacking it up still wont inflate, when I press the lift button it just goes straight out again unless I hold it then it beeps but doesn't lift cant hear compressor running also... I was thinking maybe the relay as the fuses kept blowing?. help would be good?... thanks

jamesmartin · Feb 22, 2020

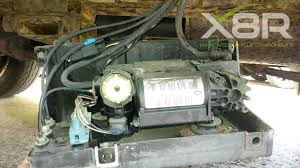

swap the 2 pipes that go to the rear ,on the left of pic,see if fault switches side then

pauldisco2 · Feb 22, 2020

ok I see 3 pipes which 2 go to the rear closest and furthest away?

jamesmartin · Feb 22, 2020

pauldisco2 said:
ok I see 3 pipes which 2 go to the rear closest and furthest away?

yes center goes to pump

pauldisco2 · Feb 22, 2020

okay ill try this tomorrow and update, thanks for your reply

pauldisco2 · Feb 22, 2020

also when I push the lift button the light goes straight out it only beeps if I hold it in....

jamesmartin · Feb 22, 2020

pauldisco2 said:
also when I push the lift button the light goes straight out it only beeps if I hold it in....

you need to get it level first and have doors shut etc,the white switch not yellow

pauldisco2 · Feb 22, 2020

yes door was open when I pushed it, thanks try this tomorrow.

jamesmartin · Feb 22, 2020

pauldisco2 said:
yes door was open when I pushed it, thanks try this tomorrow.

air suspension wont lift with the door open

pauldisco2 · Feb 22, 2020

*Update changed blown fuse 30amp* shut door pushed button and it inflated. thanks for your help.

jamesmartin · Feb 22, 2020

pauldisco2 said:
*Update changed blown fuse 30amp* shut door pushed button and it inflated. thanks for your help.

a blown fuse and a deflated bag needs looking at ,most of the time its the bag needs replacing

pauldisco2 · Feb 22, 2020

okay I will order a new set

pauldisco2 · Feb 23, 2020

okay so too the car off the jack today... both air bags were inflated... car still sagging to ground at rear... looked under passenger side top mount for the rear shock. so ordered a new 1

jamesmartin · Feb 23, 2020

pauldisco2 said:
okay I will order a new set

i was giving you a pointer ,still best to check senors are secure, you havent any other issues, a faulty bag symptom is it dropping on one or both sides overnight ,but will still raise and sit evenly once started

pauldisco2 · Feb 23, 2020

yeah rear left sensor bracket is rotten away and also top mount for shocky is gone so ordered a new one today are they easy to fit? just weld in place?..

jamesmartin · Feb 23, 2020

pauldisco2 said:
yeah rear left sensor bracket is rotten away and also top mount for shocky is gone so ordered a new one today are they easy to fit? just weld in place?..

the sensors chassis mount and shocker chassis mount?disconnect the battery before unplugging the sensor

pauldisco2 · Feb 23, 2020

yeah these are the 2 culprits.

jamesmartin · Feb 23, 2020

pauldisco2 said:
yeah these are the 2 culprits.

any pics ,chassis must be fairly rotten and have other concerns if they have rotted off

Hippo · Feb 26, 2020

Welcome to the forum
