Disco headlights
- Thread starter honkey99
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
ratty
I'm not special I'm limited edition
- Posts
- 34,277
Yes.
Define difficult? Are you a mechanical genius or are you a 6 years old who's never held a spanner?
Unfortunately we aren't mind readers on here:doh::doh::doh:
surreyrock
Active Member
- Posts
- 321
- Location
- Brooklands Surrey
Yes, thank you very much appreciated
Benny-t
New Member
- Posts
- 4
- Location
- North norfolk
I don't quite understand how's he's wired the relay?
- Posts
- 83,230
- Location
- Embasinga stocæ
have yu looked in the CFAQ section?
brian47
Well-Known Member
- Posts
- 8,867
Sadly, the post, "http://www.landyzone.co.uk/lz/f38/discovery-headlight-conversion-2003-lights-71266.html " seems to have succumbed to the photobucket payment problems
- Posts
- 83,230
- Location
- Embasinga stocæ
no it hasnt - see the pdf
Benny-t
New Member
- Posts
- 4
- Location
- North norfolk
Not so much that but it looks the the switching power for the relay is from the dip beam beam power but then it would power the main beam all the time?
- Posts
- 83,230
- Location
- Embasinga stocæ
no - see the diagram
Benny-t
New Member
- Posts
- 4
- Location
- North norfolk
So where is the switching power from?
- Posts
- 83,230
- Location
- Embasinga stocæ
....no - see the diagram
brian47
Well-Known Member
- Posts
- 8,867

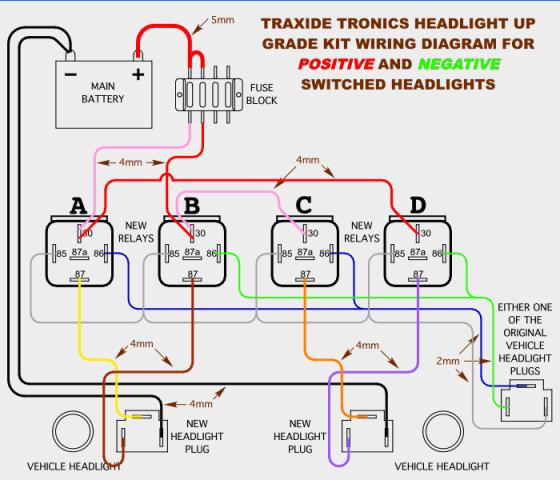

I presume that you're looking at this diagram:-
The switching voltages are provided through the existing vehicle wiring and picked up at one or other of the original headlight sockets. Whether you simply splice into the original wiring or cut the old socket away and add the new wiring instead is up to you.
The ground wire is shown as grey. The dipped (main) switching voltage is on the green wires and the main (dipped) switching voltage is on the blue wire.
NB. I've shown the filament as eg main (dipped) because I'm not in the position to identify them without much searching.
Be aware that some automotive relays have an internal diode to prevent what's called "back EMF" when they are used in electronic circuits, in which case, terminal 86 must be connected to the positive side of the circuit and terminal 85 must be connected to the ground side of the circuit. This is as it's shown in the diagram.
Standard relays without the diode will work irrespective of which way round they are connected.
