Disco 3 Turbo to EGR pipe.

Discussion in 'Land Rover Discovery' started by BigBen75, Mar 8, 2018.

< Previous Thread | Next Thread >
  1. BigBen75

    BigBen75 New Member

    Joined:
    Mar 8, 2018
    Posts:
    2
    Likes Received:
    0
    Location:
    Yorkshire
    Hi everyone, first poster here and hope to contribute more.

    I need advice please. I noticed a loss in power recently on a motorway drive home along with a strange "whirring" sound coming from the bulkhead behind the centre console under acceleration.

    Local garage has test driven it and had it on the ramp. Its been diagnosed with a leak in the cross pipe that links the turbo to the EGR. It will need replacing and by all accounts its a very difficult part to get to. 2 ways. One to remove the gearbox and the other to lift the body off the chassis. Both extremely expensive with the part also costing an arm and a leg.

    Its a 2007 disco 3( 118K miles) and I'm having to consider the cost implications versus scrapping the car for parts.

    Is there any way to get to this pipe without the costly measures stated above? Apart from this problem the Disco is great and ran brilliantly so I don't want to have to scrap it.

    What would I expect to get for it without the work done ?

    All advice very much appreciated.

  2. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent
    I think you dind its called a crossover pipe and is what links the right hand engine back to the turbocharger and has nowt to do with the egrs.
    They tend to fail due to lack of support after any big gearbox repairs.
    There was a thread on the D3/4 forum where a guy did one in situ, but apparently it was a pig of a job!
    I will go and find a pic

  3. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent

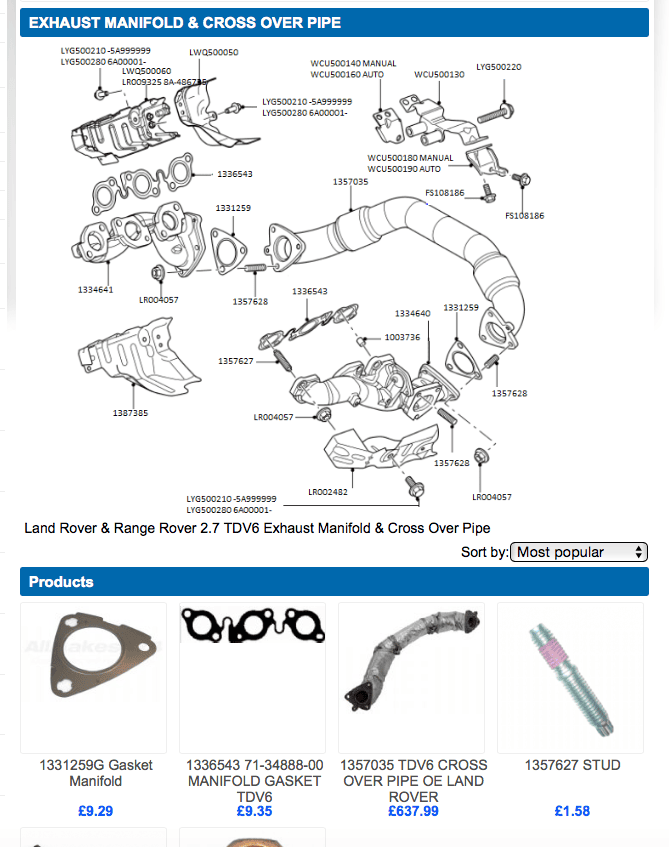

    Pics its the white pipe and is bloody dear!

    Screen Shot 2018-03-08 at 15.10.10.png


    Screen Shot 2018-03-08 at 15.11.16.png

  4. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent
    You could just auction it off, cough cough!

  5. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent
  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,998
    Likes Received:
    4,837
    Location:
    Swanley , Kent
    after reading that thread i see it can be done without removing the body and gearbox, learn something every day as i always thought that was the only way

    wasn’t there also someone on the D3 forum who had second hand cross over pipes , re welded them and then sold them

    those prices are indeed eye watering and imagine the guy who done the work saved a serious amount of cash

    there was another one i saw who hired a small crane and lifted the body off on his driveway , then done all the hard jobs whilst the body was removed , think it was the aussie forum???

  7. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,998
    Likes Received:
    4,837
    Location:
    Swanley , Kent
  8. BigBen75

    BigBen75 New Member

    Joined:
    Mar 8, 2018
    Posts:
    2
    Likes Received:
    0
    Location:
    Yorkshire
  9. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,998
    Likes Received:
    4,837
    Location:
    Swanley , Kent
    @BigBen75

    hi and welcome to the asylum

    hope u get it all sorted and u keep ur sanity after picking the bill up, lol

    at least those robbing **** dealers won’t be able to rip u off

    may i ask plse , assume you’ve had the front / rear belts and oil pump cover done

  10. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent
    Any sensible mechanic would run very very fast and then ring in sick!

    freelance and gstuart like this.
  11. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,248
    Likes Received:
    881
    Location:
    Surrey / Hants border
    @lynall - Thanks for posting this, I don't feel quite so rogered now, having paid £240 for a turbo oil return pipe for my MAN truck :eek:

  12. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent

    What was wrong with the oil return pipe?
    I dont think I have ever changed one on a truck ever, gaskets and turbos yes but not the pipes.

  13. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,065
    Likes Received:
    1,573
    Location:
    essex and beyond
    I would tackle it.............







    On our disco 4, not prepared to lose the plot on someone else’s, sorry..

  14. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,248
    Likes Received:
    881
    Location:
    Surrey / Hants border

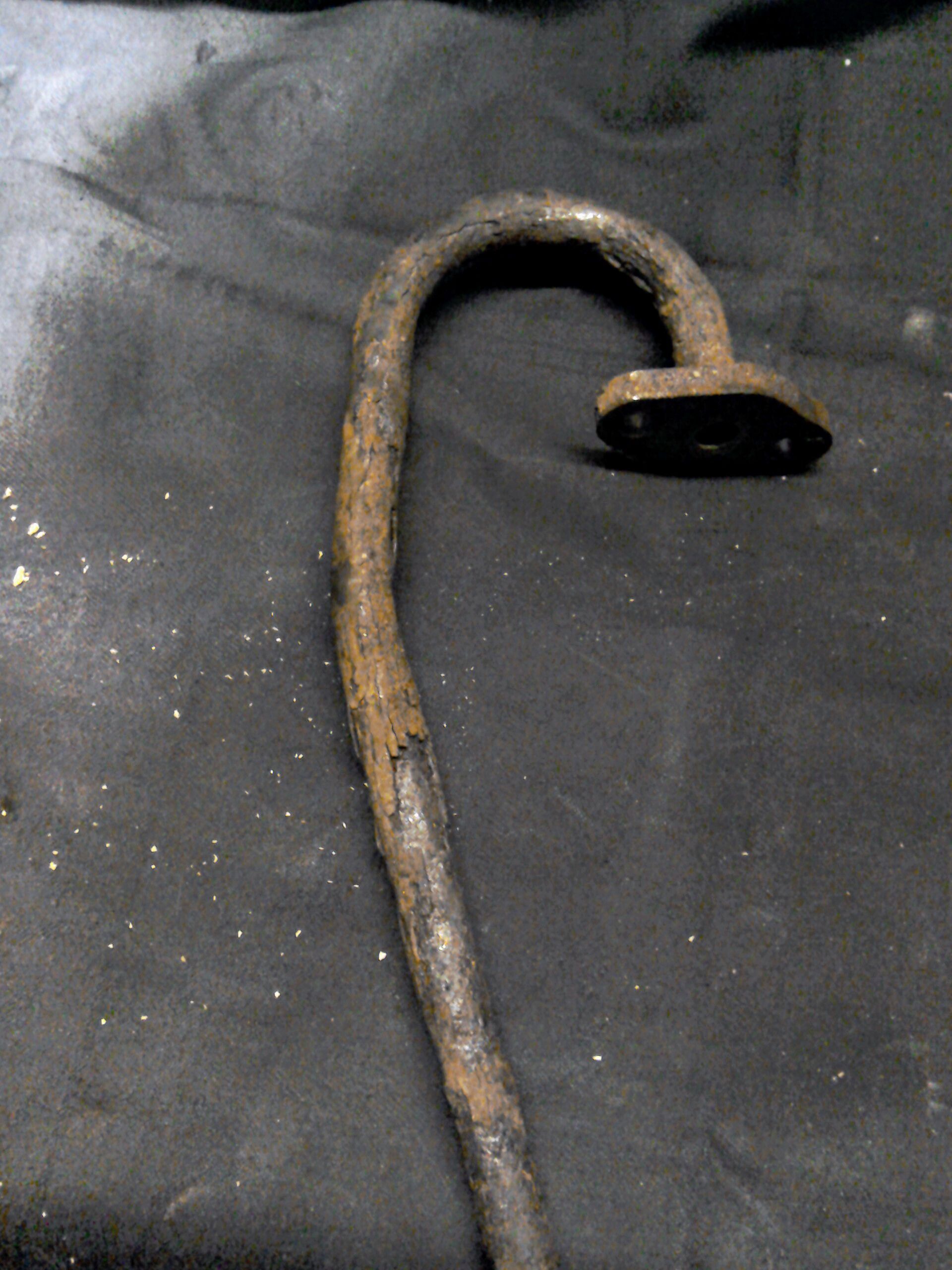

    Both the feed and return pipes were badly corroded, they look like a bit of gnarly tree branch - the return pipe is still on the truck at the moment, but here's the feed:-


  15. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent

    Whooaa thats seriously bad!
    Is it on a horsebox or something along those lines?

  16. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,248
    Likes Received:
    881
    Location:
    Surrey / Hants border
    It is, yes. I suspect it's been a horsebox for a large chunk of its life, given the state of the engine. The design of the box means its not a tilt cab anymore, and to get to the engine you have to take the seats out, take the carpet out and then remove about 20 screws to take off the rather crudely cut engine cover. It doesn't encourage preventative maintenance, that's for sure!
    It also doesn't help that horse owners will spend any amount of money on a horse and its welfare, but when it comes to the transport - Nah, just bodge it up for the plating!
    So while I'm there it's getting a new turbo & oil pipes, compressor cooling pipes, fan belt and alternator. Oh, and a new throttle cable!

  17. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    7,977
    Likes Received:
    2,100
    Location:
    Kent
    I thought so as most truck engines have a slight misting of oil around round the oil pipes to turbo gaskets and yours is bone dry and rotten.

    Last time I saw a truck with a mechanical throttle must have been around 1993/4:D

  18. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,248
    Likes Received:
    881
    Location:
    Surrey / Hants border
    You're getting good at this! It's a 1994 MAN L2000 8.153, and a bit of a challenge to get bits for if you don't want to bend over at the dealers parts counter - thank gawd for the internet. And yes, oil-wise, it's 'as dry as a buzzard crutch' on that side of the block. The exhaust end of the old turbo is so corroded it looks like it came of a shipwreck.
