Disco 1 300tdi header tank ?

cornish rattler · Jul 26, 2021

Hi guys
Can anyone tell me if the screw on cap on a disco 300tdi header tank is vented please.

I'm currently running an aftermarket ally header tank and the bottom rad hose blew off on the way back from Blackpool today managed to sort it temporarily but think the problem is the screw on cap to header tank is not vented

brianp38dse · Jul 26, 2021

Most of the caps have a pressure relief part to them, if it exceeds the design pressure of the system it dumps the coolant

cornish rattler · Jul 26, 2021

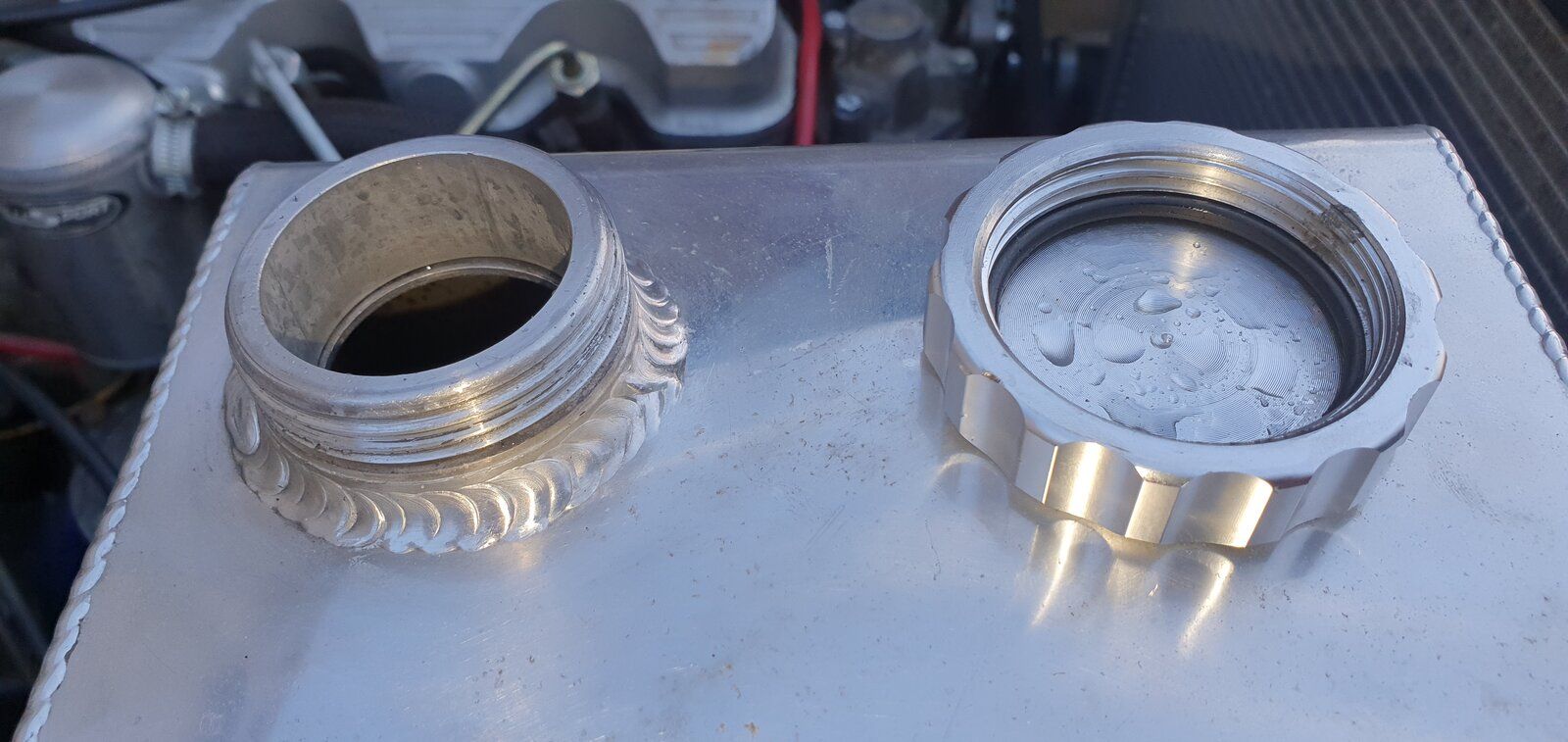

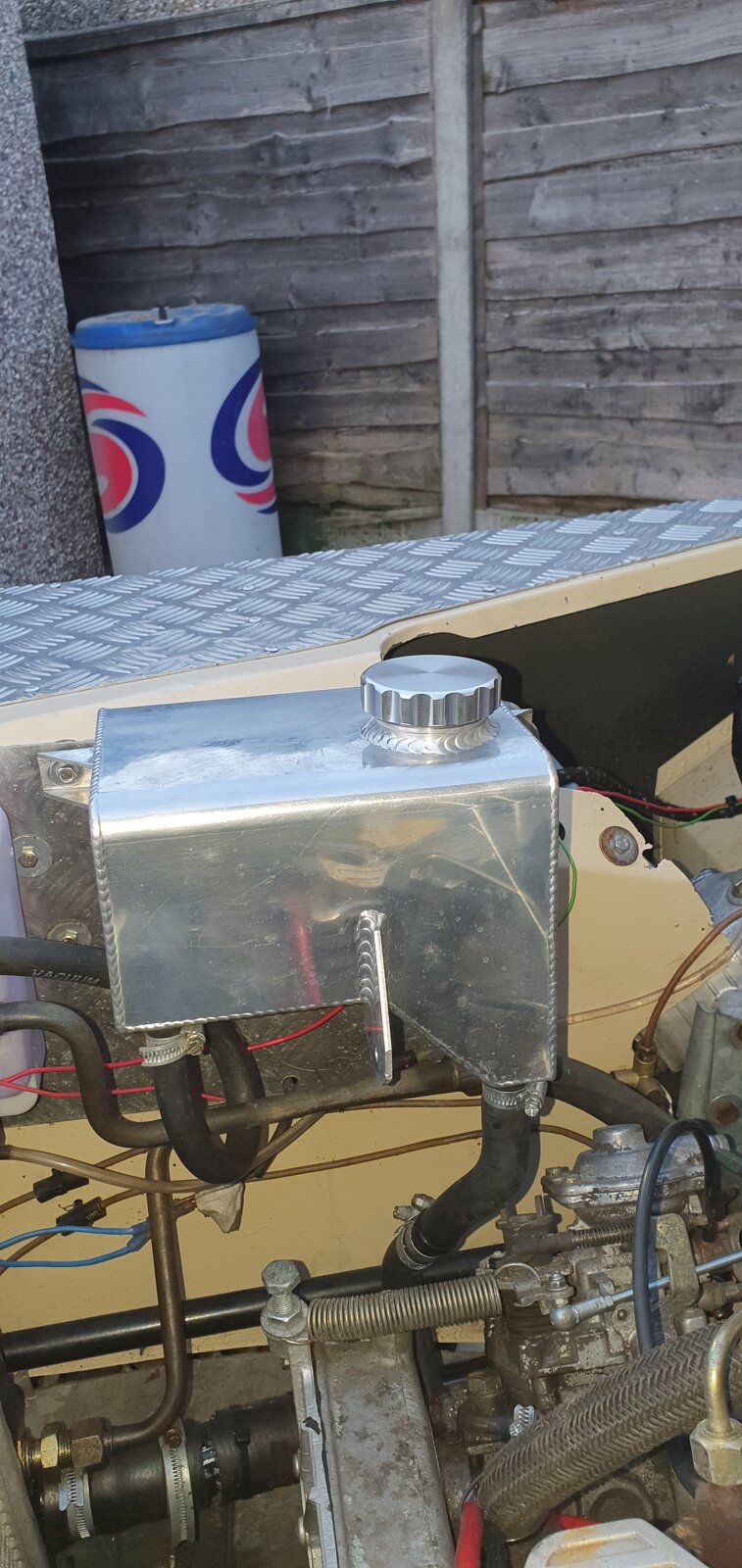

This is what i'm running

Hicap phill · Jul 26, 2021

There is no vent on that cap.

cornish rattler · Jul 26, 2021

Hicap phill said:
There is no vent on that cap.

That's what i was thinking but i don't know why i didn't notice it when i first bought it and fitted it

Does the Disco 300tdi header tank cap have a vent if so i will replace the whole header tank and cap for a Disco one

Knappster · Jul 26, 2021

Would the disco cap fit? Or does the manufacturer of the alloy tank make a separate vent to put in the system?

cornish rattler · Jul 26, 2021

Knappster said:
Would the disco cap fit? Or does the manufacturer of the alloy tank make a separate vent to put in the system?

Not sure but i've just looked on ebay where i bought mine from and they now do one with a twist type cap like on a radiator and an over flow pipe neck

kevstar · Jul 26, 2021

I had the allysport full set up the header tank takes the original cap, ran mine for years without an issue.

Part no NTC7161

Ratae · Jul 27, 2021

NTC7161 shows as 15psi.
Genuine Land Rover Expansion Bottle Cap - NTC7161 | Rimmer Bros

cornish rattler · Jul 28, 2021

Cheer's guys i've ordered a new clear plastic header tank plus cap

cornish rattler · Jul 30, 2021

Knappster said:
Would the disco cap fit? Or does the manufacturer of the alloy tank make a separate vent to put in the system?

Just to aswer your question my new header tank cap came today and it does fit the ally header tank but i will still use the new see through one wnen it comes though

cornish rattler · Jul 31, 2021

New expansion tank and cap fitted, will post pic's later

discool · Jul 31, 2021

cornish rattler said:
New expansion tank and cap fitted, will post pic's later

Now doubt its the same as any 300 series D1 diesel or petrol thats fitted with the genuine item. The cap has two valves as the cooling system is closed circuit. The 200 series D1 or an early RR wasn’t of course.

cornish rattler · Jul 31, 2021

Yeah its a 300 tank and cap

cornish rattler · Jul 31, 2021

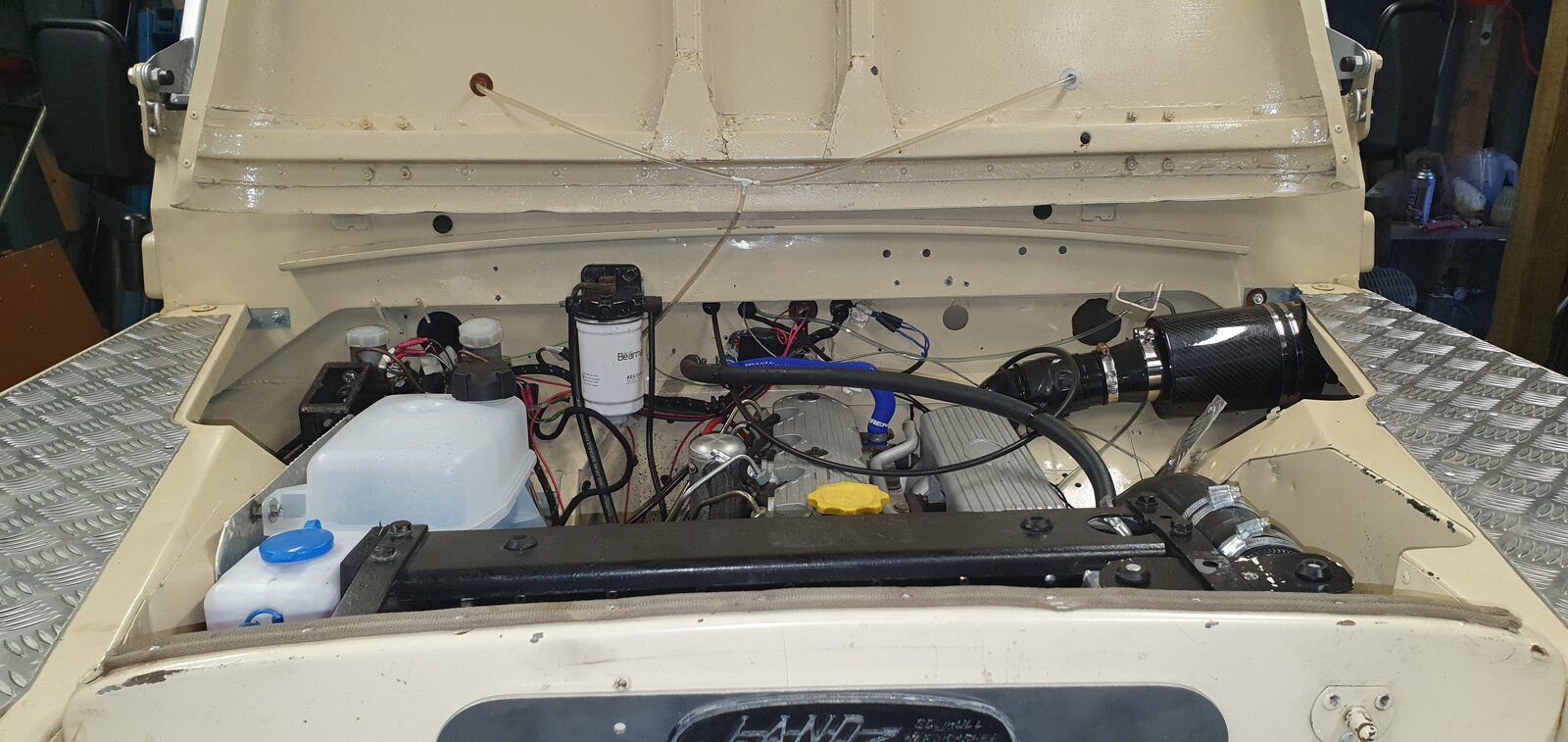

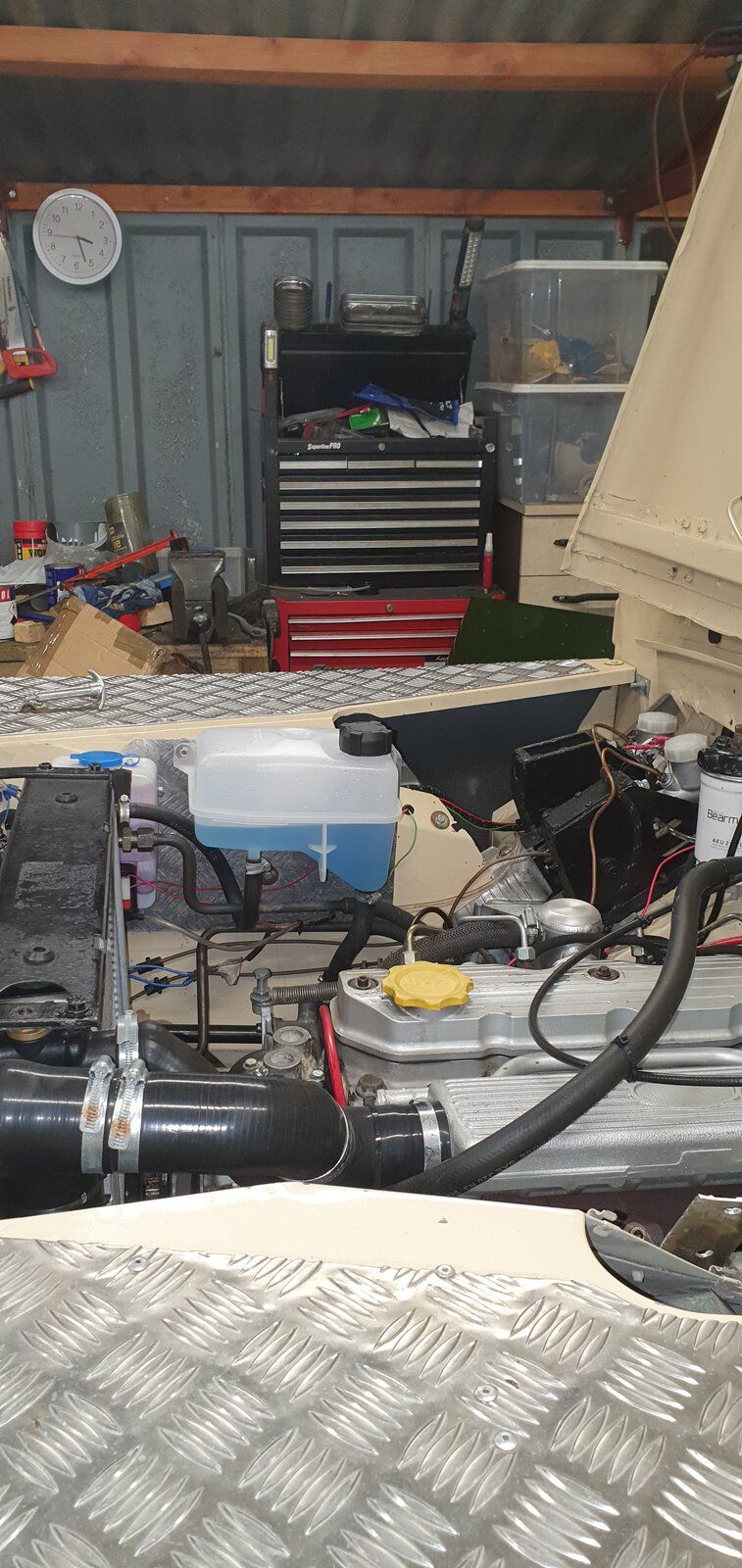

Here you go

kevstar · Jul 31, 2021

cornish rattler said:
Here you go View attachment 244287 View attachment 244288

Spanky clean in there init

Disco1BFG · Jul 31, 2021

I likez the see through tank cos you can see the water pump working* .... tis reassuring

( wiv the injun running !

)

Hicap phill · Aug 1, 2021

kevstar said:
Spanky clean in there init

@v8250 should see what a neat engine bay is really like

v8250 · Aug 1, 2021

Hicap phill said:
@v8250 should see what a neat engine bay is really like

Ooooh, clean engine bay, lovely...

Knappster · Aug 1, 2021

Nice!
