Disco 1 300tdi auto electrician needed

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Have you checked the battery earth to the body and also the earth cable from the battery to the engine block?

The easiest way to check as to wether it has lost the body eart is to use the black cable from a set of jump leads.

Attach 1 end to the battery negative terminal and attach the other end to a good body earth point, door striker mount on the 'B' pillar or front door check strap mounting.

When attached, try your indicators and see what happens

Last edited:
ive checked battery and body earths but still happening , need indicator back its gettin dodgey now without it . wen it happens theres a buzzing from inside top of dashboard ,in the right hand corner ??? help

come on guys i need help ! tryed loads of stuff but no luck . changed indicator stalk still the same , checked every earth i can find , theres a buzzing coming from sumwere behind steering wheel , heard some one mention multi function unit ? wer is it and wots its do ??? left hand indicator ok just right hand and lights causing prob ? hi beam ok HELP i cant get my head round it .

midnite moocha said:
come on guys i need help ! tryed loads of stuff but no luck . changed indicator stalk still the same , checked every earth i can find , theres a buzzing coming from sumwere behind steering wheel , heard some one mention multi function unit ? wer is it and wots its do ??? left hand indicator ok just right hand and lights causing prob ? hi beam ok HELP i cant get my head round it .
Click to expand...

Land Rover Owner :: View topic - Testing the Multi-function unit

http://google.mg-rover.org/showthread.php?t=5207

Last edited:

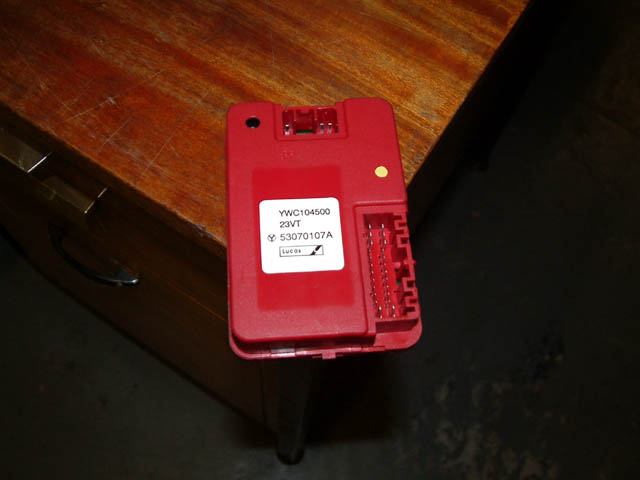

MidnitemoochaThis is the picture of the MFU from the MG. Rover .org site. Just in case you can't get into it.

Sierrafery - The link to the diagnostics for the MFU is very useful, thanks.


Attachments

  • MFU.jpg
    46.2 KB · Views: 263
there is a test you can do to the MFU where you hold a button down as you turn the ignition on. Its the button at the top of the left column. cant remember what that is. Wait for it to beep, let go. Then push it again. It will go thru all the stuff that it can test and show u what is and isnt working. will post a link if i can find it
