Disco 1 Diff thread help.

[Critical Mick]

I recently bought a Wild Bear wraparound rear diff guard. It came supplied with 2 M10 bolts to fasten one end to the existing holes in the underside of the diff but when I came to fit it the bolts were too wide. I tried an M8 but it was too loose. So does anyone know what the correct thread for these holes is, or are they actually M10 and just need a tap running in to clean them up?

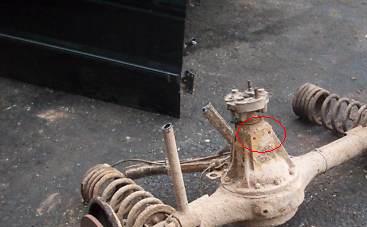

I've nicked a picture from the internet and circled the holes I'm on about.

Thanks in advance for any light you can shed on this.



[pete1987RRC]

Possibly imperial



[Flossie]

I tapped them out to m10 on my 110.
Couldn't be bothered with finding out what they actually were and I wanted to use stainless steel bolts cos I had a load of them.



[Critical Mick]

I tapped them out to m10 on my 110.
Couldn't be bothered with finding out what they actually were and I wanted to use stainless steel bolts cos I had a load of them.

I think that's probably what I'll end up doing.



[jamesmartin]

I recently bought a Wild Bear wraparound rear diff guard. It came supplied with 2 M10 bolts to fasten one end to the existing holes in the underside of the diff but when I came to fit it the bolts were too wide. I tried an M8 but it was too loose. So does anyone know what the correct thread for these holes is, or are they actually M10 and just need a tap running in to clean them up?

I've nicked a picture from the internet and circled the holes I'm on about.

View attachment 114386
Thanks in advance for any light you can shed on this.

those bolt hole threads are bsf



[Paul D]

I sent an email to QT, they sent a pair of bolts, correct size, back in the post FOC.
