Diesel pump leaking

Discussion in 'Range Rover' started by Andy1993, May 16, 2018.

< Previous Thread | Next Thread >
  1. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough

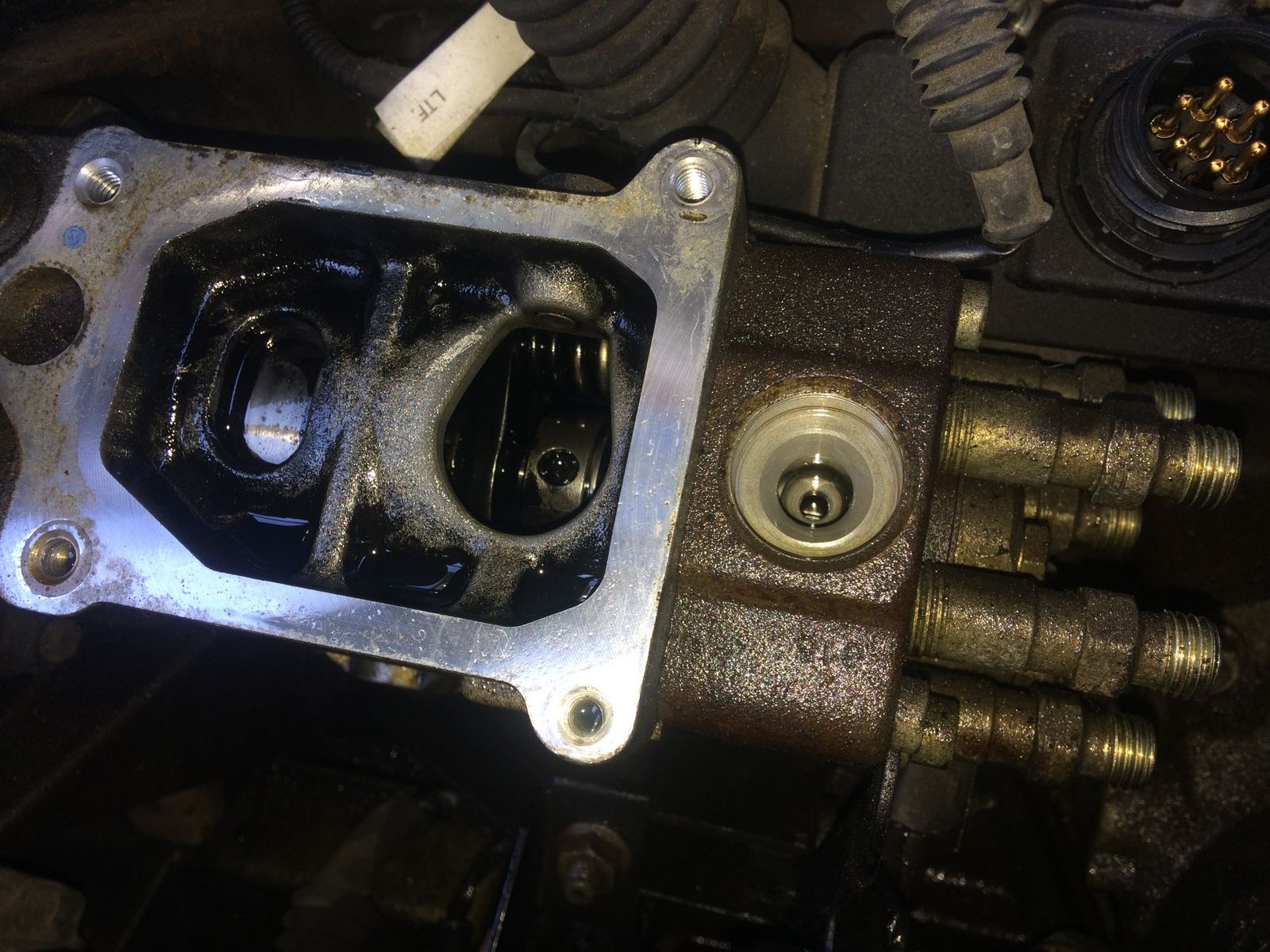

    ok seen the videos of how it is done tryed to do it yesterday with bosh seal kit got it all back together and it leaks striped it back down to find the new o ring destroyed have been told to use a viton o ring we’re to get one from and what size do I need to get


    Attached Files:

  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,661
    Likes Received:
    6,455
    Location:
    Preston Lancs.
    You did it wrong then. All new seals kits should be Viton. The original seals fitted do not like the additives in modern diesel.

  3. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,373
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    Not surprised. I was playing with diesel at the weekend. The old stuff actually felt oily on your fingers. The modern stuff is more like petrol. I kept sniffing it to make sure I was dealing with the right stuff. very strange.

    There are Bosch pump seal kits on eBay for around £15-£20. That's where I got mine from anyway. Same pump on Rangie, Omega, BMW, some Volkswagens.

    Turboman likes this.
  4. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    31,466
    Likes Received:
    21,854
    Location:
    Continuously Cruising
    I agree. Modern diesel with no sulphur and a lot of bio, is a very dry fuel, which doesn't lubricate pump internals like it used to.

    I always use a lubricity additive, like Eco Max, in older engines.

    Grrrrrr likes this.
  5. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,373
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    That's a good tip. Can you feel the difference with your fingers? I don't think there's much lubrication in the diesel I put in: it was bog-standard ESSO stuff. i don't want another FIP failure.

    Turboman likes this.
  6. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    31,466
    Likes Received:
    21,854
    Location:
    Continuously Cruising
    Eco max is incredibly slippery, and you can feel it between your fingers. I don't think that is recommended, though, it is probably pretty toxic.
    It also adds a few cetane numbers to the fuel, so you should get good MPG.
    And it isn't that expensive, due to the high dilution that is used.
    Some people mess around with 2 stroke oil, I have not seen good results from doing that, I have never seen how it would match up to a purpose designed product.

    Other excellent fuel additives are available.

  7. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough
    The new seal was green colour have tryed again today with another one checked all round pump and it was sat in grove nice cairfuly did it up so it went in nice and square and still leaking from there so it’s somebody it again Amy idias what am I getting wrong with it

  8. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    31,466
    Likes Received:
    21,854
    Location:
    Continuously Cruising
    Could be wear on the shaft where the seal has been riding on it.

  9. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,661
    Likes Received:
    6,455
    Location:
    Preston Lancs.
    There is no shaft to wear. It is the O'ring seal pressure head to pump body.

    Turboman likes this.
  10. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    31,466
    Likes Received:
    21,854
    Location:
    Continuously Cruising
    Fair enough, hadn't been following it. I assumed it was round a rotating shaft.

  11. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,661
    Likes Received:
    6,455
    Location:
    Preston Lancs.
    If it is well lubed up and carefully fitted it should be a simple task.

    Turboman likes this.
  12. kapilamuni

    kapilamuni Active Member

    Joined:
    Sep 9, 2011
    Posts:
    543
    Likes Received:
    42
  13. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,981
    Likes Received:
    1,703
    Location:
    wirral and triquivijate
  14. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough
    Second attempt tomorrow striped it back down ready can only think it didn’t go in perfectly squere when I tightened it up but I did do each bolt a bit at a time trying to keep it all squere will have got some bolts with smooth shanks to use really gutted it’s not gone right tryed so hard with it

  15. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,373
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    Those pumps fight back. Getting it tightened up without movement is very hard, even when you've scored it on all sides.

  16. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough
    Done the leak sent u message as have it up and running but still have a issue and liking for some help runs and starts revs ok until it touches tickover then it won’t rev

  17. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,373
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    With a warm engine, what rpm is it ticking over at?

  18. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough
    Sorted it running nice now thanks for help

  19. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,732
    Likes Received:
    478
    Location:
    Near Poitiers SW France
    So enlighten us, what was the problem?

  20. Andy1993

    Andy1993 Member

    Joined:
    May 16, 2018
    Posts:
    14
    Likes Received:
    1
    Location:
    Loughborough
    Tryed a different make o ring black one fitted and no leak at all running well now starts on morning better than it ever has done

    Grrrrrr likes this.
