Discussion in 'Defender 90 / 110 / 130' started by smurf500, Jul 29, 2012.

< Previous Thread | Next Thread >
  1. smurf500

    smurf500 Member

    Joined:
    Mar 24, 2008
    Posts:
    85
    Likes Received:
    0
    hi can anybody help please.can i get switches that will fit in dash on a defender td5 or puma.i have a picky customer who does nt want dash cut about or use pattern switch he already has front foglight switch so that is out. i am looking for a blank or one that has emblem for beacon or rear worklight.cant use mudstuff or carling switches only genuine or ones that will fit in dash.thanks for the help

  2. chunkymunky

    chunkymunky New Member

    Joined:
    Aug 11, 2011
    Posts:
    9,901
    Likes Received:
    2
    Location:
    worcestershire
    Tell him land rover never did them, end of

  3. PaulMc

    PaulMc Active Member

    Joined:
    Apr 10, 2006
    Posts:
    584
    Likes Received:
    10
    Location:
    Kent


    Use the Puma Heated Seat switch YUF500150LNF (around a fiver :) ), and swap the heated seat switch cap for one off of a switch blank.

    You can drill a 2.5mm hole in the blank cover, so that the Orange 'tell-tale' LED can be used to indicate when the switch is 'on'.

    Have a look here - Land Rover Owner &bull; View topic - Def >2004 Dash Switches without graphics


    If you're good with an engraving tool, you can engrave your own legend on to the blank cover.


    YUF500150LNF is a live-switching, latching on/off switch, unlike most of the other switches that either switch the earth, or are momentary switches.

    It uses the Black 5-way switch connector, which I sell on eBay, see link in my signature.

    It's wired, as follows -

    Pin 1 - Live in from fused supply
    Pin 2 - Dash illumination
    Pin 3 - Not used (but is internally connected to Pin 5 - Earth)
    Pin 4 - Switched live out to accessory
    Pin 5 - Earth

    .

  4. Dave90

    Dave90 Well-Known Member

    Joined:
    Mar 12, 2011
    Posts:
    2,849
    Likes Received:
    0
    Location:
    No Network Coverage
    Carling switches look quite 'factory fitment'

  5. Mk1collector

    Mk1collector Active Member

    Joined:
    Jul 26, 2012
    Posts:
    403
    Likes Received:
    17
    Can I ask where you get the heated seat switches for a fiver as I can only find them for around £15 up

  6. PaulMc

    PaulMc Active Member

    Joined:
    Apr 10, 2006
    Posts:
    584
    Likes Received:
    10
    Location:
    Kent


    Any Land Rover Main Dealer, or any of these -


    Switch Assy - Genuine Land Rover at www.rimmerbros.co.uk


    Britcar (UK) Ltd > YUF500150LNF SWITCH ASSY HEATED SEATS DEF 2007> (G)


    YUF500150LNF | Switch Assy


    YUF500150LNF SWITCH ASSY | shop | www.lrseries.com | L. R. Series


    Land Rover SWITCH ASSY - YUF500150LNF


    Some are cheaper than others, but they're all around a fiver :)

    .

  7. Mk1collector

    Mk1collector Active Member

    Joined:
    Jul 26, 2012
    Posts:
    403
    Likes Received:
    17
    That's brilliant cheers
    Ray :)

  8. Mk1collector

    Mk1collector Active Member

    Joined:
    Jul 26, 2012
    Posts:
    403
    Likes Received:
    17
    Ok, I've looked into this a bit deeper and for anyone wanting to put heated seat switches in the original place on a defender td5 (lower down at either side of the centre console) you need part number Yug102430lnf this is listed as a left hand switch and yug102440lnf is the right hand switch. The ones on the post above sit on the top row of the dash and will also work but if your after authenticity these will fit where Landrover intended :) hope this helps
    Ray

  9. ratty

    ratty I'm not special I'm limited edition Global Moderator

    Joined:
    Sep 18, 2007
    Posts:
    34,277
    Likes Received:
    47
    Location:
    Stuck in a ditch somewhere in Somerset
  10. smurf500

    smurf500 Member

    Joined:
    Mar 24, 2008
    Posts:
    85
    Likes Received:
    0
    thank you boys for all your help

  11. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    867
    Likes Received:
    571
    Location:
    KENT
    Fitted the Waeco seat heaters, with Puma heated seat switches to my TD5 today.
    It was V easy took no time and now I have a warm bum!

    Thanks to PAUL on here for switch pin outs etc

    Bought a stack of heated seat switches from Rimmer bros, £4.95 each.

    Pop the front off, and now i have positive switching latching switches for :

    next projects!!

    • 2nd Fog light
    • Heated screen
    • External Floods
    • External Anderson 12V HD take off.

  12. Five Pots

    Five Pots Active Member

    Joined:
    Jan 19, 2008
    Posts:
    655
    Likes Received:
    2
    Location:
    Fordingbridge

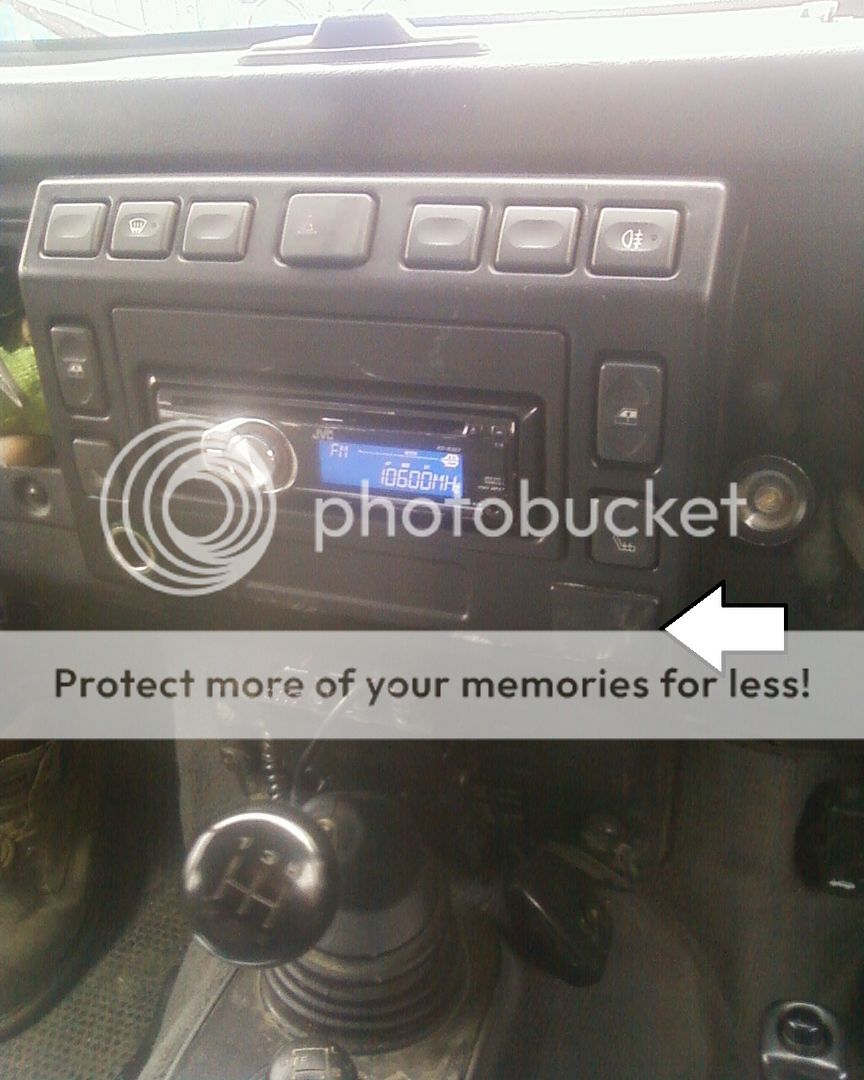

    Good advise on the switches - cheers. But does anyone know what this blank is for?

    [​IMG]

  13. PaulMc

    PaulMc Active Member

    Joined:
    Apr 10, 2006
    Posts:
    584
    Likes Received:
    10
    Location:
    Kent

    Headlamp levelling switch - AMR5874 for 90, AMR5875 for 110 -

    [​IMG]

    [​IMG]

    .

    Last edited: Jul 25, 2016
  14. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    867
    Likes Received:
    571
    Location:
    KENT
    I have fitted a double usb socket, as I still have a few things that need a standard fag lighter, such as my 12v kettle!

    Maybe its for an ejector seat?

    :)
