Hi all. I’ve got a broken connector pin on the loom of my ‘87 110

and I’d like to source a new connector.

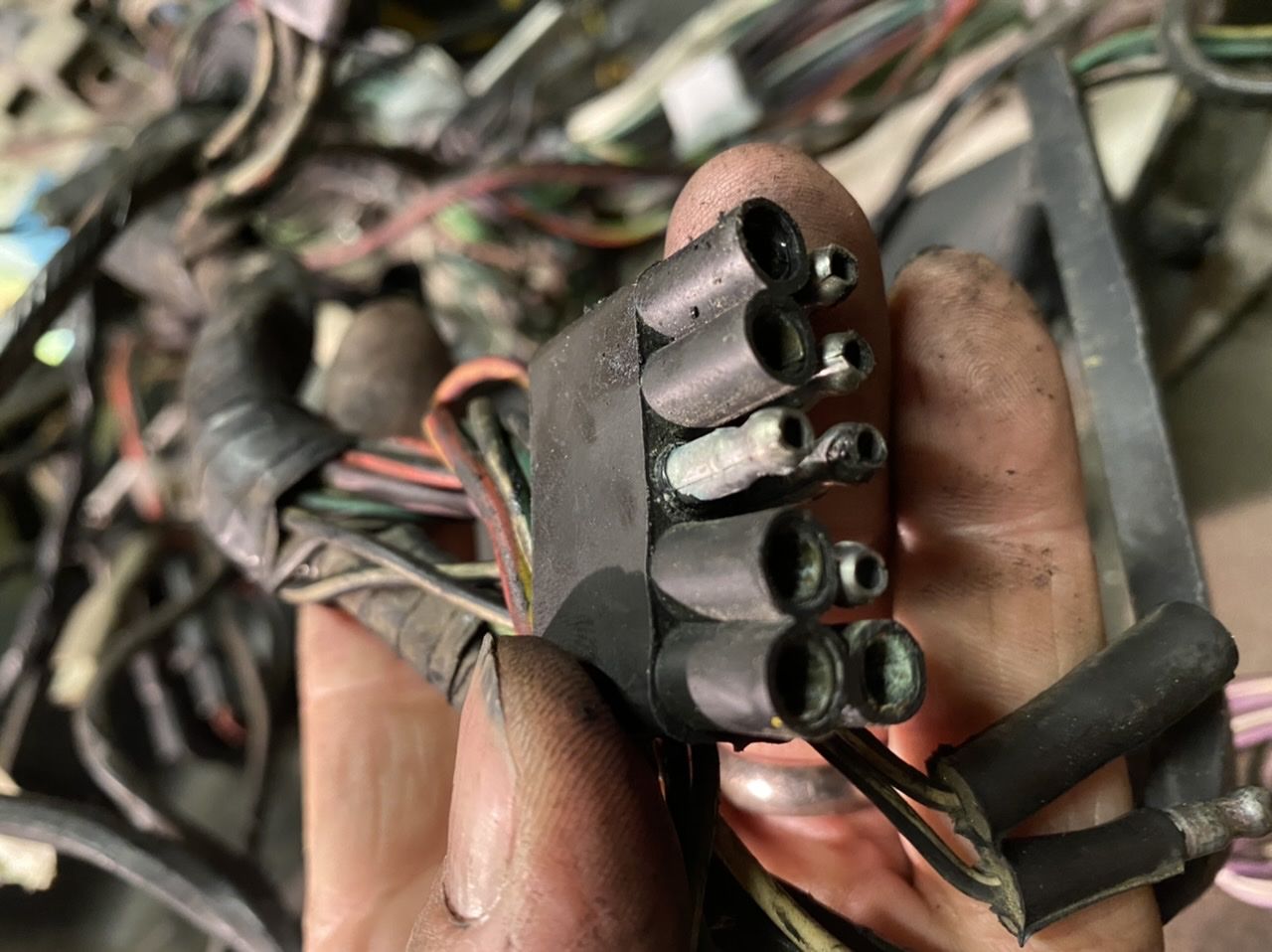

Can anyone tell me the connector make and model as in the picture, and maybe a source of supply?
Many thanks.

brianp38dse · Jun 22, 2021

They were made by Lucas
try this company
https://www.autosparks.co.uk/electrical-components/bullets-connector-sleeves

congo181 · Jun 23, 2021

brianp38dse said:
They were made by Lucas
try this company
https://www.autosparks.co.uk/electrical-components/bullets-connector-sleeves

Thanks for the link.
They were most helpful and pointed me in the direction of some alternatives. Unfortunately the loom is made using moulded connectors and so requires a replacement connector.

v8250 · Jun 23, 2021

The original Lucas RIST rubber connectors can be repaired. Slide out the faulty male pin with a pair of long nose pliers and cut off male bullet. Fit new bullet to wire, then use WD40 as a light lubricant on both the connector and pin. Re-fit bullet, job done.

Oh, the bullet size I forget but they're readily available from Autosparks and AES.

congo181 · Jun 23, 2021

v8250 said:
The original Lucas RIST rubber connectors can be repaired. Slide out the faulty male pin with a pair of long nose pliers and cut off male bullet. Fit new bullet to wire, then use WD40 as a light lubricant on both the connector and pin. Re-fit bullet, job done.

Oh, the bullet size I forget but they're readily available from Autosparks and AES.

Thanks for that. I’ll give that a go.
