Defender 90 Turbo Cartridge Replacment

Discussion in 'Defender 90 / 110 / 130' started by micknkatenki, Jun 14, 2018.

< Previous Thread | Next Thread >
  1. micknkatenki

    micknkatenki Active Member

    Joined:
    Sep 16, 2012
    Posts:
    422
    Likes Received:
    25
    Location:
    Lincolnshire
    Hi,

    anyone know what sort of job it is to replace the turbo center cartridge (the bit where the fins/bearings are)

    Thanks

  2. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    11,887
    Likes Received:
    6,314
    Location:
    Kent
    Ive never done one, but bet you pound to a penny all the bolts will be seized and shear off, but if the cartridge is cheap enough got to be worth a go?

    micknkatenki likes this.
  3. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    41,306
    Likes Received:
    35,366
    Location:
    Continuously Cruising
    Like he says^^^^, all the fixings will likely be rusted solid. And the cartridge might start wobbling about and eat the turbo.
    Interesting job, though, let us know how you get on.

    micknkatenki likes this.
  4. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,993
    Likes Received:
    8,412
    Location:
    Oxfordshireness
    Depending on how much the cartridge is, you can get complete recon turbos fairly cheaply.

    Cheers

    micknkatenki and Turboman like this.
  5. danny6801

    danny6801 Well-Known Member

    Joined:
    Sep 19, 2012
    Posts:
    1,652
    Likes Received:
    51
    Location:
    North Wales
    I've done this job once before make sure you spray all the nuts for a few days before attacking it. Apart from that its fairly easy Mine has done 10k with no issues.

    micknkatenki likes this.
  6. reiny

    reiny Active Member

    Joined:
    Nov 14, 2012
    Posts:
    549
    Likes Received:
    58
    Location:
    Malta
    I changed mine last year. Buy one from a reputable firm, no chinese crap. I bought it from www.turbo-rebuild.co.uk. it's a Mellett (not sure if I spelt it correctly), which is the original manufacturer.

    Very straightforward swap however I did have to heat the bolts up with an oxy-acetylene torch. They are only accessible with an open-jaw spanner hence very easy to round off unless you heat them well.

    micknkatenki likes this.
  7. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,549
    Likes Received:
    3,941
    Location:
    Shropshire
    @reiny
    Link dont work ,for me anyways.

  8. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    11,887
    Likes Received:
    6,314
    Location:
    Kent
    Be aware that once you have heated a bolt to cherry red, if it should snap drilling it is almost impossible without exepnsive drill bits.

    micknkatenki and Turboman like this.
  9. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    23,962
    Likes Received:
    8,047
    Location:
    Swanley , Kent
  10. Jonmlb748

    Jonmlb748 Member

    Joined:
    Dec 20, 2014
    Posts:
    39
    Likes Received:
    13
    Location:
    Calvia,Mallorca

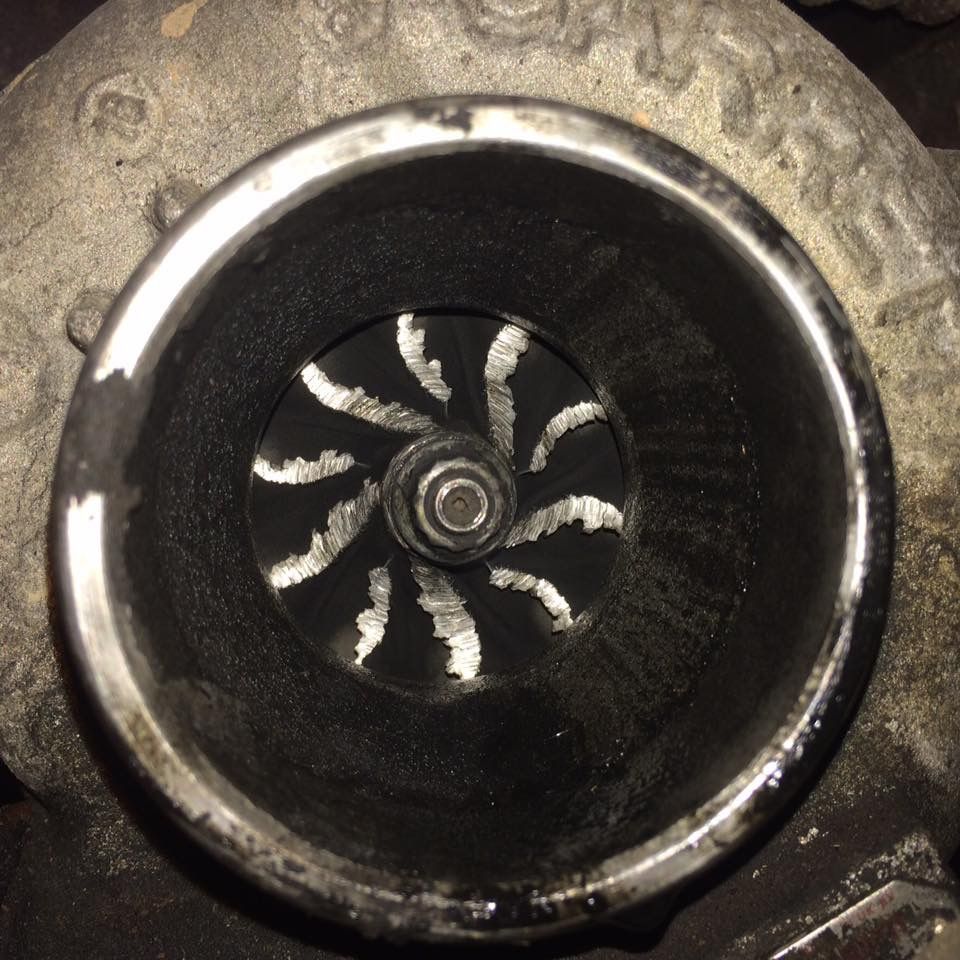

    054A7ADA-579E-40DB-85CA-D2D917C7EC32.jpeg Did mine last year and was lucky with no seized or broken bolts,fairly straightforward.ijust had to buy a bigger pair of circlip pliers as there’s a big old clip that holds the cartridge in.i also bought British manufactured,it was a bit more money but trying to buy British when possible.this is the old one.FUBAR does not cover it!

    gstuart and micknkatenki like this.
  11. micknkatenki

    micknkatenki Active Member

    Joined:
    Sep 16, 2012
    Posts:
    422
    Likes Received:
    25
    Location:
    Lincolnshire
    Thanks for the replys, will have another look at mine, it's got a little play up and down, possibly 2 or 3mm but it has been sat off the engine for a while so there is no oil in there to possibly take some of the play out ??? I'm guessing. Part of an engine refurb so wanted to change for piece of mind but not too sure if it actually needs replacing.
    Thanks

  12. reiny

    reiny Active Member

    Joined:
    Nov 14, 2012
    Posts:
    549
    Likes Received:
    58
    Location:
    Malta
    I would just go ahead and replace it especially if, as you said, it has a little play and has been sat off the engine for a while. It's not expensive and neither is it difficult to replace.

  13. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    11,887
    Likes Received:
    6,314
    Location:
    Kent

    Serviceable recheck next service:D

  14. Aminer170

    Aminer170 New Member

    Joined:
    Apr 29, 2018
    Posts:
    3
    Likes Received:
    0
    Location:
    Merseyside
    Done mine last weekend not a hard job just make sure you have circlip plyers big enough to for the job and watch out for bolts snapping I had to re drill and tap one if the botls on the exhaus manifold side
