D1 300tdi My first landy

Discussion in 'Members Vehicles/Projects' started by BoabCarney, Nov 20, 2016.

  1. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats

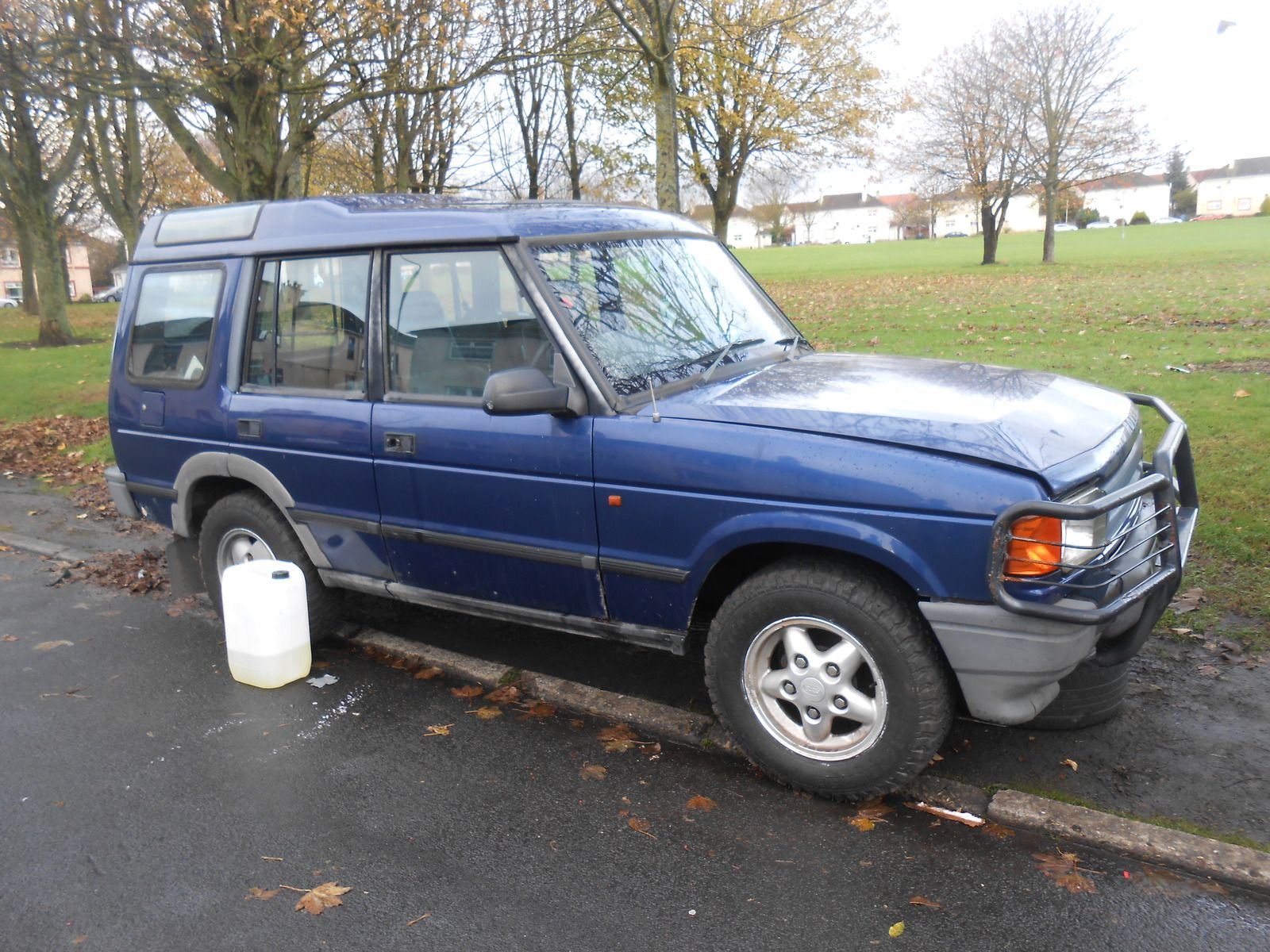

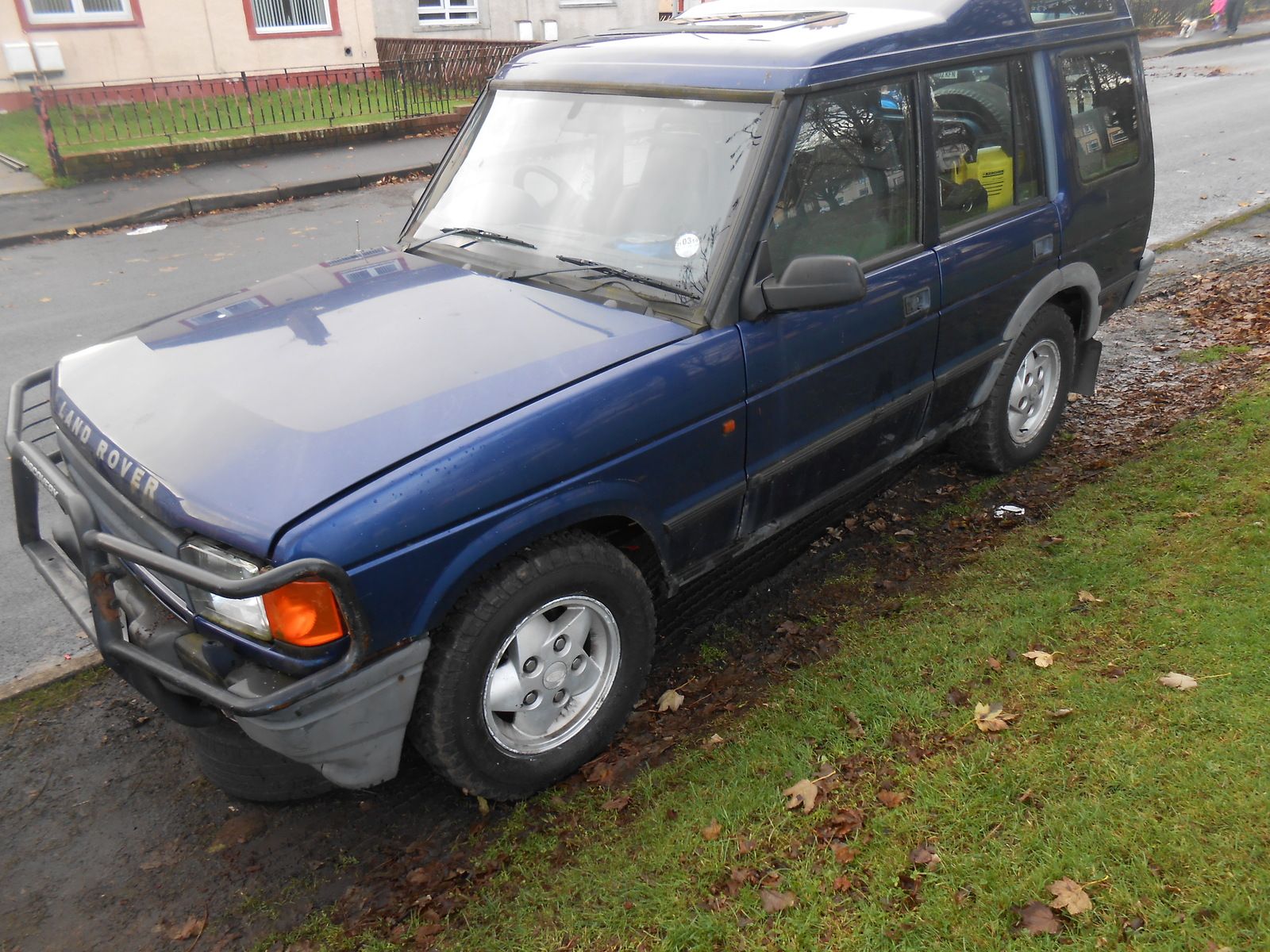

    Well... here she is in all her eh! glory? I Guess


    Little about her
    she's a 1994 300tdi with 194k on the clock
    has bundles of history including a fully recon engine at 150k
    I have been stupid I bought it in the dark it had no battery in and was sat since 2014 when she failed the mot for welding

    so I checked all the levels and nicked what looks like 2 Duracell's out the Mrs Vauxhall and hooked it up nothing but a dull clunk from the starter Its clear I need a man size battery I haven't got on its 9 at night whats my options call my mate with round with his chassis cab soon to be recovery truck and 1000amp jump leads
    it starts to claw over slowly heating the jump leads up quite a bit

    after an hour of trying I get bored and attach a strap to her and decide to tow it home (2 streets away) both rear brakes seized on not a good start trying to tow it with a chassis cab that has no weight on it we finally free it up and start pulling it home on the way I tried to bump it no go was "running" but not running

    I quickly decided its fuel and diagnosed the lift pump as kaput

    so this morning I dug out my box of useless crap from the garage I find an old Caravan water pump i that's 12v, nip round the garage stick £10 in a drum and set about cutting the fuel feed and return to the injection pump wired it up to a freshly charged battery of unknown history out the back of my garage.

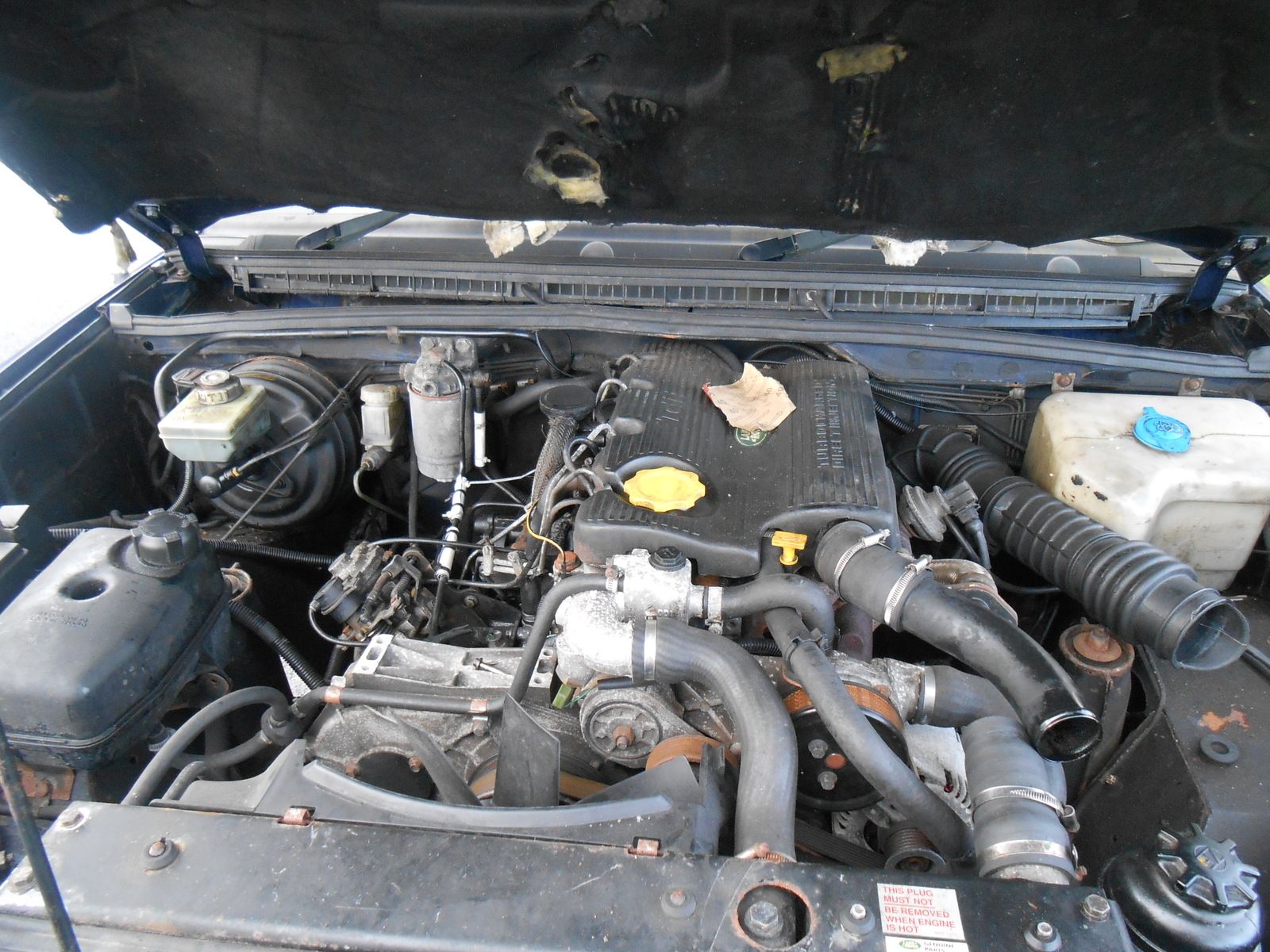

    I found a brand new set of glow plugs in the front foot well fitted them, it gave me a chance to have a look at the cylinders with camera.
    turn the key after bleeding it up
    I get this

    So I am happy now for a second or two

    The rear door and rear cargo door had seized up so I took the door cards off and freed them off along with the rest of anything body wise that moves (excluding the sunroofs)

    then set about it with a screwdriver and hammer this is the results

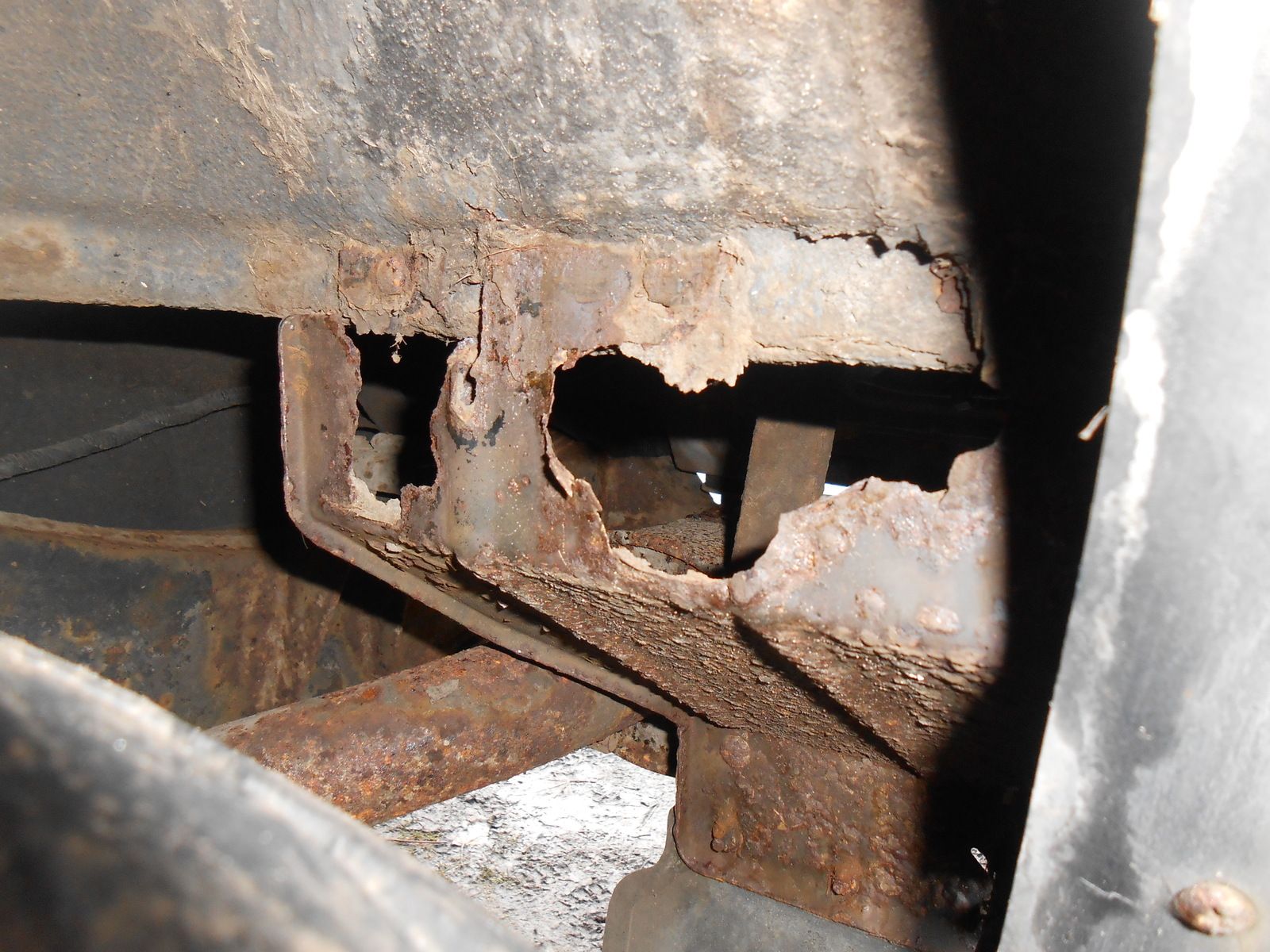

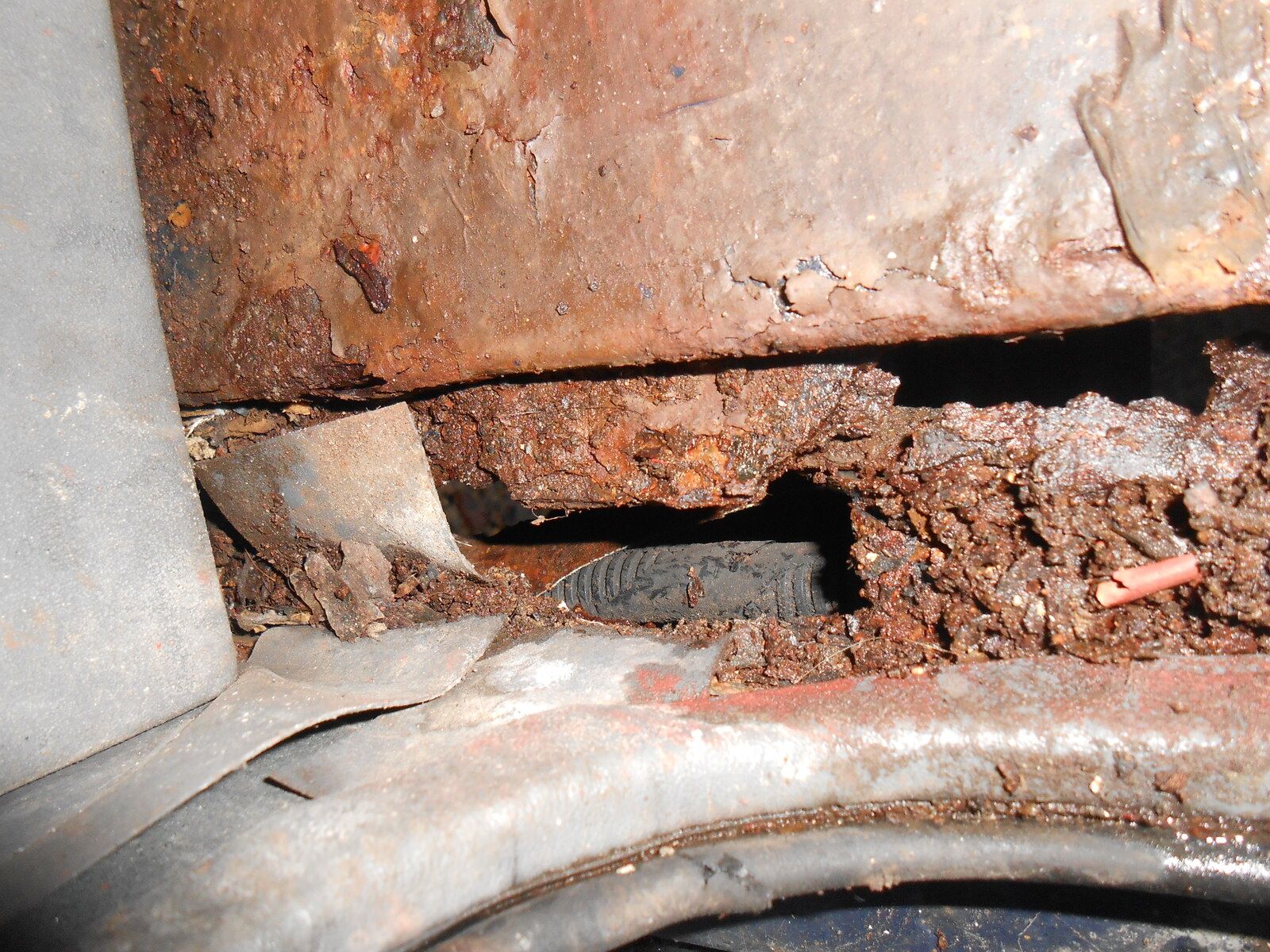

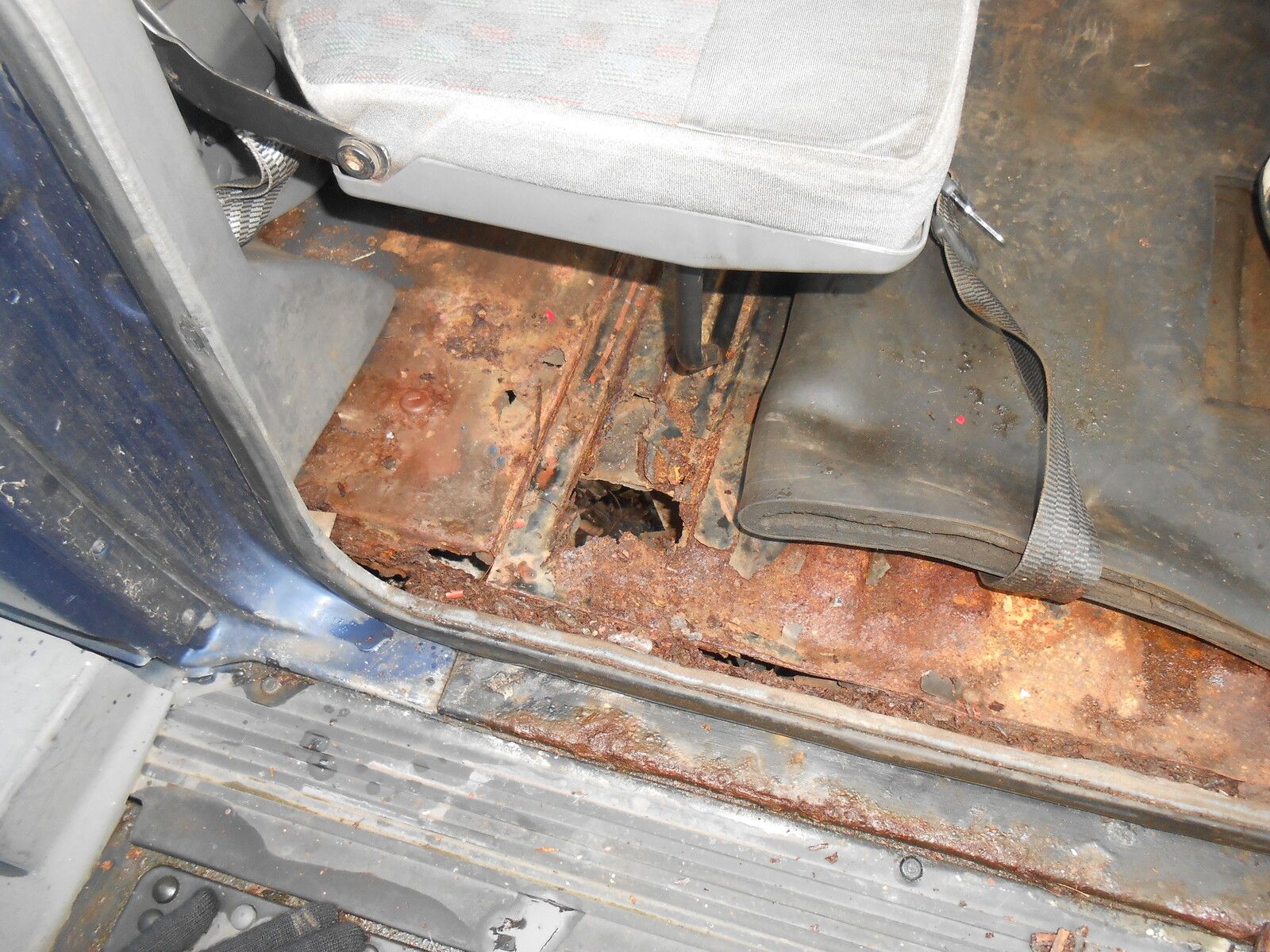

    this is the boot floor and rear of boot leading to the rear cross-member
    DSCN1358.JPG DSCN1359.JPG DSCN1360.JPG
    this is the passenger mudflap bracket

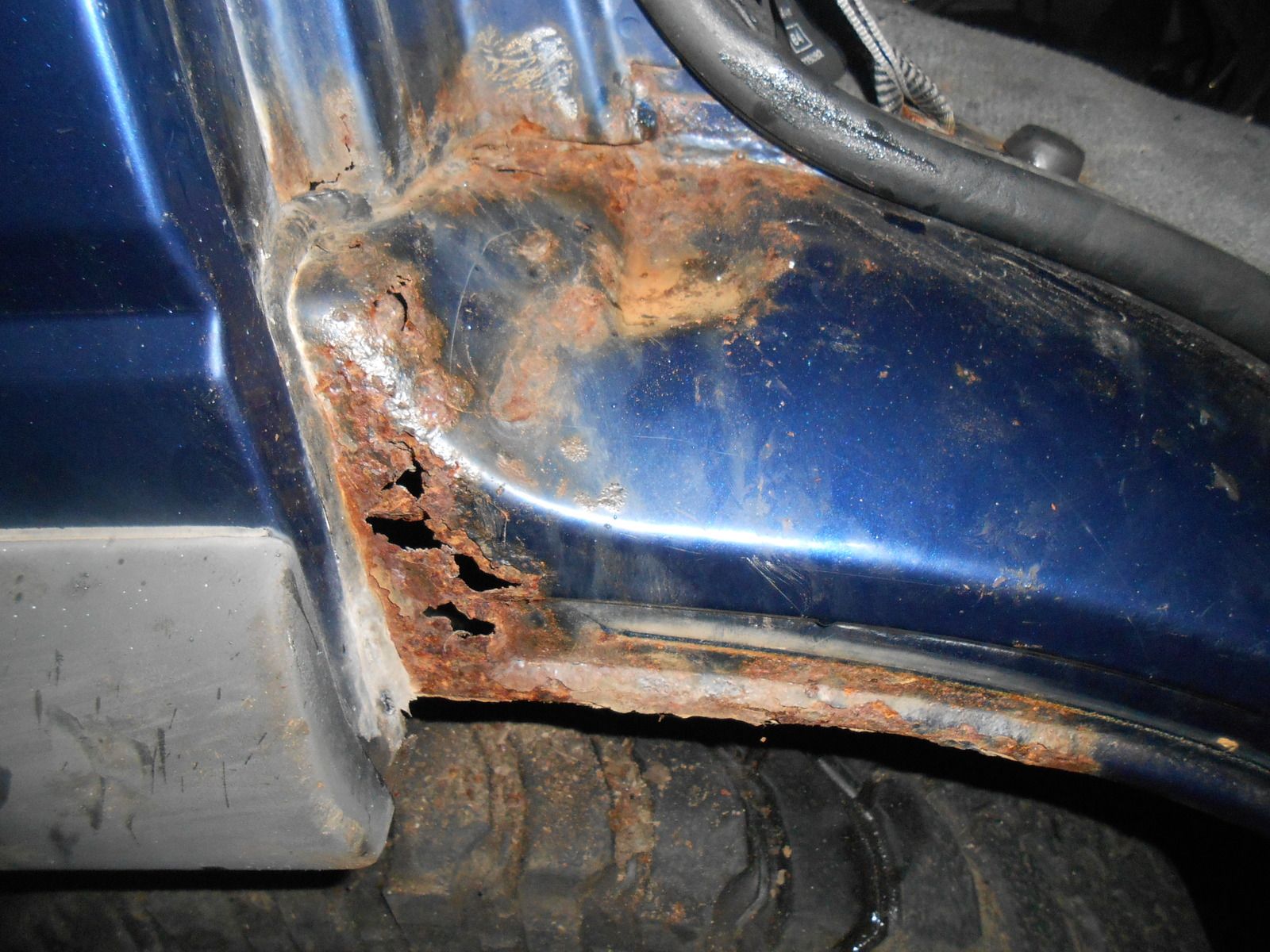

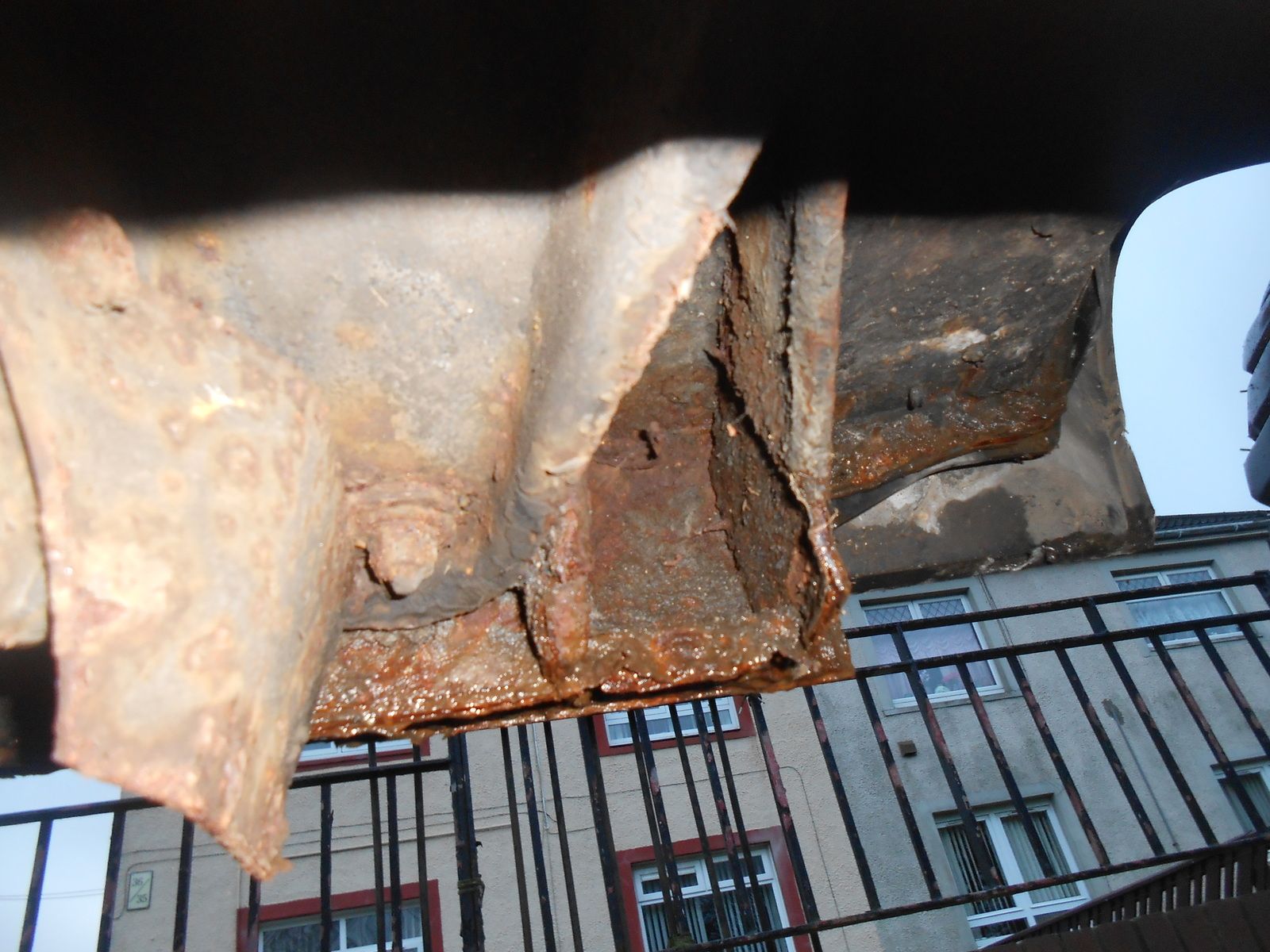

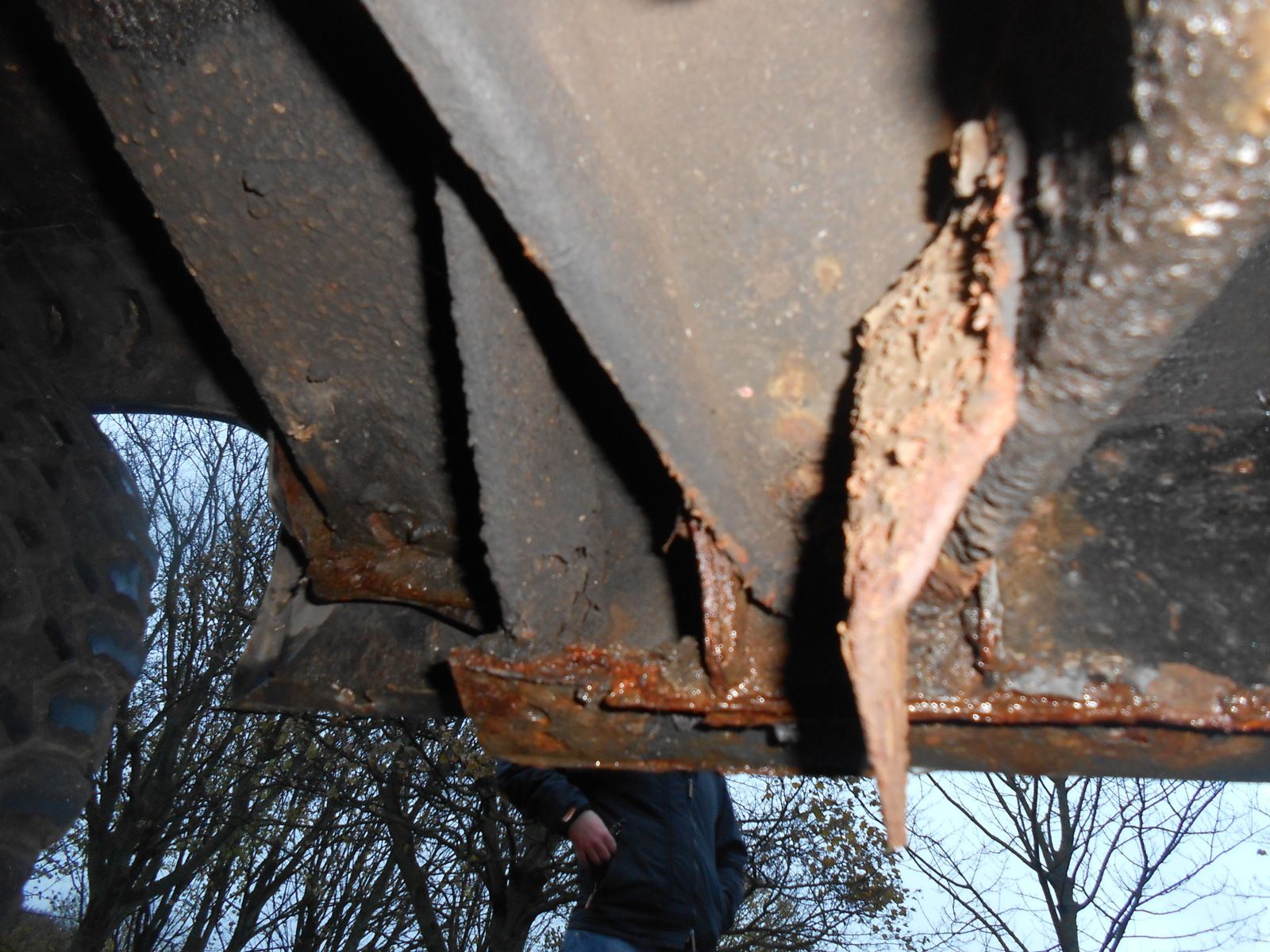

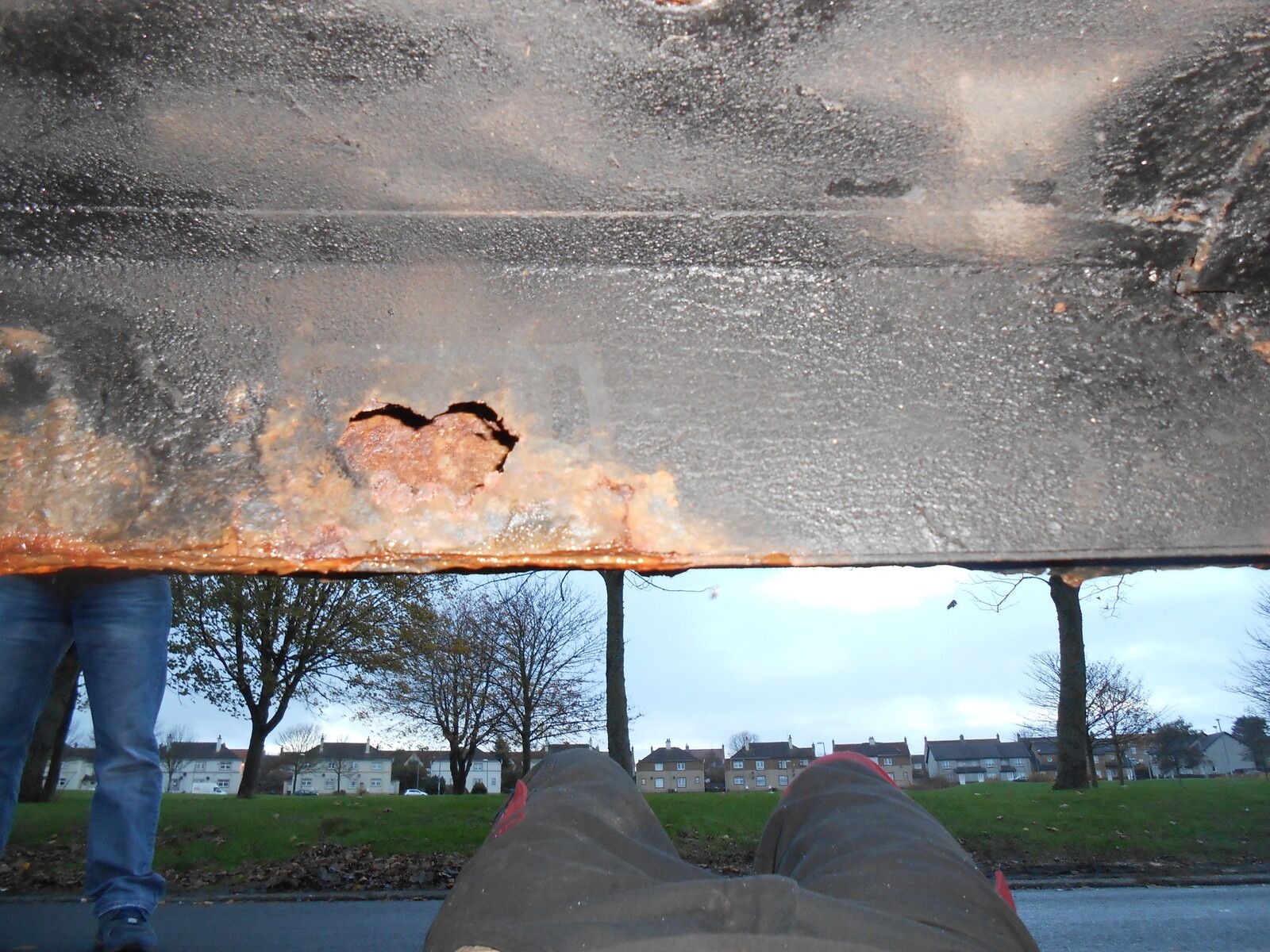

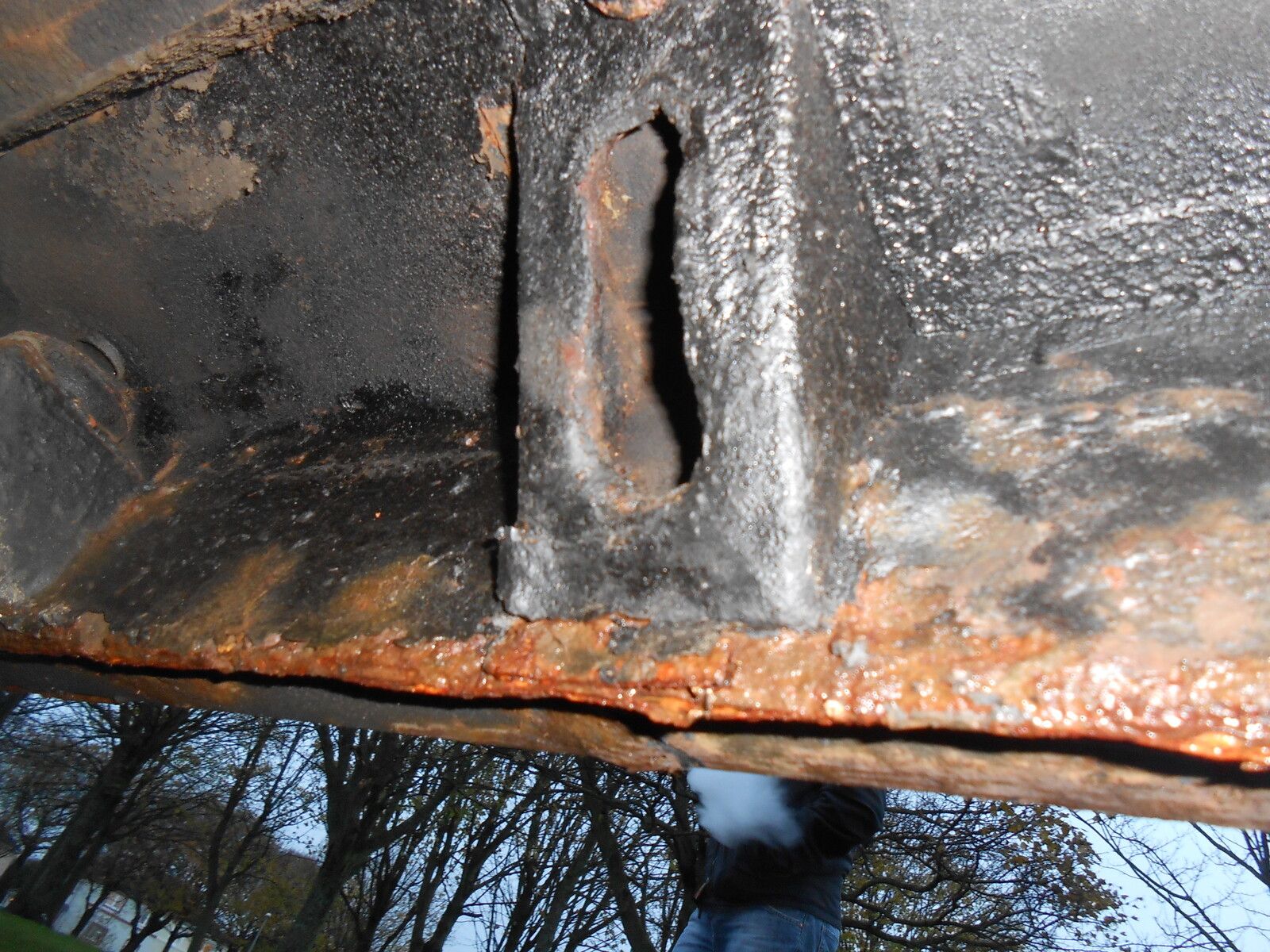

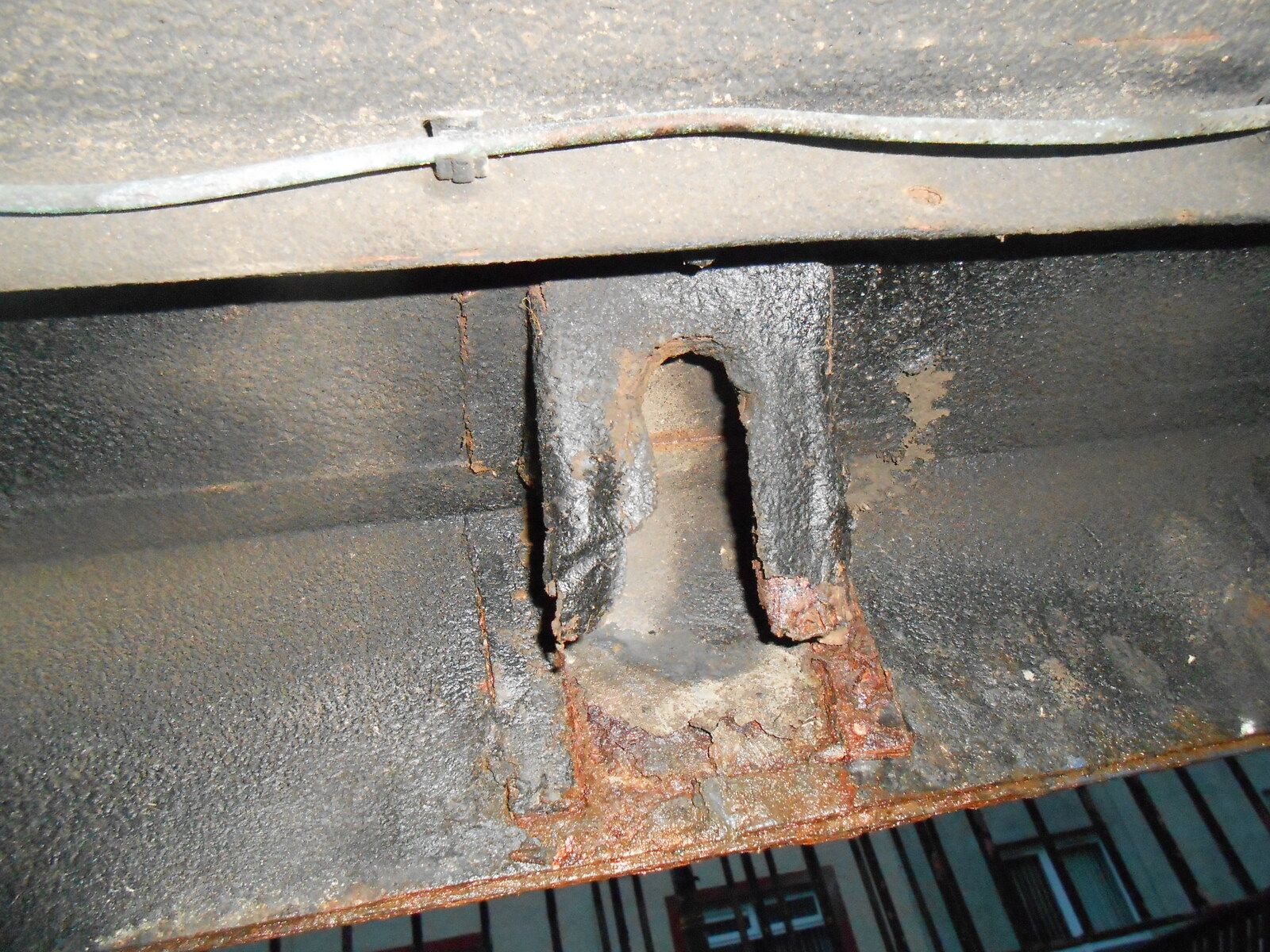

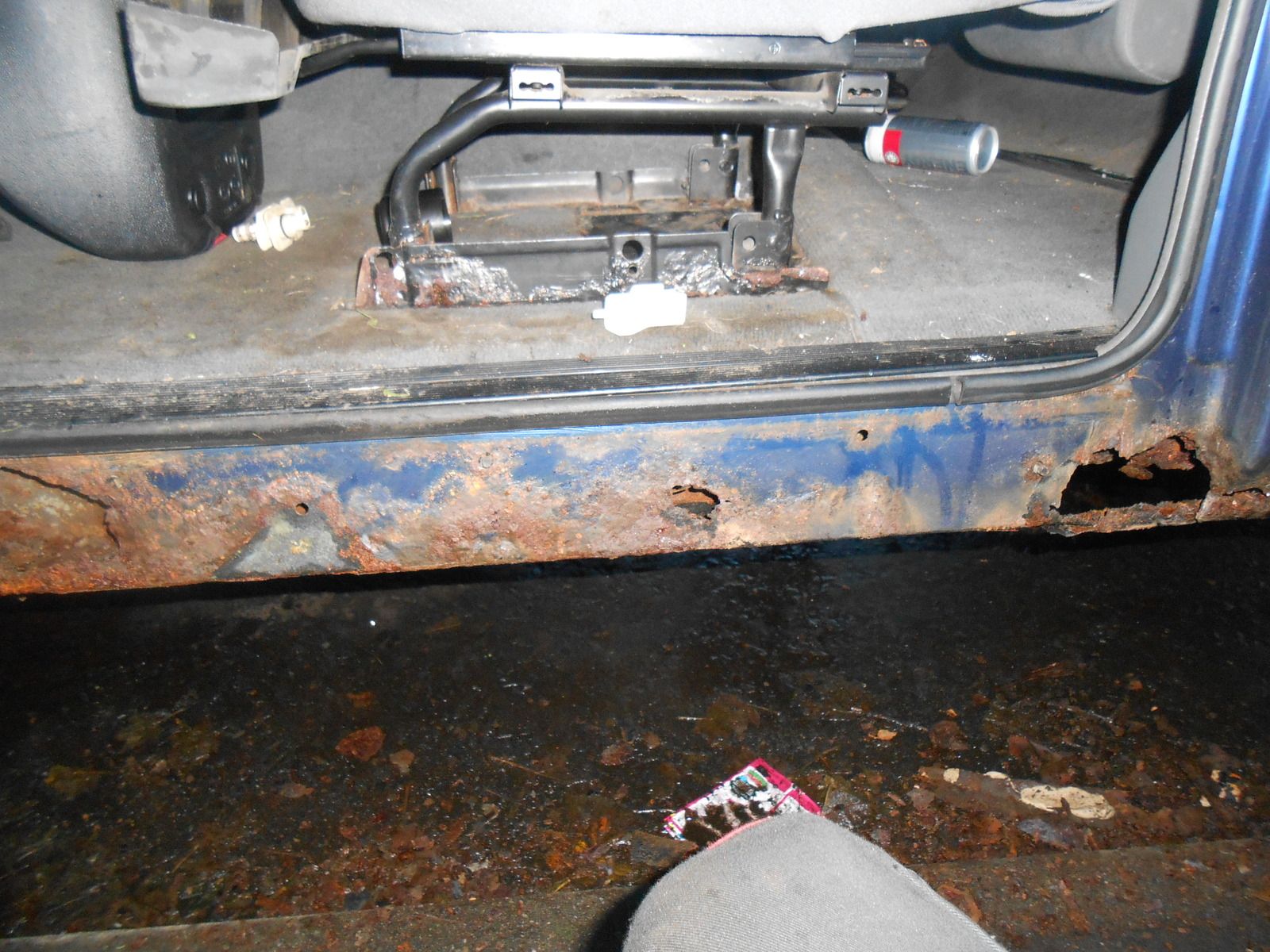

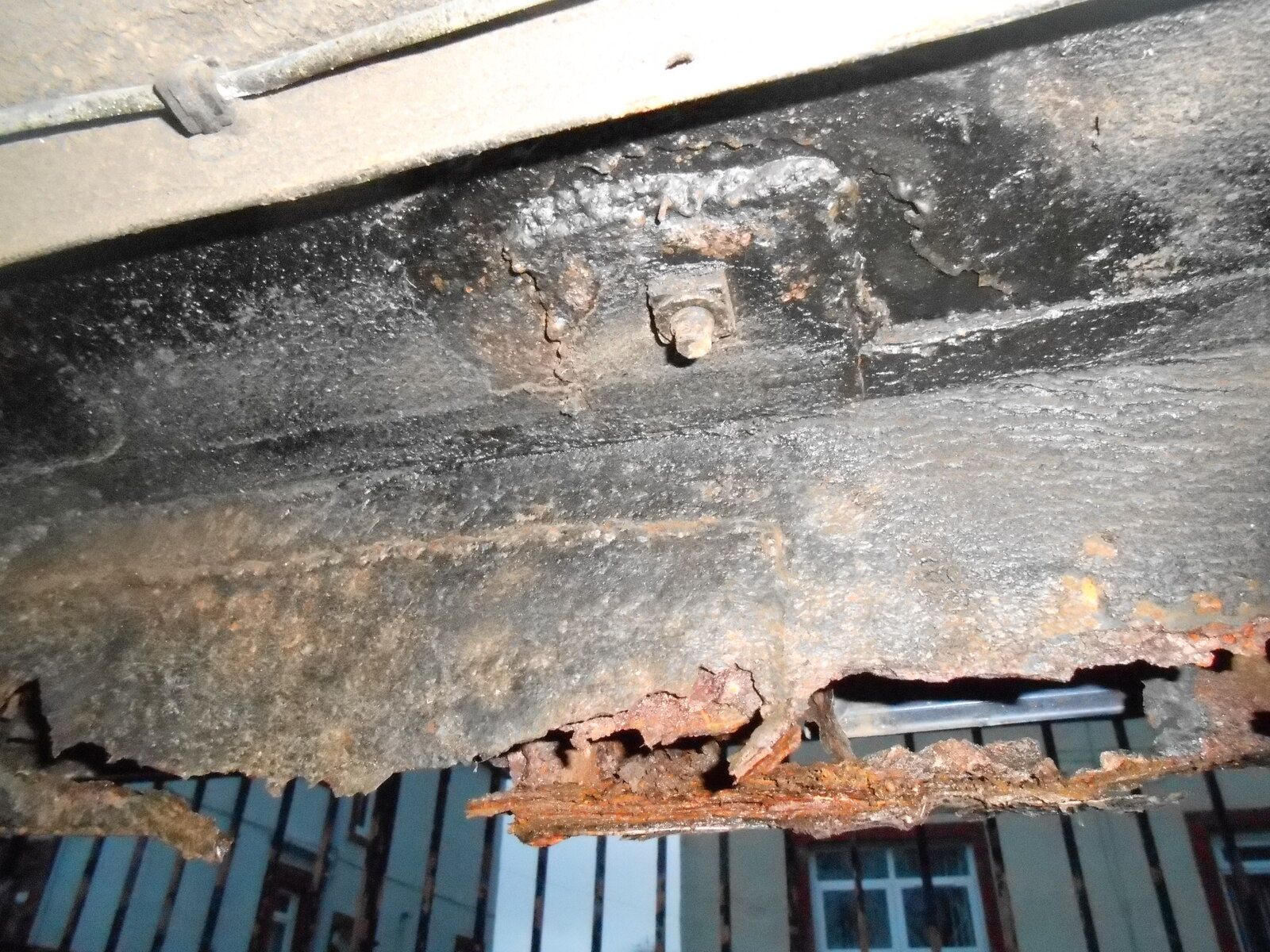

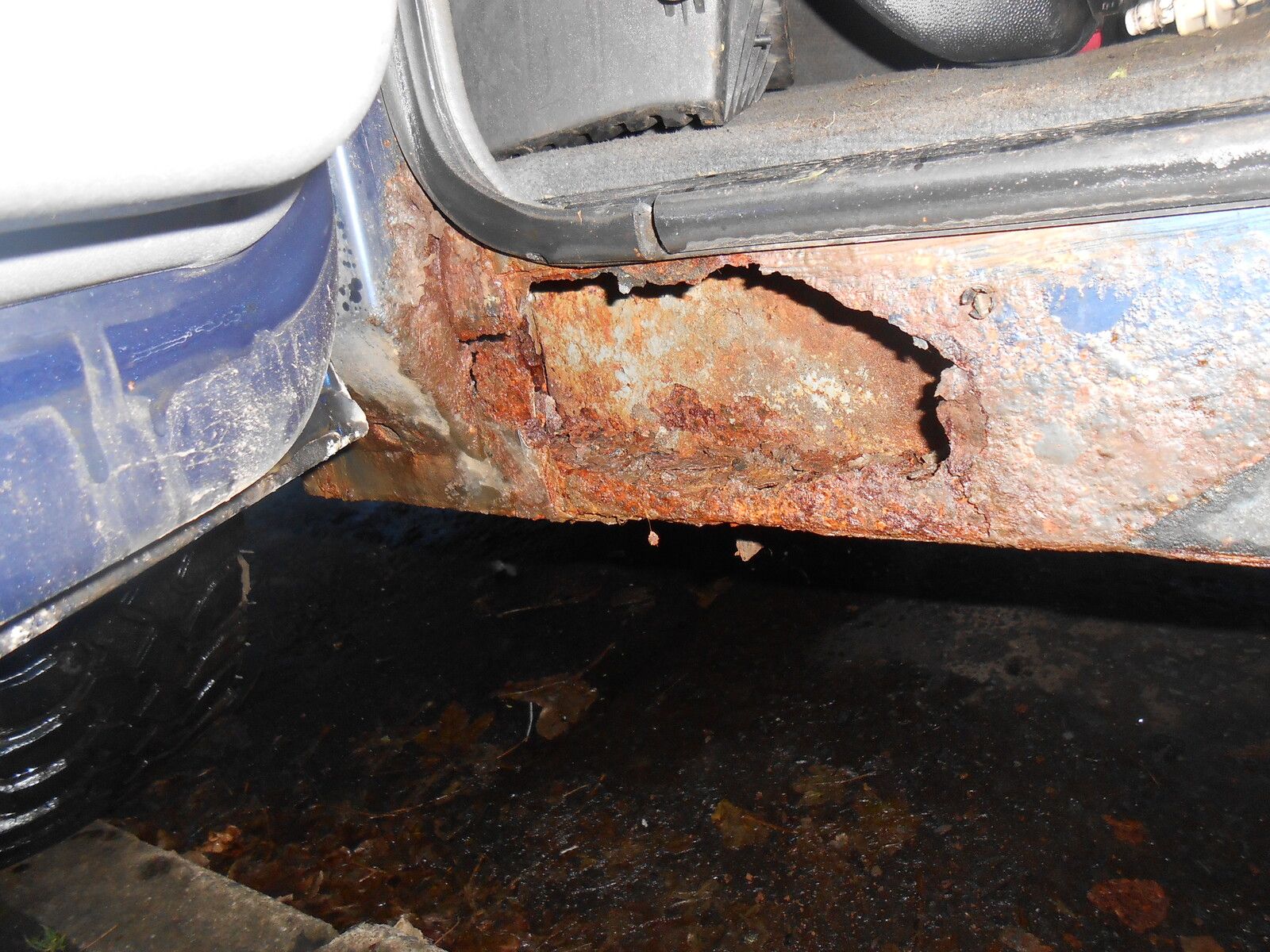

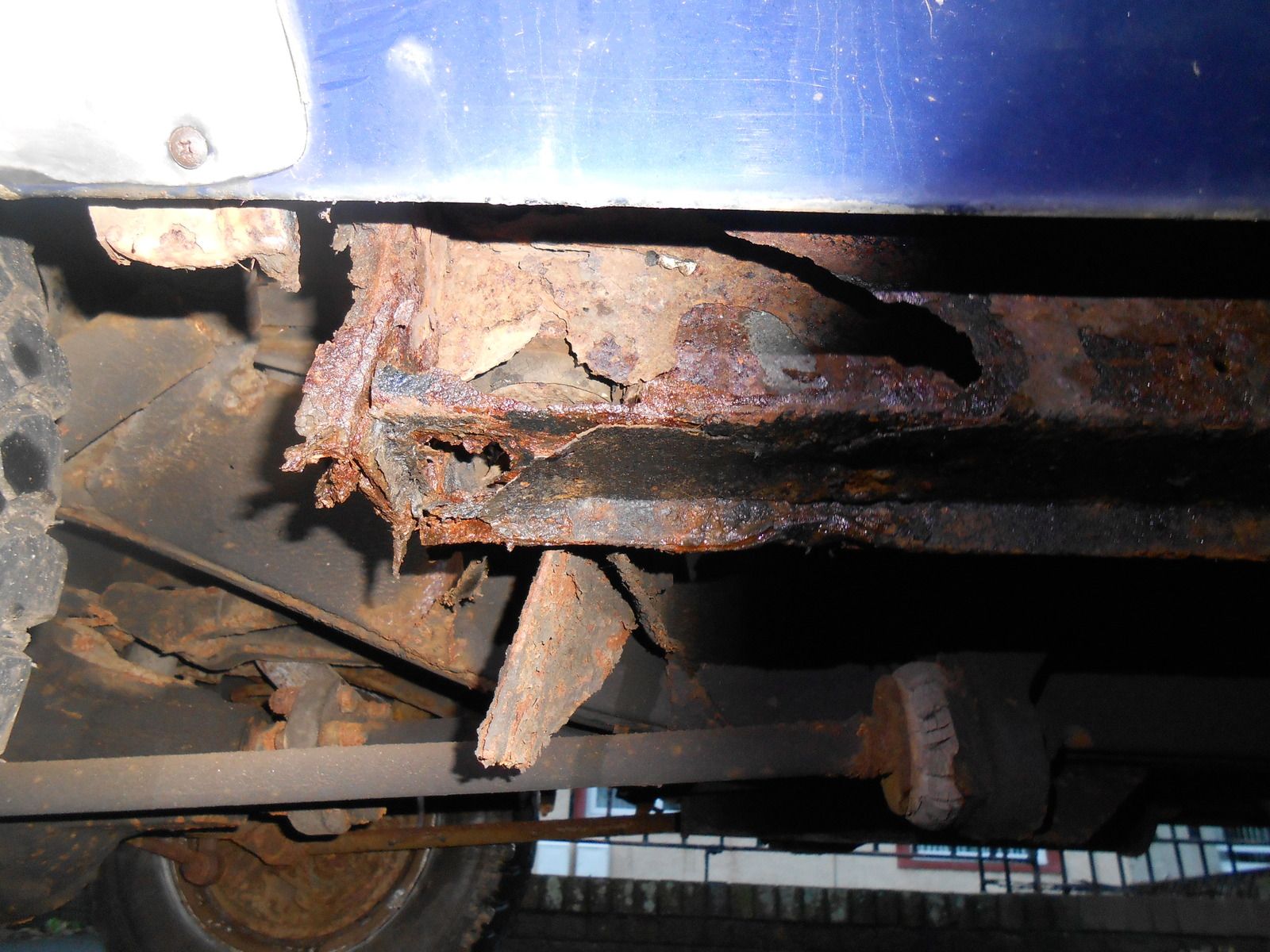

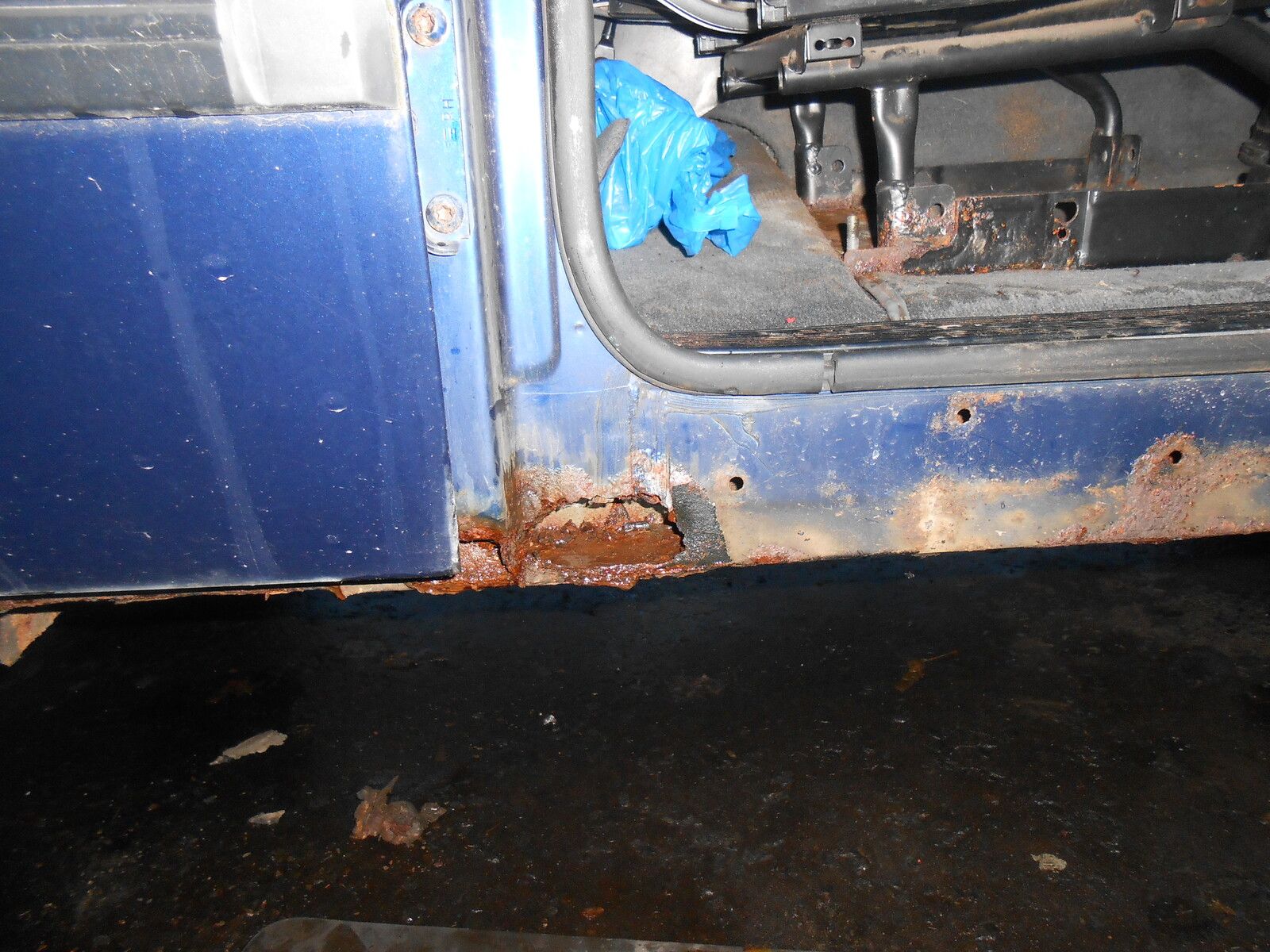

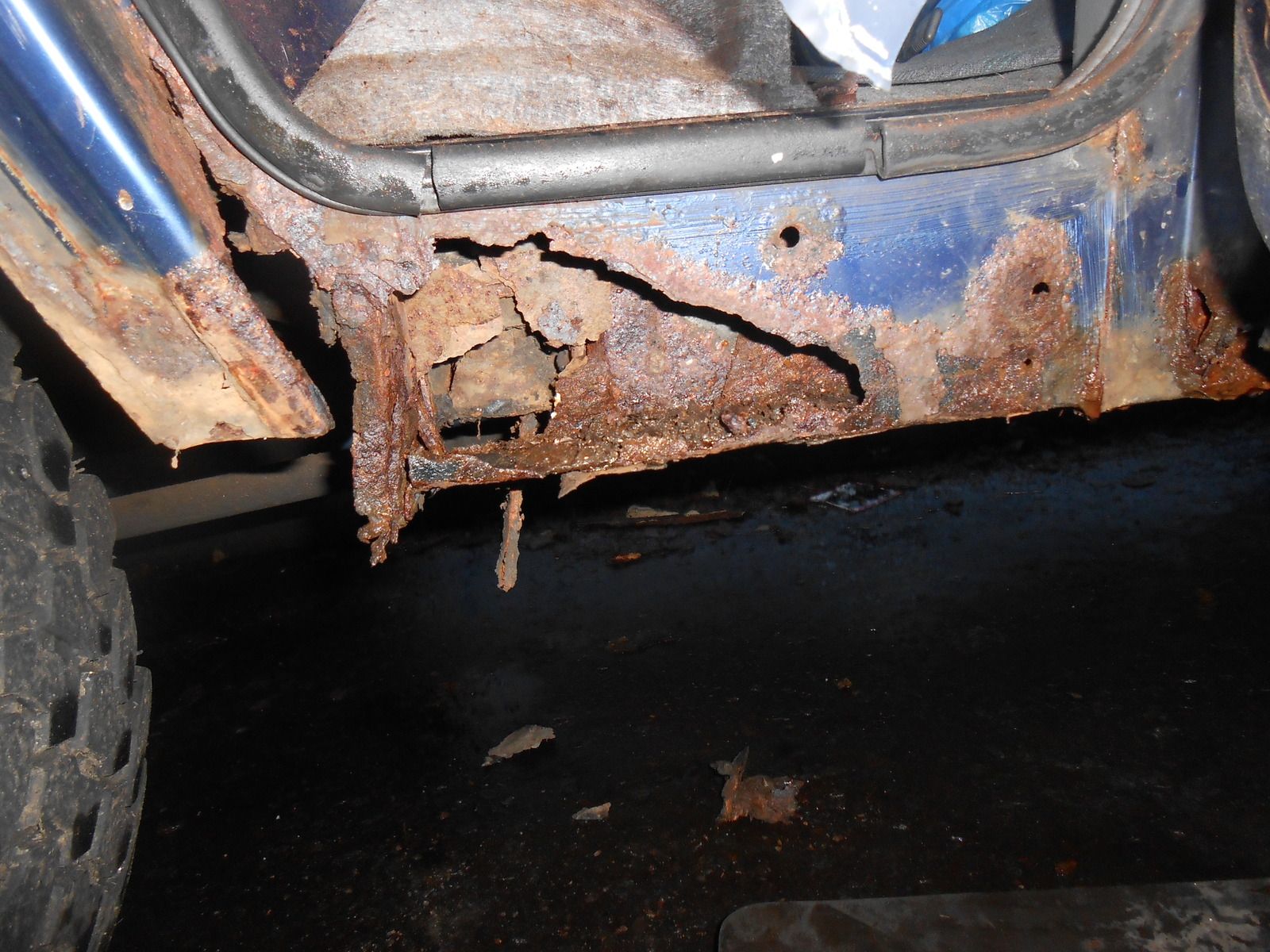

    this is, of course the usual sills on a D1

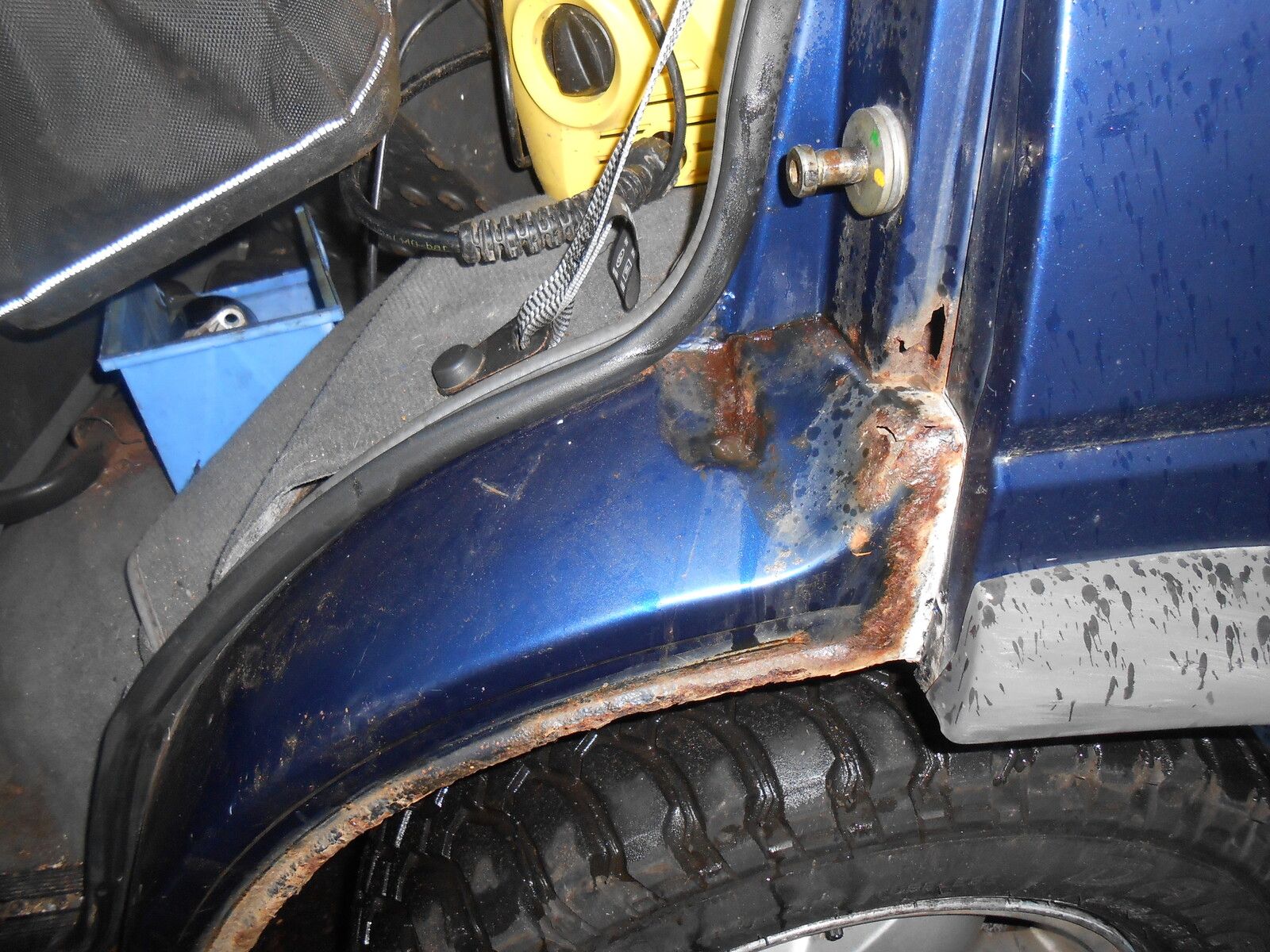

    DSCN1384.JPG DSCN1383.JPG DSCN1382.JPG DSCN1380.JPG DSCN1379.JPG DSCN1378.JPG DSCN1385.JPG DSCN1381.JPG DSCN1377.JPG DSCN1376.JPG DSCN1375.JPG DSCN1374.JPG DSCN1372.JPG DSCN1371.JPG DSCN1370.JPG DSCN1369.JPG

    I have had a good prod around at the chassis and can't find any rot it sounds very good no deep thuds etc sounds like a weird bell when rung all over so I am confident it is not full of rust or mud etc

    i have check front wheel arches and bulkhead etc and found no holes or signs of rot altho the driver carpet is soaked through so I suspect a hole somewhere my plan for tomorrow is to tear the interior out and possibly the boot floor, and further investigate the tin worm

    sorry for the long post and pic heavy post
    I have many questions to ask I am sure
    cheers
    boab

    fozt likes this.
  2. David_Cooper

    David_Cooper Active Member

    Joined:
    Oct 31, 2010
    Posts:
    242
    Likes Received:
    26
    Location:
    Dark and cold Kent
    Wow.. that is a fair old project for sure..
    All doable of course but there's a lot of money's worth of panel replacement there!
    I have a '94 D1 too and can honestly say they make the best all-rounders money can buy. Interior out first is a good idea. You'll find holes in the floors too but it's all easy to patch.
    Mine leaks badly into the driver's footwell too- cause is a stupidly placed wiring grommet, just above the inner arch that holds water and rots the surrounding metal.

  3. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
    this is the exact reason i am making everything bar the rear arches from scratch from 2mm steel lol
    off tomorrow to grab 120x60x3mm box for the sills and 2x 2mm 8x4 sheets of steel
    oh yeah a bottle of welding gas also mine is nearly empty best stock up lol

    cheers

  4. David_Cooper

    David_Cooper Active Member

    Joined:
    Oct 31, 2010
    Posts:
    242
    Likes Received:
    26
    Location:
    Dark and cold Kent
    Sounds like a plan.
    I reckon if these things were painted properly, they would have lasted much better. Have fun!

  5. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    2,580
    Likes Received:
    645
    Location:
    Buxton
    Sadly, this is standard D1 fitting from the factory :rolleyes::mad::eek: - both ours were the same....

    Agreed - its why we have one each. welding them is less than ideal, but fixing electronic sh*t on modern stuff is a complete deal breaker for us, so D1's forever !!!

  6. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    2,580
    Likes Received:
    645
    Location:
    Buxton
    @BoabCarney :- that's a fair project for sure - but good for you for taking it on - another one saved from the scrap yard = well done. Thread added to my watch list :)

    Has it got sunroof's ??? cos if it has, whilst you have access to the half arsed attempt that LR made to drain them, :rolleyes:, IMHO, do the job properly, and extend them out of the sills, and into fresh air underneath the car !!!! I used 15mm copper (!:D!), because I had some, and it has worked really well - also gets the MOT guy's brain working every year... "what the **** is that" ( pointing ) !!

    And I used 2mm steel on ours too - nice to work, and easy peasy to weld nicely..

    doriz likes this.
  7. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
    I agree I am a Mobile mechanic so I have all the latest diagnostics etc and I hate the lot of it lol
    I was considering the D2 but abs TC active rollbars stupid air suspension and electric draped engine all put me off not to mention the chassis made of Philadelphia
    mechanical oil burners are the way forward in my opinion plus I like the Centre diff lock

    I enjoy welding and fabricating so I probably belong in a landy, I did a good bit of research before even choosing a Discovery so I really knew all along what to expect i had a quick scan over the chassis as in my eyes that's the worst thing to weld body is all easy to repair

    I had a few rules
    1. not green
    2. manual
    3. no dents etc
    4. 7 seats
    5. 4x4 system In good order

    I have ticked all the above I only really got the chance to drive it a very short distance 100 yards or so as I couldn't close the bonnet with my redneck diesel tank perched on top of the battery but it all seems fine it selects all gears engages high and low + lock and comes back out of lock nicely

    its has a few issues from being stood like swivel have rust on them and are weeping grease/oil out has a few oil leaks from the gearbox / transfer box
    power steering was completely dry (hose is perished from bottle to pump) leak back hoses from injectors are leaking

    And yes it has sunroofs and I will do that lol any pictures of the copper pipes and where they lead ?

    thanks for the advice and encouragement

    cheers
    Boab

  8. Magicgrotto

    Magicgrotto Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,683
    Likes Received:
    450
    Location:
    doncaster

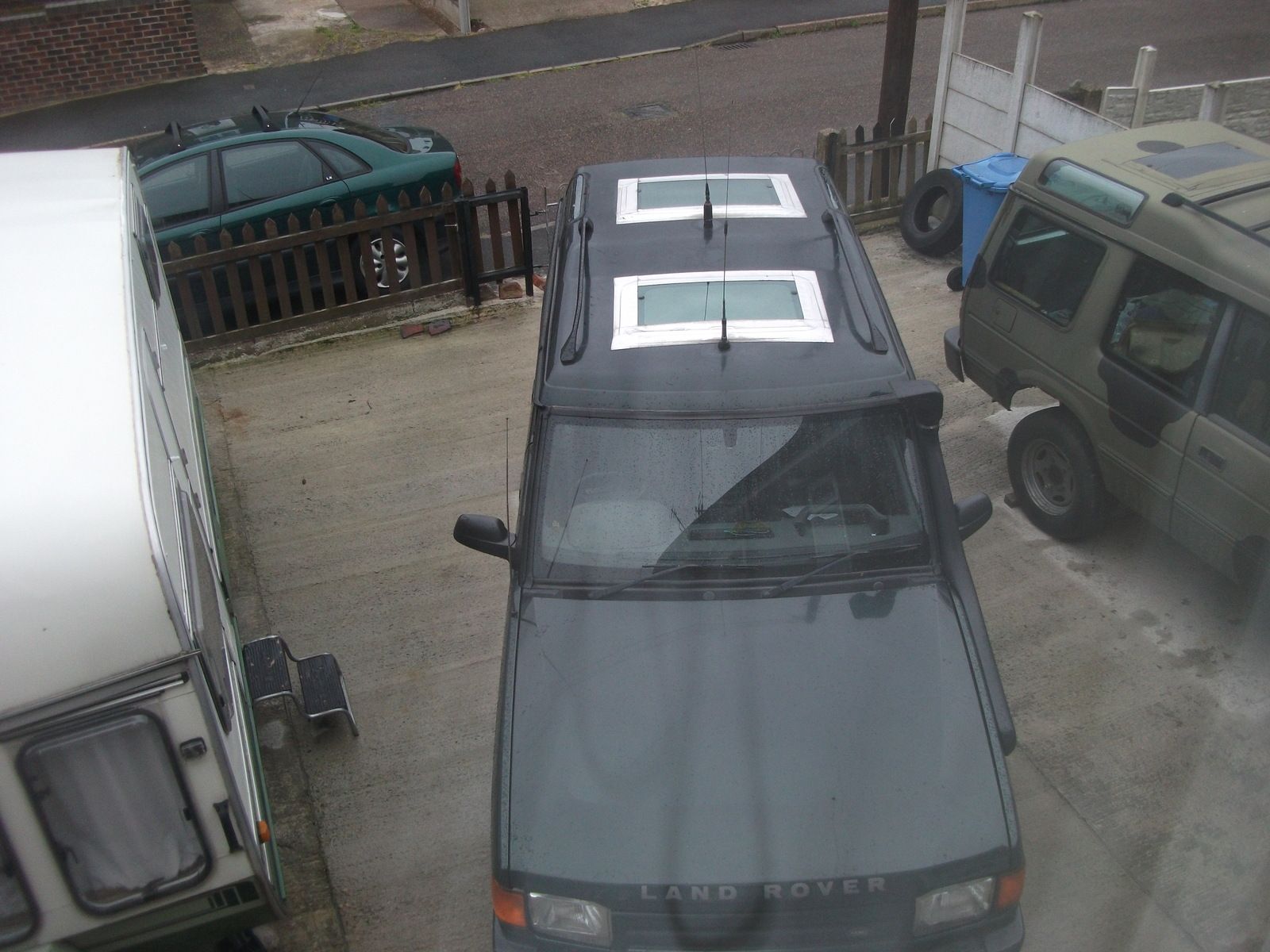

    You can't beet a bit of FLASH BAND:rolleyes: 4 years & no LEAKS:)

    Last edited: Apr 3, 2017
    Bythomson and twizzle like this.
  9. David_Cooper

    David_Cooper Active Member

    Joined:
    Oct 31, 2010
    Posts:
    242
    Likes Received:
    26
    Location:
    Dark and cold Kent
    Proper repair :D
    Mercifully, neither of mine have sunroofs..

  10. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
    Well was busy today so did not get too much done continued to strip bits off
    first things first stanley out and start cutting the carpets out to see what's what
    LR decided putting a sponge under the carpet was a good idea

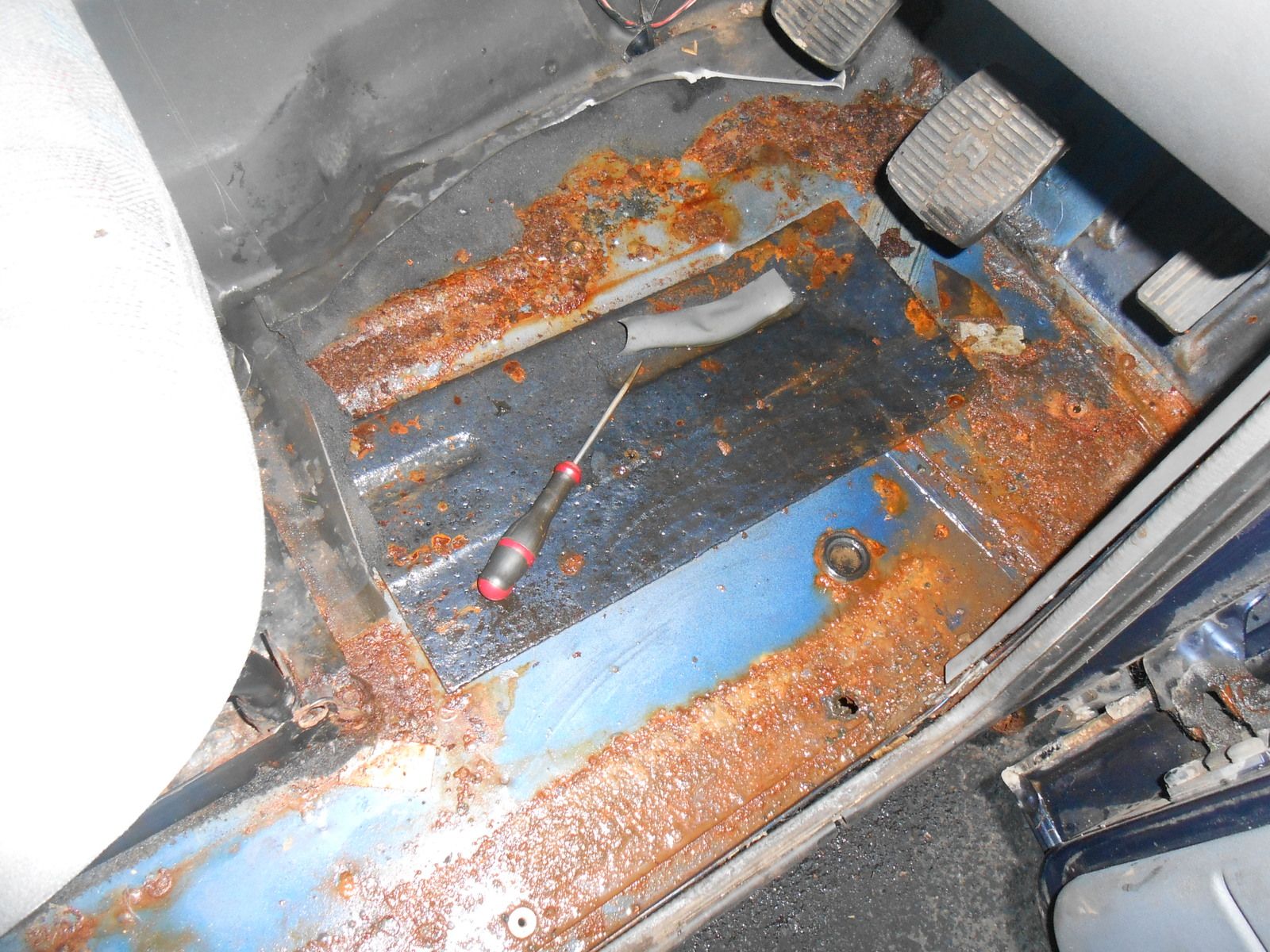

    so as you can guess its not looking good under the carpet

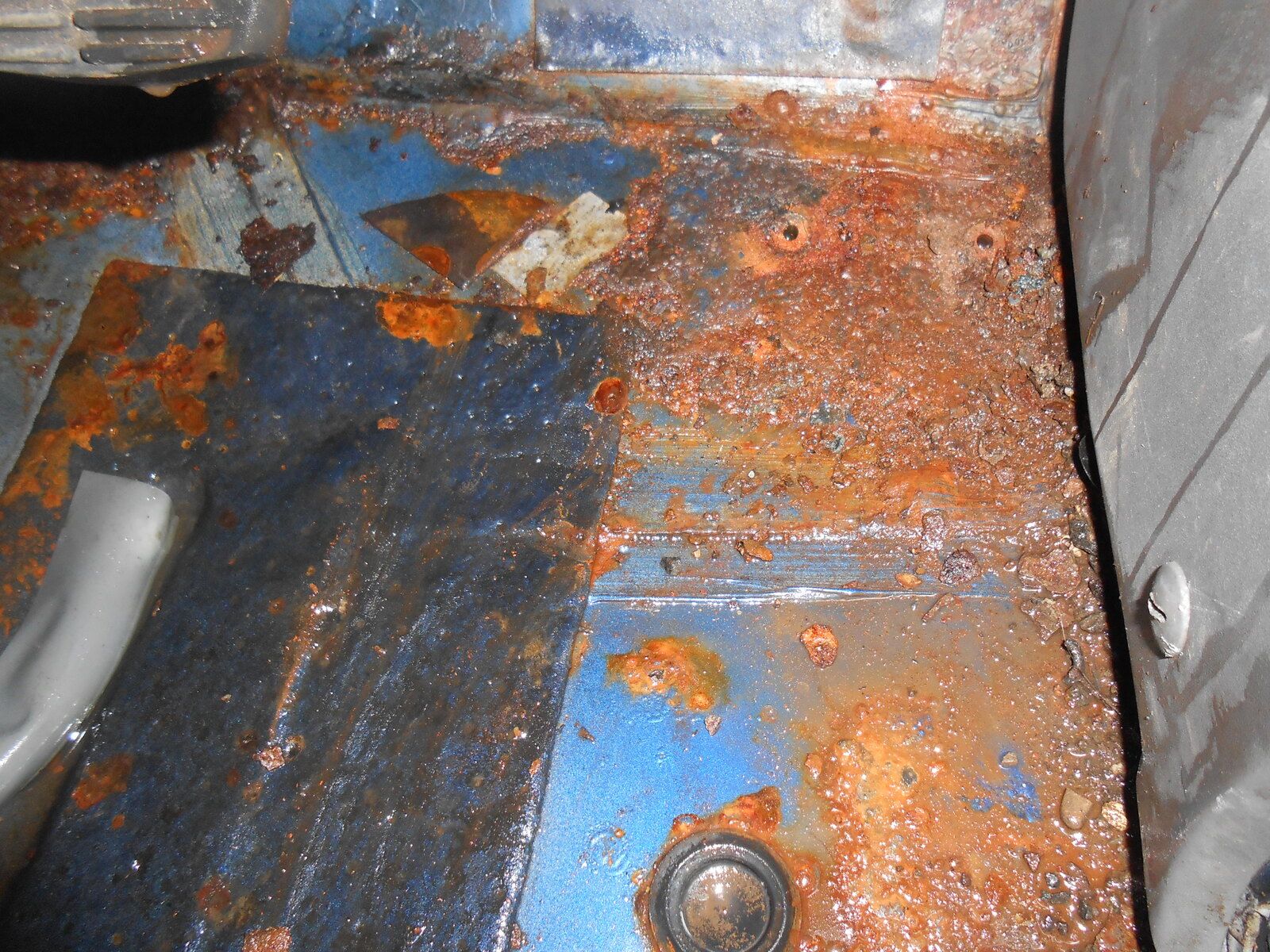

    DSCN1388.JPG DSCN1389.JPG
    so out with the hammer and screwdriver again to find a tiny hole about the size of a 5p so not to bothered about that but will most likely replace most of the floor here

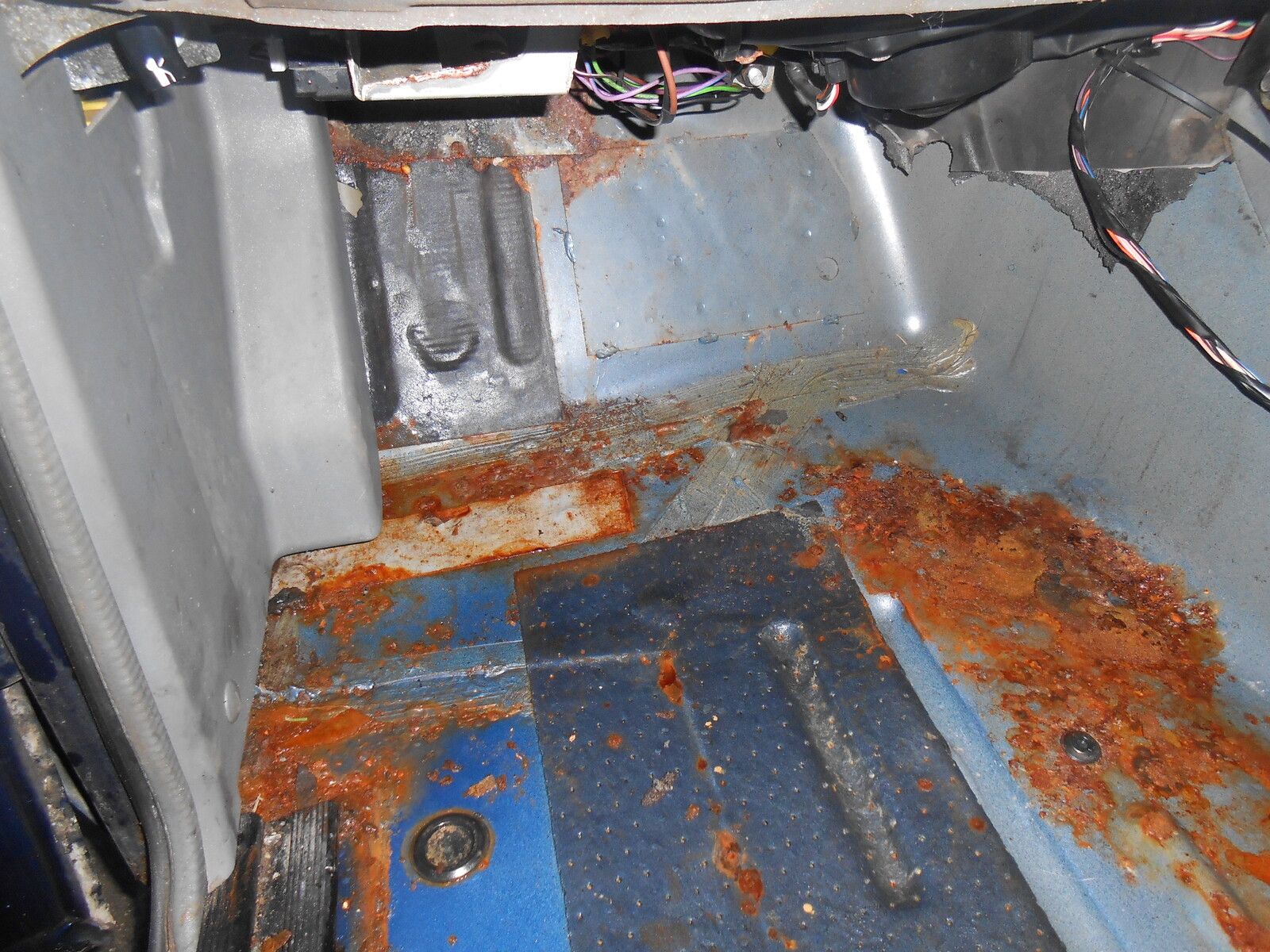

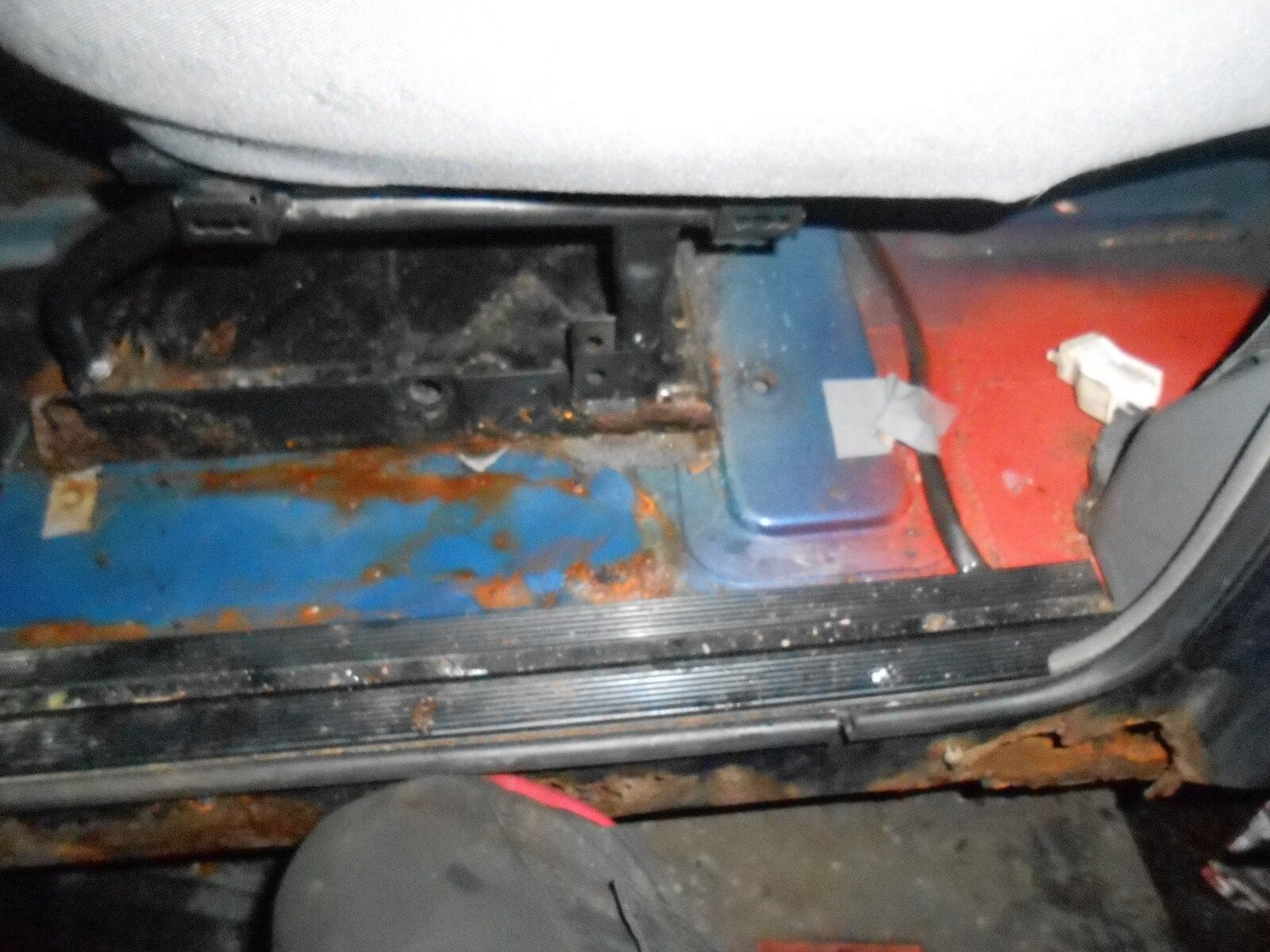

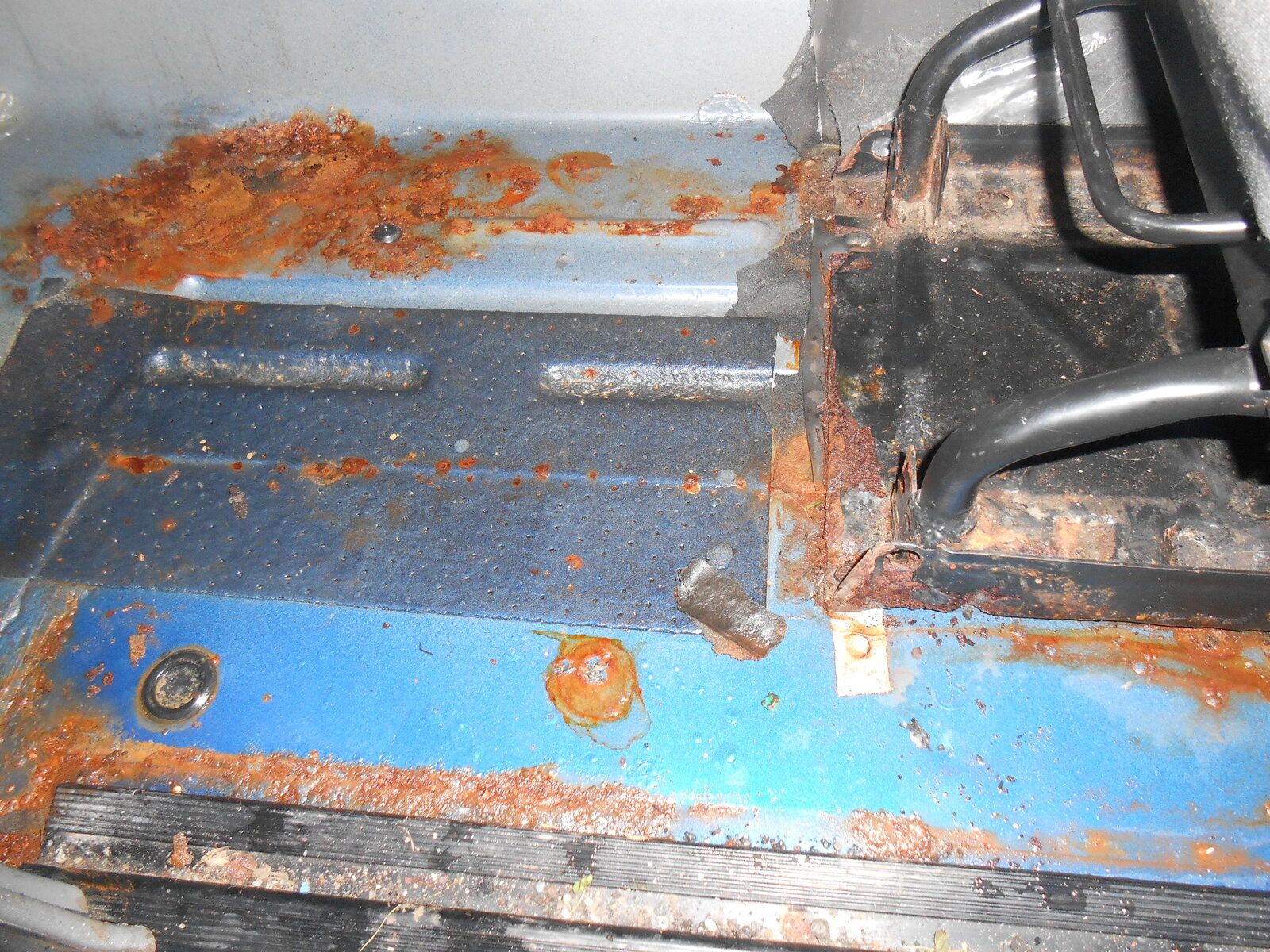

    ok moving on to the passenger side and much of the same wet carpet and more surface rust no sight of holes yet
    DSCN1390.JPG DSCN1391.JPG DSCN1392.JPG

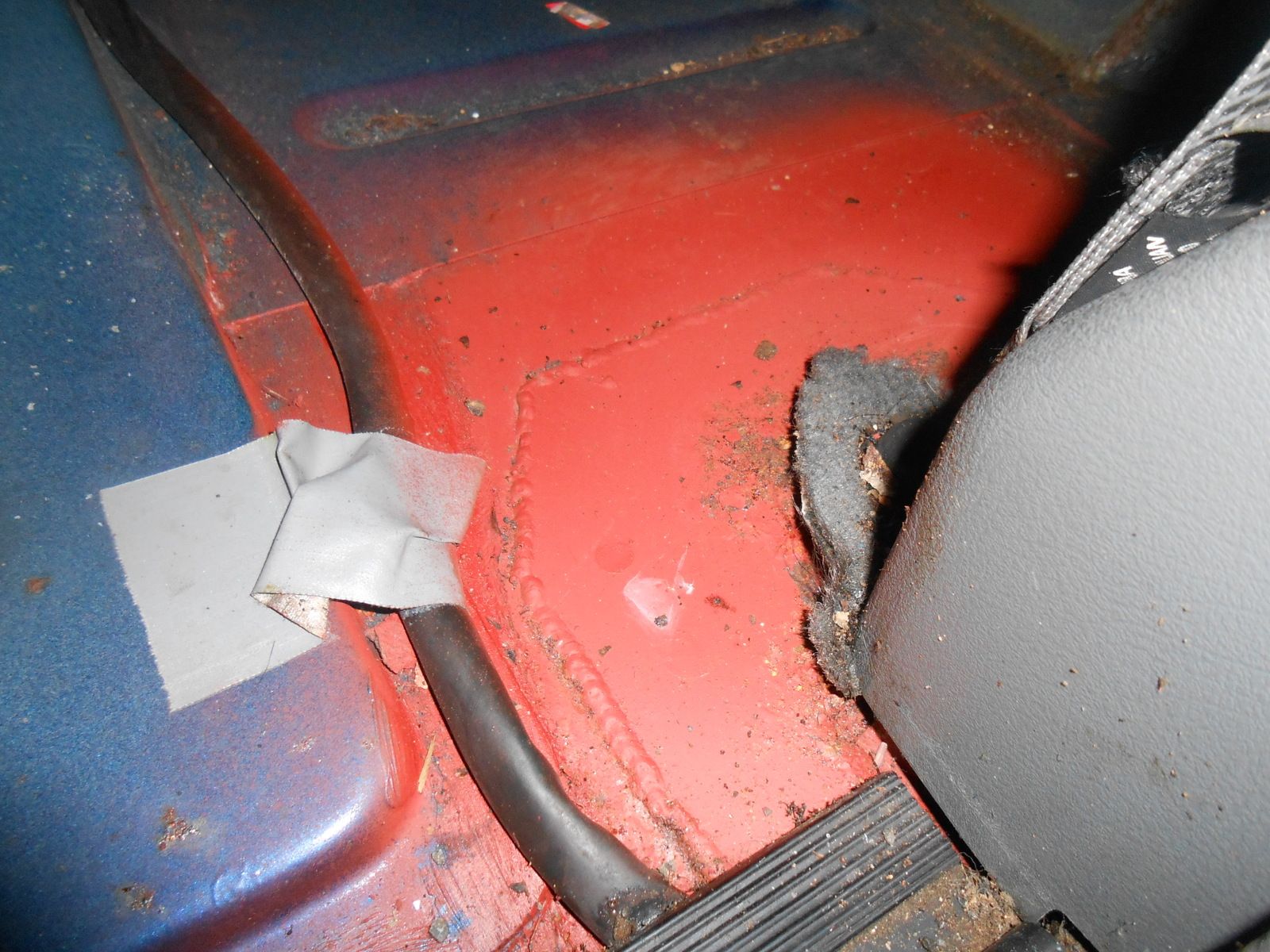

    see someone did love her at some point and repaired some rot
    now on to the back carpet nice and dry for a change and the same seatbelt repair as before
    DSCN1394.JPG DSCN1395.JPG
    so up to this point, I am still relatively happy it is all looking good and very easy to fix

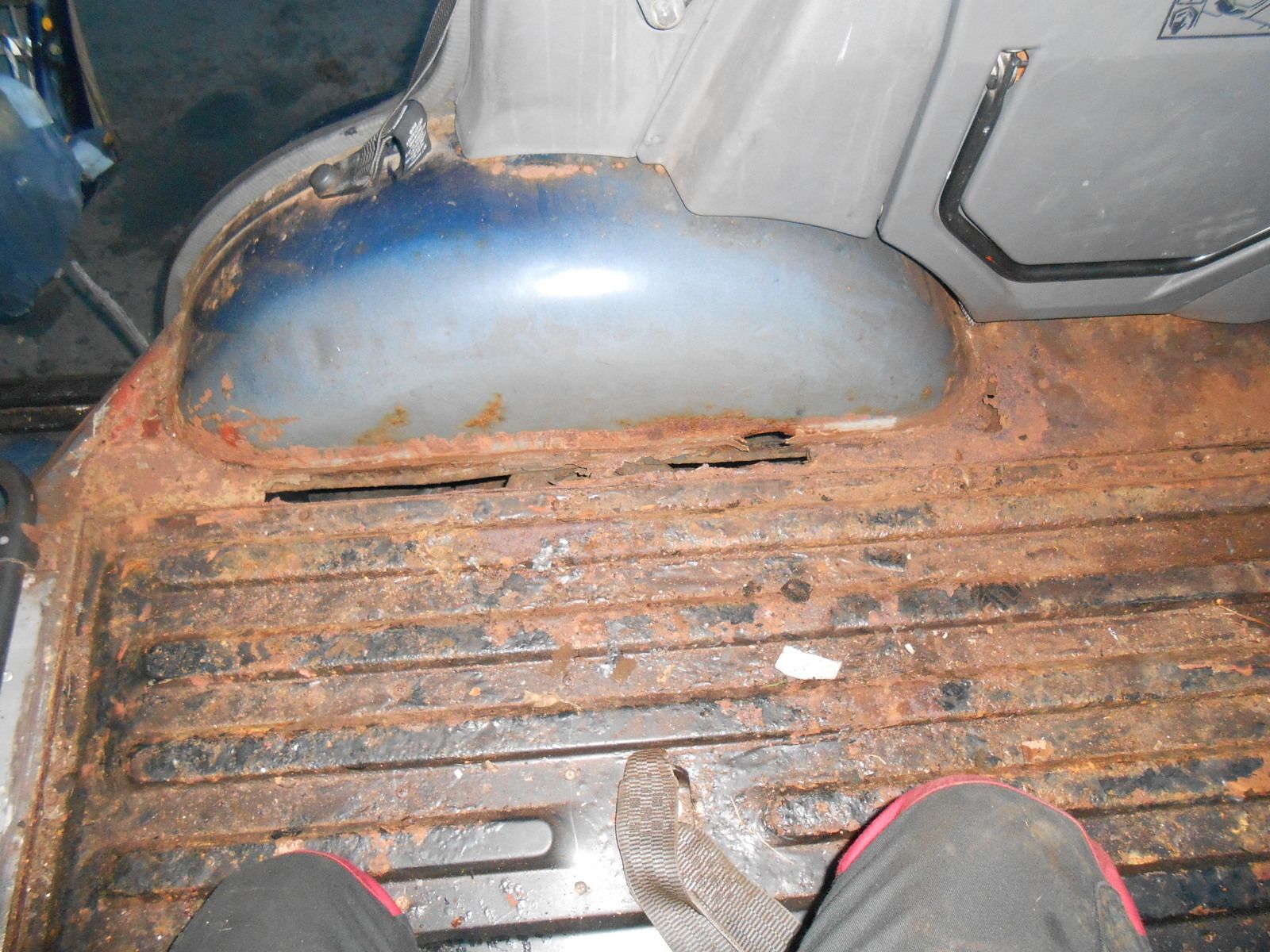

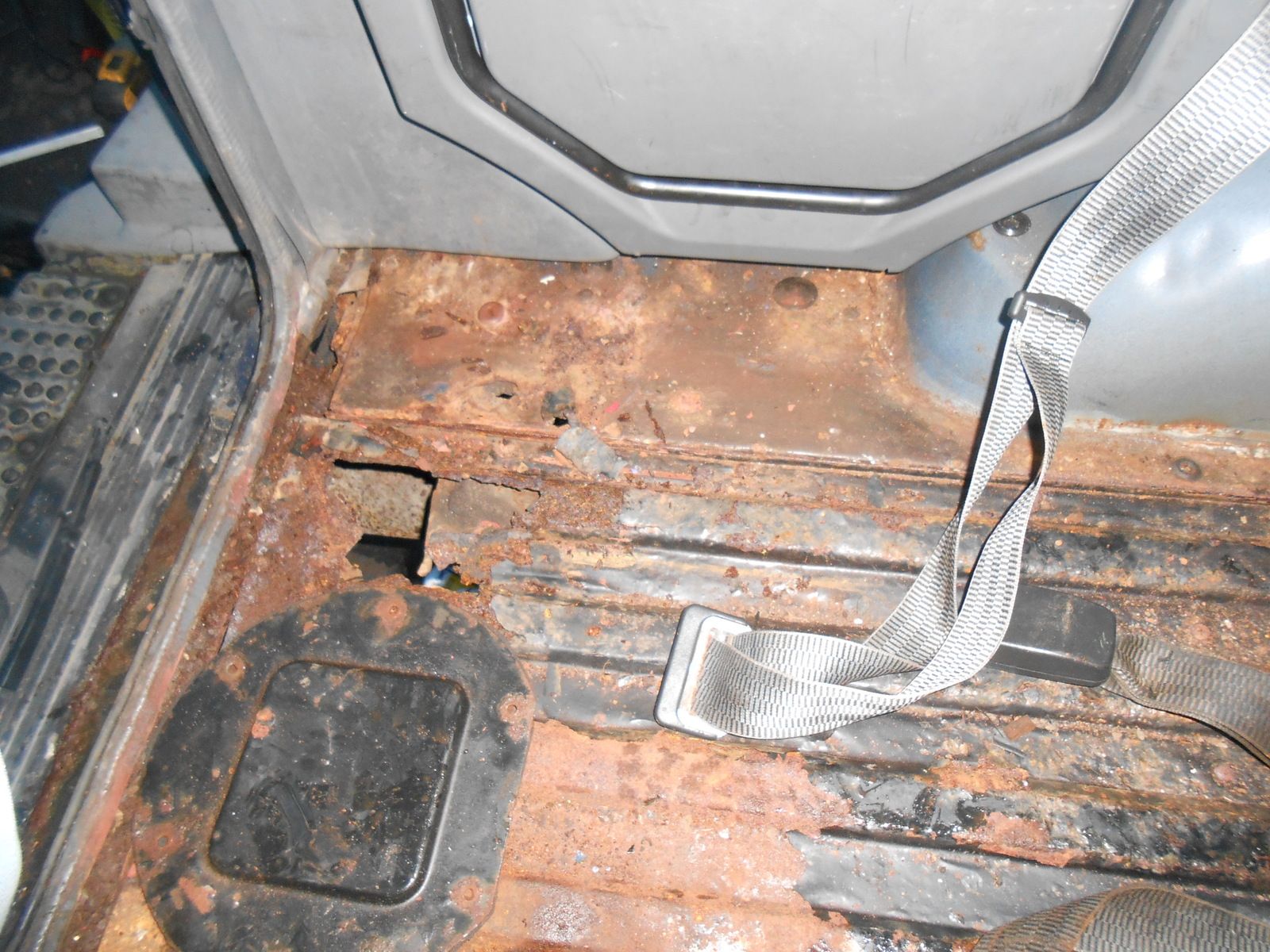

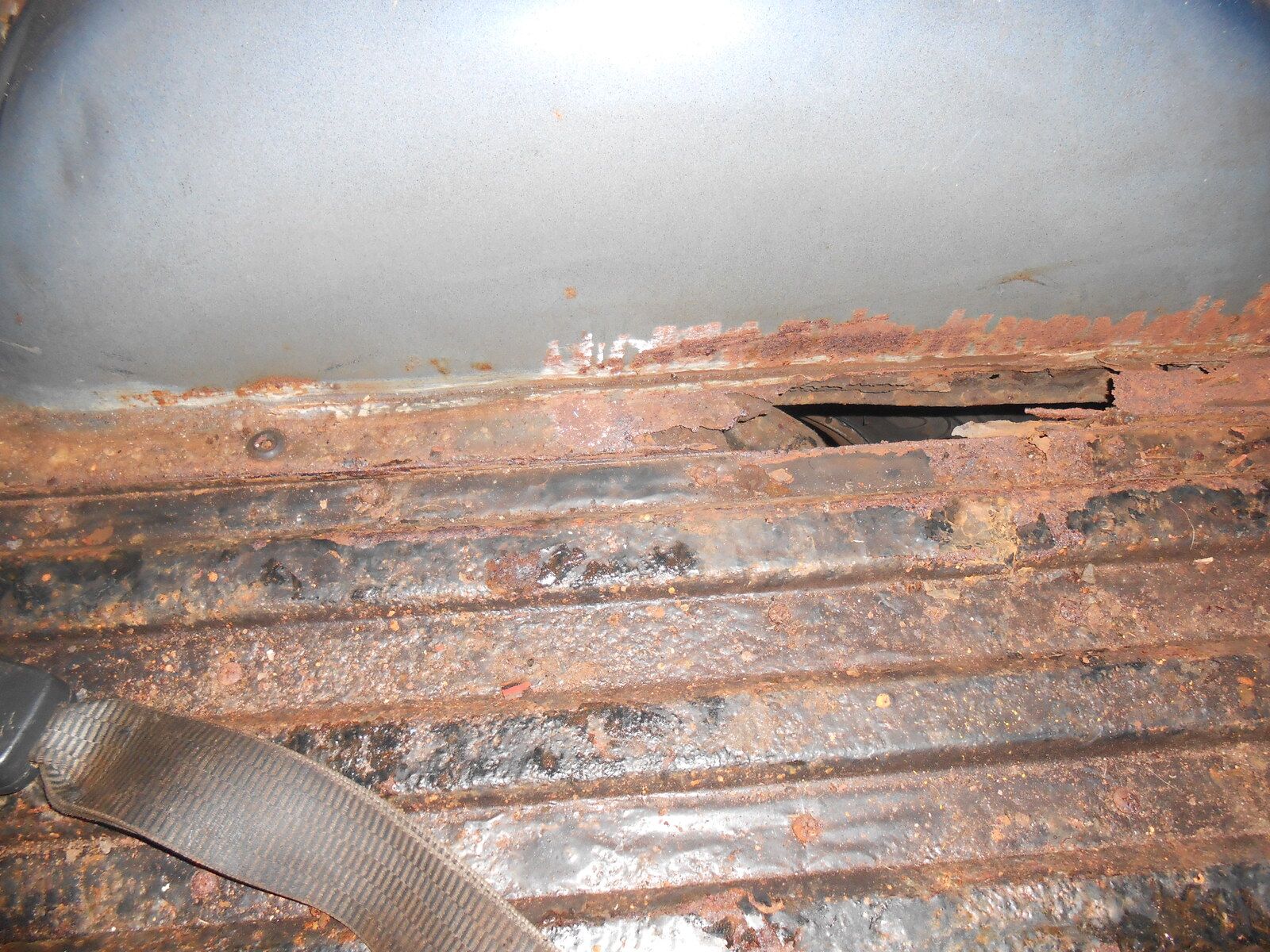

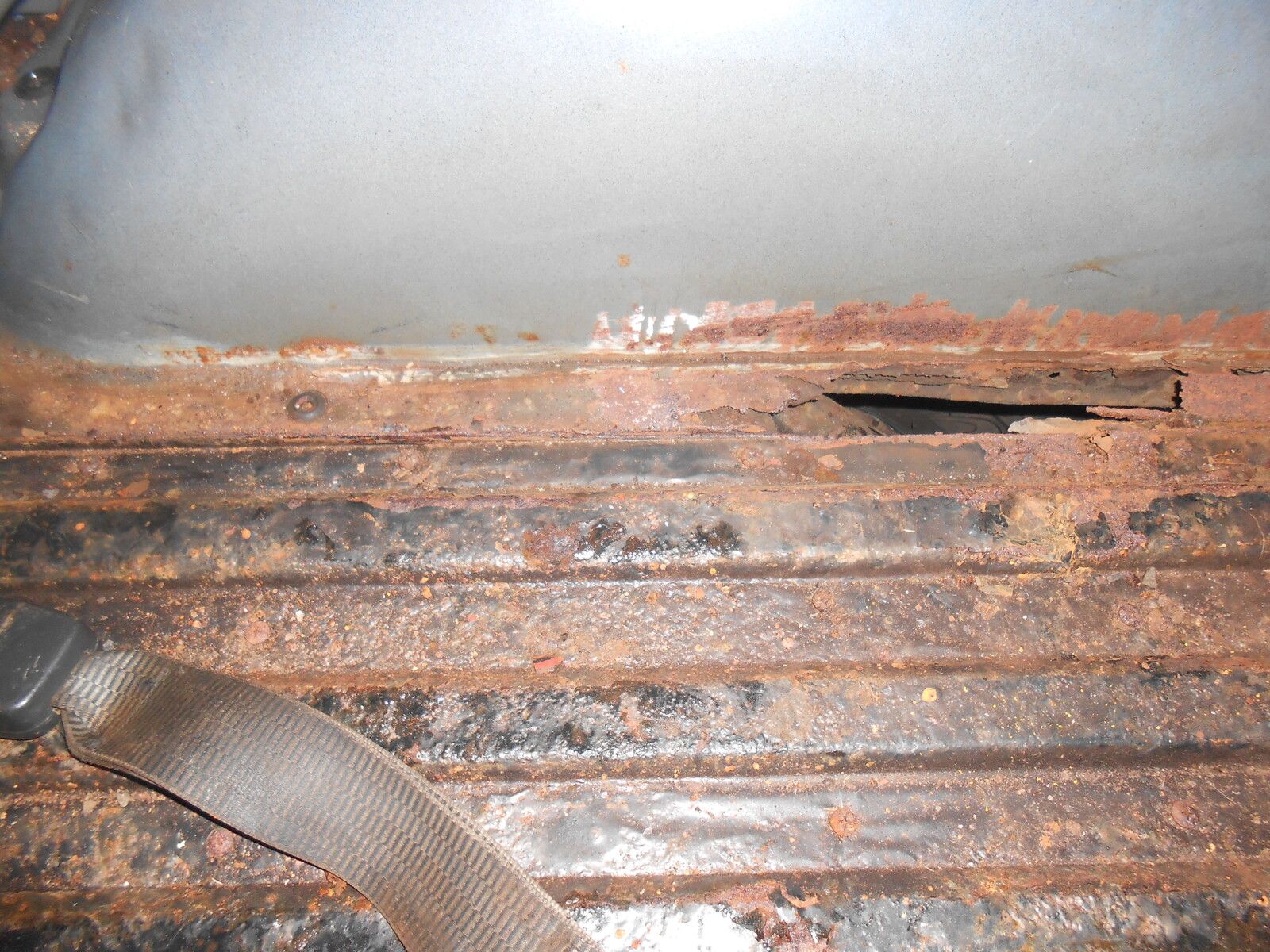

    from here it starts to go south a bit and is reminding me of a Transit van I restored a year or so ago

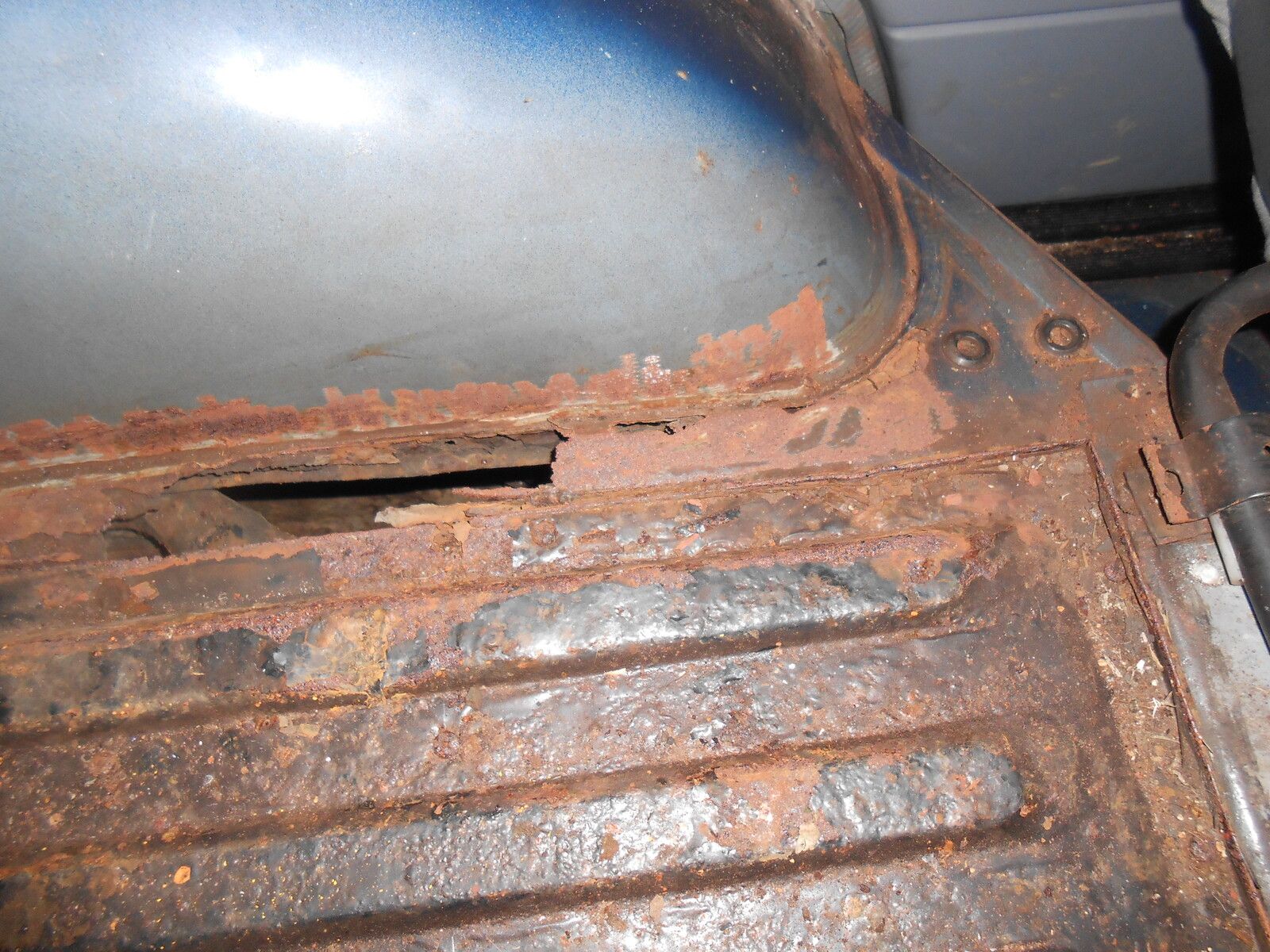

    DSCN1396.JPG DSCN1397.JPG DSCN1398.JPG DSCN1399.JPG DSCN1400.JPG DSCN1401.JPG

    hmm still not happy I still haven't found enough rust yet

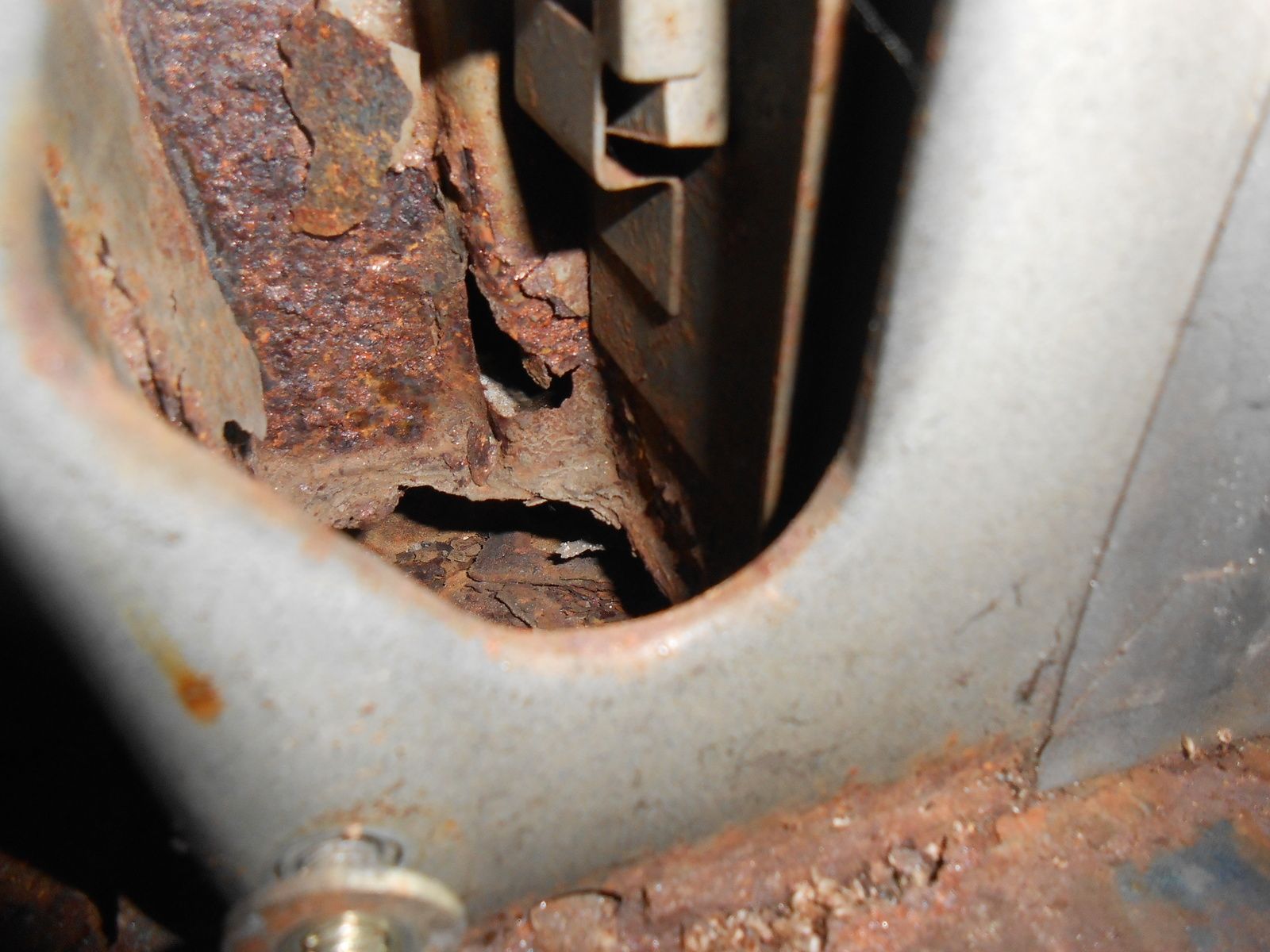

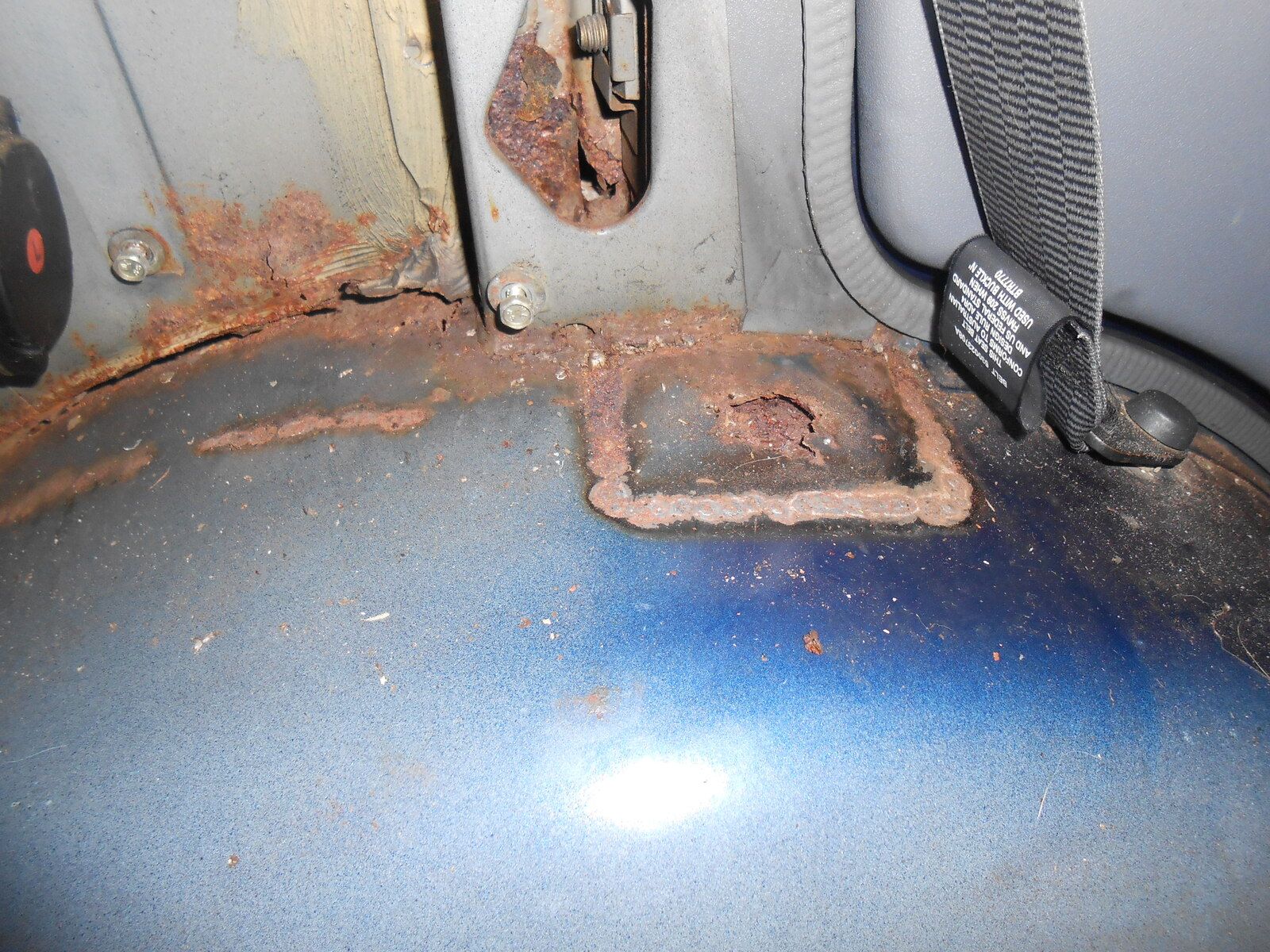

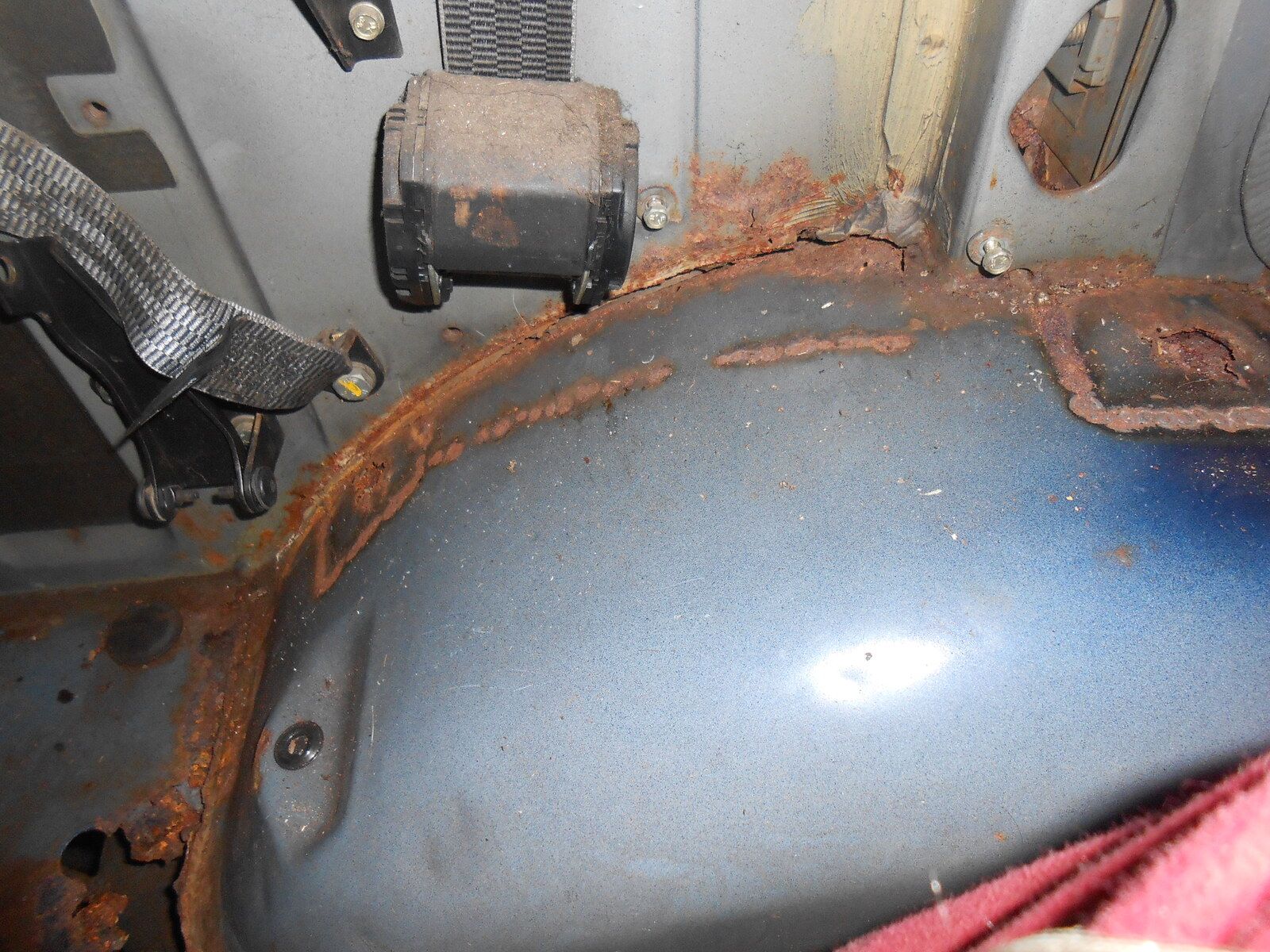

    off comes the interior trim and dickie seats I broke most of the trim removing it a bit heavy handed but I have no real plans for it to go back on as its been damaged in the past with insecure loads etc I am undecided if it should go back on or not I may need to source some good condition some

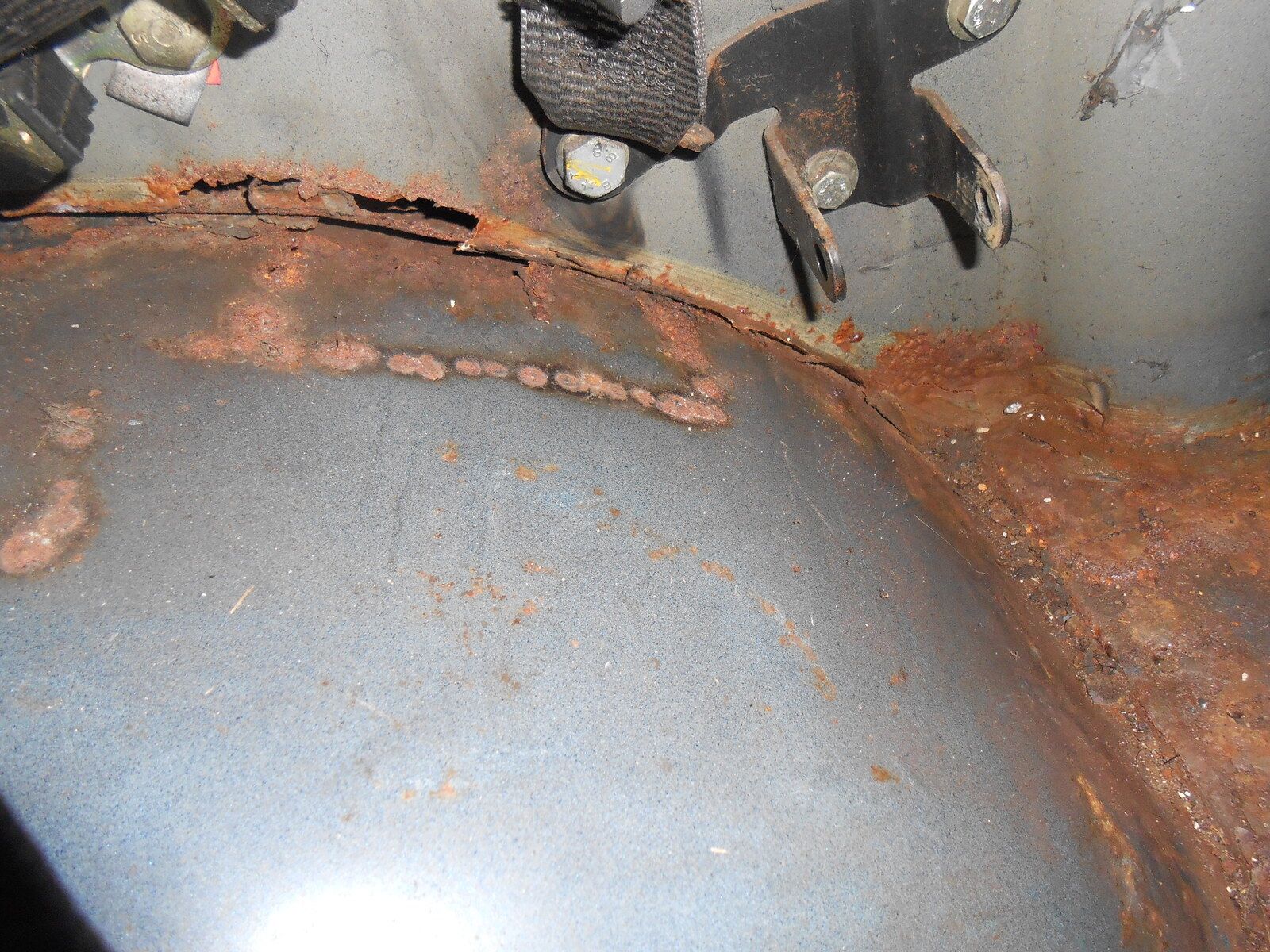

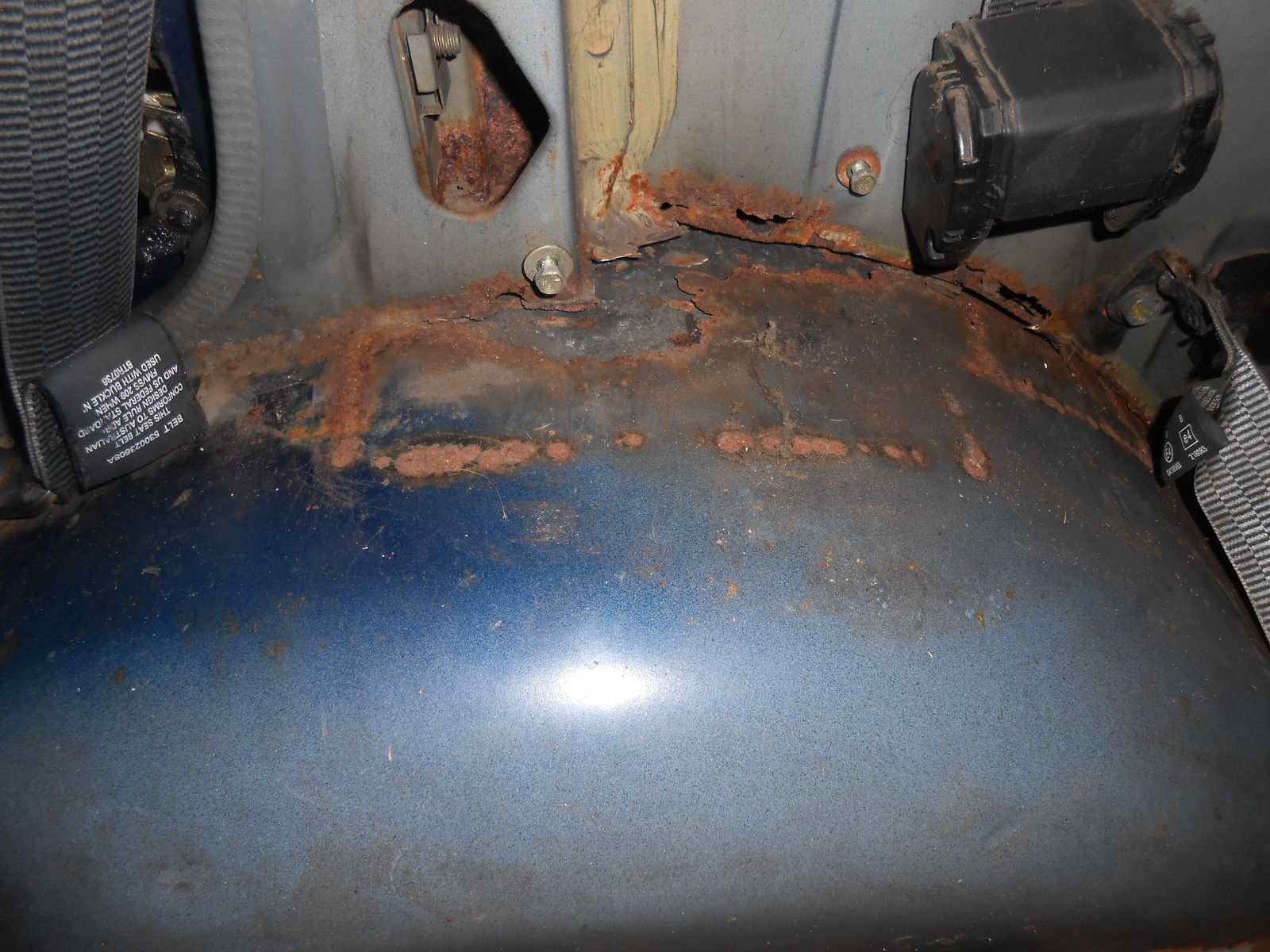

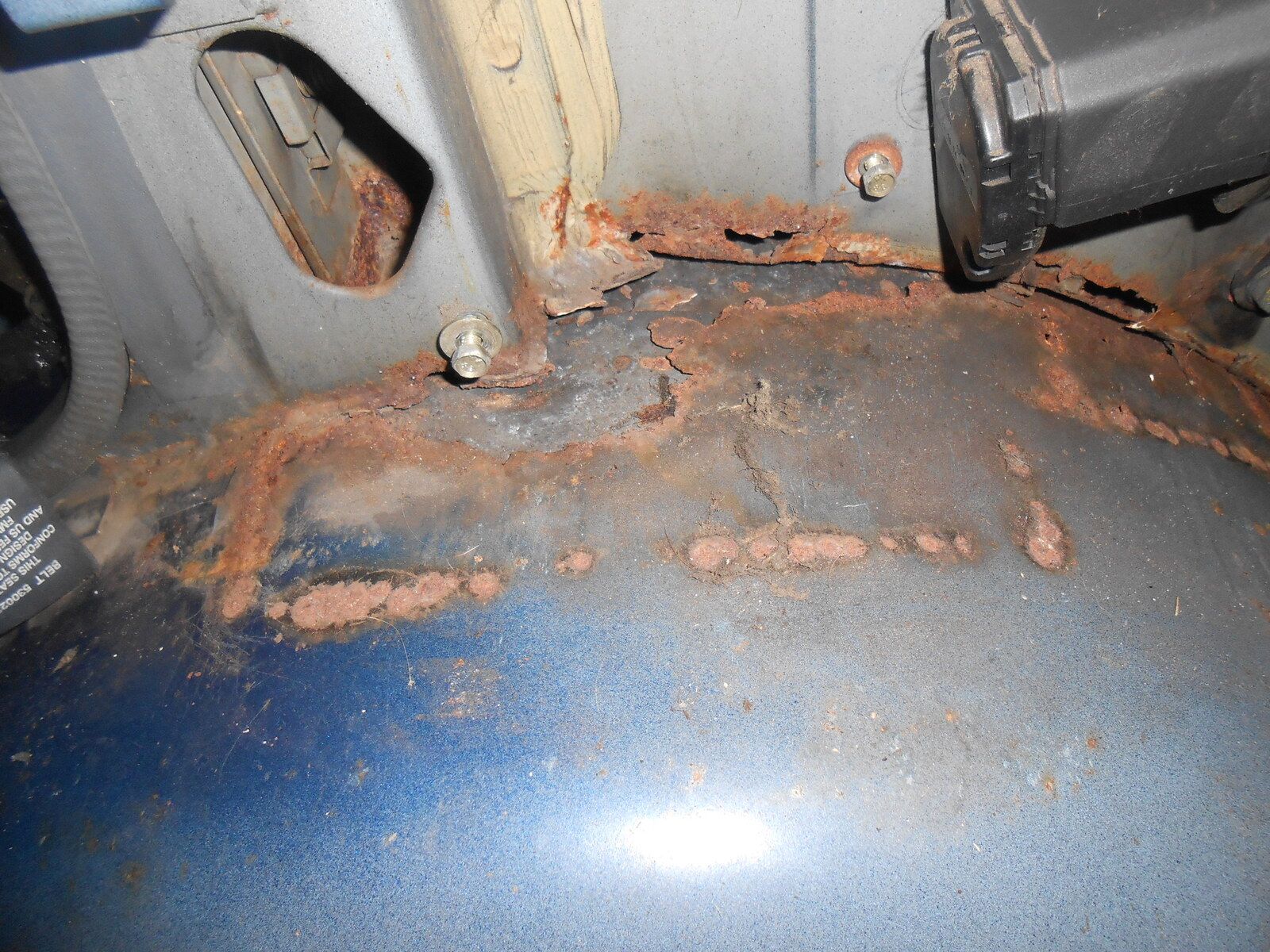

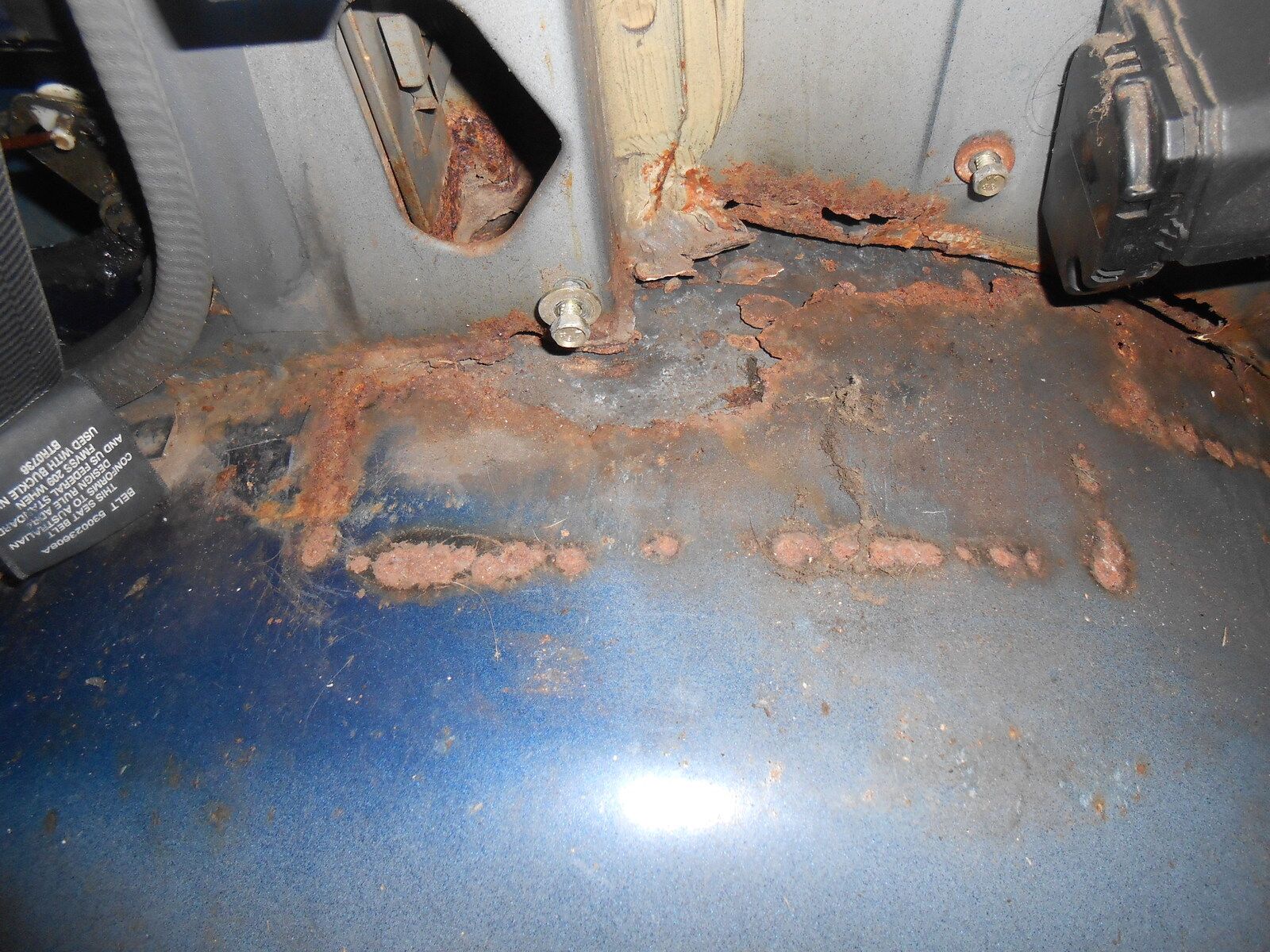

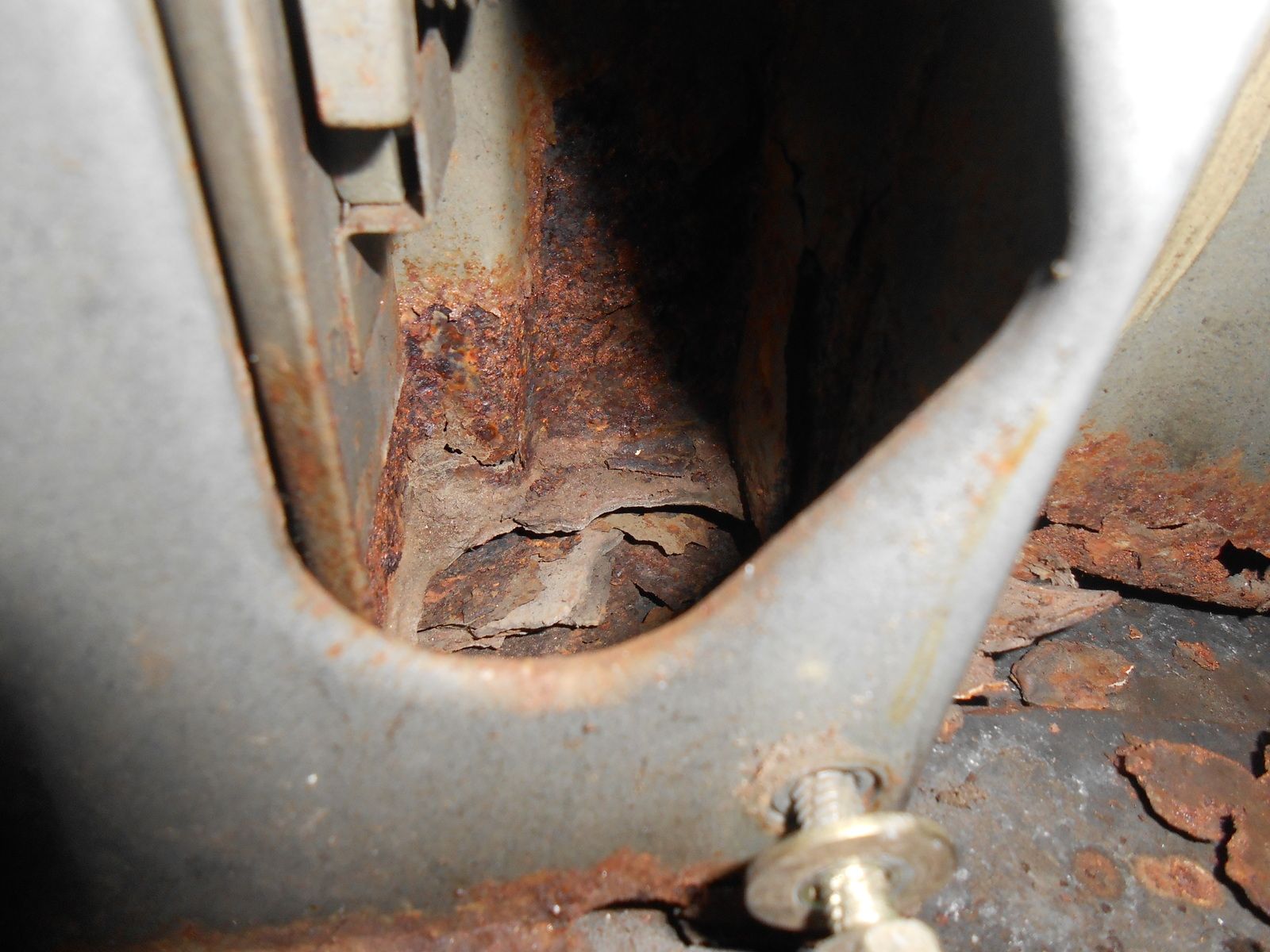

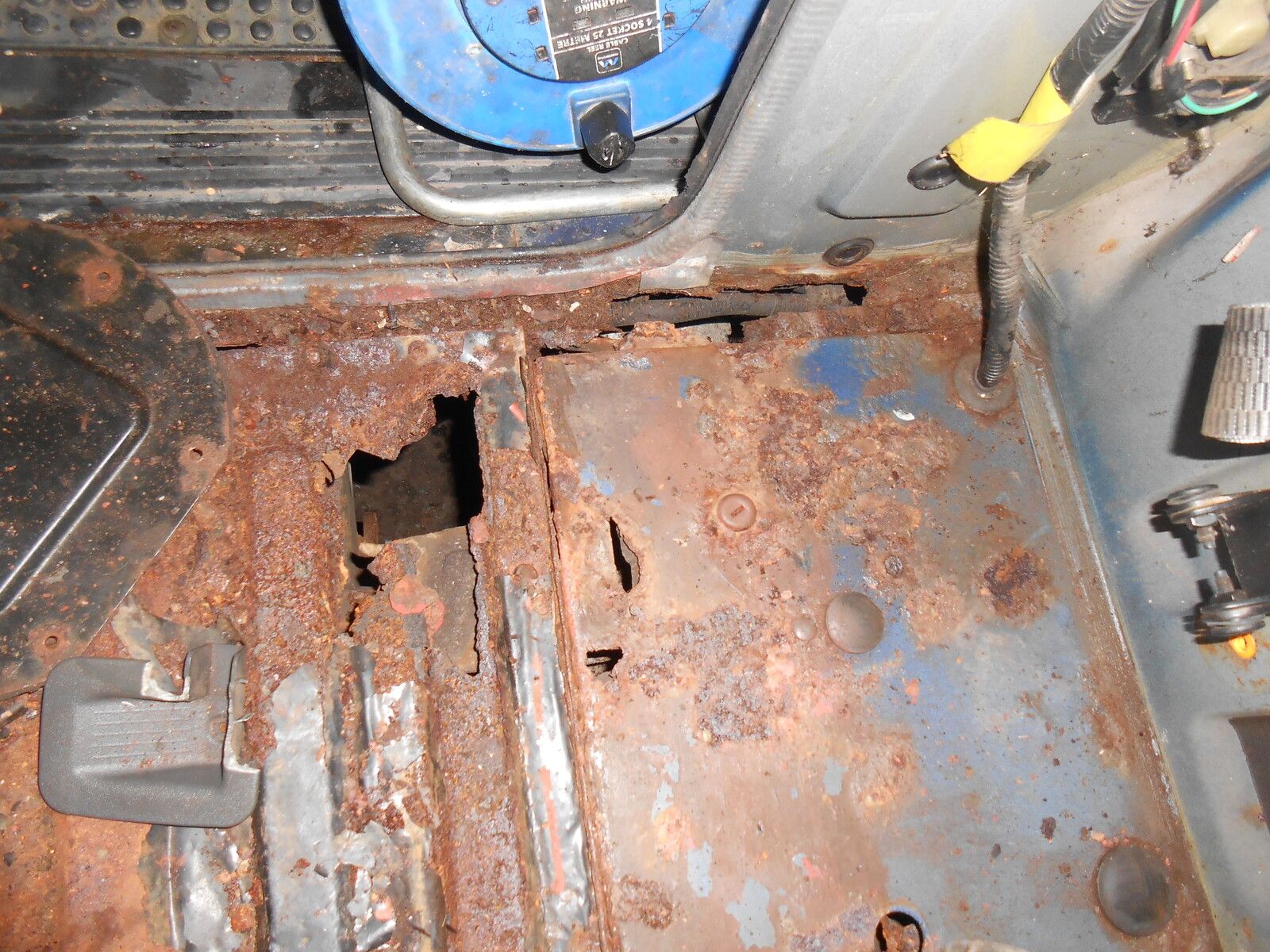

    DSCN1402.JPG DSCN1403.JPG DSCN1404.JPG DSCN1406.JPG DSCN1407.JPG DSCN1408.JPG DSCN1414.JPG DSCN1415.JPG DSCN1416.JPG DSCN1418.JPG

    so unfortunately, it looks like the rear quarters need to come off so I can address this rot that someone half ar*ed before
    can someone give me a hint on how this is done ?

    my plan was to remove the boot floor but I decided against it until I figure out the quarter panels etc

    this is possibly the route I will take as my plan is to totally seal them closed but i would still like to have light coming in

    cheers again guys

    Boab

  11. Magicgrotto

    Magicgrotto Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,683
    Likes Received:
    450
    Location:
    doncaster
    Hi B/C Flash Band is ONLY around the edge So there's plenty of light still get's inside :)

    Steve

    BoabCarney likes this.
  12. Magicgrotto

    Magicgrotto Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,683
    Likes Received:
    450
    Location:
    doncaster

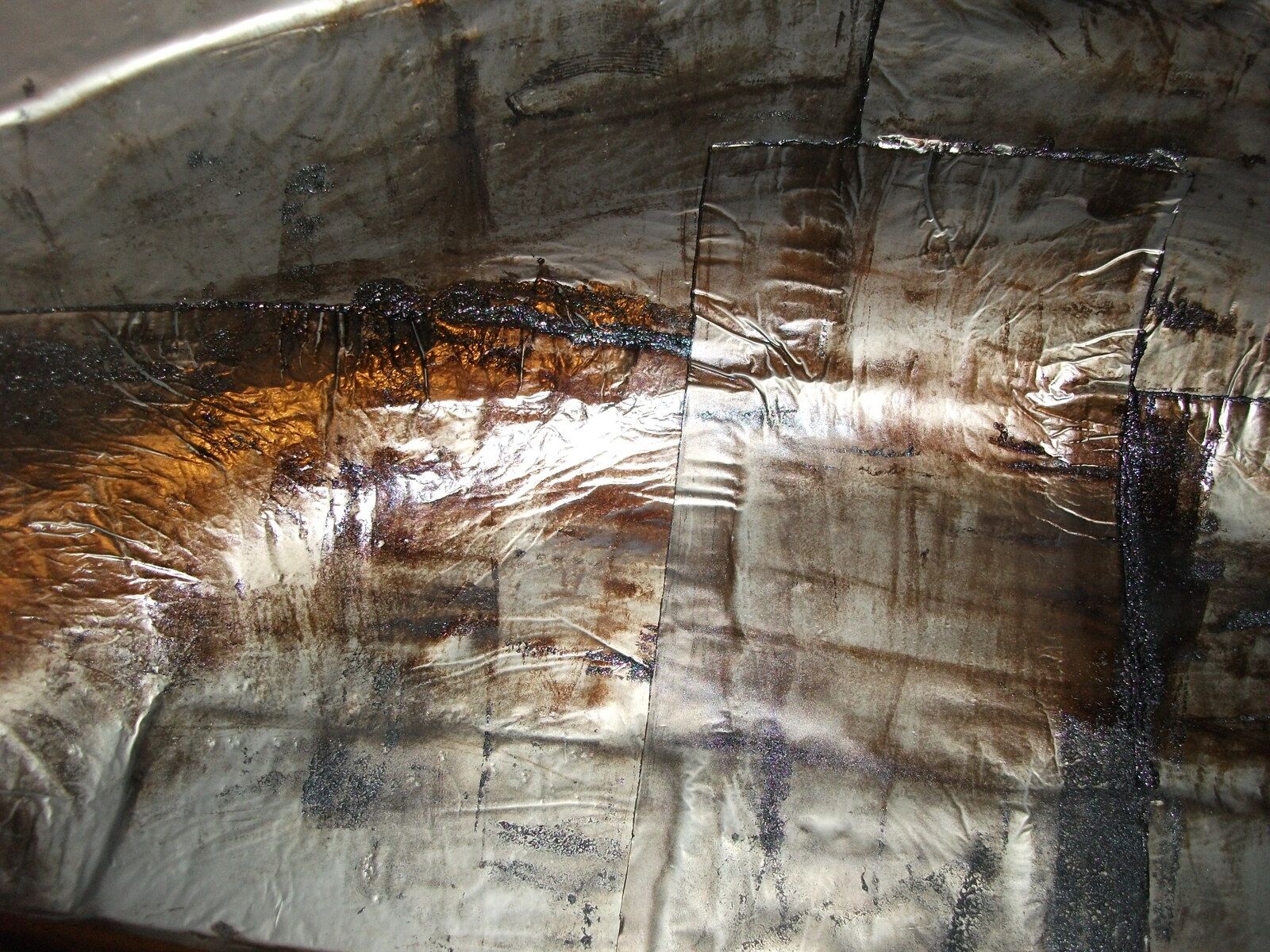

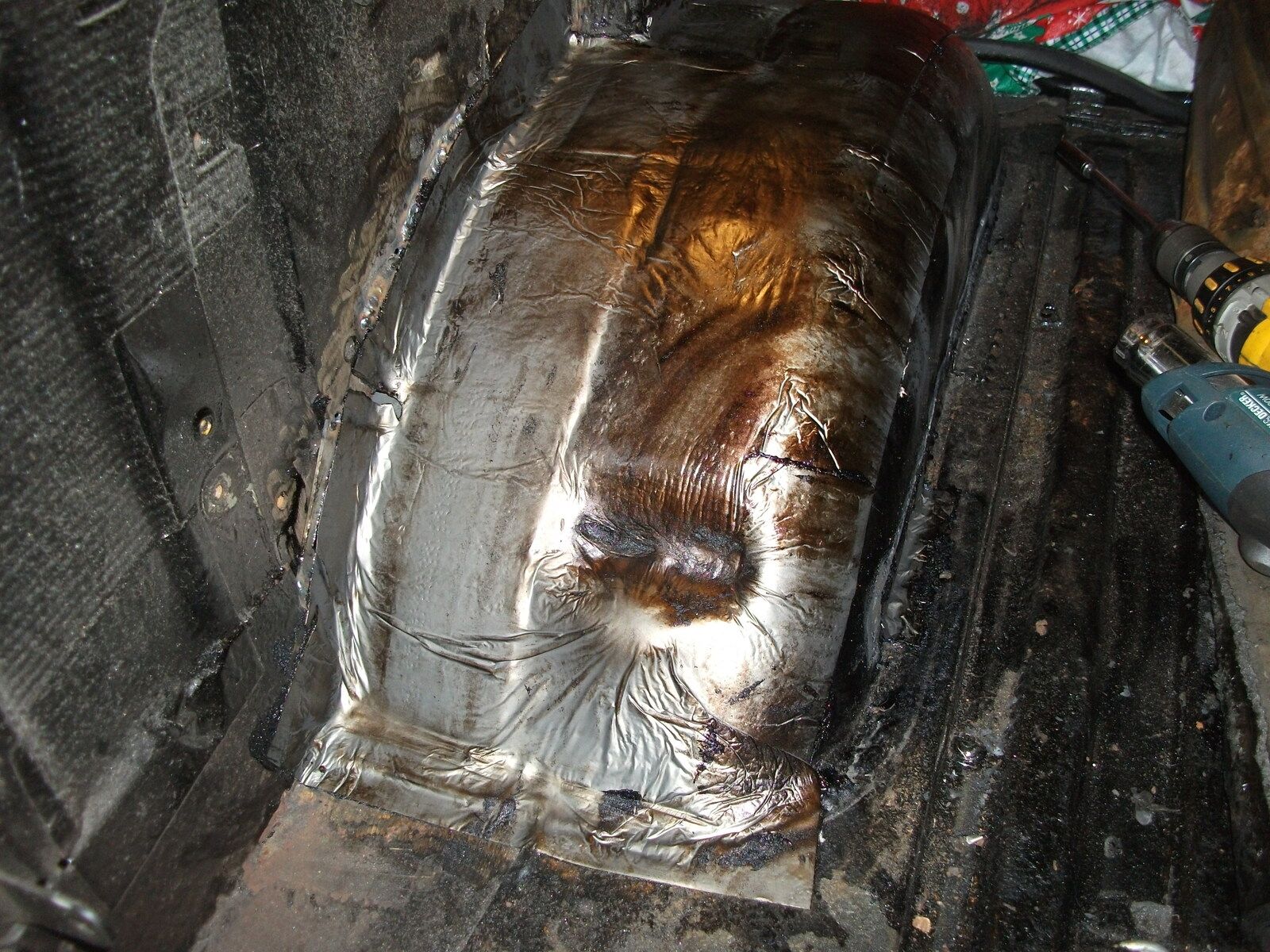

    043.JPG + you can't beat a bit of flash band LOL 043.JPG

  13. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
    I am considering using it inside on the quarters etc to help with sound

    anyway the rear cross member is annoying me don't want to replace it with the crap 1.5mm ones on sale so thinking I should fab one out of 3mm box anyone ever done this ? I mean made their own ?

    it looks like an odd shaped item

    cheers again

    Boab

  14. Magicgrotto

    Magicgrotto Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,683
    Likes Received:
    450
    Location:
    doncaster

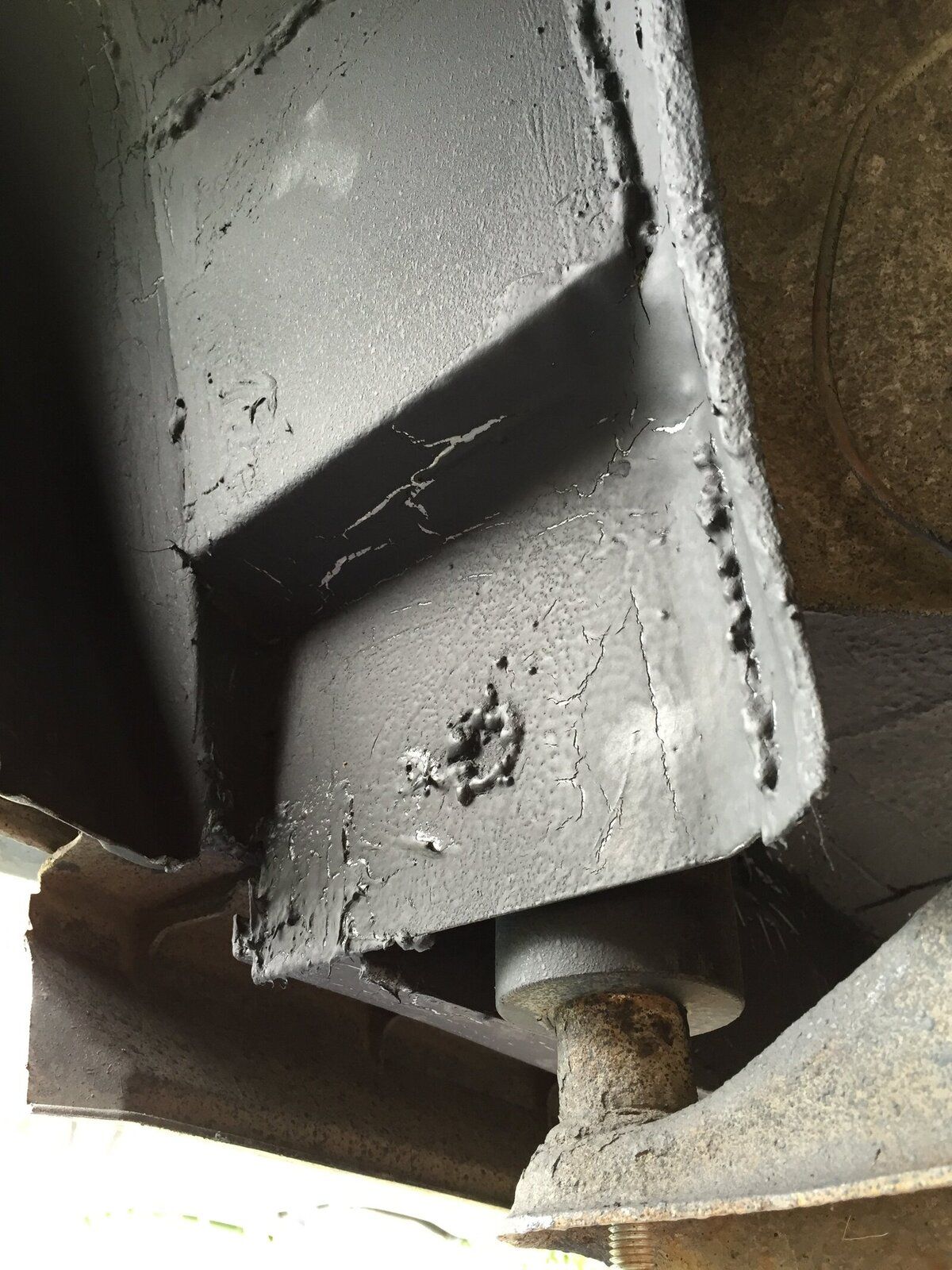

    You mean like this After fixin of-course

  15. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
    exactly lol as I am not using carpets I am going to raptor line the whole inside of the truck

  16. Chrisw8

    Chrisw8 Well-Known Member

    Joined:
    Apr 10, 2013
    Posts:
    1,070
    Likes Received:
    20
    Location:
    Top of the Hill
  17. BoabCarney

    BoabCarney Member

    Joined:
    Nov 17, 2016
    Posts:
    42
    Likes Received:
    9
    Location:
    saltcoats
  18. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    2,580
    Likes Received:
    645
    Location:
    Buxton
    I did take lots of pics when I did the sills, I'll have a look and see if there's one worth putting up.... I can take a pic underneath and show where it comes out though, in a nice brass fitting too (!!)

    BoabCarney likes this.
  19. Chrisw8

    Chrisw8 Well-Known Member

    Joined:
    Apr 10, 2013
    Posts:
    1,070
    Likes Received:
    20
    Location:
    Top of the Hill
    If you do make yer own rear crossmember, dont forget to put loads of piccies up. !!

  20. Jonah1962

    Jonah1962 Member

    Joined:
    Sep 26, 2016
    Posts:
    36
    Likes Received:
    2
    Location:
    Walsall

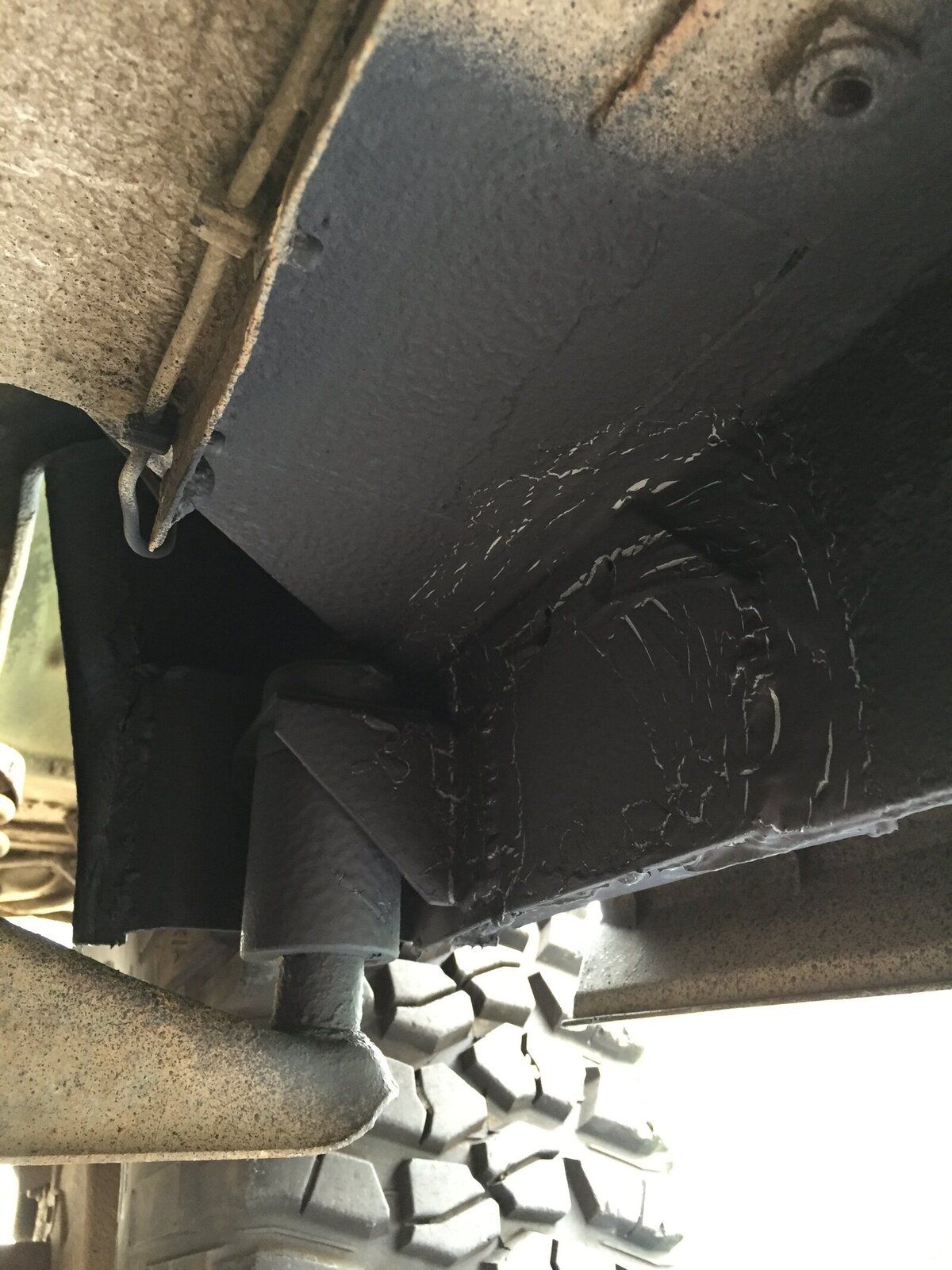

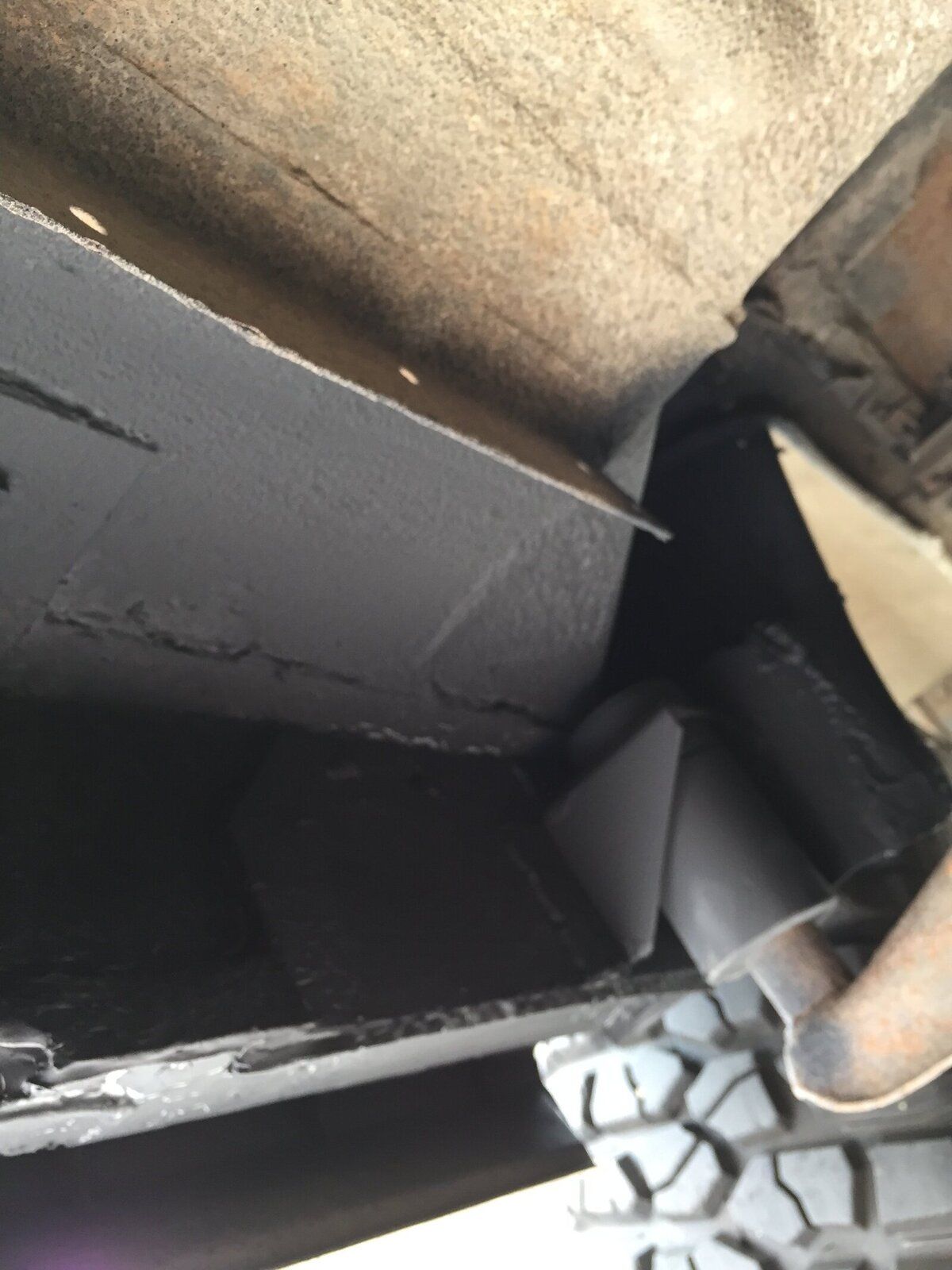

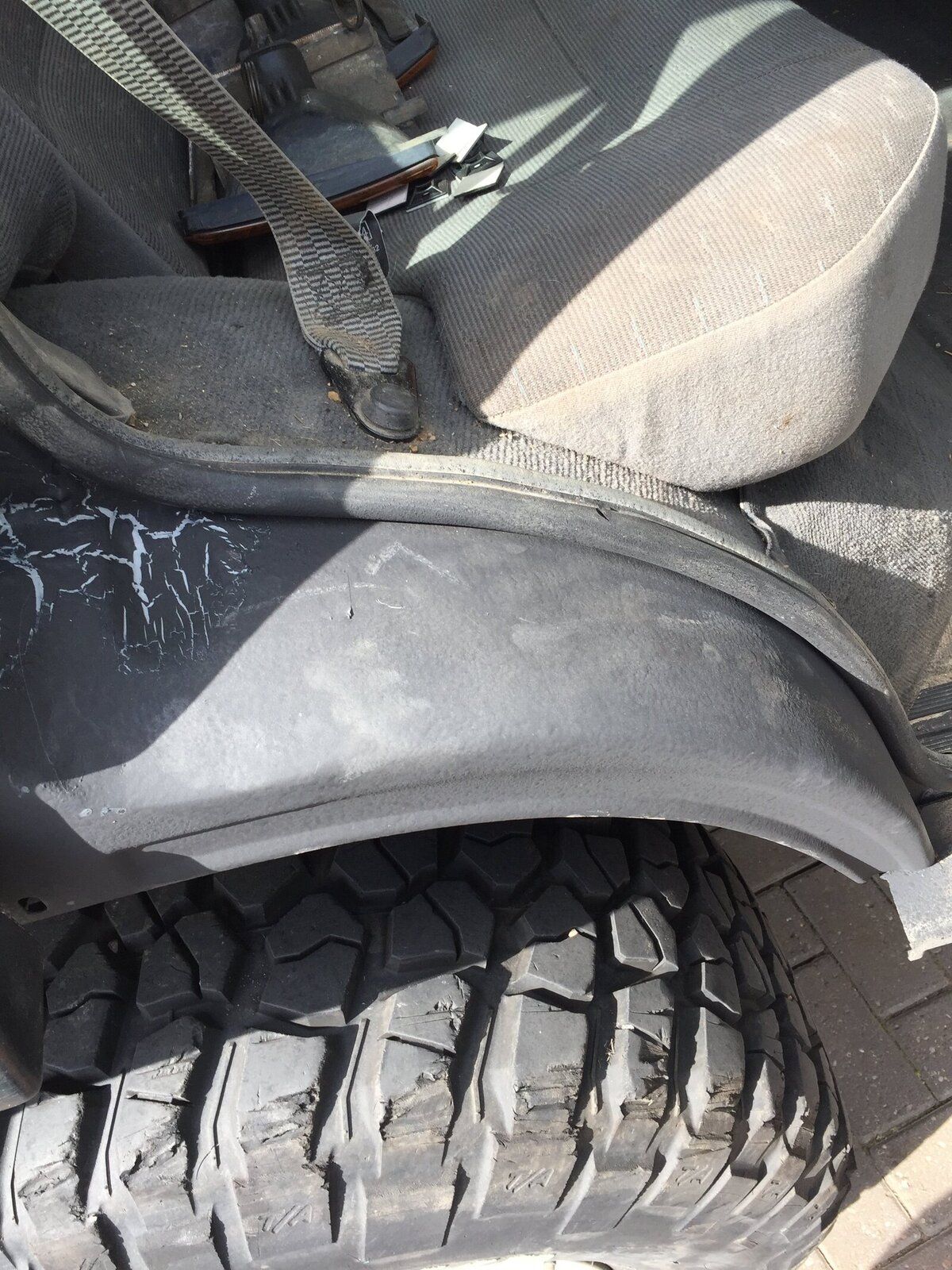

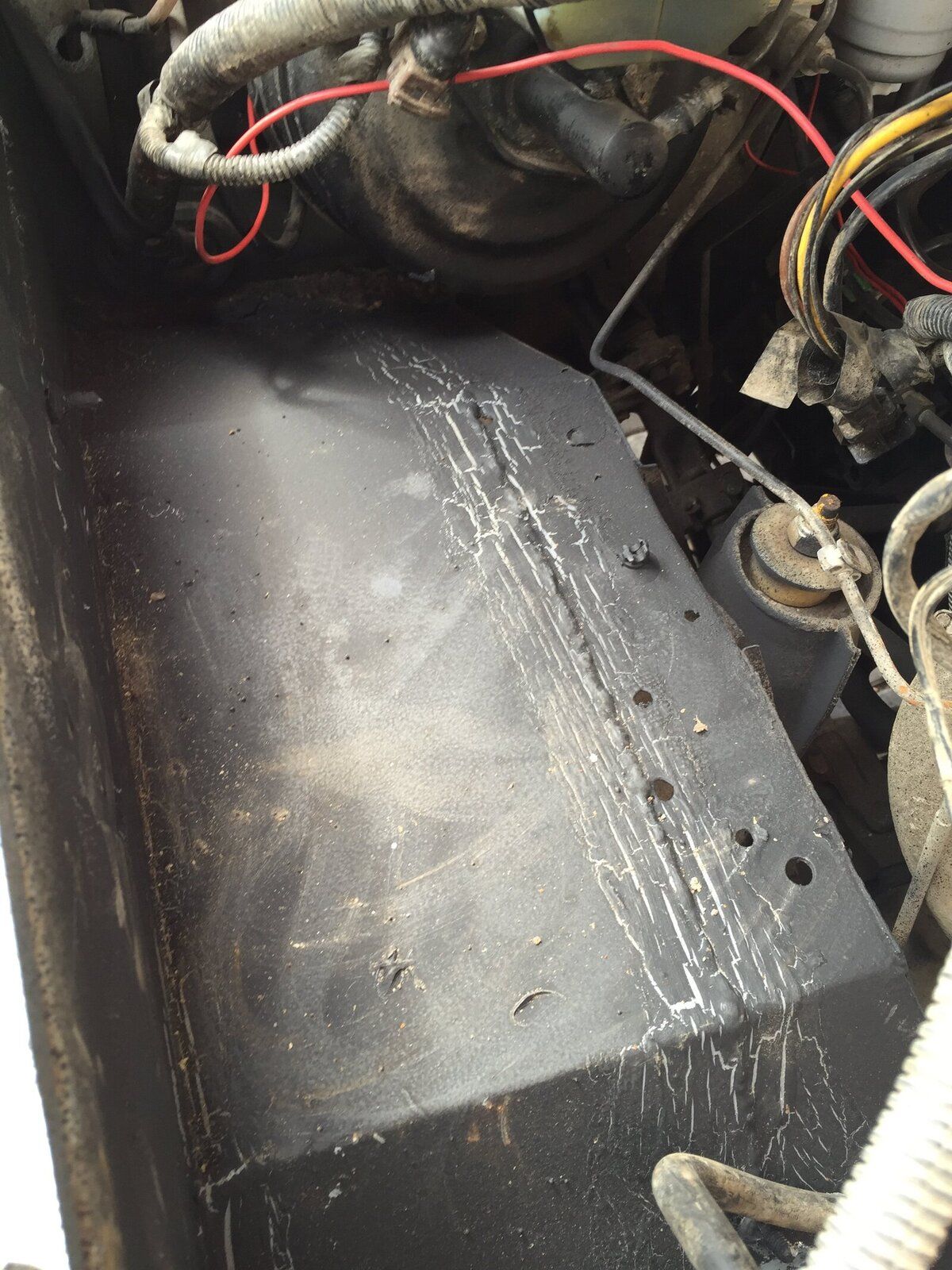

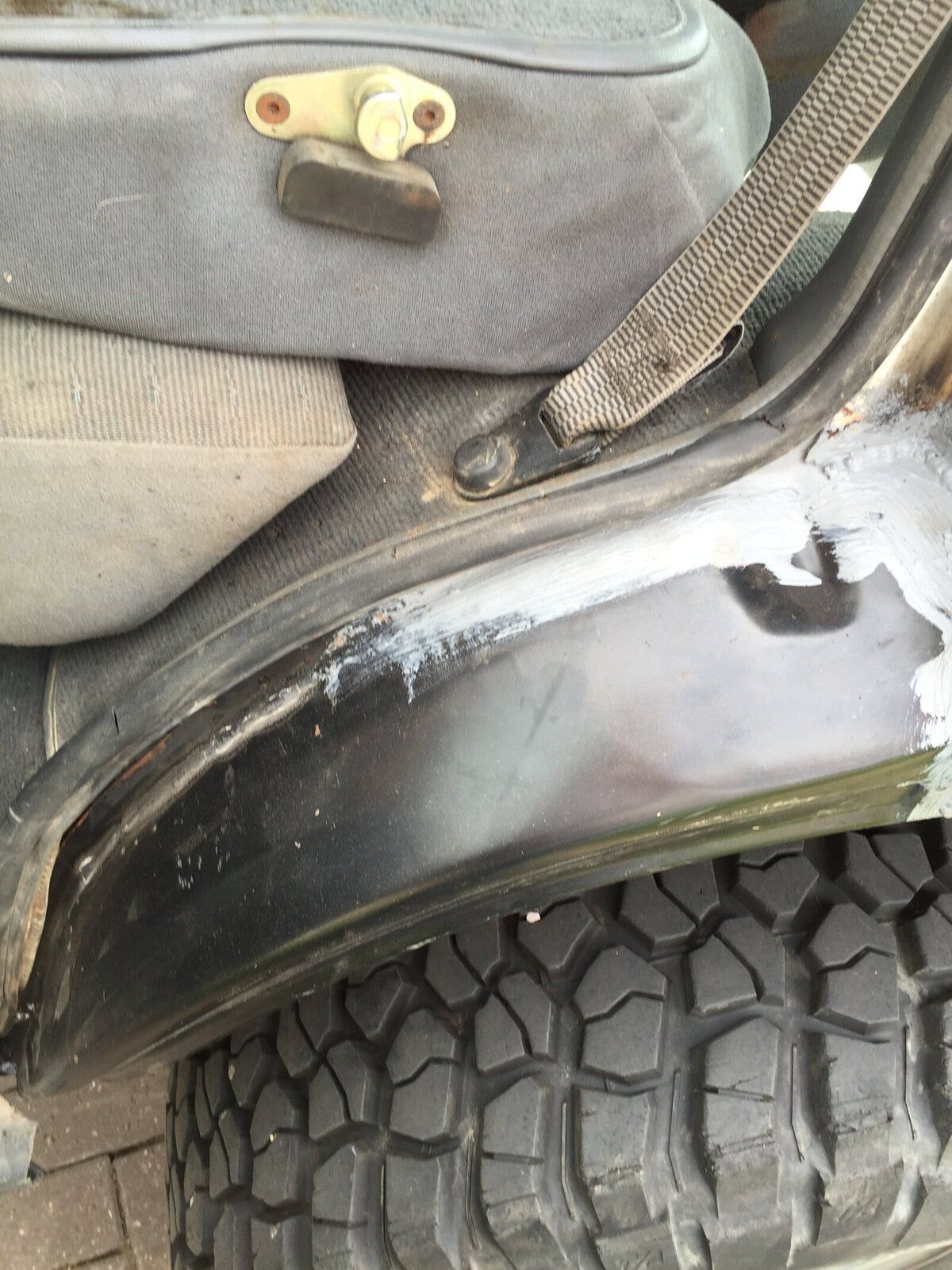

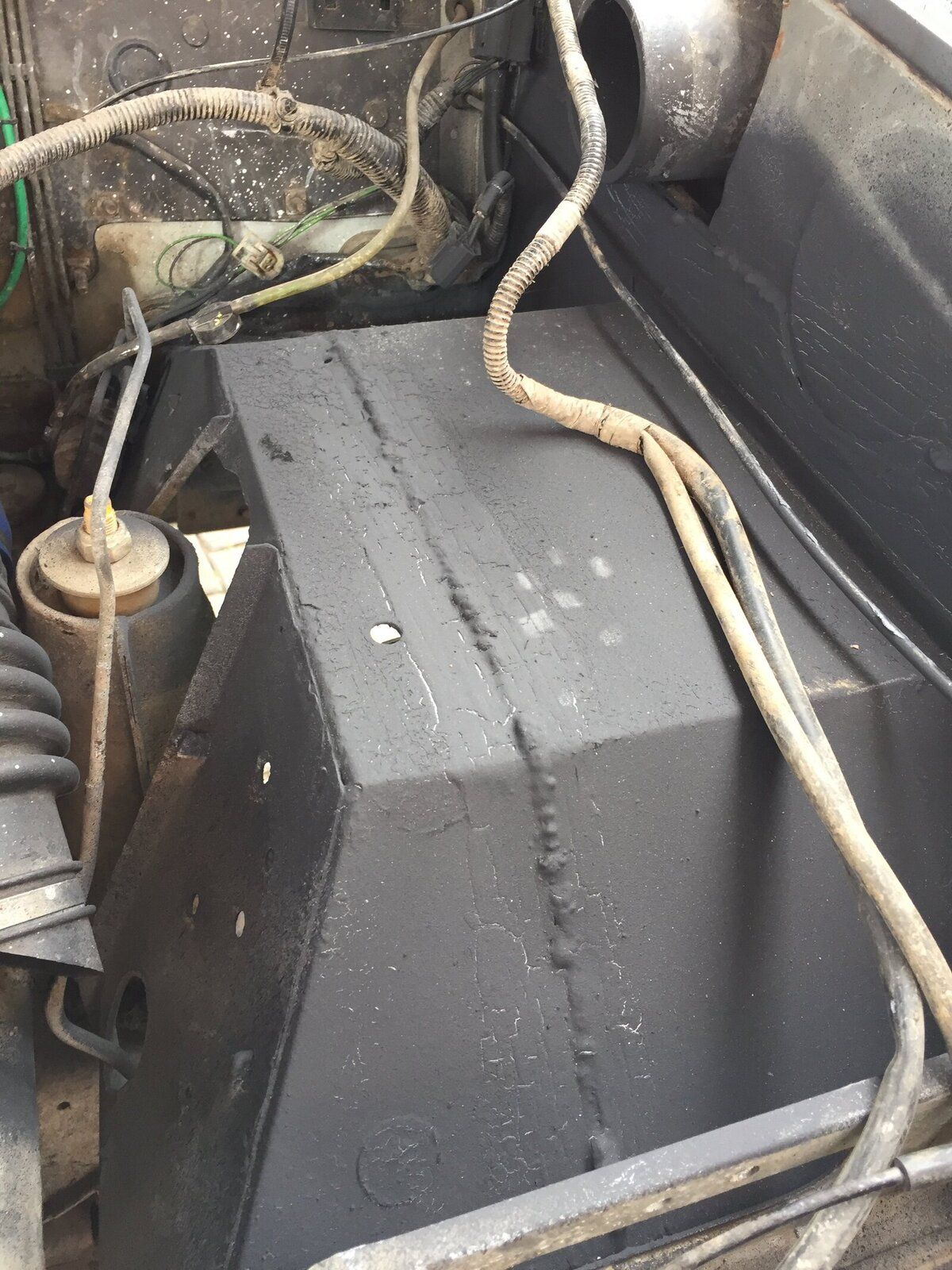

    Here's the progress on mine so far boab, still got rear floor to go lol.
    Got to sort the imobiliser nightmare out next.:mad:


    Attached Files:
