Series 3 Crazy wipers

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Rubins4

Well-Known Member
Posts
813
On rebuilding my SIII I've run into wiper issues. The arms should travel in opposite directions (divers side anti clockwise, passenger clockwise) but mine both go clockwise. They do however park in the right place.

I think this means I need to invert the wheel box on drivers side but before I remove the dash can any one confirm?

Cheers.

Workshop manual shows the left side wheelbox is below the rack while the right side one is above the rack. Picture on page 84-3 of the repair operations manual.

Just redone my wiperbox etc
Yes that's right

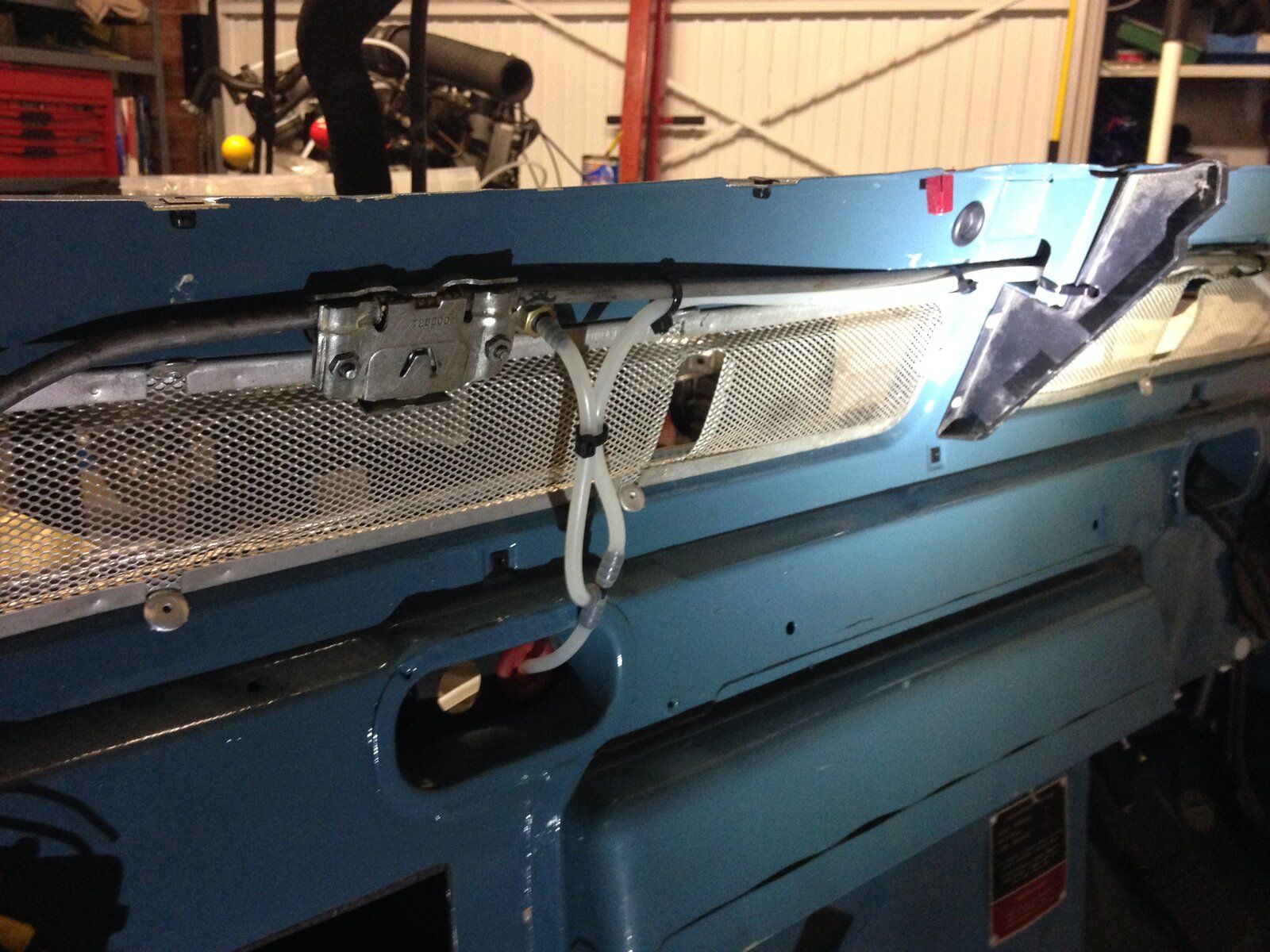

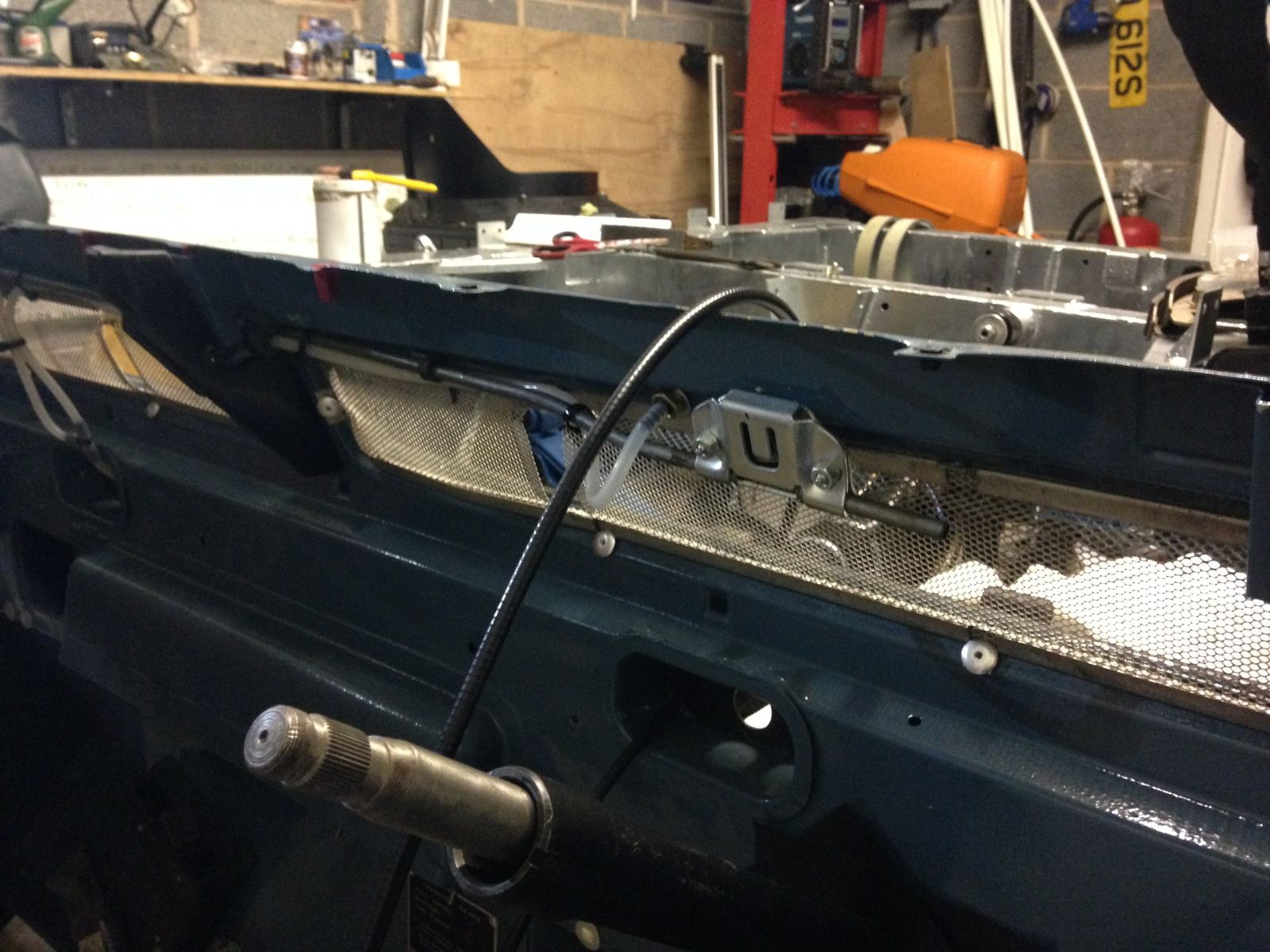

Not the best photos but may help , that's if I done it right!!!

Thank you chaps, at least I can tear back into the dash with some confidence. Hopefully I can go straight through the binnacle but we will see.

@wwwfc666 you appear to be making an absolute minter, good work.
