Freelander 1 Crankshalf bottom pulley

gary brion · Dec 31, 2018

Hi all,
I have just started stripping out the crankshaft bottom pulley
the first issue could not find the Woodruff key, seems some did not have them fitted?
so will it be ok to put it back without one? and the other thing I can not find a listing for the short belt
that runs off the bottom pully, I think it drives the a/c or alternator? so any info on that too would be good.
Thanks guys, and Happy New Year to you all

andyfreelandy · Dec 31, 2018

Woodruff certainly not present on TD4. Lower belt drives a/c only. Should find it easily on ebay. Bolt has a tightening procedure. Torque then in degrees. Very very tight!!!

Nodge68 · Dec 31, 2018

No key on the TD4 crank pulley. It's just done up bloody tight.!!
Edit.
Doh. What Andy said.

gary brion · Dec 31, 2018

Fantastic!...Thank you very much for your helpful prompt replies...(belt ordered)

andyfreelandy · Dec 31, 2018

Make sure you have correct size tensioner spanner or you'll round nut / remove knuckles or worse! 15/16 inch from memory and fit it then jam bit of wood on top to prevent it slipping off. This is for the long belt. Short belt tensioner is easier. Check this site for the belt routing guide if you need to. Good luck.

gary brion · Dec 31, 2018

andyfreelandy said:
Make sure you have correct size tensioner spanner or you'll round nut / remove knuckles or worse! 15/16 inch from memory and fit it then jam bit of wood on top to prevent it slipping off. This is for the long belt. Short belt tensioner is easier. Check this site for the belt routing guide if you need to. Good luck.

Is that long belt one of those spring tensioned types, where you just put the spanner on and turn it ?

andyfreelandy · Dec 31, 2018

Yes sounds simple! However get the wrong spanner and you are in trouble as the nut is very thin. Trap the spanner against the chassis rail as it is very tight to turn. Don't get your fingers between belt or pulley whilst fitting in case tensioner slips. Again, good write up on here how to do it.

Arctic2 · Dec 31, 2018

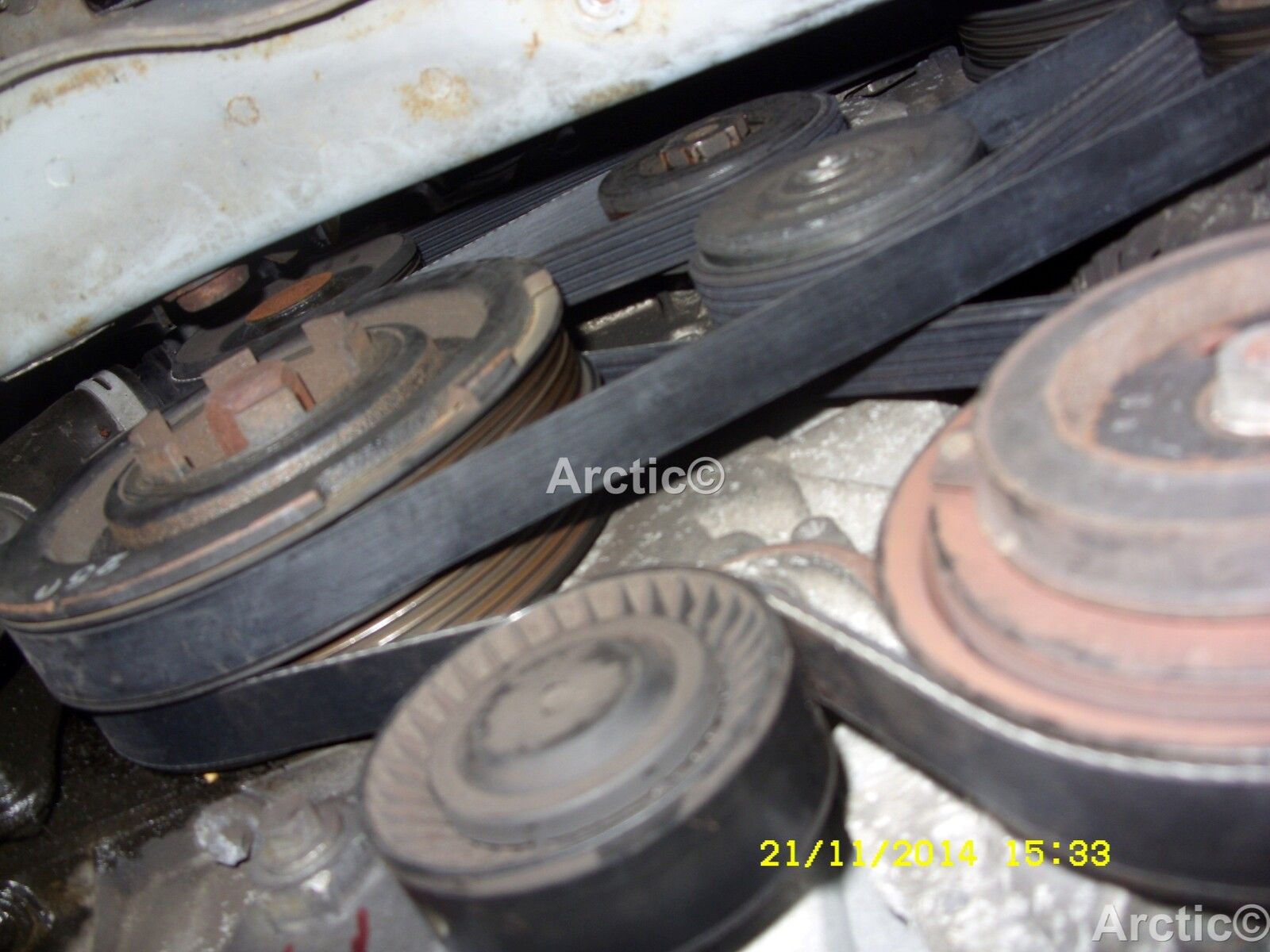

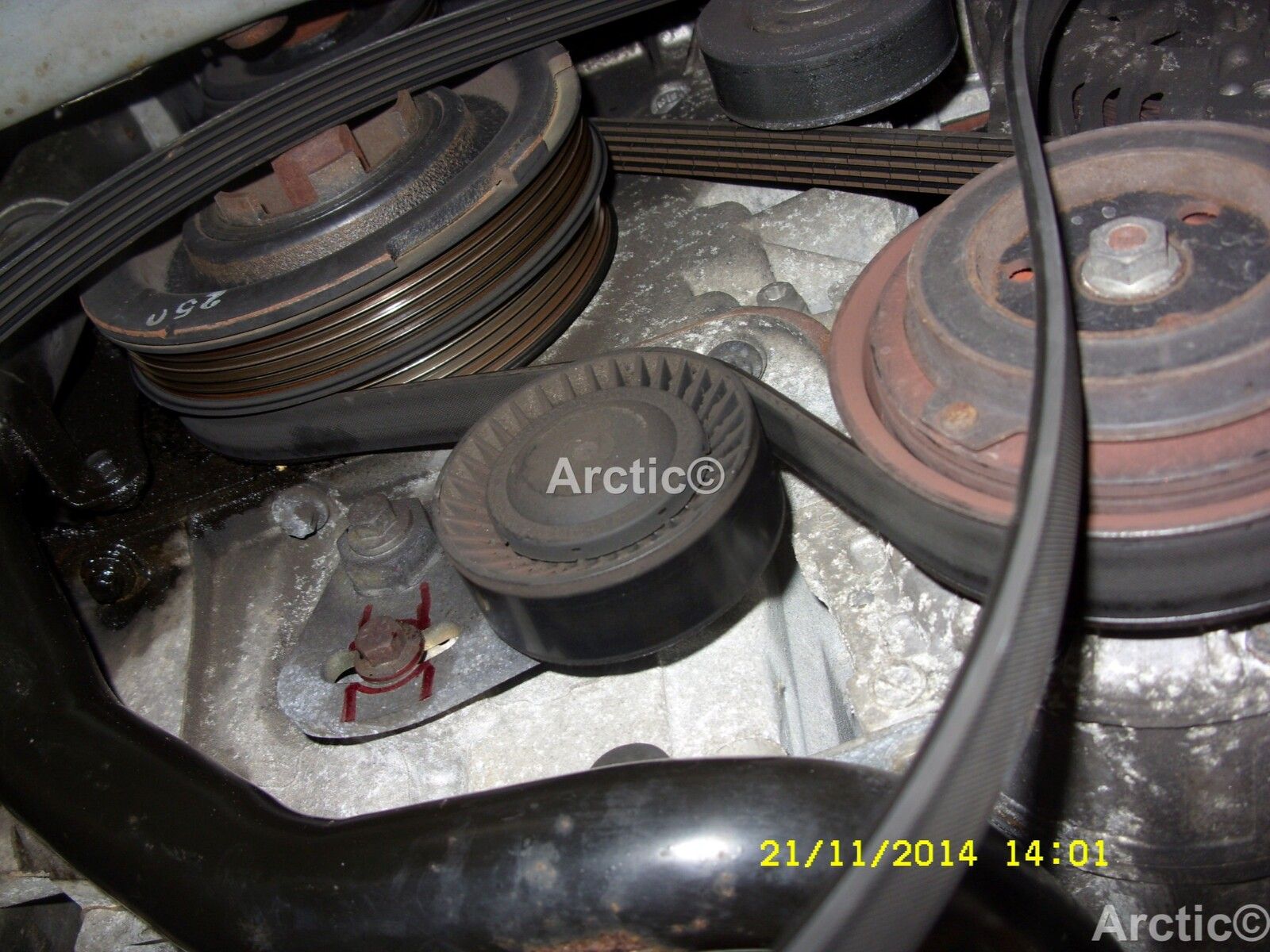

Both belts below gates in my opinion are best out there,
https://www.ebay.co.uk/itm/152630183737
https://www.ebay.co.uk/itm/162597598422

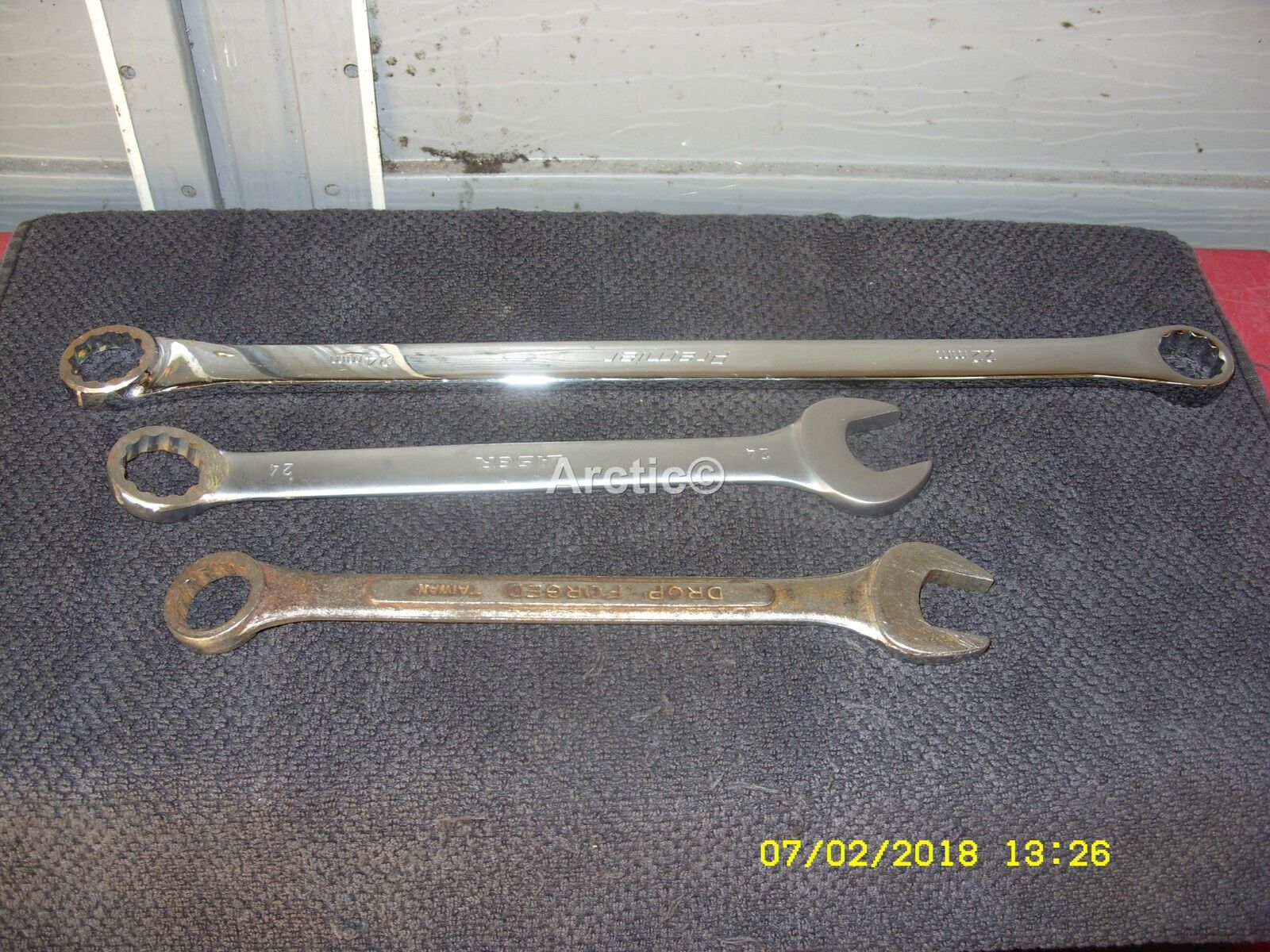

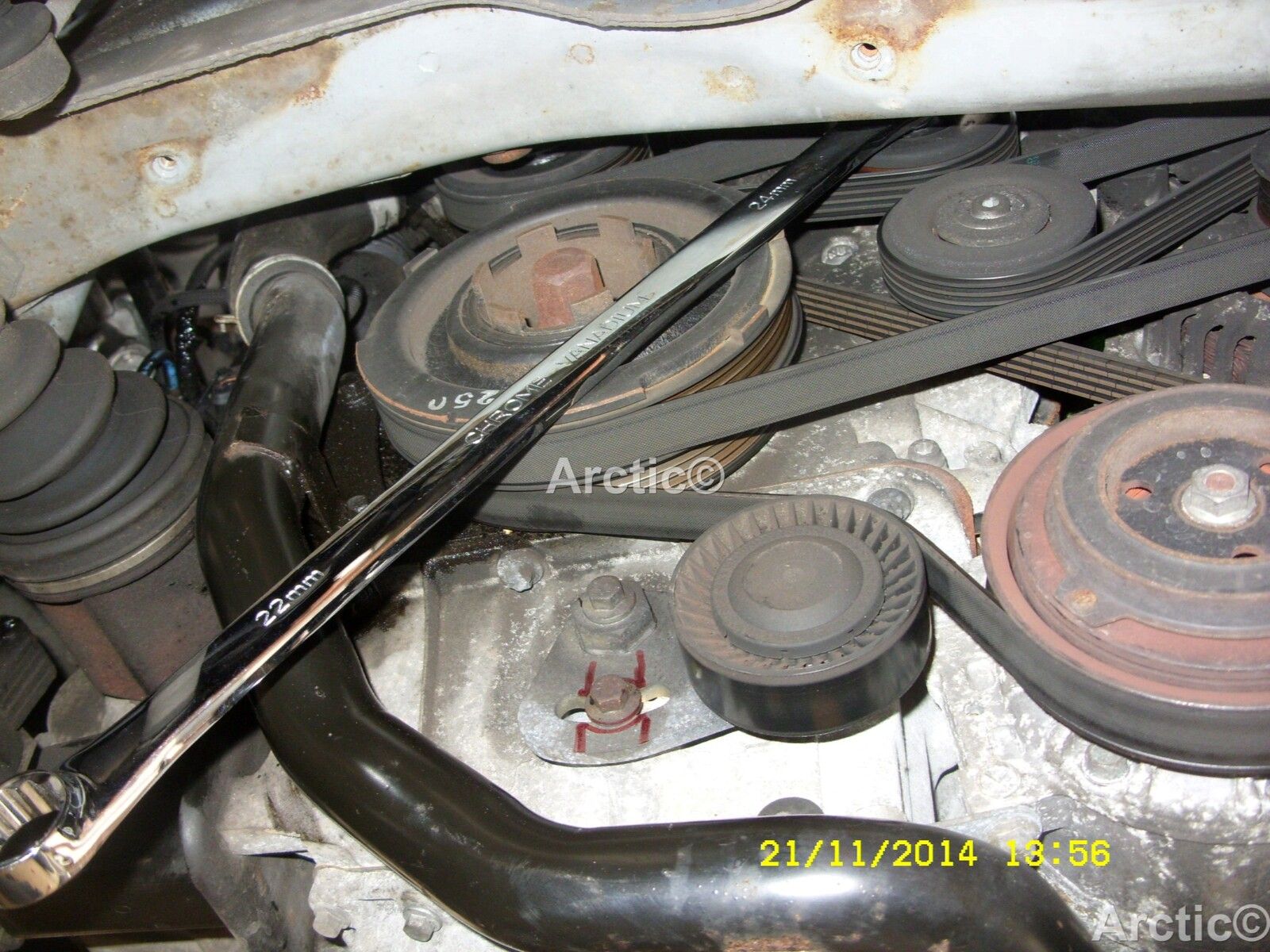

Also get your self a aviation spanner and grind the end down so it fits between the tensioner nut and chassis arm only a small gap,
https://www.ebay.co.uk/itm/Trident-...h=item4aaf356e43:g:3rkAAOSwcUBYRwQn:rk:7:pf:0

gary brion · Dec 31, 2018

Arctic2 said:
Both belts below gates in my opinion are best out there,
https://www.ebay.co.uk/itm/152630183737
https://www.ebay.co.uk/itm/162597598422

Also get your self a aviation spanner and grind the end down so it fits between the tensioner nut and chassis arm only a small gap,
https://www.ebay.co.uk/itm/Trident-...h=item4aaf356e43:g:3rkAAOSwcUBYRwQn:rk:7:pf:0

Thanks for pics ect... so im looking for a long 22mm ring spanner?

andyfreelandy · Dec 31, 2018

15/16 inch af fits mine best. 24mm is just a bit slack.

Arctic2 · Jan 1, 2019

gary brion said:
Thanks for pics ect... so im looking for a long 22mm ring spanner?

You need the 24mm end of the spanner for the crank pulley tensioner.

gary brion · Jan 1, 2019

Thanks again, I will go armed with everything I have Tomorrow, be nice to get her running again
the wife ant to keen on my old Disco 1

gary brion · Jan 1, 2019

Just trying to get hold of a belt diagram for replacing the two belts,if anyone has one would be a great help? its the aircon model
