Crankshaft seal/bearings

R

Rorie

Active Member

Posts

641

• Jun 6, 2019

• #1

300tdi
I have a leak from behind the camshaft crank gear. Is the seal I need ERR3356? Along with a new gear LHH100660?

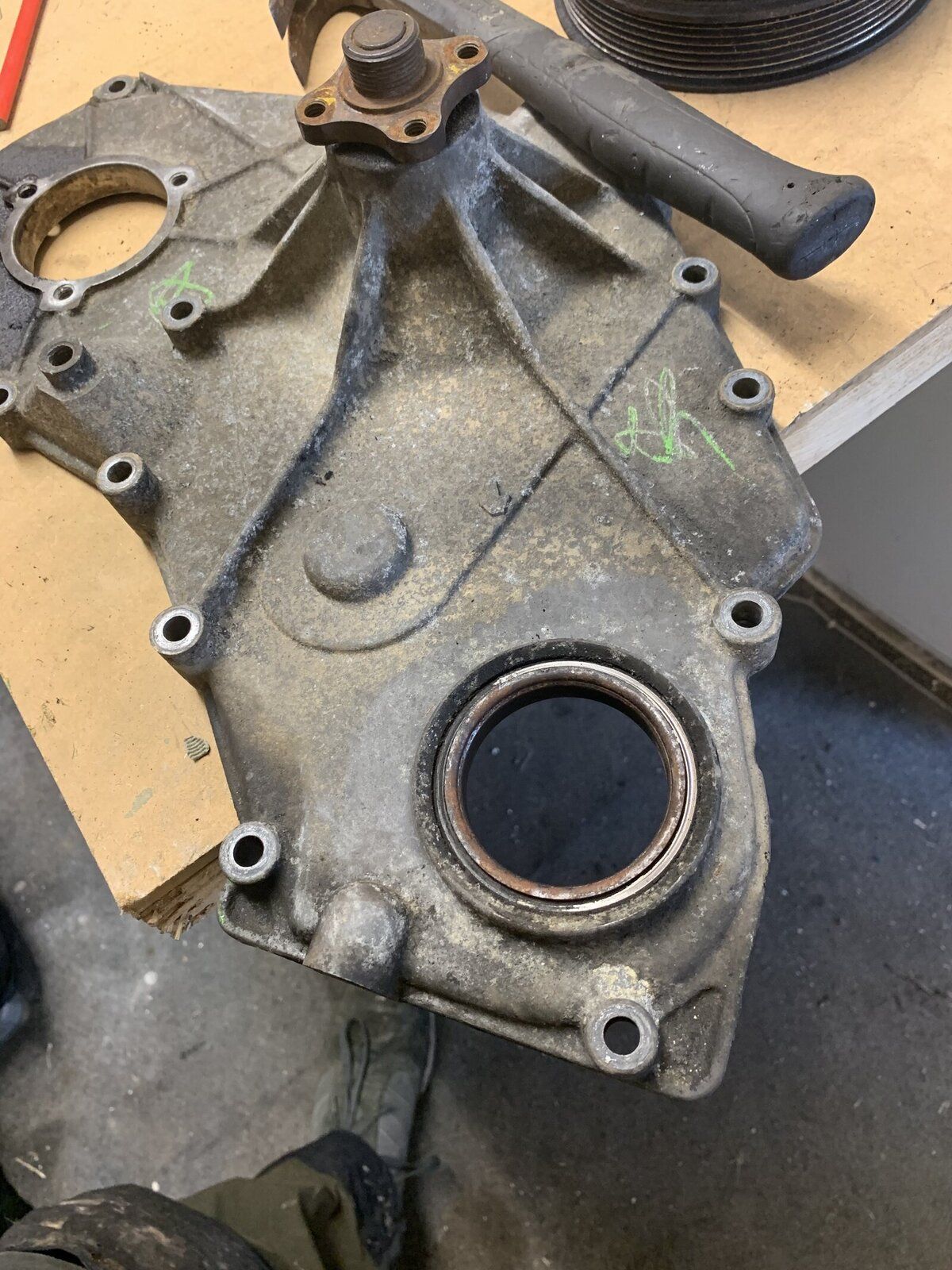

Looking at the belt cover, there is a bearing in it, but all I can see online is seals (ERR4576 and ERR4575?). What do I need for here? See photo.

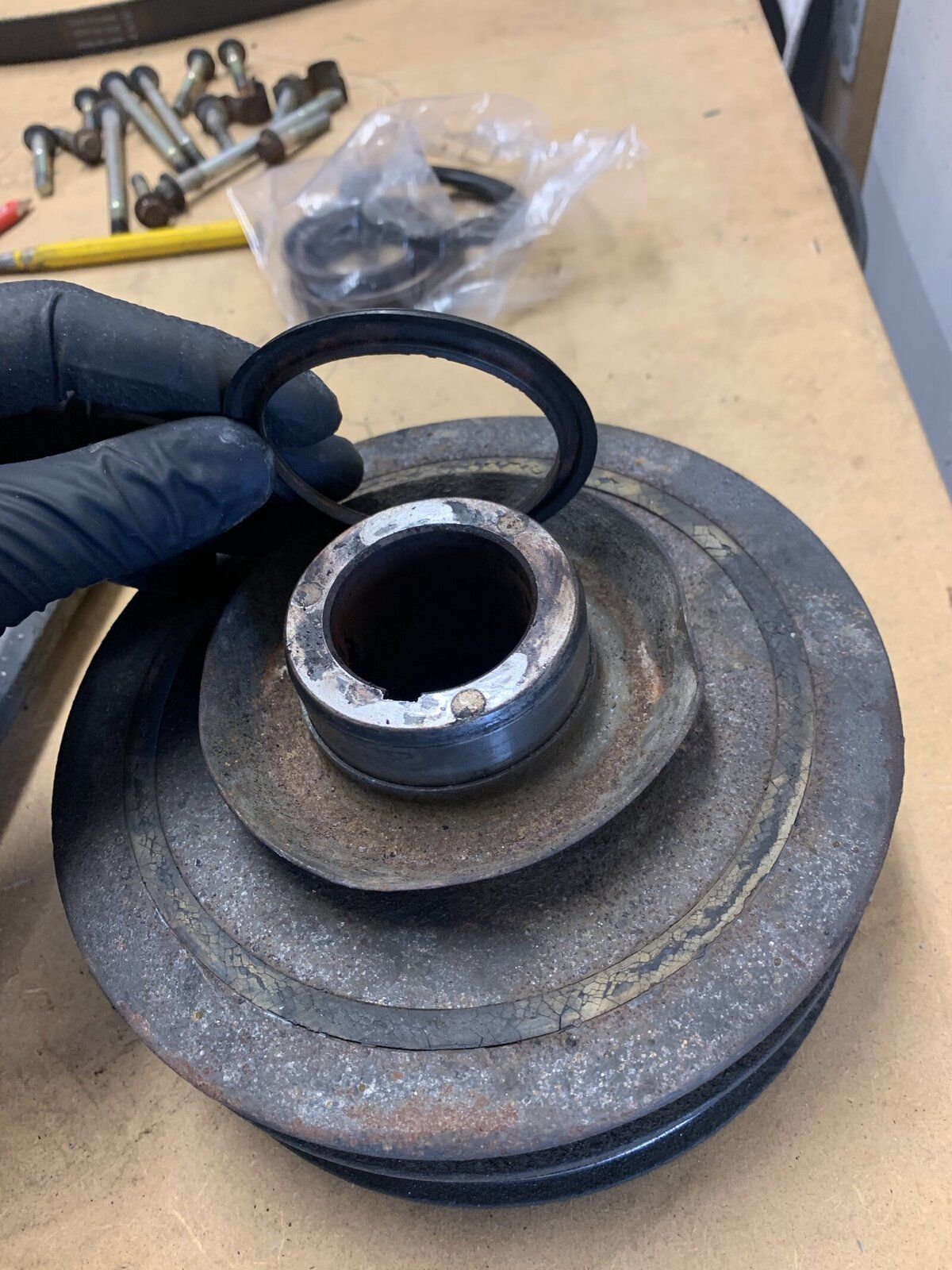

Also, when I took off the damper pulley, it had a rubber seal on the back. Is that part of another seal?



R

Rorie

Active Member

Posts

641

• Jun 7, 2019

• #2

Anybody help? I need to order up parts. This bearing in place of the seal is confusing me....



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Jun 7, 2019

• #3

I cant see it being a bearing as it would serve no purpose, take it out and take it to bits to see whats what.
Could be a stemco seal



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Jun 7, 2019

• #4

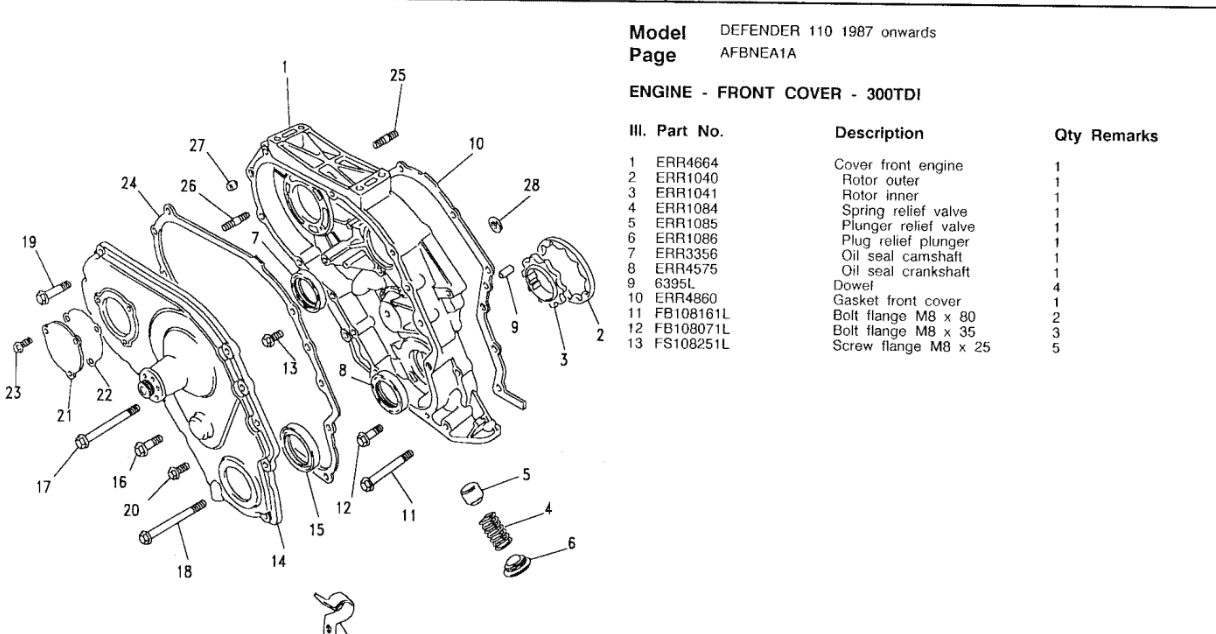

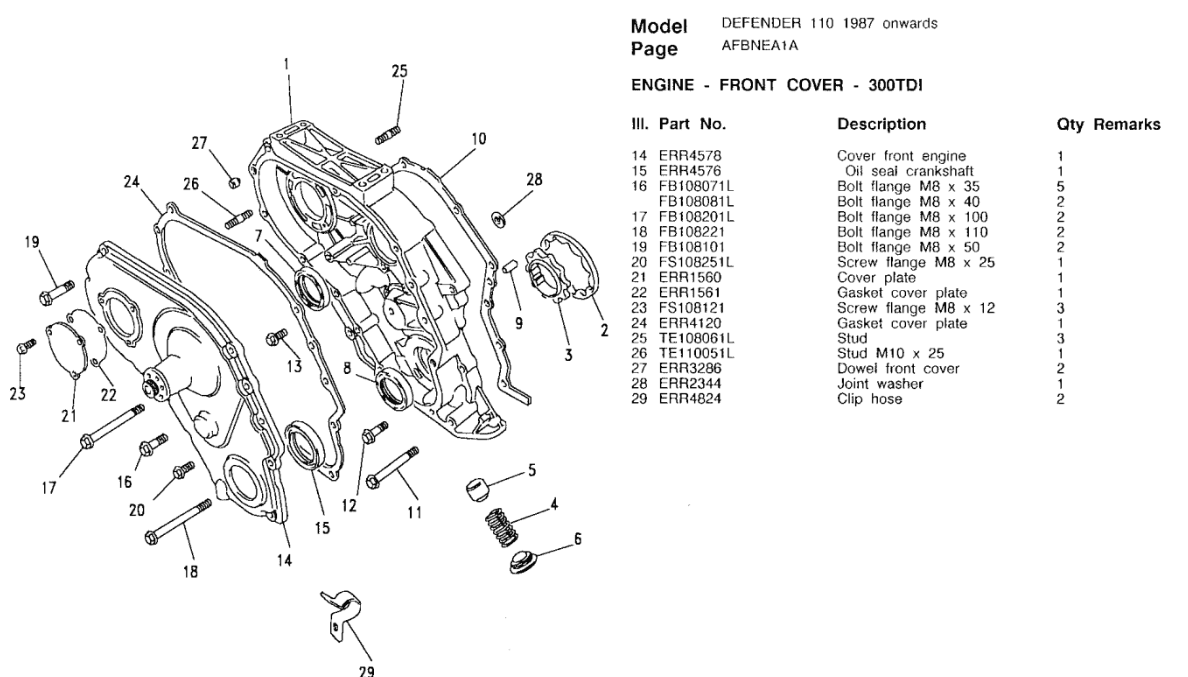

Parts pics



R

Rorie

Active Member

Posts

641

• Jun 7, 2019

• #5

lynall said:

I cant see it being a bearing as it would serve no purpose, take it out and take it to bits to see whats what.
Could be a stemco seal

Click to expand...

Seems it's part EER4173. My parts book only showed EER4576



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Jun 8, 2019

• #6

Rorie said:

Seems it's part EER4173. My parts book only showed EER4576

Click to expand...

Rorie was it a beaing or a seal?



Al2O3

Well-Known Member

Full Member

Posts

11,023

Location

North of the Wall

• Jun 8, 2019

• #7

Rorie said:

300tdi
I have a leak from behind the camshaft crank gear. Is the seal I need ERR3356? Along with a new gear LHH100660?

Looking at the belt cover, there is a bearing in it, but all I can see online is seals (ERR4576 and ERR4575?). What do I need for here? See photo.

Also, when I took off the damper pulley, it had a rubber seal on the back. Is that part of another seal?

View attachment 180302 View attachment 180303

Click to expand...

When I did mine it didn't have a rubber seal on the back of the slinger as shown in your picture. It looks like that has split off something else.
If you look somewhere like Turners HERE who group all the parts for one engine together, it makes it easy to get the correct parts you need. You need an O ring behind the crank pulley too and I don't think you have mentioned that yet?
