CB radio roof mounting

Discussion in 'Defender 90 / 110 / 130' started by Jonny357, Sep 29, 2011.

  1. Jonny357

    Jonny357 New Member

    Joined:
    Feb 18, 2011
    Posts:
    126
    Likes Received:
    0
    Guys,

    i know theres some threads on this already and Ive had a read through,

    I want to mount my CB (the actual radio, not the Aerial) on the inside of the Roof in the cab. Whats the best way to achieve this on a 90 (with headlining)?

    Cheers

    Last edited: Sep 29, 2011
  2. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    72,986
    Likes Received:
    1,420
    Location:
    Embasinga stocæ
    tiz better to fit it high up on the rear - saves ripping it off on the frst branch you come across :(.

  3. Jonny357

    Jonny357 New Member

    Joined:
    Feb 18, 2011
    Posts:
    126
    Likes Received:
    0
    Sorry, i meant the actual radio, not the aerial, will edit to make it clearer...

  4. RikWilson

    RikWilson New Member

    Joined:
    Nov 13, 2010
    Posts:
    563
    Likes Received:
    0
    Location:
    Merseyside
    Think he means the radio unit on roof of cab.
    Branches shouldn't be an issue...

    Edit too slow

  5. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    When you have a solution let me know, because im ****ed if i can find a convenient place to fit it in my 90, got mine in centre cubby box and wedge it between seat and box when i use it.

  6. RikWilson

    RikWilson New Member

    Joined:
    Nov 13, 2010
    Posts:
    563
    Likes Received:
    0
    Location:
    Merseyside
    One of those bungee type nets might work.
    Like in a freelander.

  7. sible88

    sible88 New Member

    Joined:
    Sep 22, 2010
    Posts:
    3,492
    Likes Received:
    1
    Location:
    Hertfordshire
    Why not mount it on the lower dash by the handbrake then you can see/access it and you can then mount the speaker thingy ;-) on the front of dash??

    That's what I plan to do anyway.

  8. Jonny357

    Jonny357 New Member

    Joined:
    Feb 18, 2011
    Posts:
    126
    Likes Received:
    0
    I am wondering if one of those long sprung loaded masonry bolts into the underside of the roof ribbing might work....

    edit:

    wont work, cavity isnt deep enough to get the spring in...

  9. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    Dont you have a left leg then ?

  10. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    72,986
    Likes Received:
    1,420
    Location:
    Embasinga stocæ
  11. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    Got the a Mud dash in and no room in that either. Raptor ones look good but can't be arsed to fit a new dash and rewire everything.

  12. sible88

    sible88 New Member

    Joined:
    Sep 22, 2010
    Posts:
    3,492
    Likes Received:
    1
    Location:
    Hertfordshire
    How big is your cb radio!!
    I had my stereo there a little while back and it was fine.

  13. Jonny357

    Jonny357 New Member

    Joined:
    Feb 18, 2011
    Posts:
    126
    Likes Received:
    0

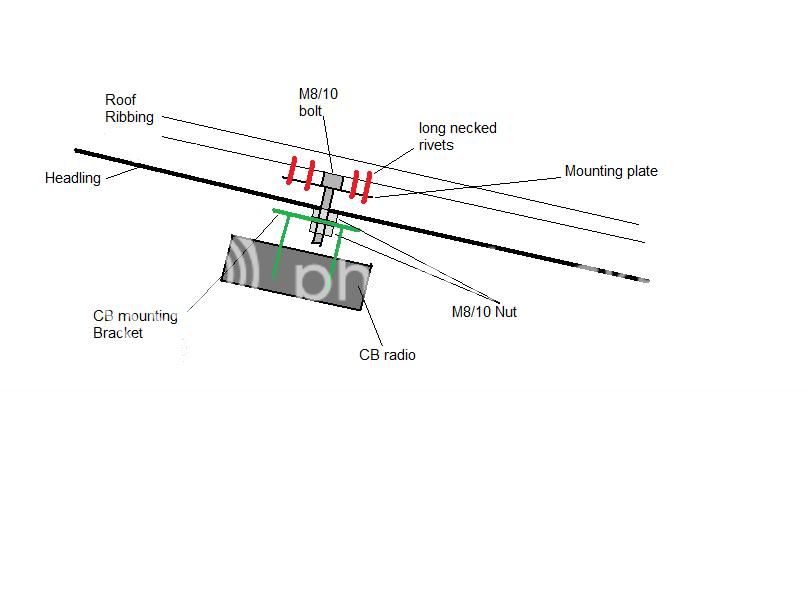

    what about something like this:

    [​IMG]

    excuse my sh*t paint skills...

    Last edited: Sep 29, 2011
  14. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    That looks like it would work, is it your design?

  15. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    7,246
    Likes Received:
    8
    Location:
    Tynemouth
    Fit a snatch bracket screwed through the centre roof rib, and then you can demount it when not in use.

    OSD

  16. blue beasty

    blue beasty Leaks an prone to bits dropping off Global Moderator

    Joined:
    Jun 10, 2007
    Posts:
    43,023
    Likes Received:
    2,893
    Location:
    Gloucestercotshirewolds
    got my stereo there anorl.......loads of room :confused:

  17. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    What is a snatch bracket?

  18. Jonny357

    Jonny357 New Member

    Joined:
    Feb 18, 2011
    Posts:
    126
    Likes Received:
    0
    yes that is my design,

    although i am thinking riv-nuts might be a more secure solution that pop rivets...

  19. blue beasty

    blue beasty Leaks an prone to bits dropping off Global Moderator

    Joined:
    Jun 10, 2007
    Posts:
    43,023
    Likes Received:
    2,893
    Location:
    Gloucestercotshirewolds
    Clip on clip off type thingy

  20. wickford90

    wickford90 Well-Known Member

    Joined:
    Nov 22, 2009
    Posts:
    3,590
    Likes Received:
    6
    Location:
    wickford essex
    What about self tapping screws, or would they pull through after a while. Is the roof bar ally or steel, where in the roof is it.
