Bulkhead Parts

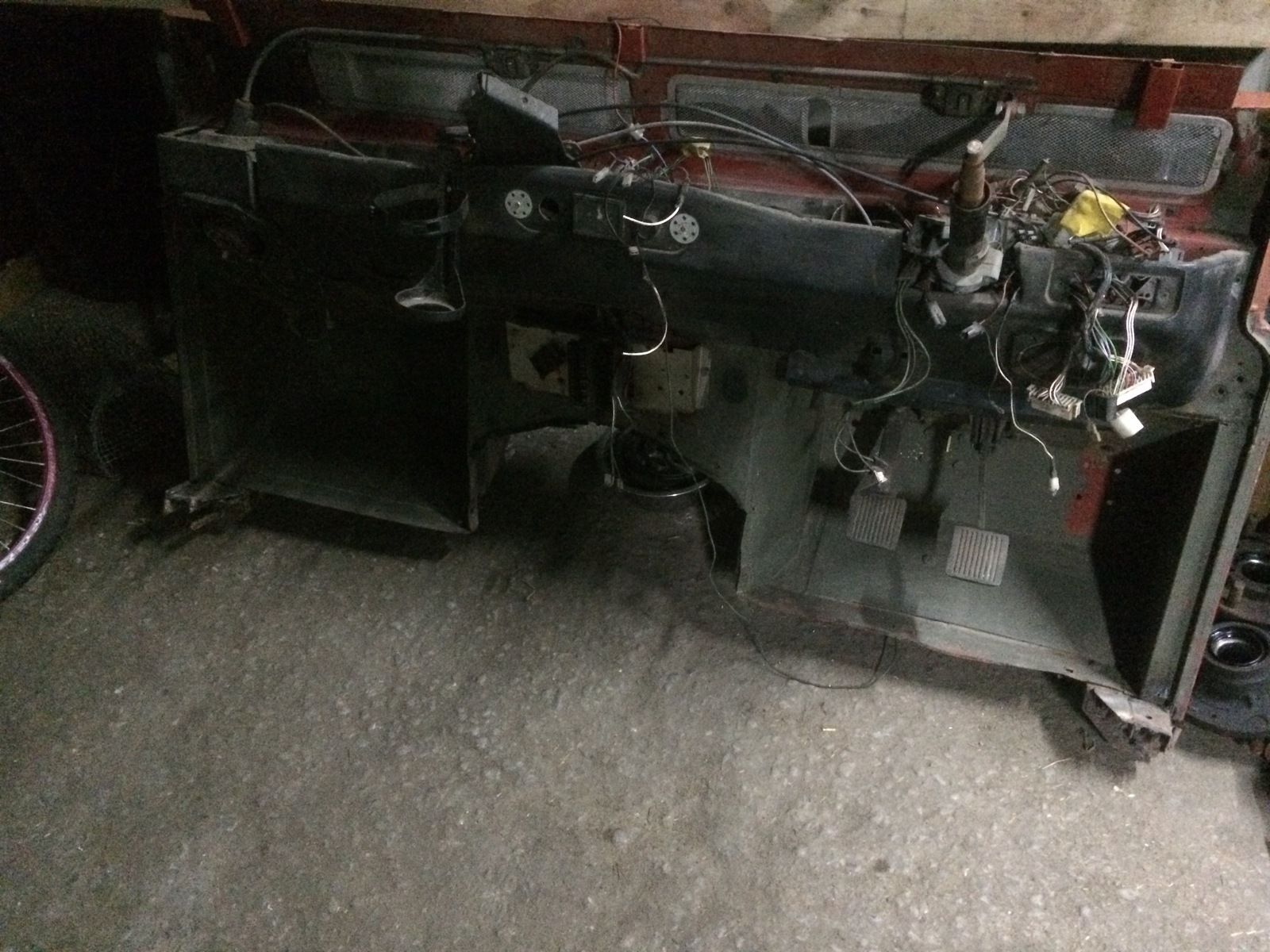

This is the Bulkhead I will be using for rebuild, will be rubbing it down and priming,

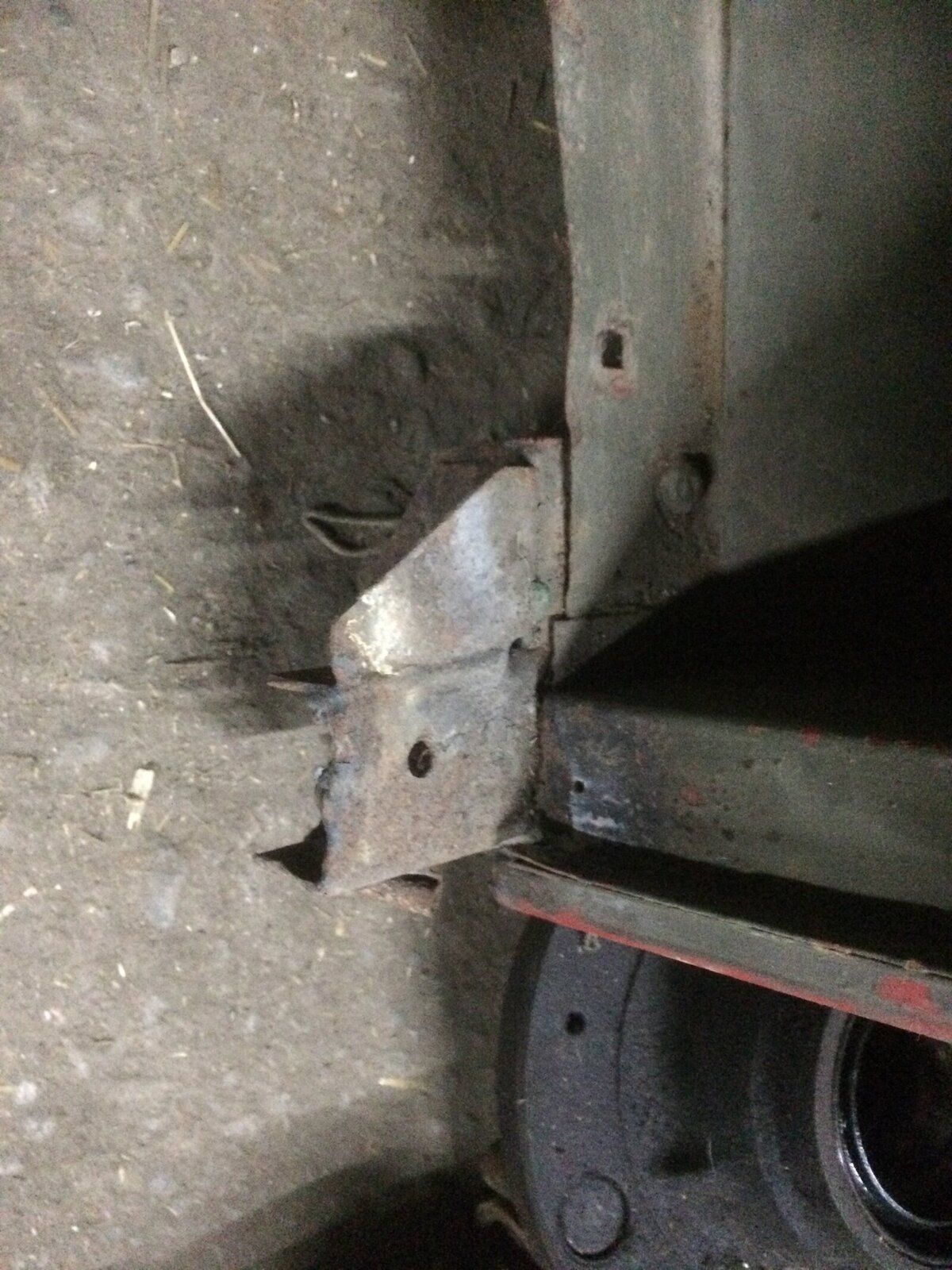

I will need these bracket bits in each corner that have been cut off, they ae bolted on, Please forgive me but Ive no idea what they are called, anyone got part numbers for them, also can anyone see anything else I am missing ?? Thanks

That's the end of the inner sill rails. This is the whole item LINKY It connects the bulkhead to the tub. The bottom of your door closes up to it.

Al2O3 said:

That's the end of the inner sill rails. This is the whole item LINKY It connects the bulkhead to the tub. The bottom of your door closes up to it.

Click to expand...

Thanks Mate I think ive got two of them, I thought they were just short brackets.
Will I need these https://yrmit.co.uk/product/hot-dip...hassis-brackets-per-pair-land-rover-defender/ too. ?

border said:

Thanks Mate I think ive got two of them, I thought they were just short brackets.
Will I need these https://yrmit.co.uk/product/hot-dip...hassis-brackets-per-pair-land-rover-defender/ too. ?

Click to expand...

Yes, if you don't already have them somewhere among the boxes of parts you got.

border said:

Thanks Mate I think ive got two of them, I thought they were just short brackets.
Will I need these https://yrmit.co.uk/product/hot-dip...hassis-brackets-per-pair-land-rover-defender/ too. ?

Click to expand...

Just a thought. They're quite expensive. They are quite a substantial bit of steel and arguably you don't need to have galvanised ones. I cleaned and painted my originals and, at 22 years old, looked new. They sit on top of the chassis rails and so are out of the way a bit and seem to last well. ie non galv ones might be a lot cheaper

You'll need some of these too LINKY They go from the bulkhead to the front wing to stop the bottom of the wing flapping about. You need one for each side. Check your box of bits!

Al2O3 said:

You'll need some of these too LINKY They go from the bulkhead to the front wing to stop the bottom of the wing flapping about. You need one for each side. Check your box of bits!

Click to expand...

Cant remember seeing any of either in the bits I have. Paddocks have these, https://www.paddockspares.com/stay-assy.html just need part number for others.

border said:

Cant remember seeing any of either in the bits I have. Paddocks have these, https://www.paddockspares.com/stay-assy.html just need part number for others.

Click to expand...

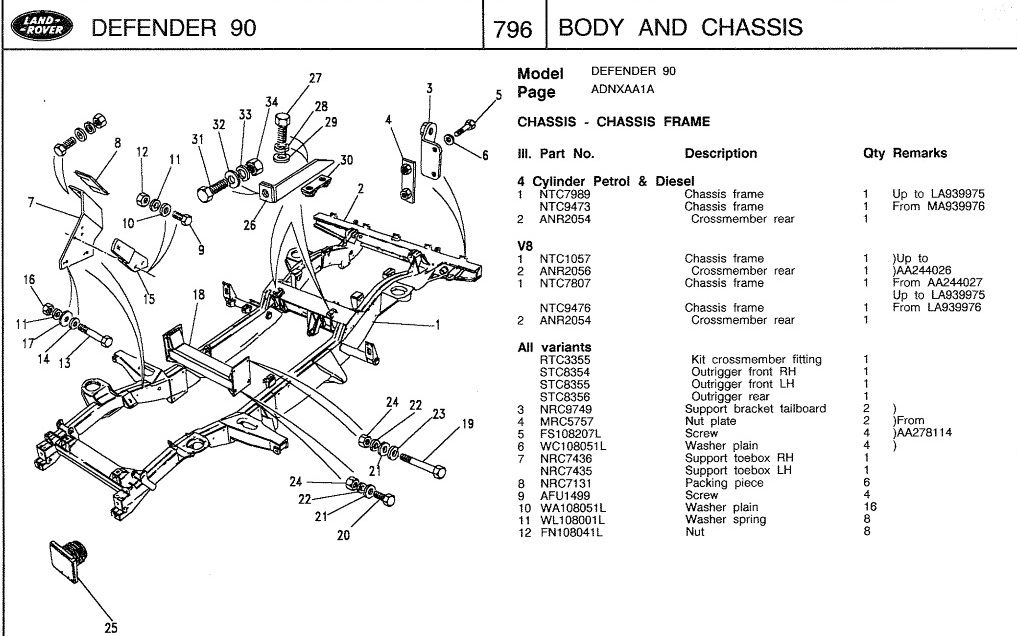

Have a look at this

Al2O3 said:

Have a look at this
View attachment 166936

Click to expand...

Perfect Cheers Mate https://www.paddockspares.com/galvanised-support-bracket-for-bulkhead-rh.html
