Freelander 2 (LR2) Boot Space Light - no working

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Landy-Max

Active Member
Posts
177
Location
West Bridgford
Hi chaps.

Been away a while. Though still had varying LR! I've decide to try the LR2/FL2 - for a few years.

All fine so far. However - the boot light isn't working - I've changed the bulb and checked the fuse. I can't seem to find the tailgate switch - which may (?) turn it on?

Is this a common fault? Have I messed up and not seen anything obvious?

All help - appreciated!

Cheers

Max

I think the interior/ boot lights are triggered from control unit, rather than individual switches, via signals from door locks etc, you might need to put a diagnostic reader on it

Does the dash show the boot is open, when it's open?

The light is powered by the BCU, using a signal from the boot lock.

If the boot is open. The dash will tell you so, if the lock sensor is working. ;)

Thx for question...

I'll check......

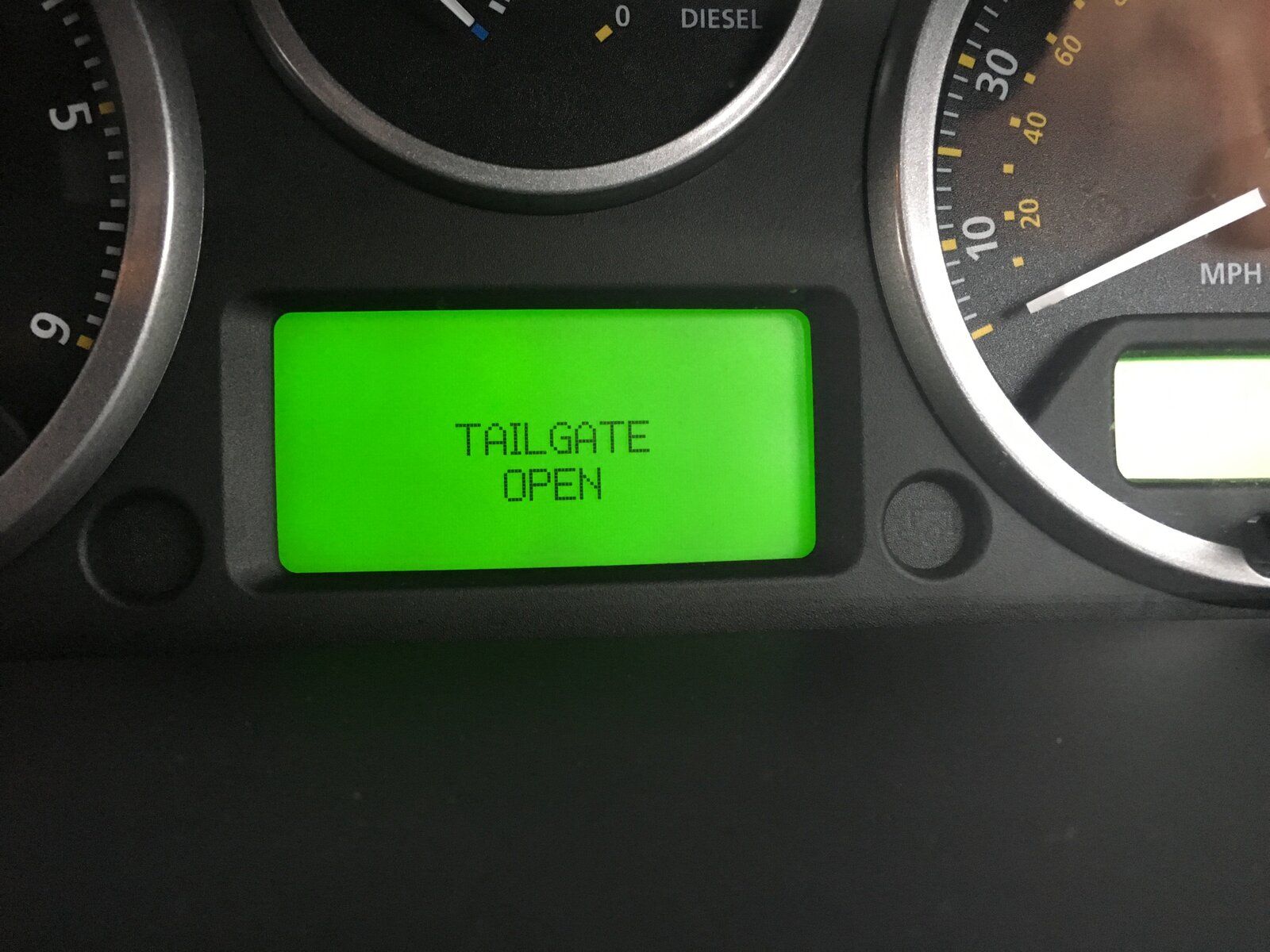

It does show as open yes :)

So..... now what?

;)


Attachments

  • IMG_4274.JPG
    220.6 KB · Views: 217
Does the dash show the boot is open, when it's open?

The light is powered by the BCU, using a signal from the boot lock.

If the boot is open. The dash will tell you so, if the lock sensor is working. ;)


Been reading up - or trying to - I'm using an LED bulb - might that be the issue? I assumed (maybe wrongly) that it would be OK?

PS: I am from Newquay - originally :)

Been reading up - or trying to - I'm using an LED bulb - might that be the issue? I assumed (maybe wrongly) that it would be OK?

PS: I am from Newquay - originally :)

LEDs don't suit all cars. Especially if the lights are powered by FETs instead of normal switches or relays.
Is the LED connected the correct way round?
Put in a normal bulb and see what happens.

I'm originally from Surrey.

LEDs don't suit all cars. Especially if the lights are powered by FETs instead of normal switches or relays.
Is the LED connected the correct way round?
Put in a normal bulb and see what happens.

I'm originally from Surrey.

Roger that - will try :)
I read on older post of yours that was some way related - flasher units and LEDs.

I was Newquay - then Surrey (Weybridge) - now West Bridgford :)

I have a couple of LED's in my FL and they only work the one way round.

It caught me out at first. I thought I had bought a pack of duff bulbs.

I have a couple of LED's in my FL and they only work the one way round.

It caught me out at first. I thought I had bought a pack of duff bulbs.
Thx bud - and Nodge68 - I'll try this too ! :)

I had a look at BCU pictures on google - but one are exploded to show be what is what for a FL2.
the search continues.

Is the (a) FET replaceable?

Only if you are able to fault find and solder in a new component.
The FETs are normally protected from being damage by short circuits and the like. However, like any electronic component, they can fail.
Have you tried a conventional bulb? Or fittted the LED round the other way? LEDs are polar, meaning they only work when they are fitted the correct way round.
