Bolt missing?

kwondo · Dec 31, 2019

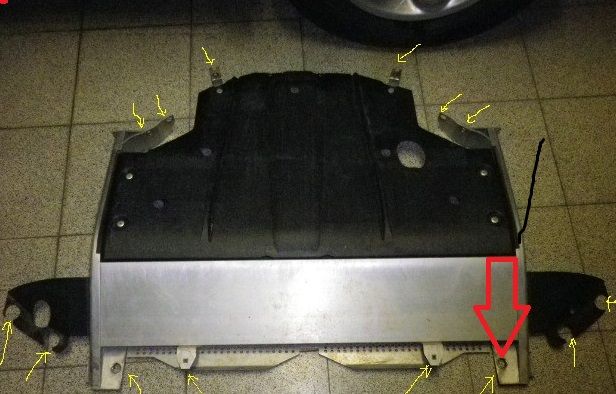

Hi to all on this new years eve, could any one please help to identify my missing bolts, as shown where the red arrow is on the photo size or part number, thanks

teddywood1 · Jan 1, 2020

I am sure I have the part number as its down in the garage will get it in the morning

Avocet1 · Jan 3, 2020

Pretty certain they're a standard M10 bolt (17mm spanner size). I think I have M10 x 25mm long ones in there on mine.

jamesmartin · Jan 3, 2020

Avocet1 said:
Pretty certain they're a standard M10 bolt (17mm spanner size). I think I have M10 x 25mm long ones in there on mine.

its an m10 but a flange bolt with a 13mm head

Avocet1 · Jan 3, 2020

Ah! Looks like the originals on mine "went West" some time ago then!

kwondo · Jan 4, 2020

jamesmartin said:
its an m10 but a flange bolt with a 13mm head

Thanks, just one other thing are they bolted up tight or is there supposed to be a bush or rubber mount fitted?

jamesmartin · Jan 4, 2020

just tight

Avocet1 · Jan 4, 2020

Mine are bolted up tight with a steel washer under the head of each of them. Not sure if they're supposed to be like that though!

kwondo · Jan 4, 2020

Avocet1 said:
Mine are bolted up tight with a steel washer under the head of each of them. Not sure if they're supposed to be like that though!

Thanks a lot that will do me, don't know when or why mine were missing

Avocet1 · Jan 4, 2020

If they've been missing a while, you might have to clear the rust out of the threads in the captive nuts before you put bolts in. M10 x 1.5 pitch.

Nodge68 · Jan 4, 2020

The M10 bolt needs to be tightened to about 40Mm, and no more in this application.
