Ball joints
- Thread starter Karlos the jackal
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 12,660
- Location
- Sud ouest France !
Start squirting duck oil and or plus gas over the abs sensor and ball joint casings!
That was 5.5hrs with 20yrs old ball joints à bit of heat and a lump hammer to influence things.
That was 5.5hrs with 20yrs old ball joints à bit of heat and a lump hammer to influence things.
Karlos the jackal
Well-Known Member
- Posts
- 465
- Location
- Norfolk
Was thinking a bit of diesel on them going to do radius arms first so ball joints can have few days soakingStart squirting duck oil and or plus gas over the abs sensor and ball joint casings!

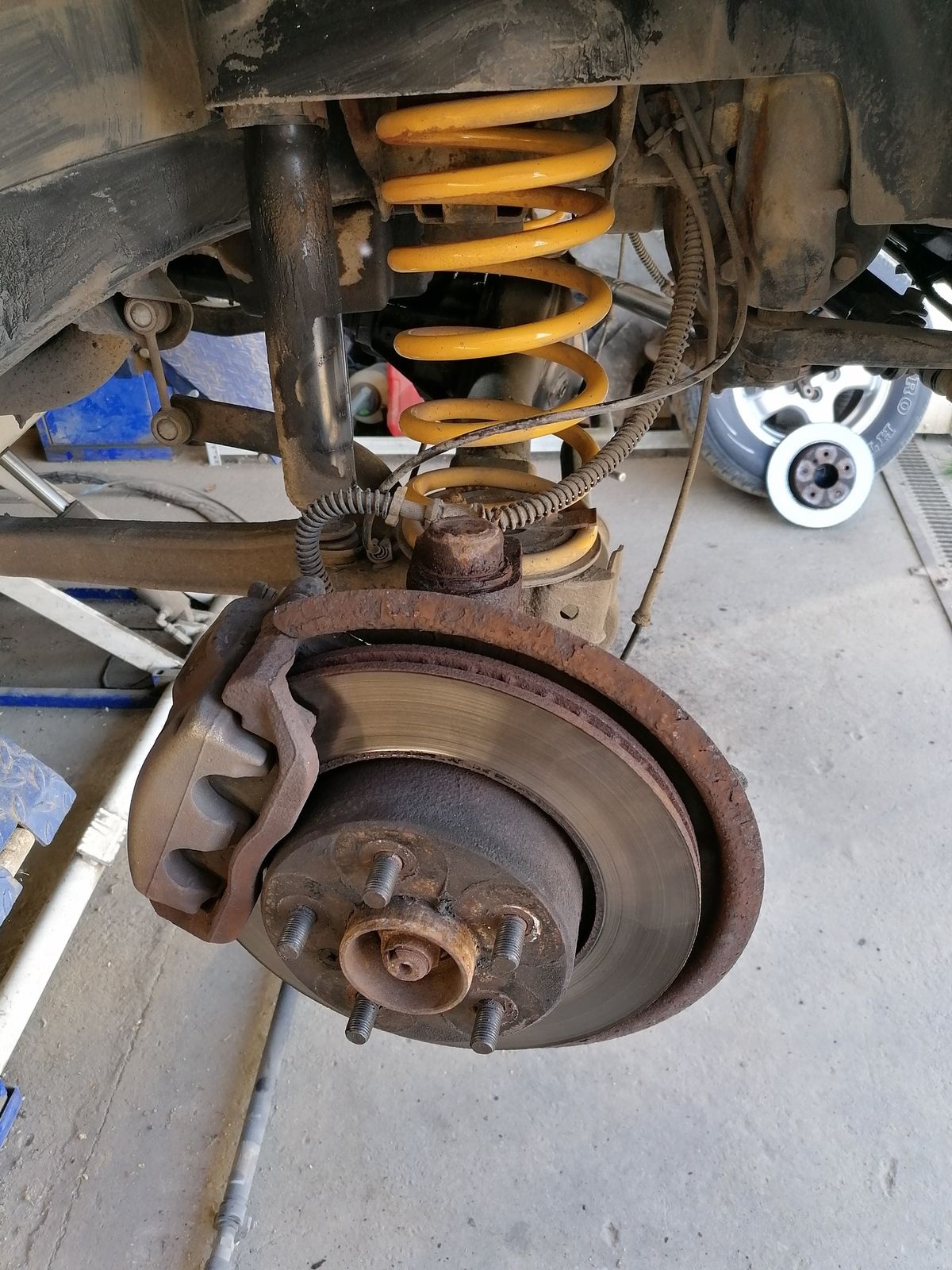

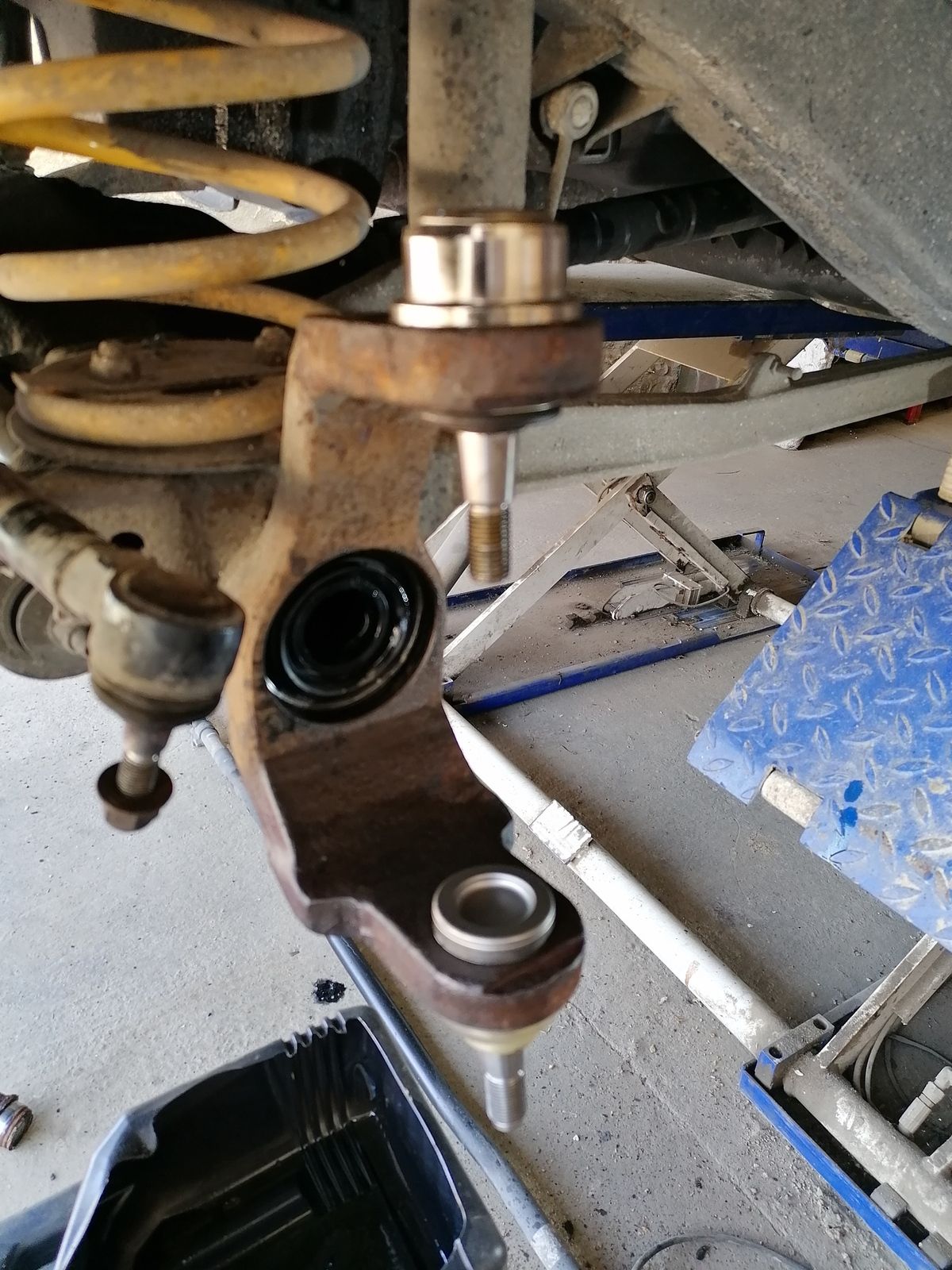

View attachment 205831 View attachment 205832 View attachment 205833
That was 5.5hrs with 20yrs old ball joints à bit of heat and a lump hammer to influence things.
- Posts
- 12,660
- Location
- Sud ouest France !

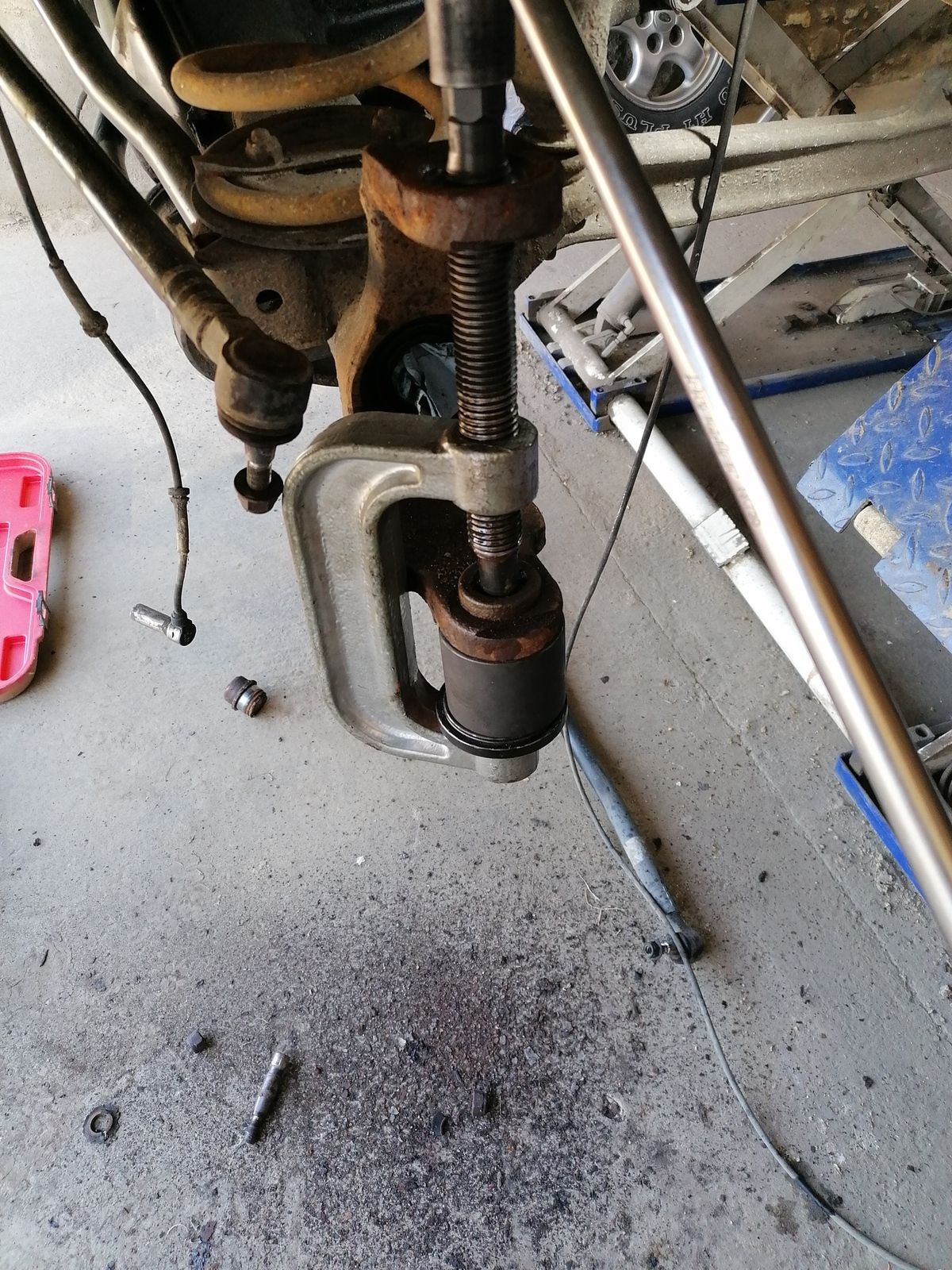

Agreed, do you have a tool for pressing the ball joints out of the axle?
Your going to need one, also the bearing hubs can take a bit of influence as well.
Normally while your in there, replace the drive shaft seals as well.
Under the lower ball joint nut there is a collar, do not move the collar from its position!! It dictates how high the hub carrier sits for the drive shaft seal and don't forget some new oil for the diff. It'll thank you for it unless it's been replaced in the near 20yrs!!
- Posts
- 12,660
- Location
- Sud ouest France !
Also..... The axle is allowed only three ball joint changes in its life!!
Look for paint marks or punch marks.
This last one I did for a client I punch marked it with 2 dots as they were original from 2001.
Look for paint marks or punch marks.
This last one I did for a client I punch marked it with 2 dots as they were original from 2001.
Karlos the jackal
Well-Known Member
- Posts
- 465
- Location
- Norfolk

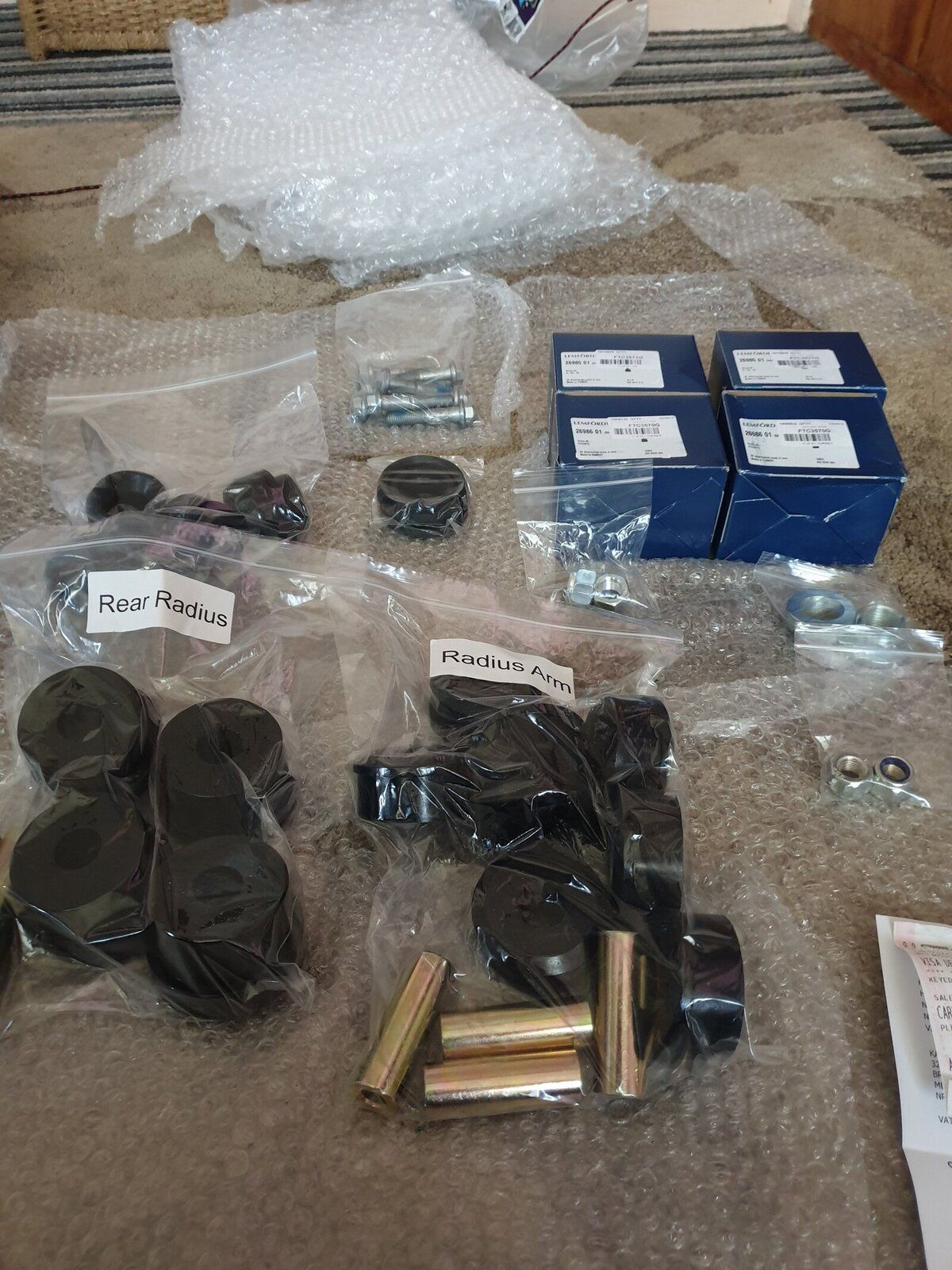

Got the tool and axle seals got all the hub nuts new this is first set of ball joints that will be changing on it I got lemforder ball joints
I know not to move the adjustment nut on bottom ball joint as neighbour told me not to adjust it cause will put all out of line
I know not to move the adjustment nut on bottom ball joint as neighbour told me not to adjust it cause will put all out of line
- Posts
- 12,660
- Location
- Sud ouest France !
Karlos the jackal
Well-Known Member
- Posts
- 465
- Location
- Norfolk
I'll be ok my neighbour is going to help with ball joints he worked on RR before he use to rebuild themDamn, your set to go!!
Remember to oil the press thread liberally
- Posts
- 12,660
- Location
- Sud ouest France !
Don't forget à few pictures. We like pictures
- Posts
- 19,309
- Location
- Buckinghamshire, UK. ('95 DT)
That's a result.
Karlos the jackal
Well-Known Member
- Posts
- 465
- Location
- Norfolk
Yes will put pictures as gotDon't forget à few pictures. We like pictures
Yes pictures will be posted of work in progressDon't forget à few pictures. We like pictures
Datatek
Well-Known Member
- Posts
- 45,024
- Location
- Near Poitiers SW France
Ball joints in the freezer overnight helps them go in easily.
Curious as to why if it's allowed three changes & yours was the first you punch marked it with two dots effectively making only one more allowed?
What am I missing?
- Posts
- 12,660
- Location
- Sud ouest France !
Good point... That was actually the first change as there was an absence of marks.... Mental note to self... Quit being punch happy.... I just like the look of the dots... Hang on, three changes or three sets in one axle life??? It's to prevent ball joints being fitted to an over stretched opening.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
bu the time a ball joint has been fitted and removed 4 or 5 times they will push in by hand
- Posts
- 12,660
- Location
- Sud ouest France !
MENU
< PREV PAGENEXT PAGE >
Range Rover P38
60 - FRONT SUSPENSION - ELECTRONIC AIR SUSPENSION > REPAIR > BALL JOINT - LOWER
ELECTRONIC AIR SUSPENSION
23
REPAIR
BALL JOINT - LOWER
Service repair no - 60.15.03
CAUTION: Each ball joint can be replaced
up to three times before the axle yoke bore
becomes oversize. before commencing
work, clean surrounding area of joint to be
renewed and check for yellow paint marks. If more
than 2 marks are found,
Squished but clear.
< PREV PAGENEXT PAGE >
Range Rover P38
60 - FRONT SUSPENSION - ELECTRONIC AIR SUSPENSION > REPAIR > BALL JOINT - LOWER
ELECTRONIC AIR SUSPENSION
23
REPAIR
BALL JOINT - LOWER
Service repair no - 60.15.03
CAUTION: Each ball joint can be replaced
up to three times before the axle yoke bore
becomes oversize. before commencing
work, clean surrounding area of joint to be
renewed and check for yellow paint marks. If more
than 2 marks are found,
Squished but clear.
- Posts
- 12,660
- Location
- Sud ouest France !
And cable tied for security
- Posts
- 12,660
- Location
- Sud ouest France !
Correct, just one dot... Time to ball pain the crap out of one of those pesky dots.Thanks. I understood the reason for the limit but not why you'd double dotted it
Karlos the jackal
Well-Known Member
- Posts
- 465
- Location
- Norfolk
Thanks for that bit of advise datatek someone else told me that as well
