Back Door Threshold?

David Leech · Jul 23, 2017

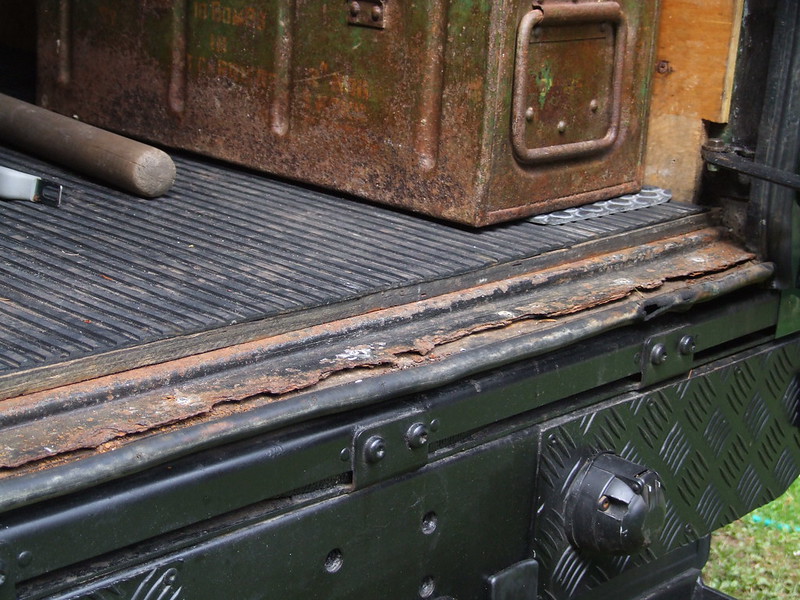

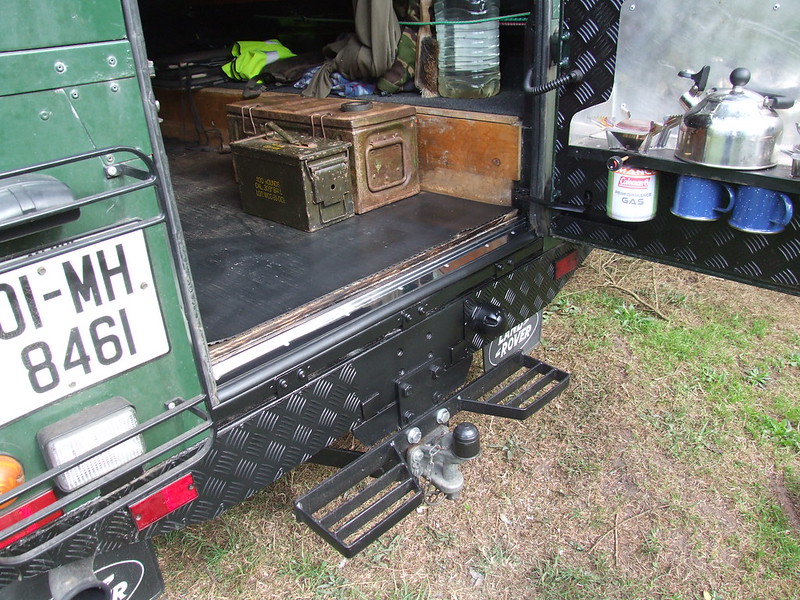

New to Defenders so forgive silly question. How easy is it to repair the 'rotten' piece in the photo? It's fastened with pop rivets. There's a ply floor, but to remove that I have to take the sides away too. If I drill out the rivets will that free the 'threshold'. Is the replacement piece readily available? '01 110, by the way. Thanks in advance........

doriz · Jul 23, 2017

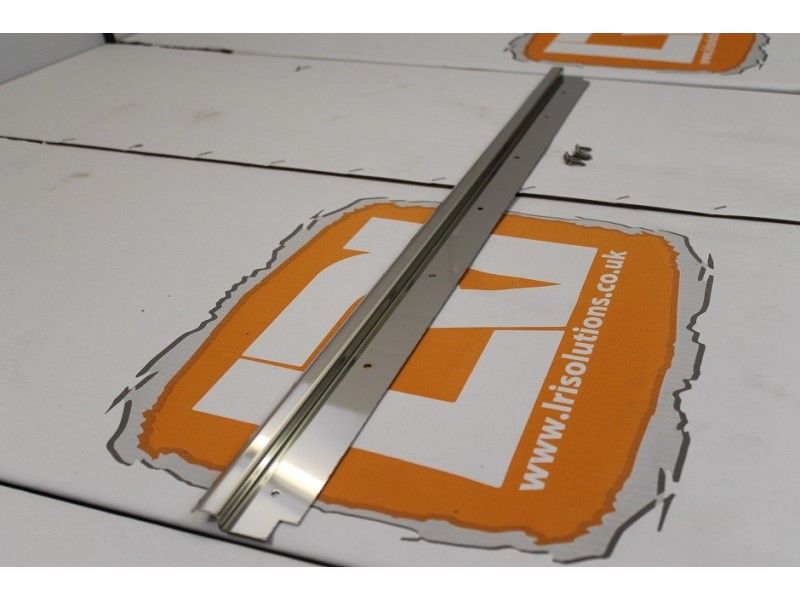

Looks like this £17 of the bay - should be straight forward.

Mr S1 · Jul 23, 2017

That's the one. Easy to fit, use stainless self tappers. You may have to drill some new holes in as it likely won't line up as per the original. Fifteen minute job start to finish.

David Leech · Jul 24, 2017

Thanks lads, that looks like an easy fix, I'll get one ordered..........

agew · Jul 25, 2017

LRI do one with rubber seal too - as original on County (at least) - might ( .......!) just ease the onset of the next lot of corrosion. I'm just about to order one for my x reg. Enjoy, A

Sofasurfer · Jul 25, 2017

I bought the one with the rubber seal, the holes
lined up perfectly, 10 minute job

David Leech · Aug 4, 2018

Never too late I always say! Picked up my 'Threshold' from Post Office this morning and had it fitted by the afternoon. I ordered the one from YRM, with a rubber seal to go along with it, £17 + £9.....

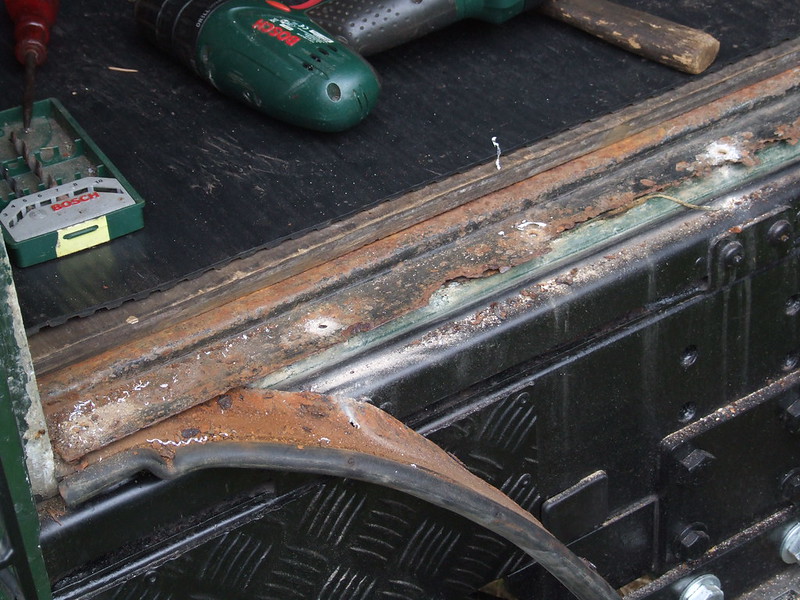

The state of the old one.....

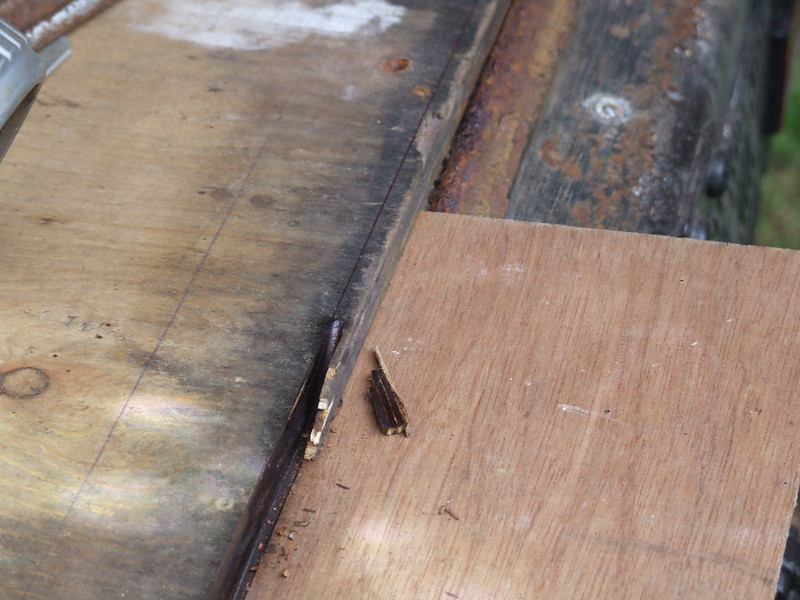

Nothing's ever simple with a Land Rover, had to trim the ply floor, an angle grinder can 'cut' wood!.....

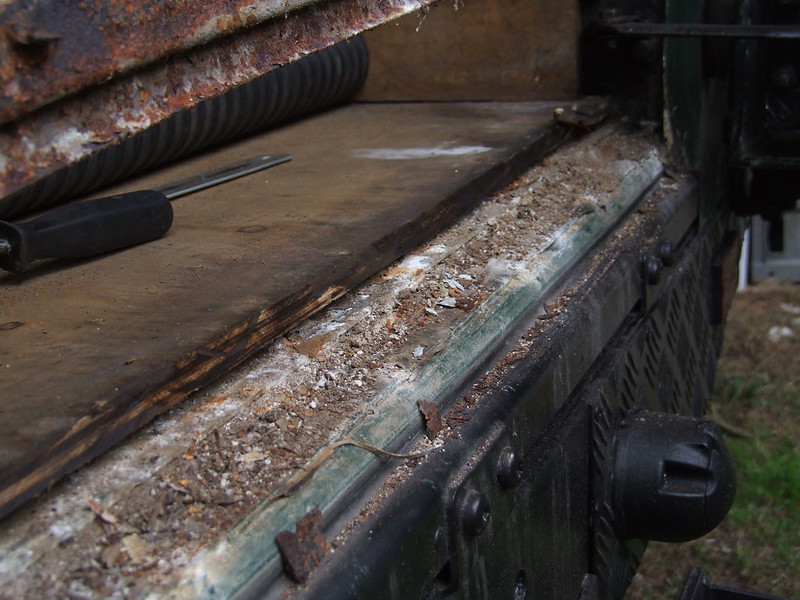

What Lies Beneath.....

David Leech · Aug 4, 2018

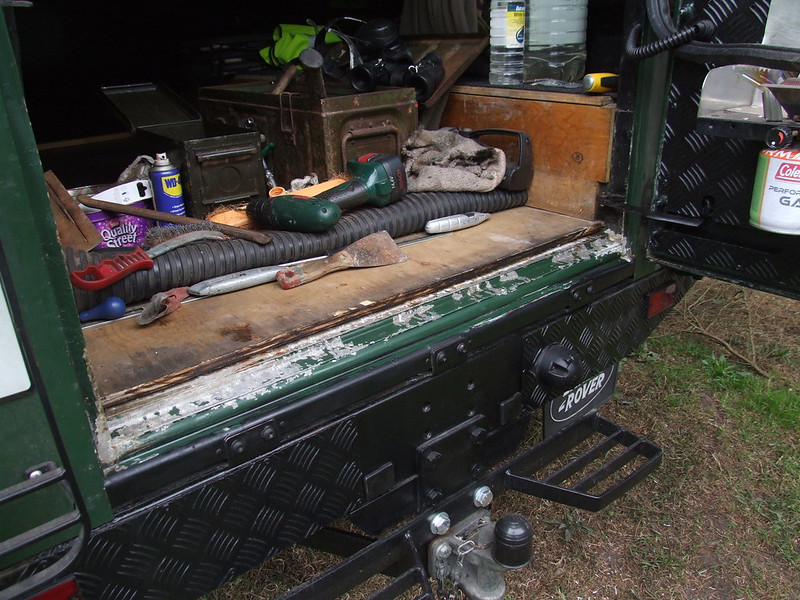

Cleaned up a bit.....

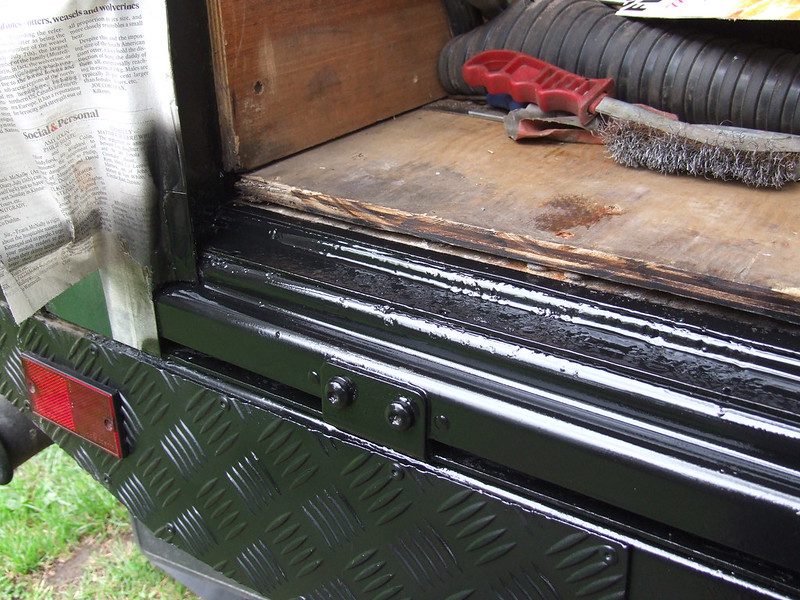

Satin black Hammerite spray.....

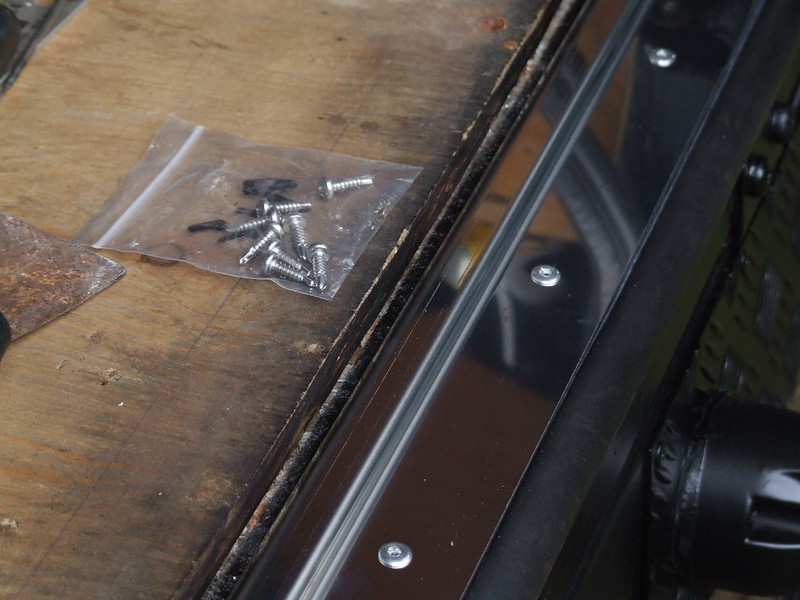

Little self tappers are provided but my old one had been pop riveted and the holes were too big so I popped the new one too.....

David Leech · Aug 4, 2018

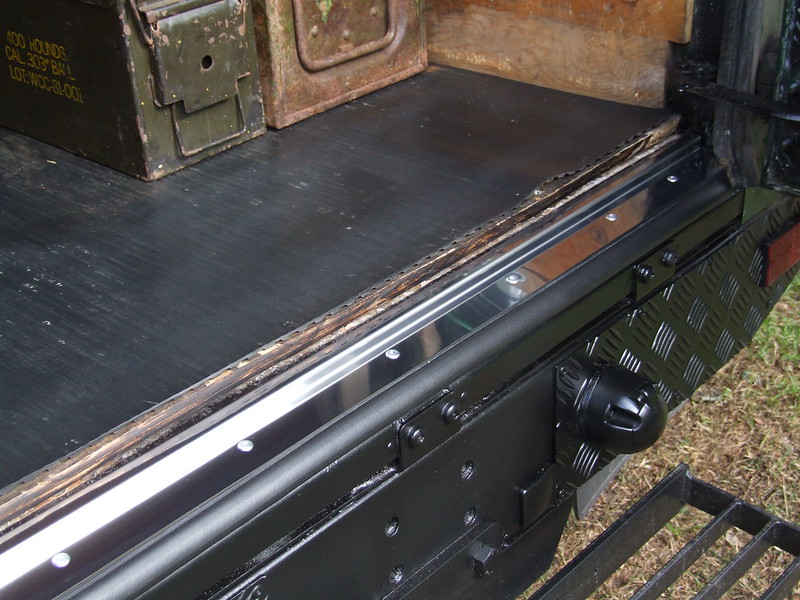

Almost too shiny!.....

The final look.....

Dippypud · Aug 4, 2018

David Leech said:
Never too late I always say! Picked up my 'Threshold' from Post Office this morning and had it fitted by the afternoon. I ordered the one from YRM, with a rubber seal to go along with it, £17 + £9.....

The state of the old one.....

Nothing's ever simple with a Land Rover, had to trim the ply floor, an angle grinder can 'cut' wood!.....

What Lies Beneath.....

Gonna put a lick of creosote on that before you bury it ?

mick the builder · Aug 5, 2018

David Leech said:
Almost too shiny!.....

The final look.....

mick the builder · Aug 5, 2018

Are you in meath?

raisingveg · Aug 5, 2018

nice job

bluehaze · Aug 5, 2018

Have you checked underneath the ply board? Might not like what you find!!!!

David Leech · Aug 5, 2018

mick the builder said:
Are you in meath?

No, Co. Galway.....

David Leech · Aug 5, 2018

bluehaze said:
Have you checked underneath the ply board? Might not like what you find!!!!

The floor is held down by the sides so there is a lot of ripping to get underneath, just as well, I could unleash a hornet's nest.....

doriz · Aug 5, 2018

bluehaze said:
Have you checked underneath the ply board? Might not like what you find!!!!

I assume that's a rhetorical question? I have never found that to be a good course of action with a D'fenderer

bluehaze · Aug 5, 2018

When we got our 110, we ripped the carpet out of the back. The floor was beyond repair. It was a pain in the arse to sort out but now, at least, we have the confidence to know it is sorted.
