Series 2 Auto electric help
- Thread starter Dopey
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Come on its a series 2, cant have more than a dozen wires for the whole vehicle Shirley
.
What do you have in hand and what are you fitting (pics help you know).
Do you have diagrams?
Plenty on here aren't sparks but manage to keep the smoke in so you can too ( I have faith).
J
.What do you have in hand and what are you fitting (pics help you know).
Do you have diagrams?
Plenty on here aren't sparks but manage to keep the smoke in so you can too ( I have faith)
.J
Well, I keep letting it out!! A few wires, eh? lolCome on its a series 2, cant have more than a dozen wires for the whole vehicle Shirley
What do you have in hand and what are you fitting (pics help you know).
Do you have diagrams?
Plenty on here aren't sparks but manage to keep the smoke in so you can too ( I have faith)
J
Attachments
steve2286w
Well-Known Member
- Posts
- 4,574
- Location
- monkeyangerland

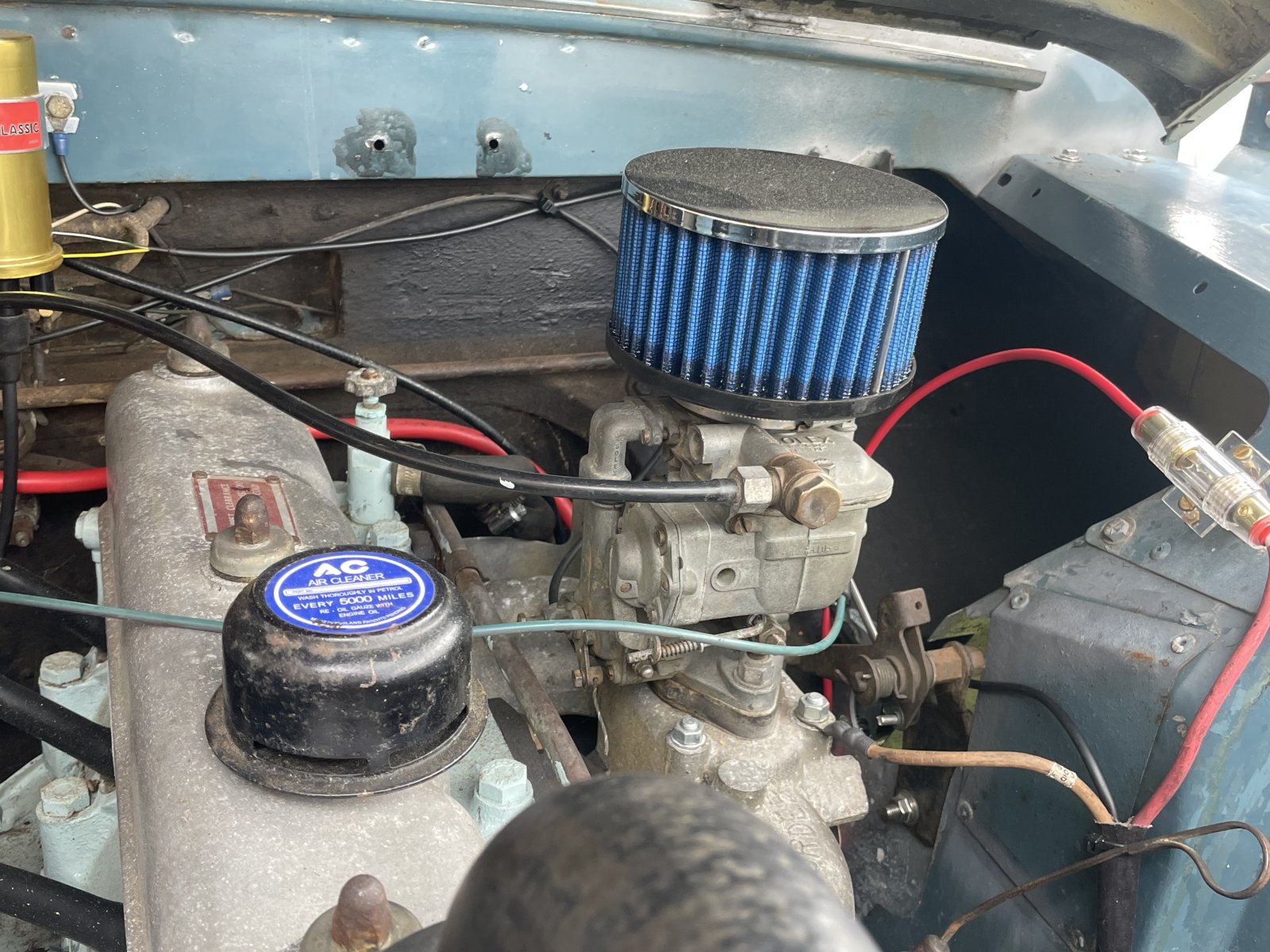

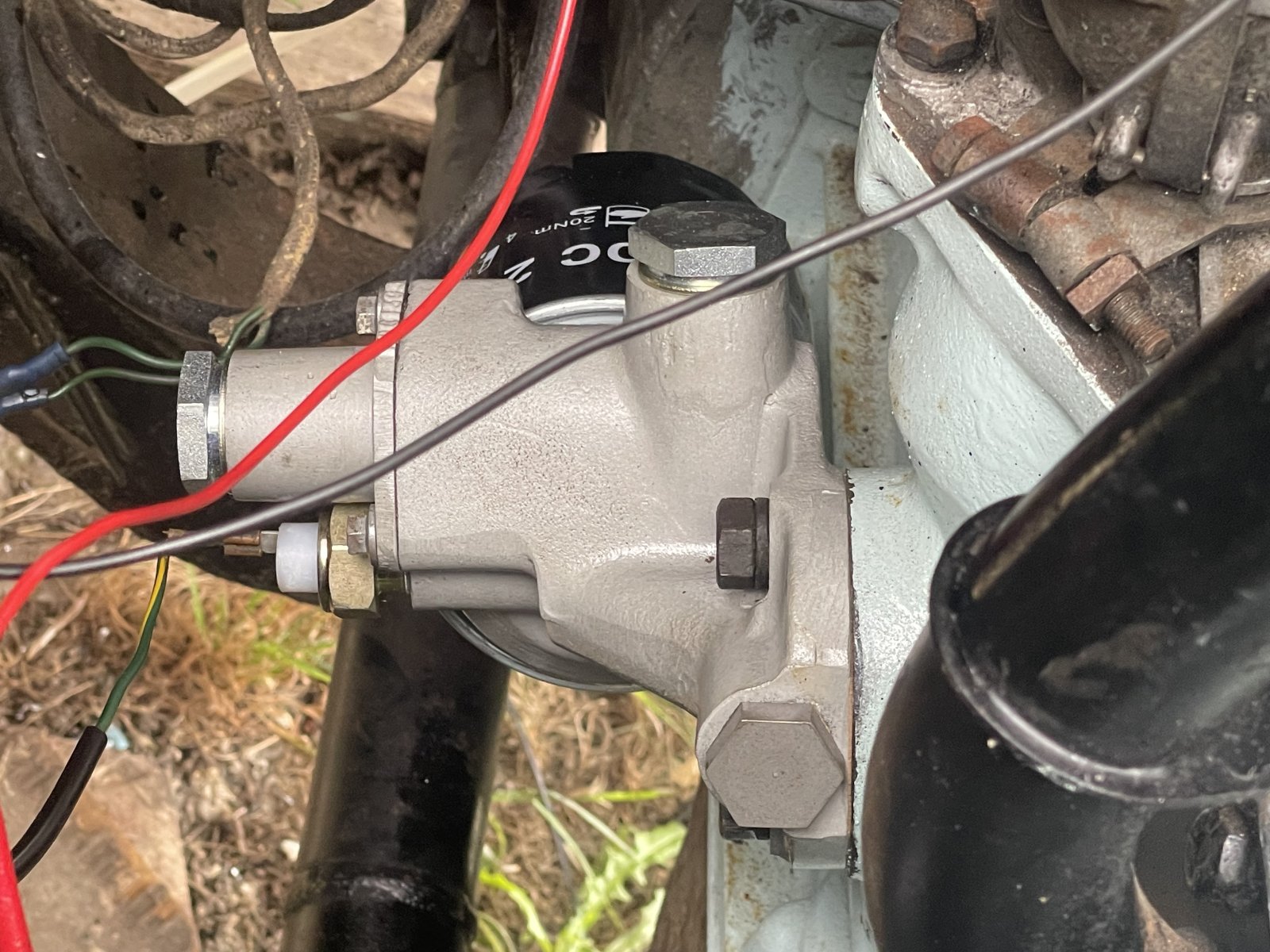

Brown onto inlet manifold looks weird they’re normally live so that would be a direct short
Wait a bit are all s2 positive earth
Wait a bit are all s2 positive earth
Last edited:
doriz
Well-Known Member
- Posts
- 17,312

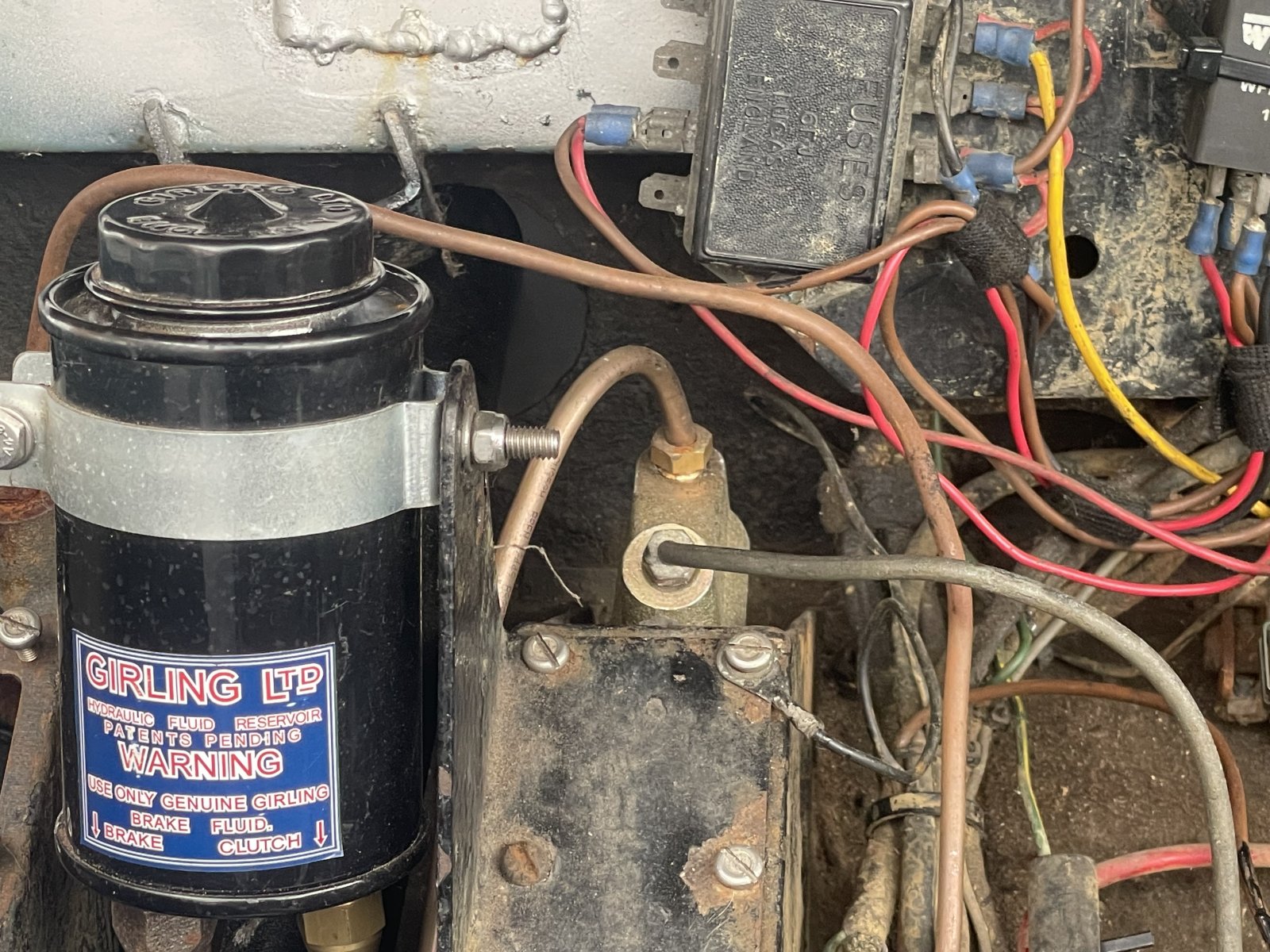

That foose box is honking
I feel yer pain. I have the lh indicator, fuel sender, horn and squirters to fix.
I feel yer pain. I have the lh indicator, fuel sender, horn and squirters to fix.Front... feel free to come round and put me to shame...... show me up why dont you
Attachments

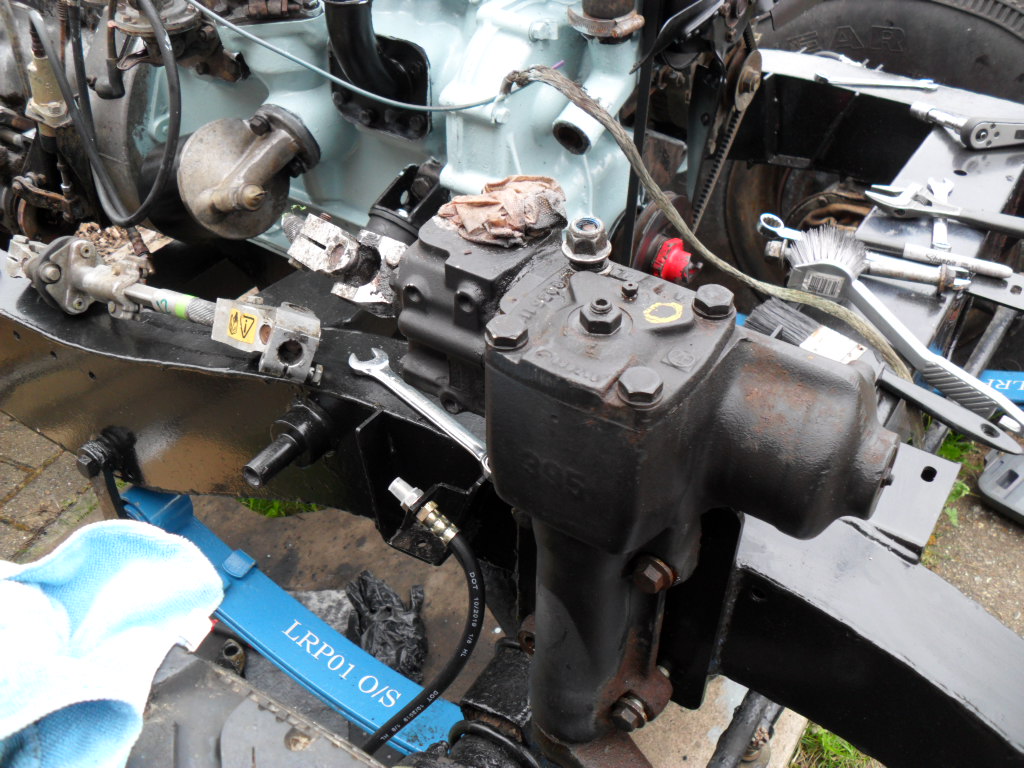

Not trying to do that at all. I just remembered it from your rebuild Fred. As that will need a separate circuit and fuse.Front... feel free to come round and put me to shame...... show me up why dont you
Which was another reason to ask if you need a new fuse box.
I am just trying to give you some enthusiasm that you can do it yourself (with help maybe)
J
I know thanksNot trying to do that at all. I just remembered it from your rebuild Fred. As that will need a separate circuit and fuse.
Which was another reason to ask if you need a new fuse box.
I am just trying to give you some enthusiasm that you can do it yourself (with help maybe)
J
Anaconda
Well-Known Member
- Posts
- 3,696
- Location
- Thames Valley

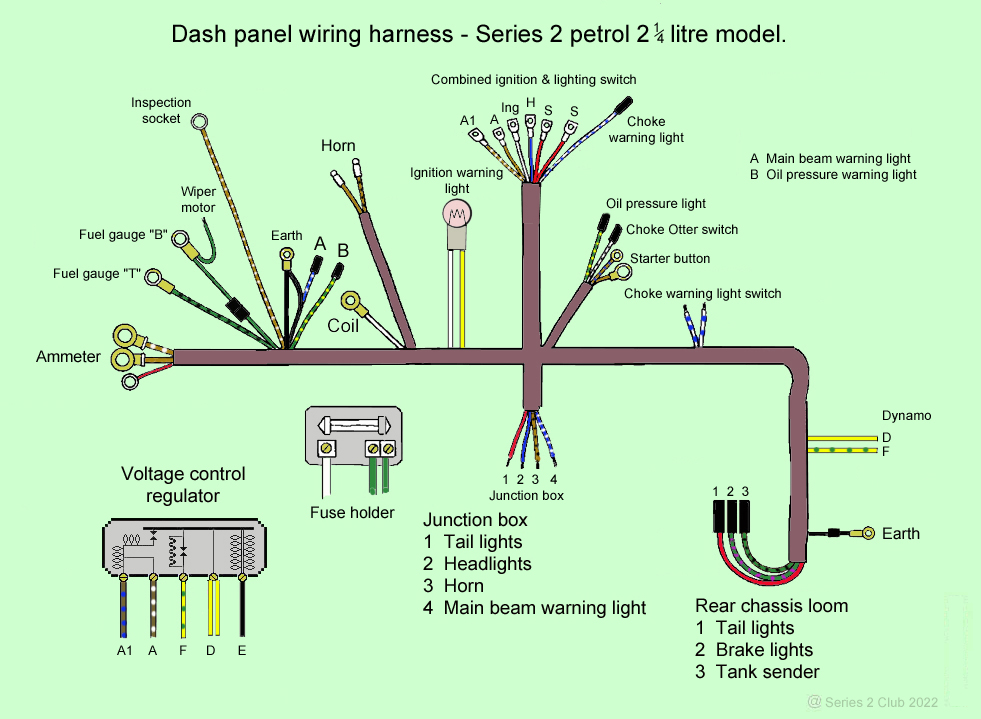

If I remember correctly there was lots of excellent wire loom diagrams on the S2club website.
Think the horn is permanent live and earths to the column when button is pressed.
It is pretty straightforward to convert to negative earth, instructions also on S2club website, or were.
Think the horn is permanent live and earths to the column when button is pressed.
It is pretty straightforward to convert to negative earth, instructions also on S2club website, or were.
