L322 Any Electrical Gurus

One for the electrical gurus.....

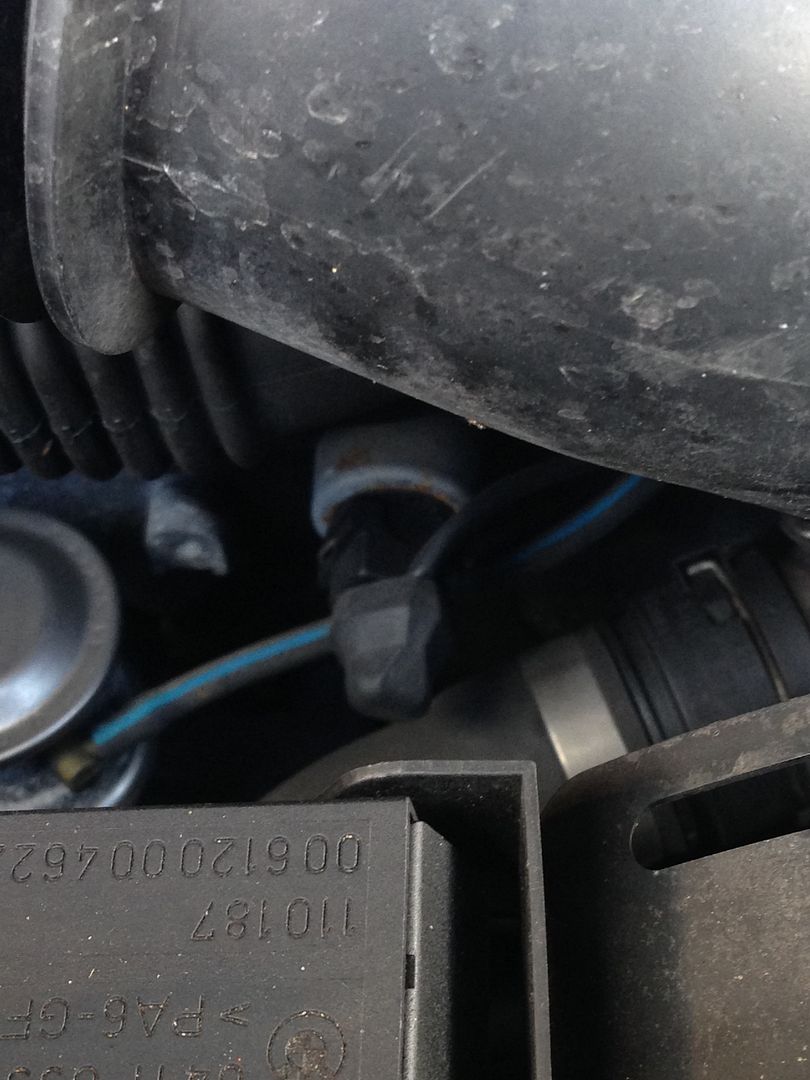

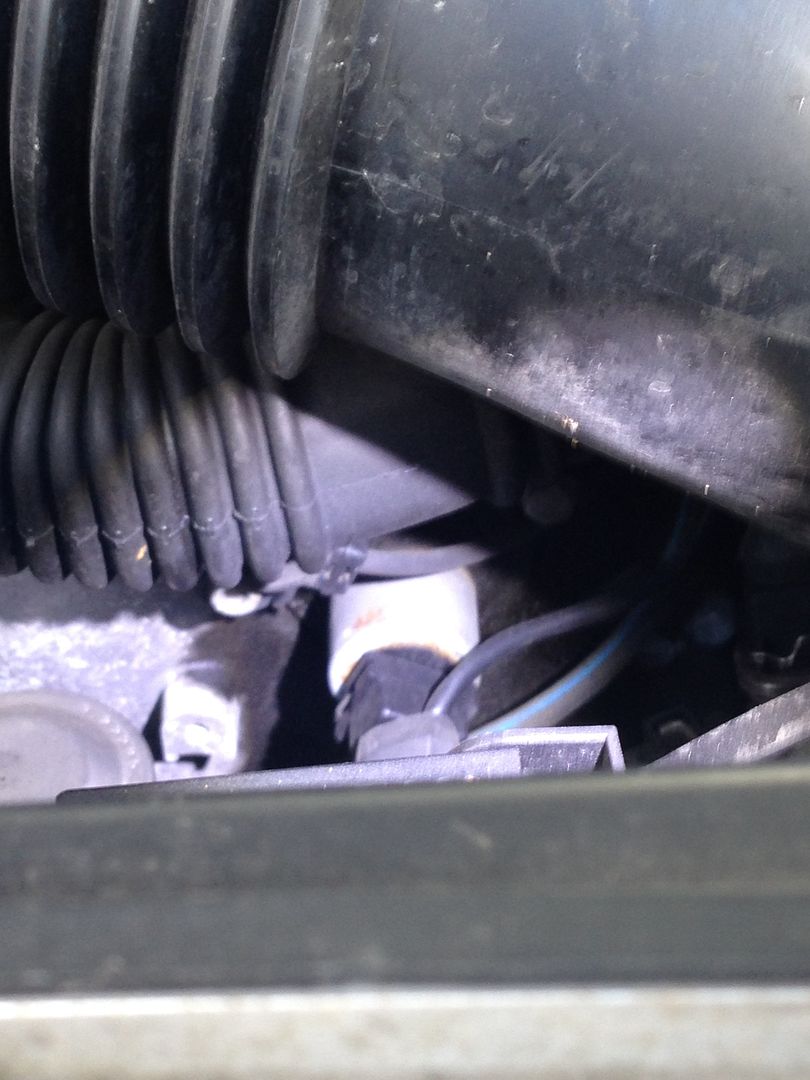

These round grey sensors, what are they? There's two at the front one on each bank it's the 4.4 v8. There's oil leaking from them, is there a seal behind them?

Next thing is about fuse 28...headlight cleaning system...is this system off fuse 28 the headlight wipers and headlight washers or does it just control the headlight wipers only? Reason I ask is won't this system be required for it's MOT "if it's there it has to work" kind of thing?

Thanks

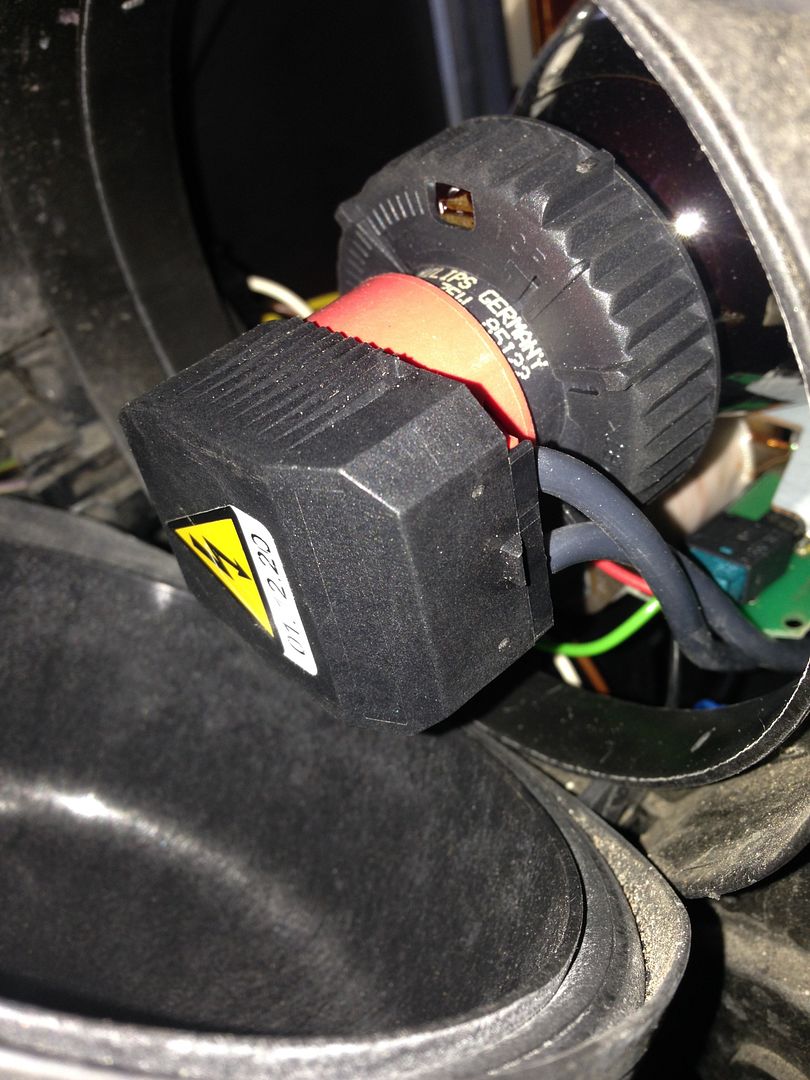

Headlamp wipe wash only needs to work if you have HID or LED headlamps.

Thanks wammers

DS2 it says on the bulb which I think is HID.
Which means ill need to get the headlight cleaning system working?

DISCO2RS4 said:

Thanks wammers

DS2 it says on the bulb which I think is HID.
Which means ill need to get the headlight cleaning system working?

Click to expand...

watch what your doing messing around this area

wil2813 said:

watch what your doing messing around this area

Click to expand...

never touched a thing..........

The two @sensors' are infact the VANOS solenoids....

Thanks Saint, is there a seal behind them I can change? as oil is leaking from them

Should be yes.....

Get hold of RAVE it will detail the correct method of removal and refit.

I would if I could but I don't have a laptop and Rave doesn't work on the works laptop as I need permission. ill find an alternative manual to look at

Just found a video on how to do it

DISCO2RS4 said:

Just found a video on how to do it

Click to expand...

Post a link so we can all see

Saint.V8 said:

Post a link so we can all see

Click to expand...

It's a sex video Ant.

http://www.beisansystems.com/procedures/m62tu_vanos_procedure.htm

I found something even better than the video

This should help you out

http://www.brit-car.co.uk/product.php/124811/0/timing_gear_cover_seal_4_4l_v8_l322_range_rover

https://www.landyzone.co.uk/land-ro...s-speed-bumps-aahh.278953/page-2#post-3430878

tomcat59alan said:

It's a sex video Ant.

Click to expand...

Don't try to open the attached file in my previous post, there isn't one, again

DISCO2RS4 said:

http://www.beisansystems.com/procedures/m62tu_vanos_procedure.htm

I found something even better than the video

Click to expand...

Yes, have read that end to end many times, very informative about the reseal and setting up of the VANOS gear......in case I have to do mine!!!

holidaychicken said:

This should help you out

http://www.brit-car.co.uk/product.php/124811/0/timing_gear_cover_seal_4_4l_v8_l322_range_rover

https://www.landyzone.co.uk/land-ro...s-speed-bumps-aahh.278953/page-2#post-3430878

Click to expand...

Thanks holidaychicken, do you use that Brit-Car site often?

Saint.V8 said:

Yes, have read that end to end many times, very informative about the reseal and setting up of the VANOS gear.....for when I have to do mine!!!

Click to expand...

edited for accuracy.

DISCO2RS4 said:

Thanks holidaychicken, do you use that Brit-Car site often?

Click to expand...

I use them a fair amount as it's easy to see the price of OEM type alternatives compared to main dealer price and they have been great whenever i have used them. I also use Island 4x4, Rimmer brothers(that just sounds wrong to me) and sometimes LRDirect but mainly britcar and island.

if you have a look at the link to the other LZ thread, my shopping list is on there for doing the cam cover seals which will be leaking if they haven't already been done, and then you can do the PCV valve and pipework while you are there and then you may as well do the cam chain tensioner and and and and ............
I have the vanos solenoid non return valves to do on mine as i have read of people having the start up clatter cured by just doing them and after all, that is why they are there so if you want to wait until i have done mine, as they are behind the seal you are thinking of changing, I'll let you know if it does any good.
i also have the camchain tensioner to replace but couldn't get to mine to change it and i ran out of cash for the swear box

keep us posted on how you get on with the non return valves, would be good to know if it works. Whats the problem with the cam chain tensioner? is it a bolt off bolt on idea?
