It seems I have a leak between the transfer box and the gear box. Is there a gasket between the 2? I had the transfer box replaced a while back. Can't seem to work out which gasket I need. Help!

no gasket and shouldnt be either your g/box rear seal leaks or the top and its running down or its the t/box input seal or most often intermediate shaft were it goes through front of t/box case

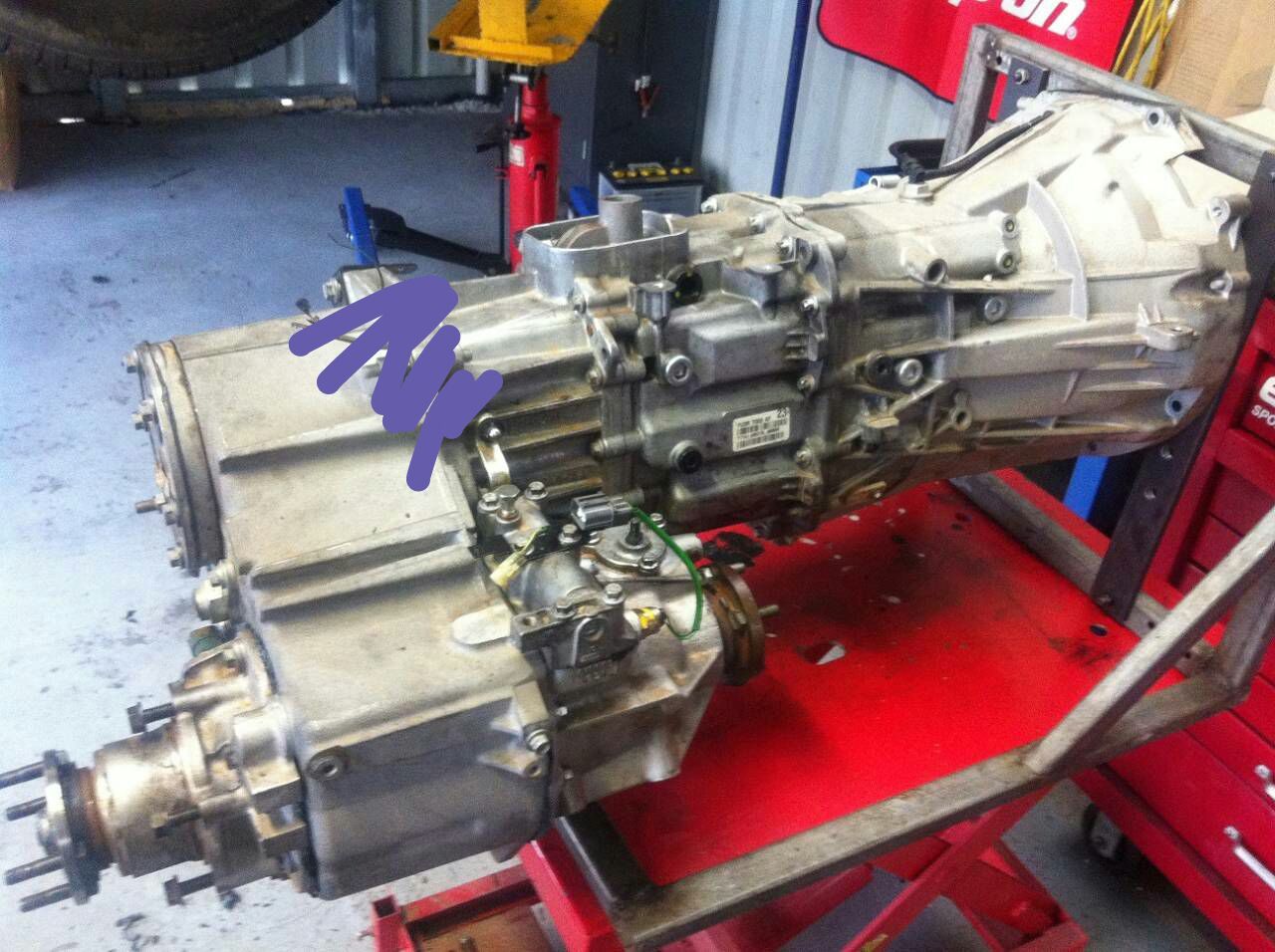

From where the purple squiggle


Attachments

  • IMG-2434d4fb7c699ccbef4391dc380d7464-V.jpg
    175.9 KB · Views: 95
Please forgive my ignorance! This car is in Ukraine. I bought it for an orphanage and one of the boys has been fixing it. He know what he's talking about but doesn't speak English so I'm trying to translate!!!
