Disco 2 Air suspension drops a little

About 50mm or so, very quickly then stops.

Pumps straight back up and pump not running to keep it up.

New bags in January.

Any ideas what may be wrong?

Bag already failed?

Level sensor?

When does it happen?
Could be something like a sticky valve in the compressor unit, but it could just as well be a bag, even though they've been changed recently.
What happens if you leave the vehicle with the ORM selected?

Sounds like level sensor.

brian47 said:

When does it happen?
Could be something like a sticky valve in the compressor unit, but it could just as well be a bag, even though they've been changed recently.
What happens if you leave the vehicle with the ORM selected?

Click to expand...

Within 30 seconds of getting out of car, then hours later still same height

MJI said:

Within 30 seconds of getting out of car, then hours later still same height

Click to expand...

they self level when you park them up, they will drop quite a bit if you park one wheel on a curb

jamesmartin said:

they self level when you park them up, they will drop quite a bit if you park one wheel on a curb

Click to expand...

Just started it this weekend and every time I park up

Its meant to do that it helps you get out/in.

biketeacherdave said:

Its meant to do that it helps you get out/in.

Click to expand...

Really? first I have heard of that. For info, where did you find that written down?

Cheers

Give me a min to find the txt

So following on from my recent pump failure I researched a lot and just renew the air springs, valve block with new and repaired the pump during my research I found out about the automatic operation of the SLS. Every time we turn off and exit the car it vents air and lows approx 40/50 mm as its meant to.
Some interpret this as away of it making it easier to enter the car next time round with it being lower but its just the SLS doing its thing.

biketeacherdave said:

So following on from my recent pump failure I researched a lot and just renew the air springs, valve block with new and repaired the pump during my research I found out about the automatic operation of the SLS. Every time we turn off and exit the car it vents air and lows approx 40/50 mm as its meant to.
Some interpret this as away of it making it easier to enter the car next time round with it being lower but its just the SLS doing its thing.

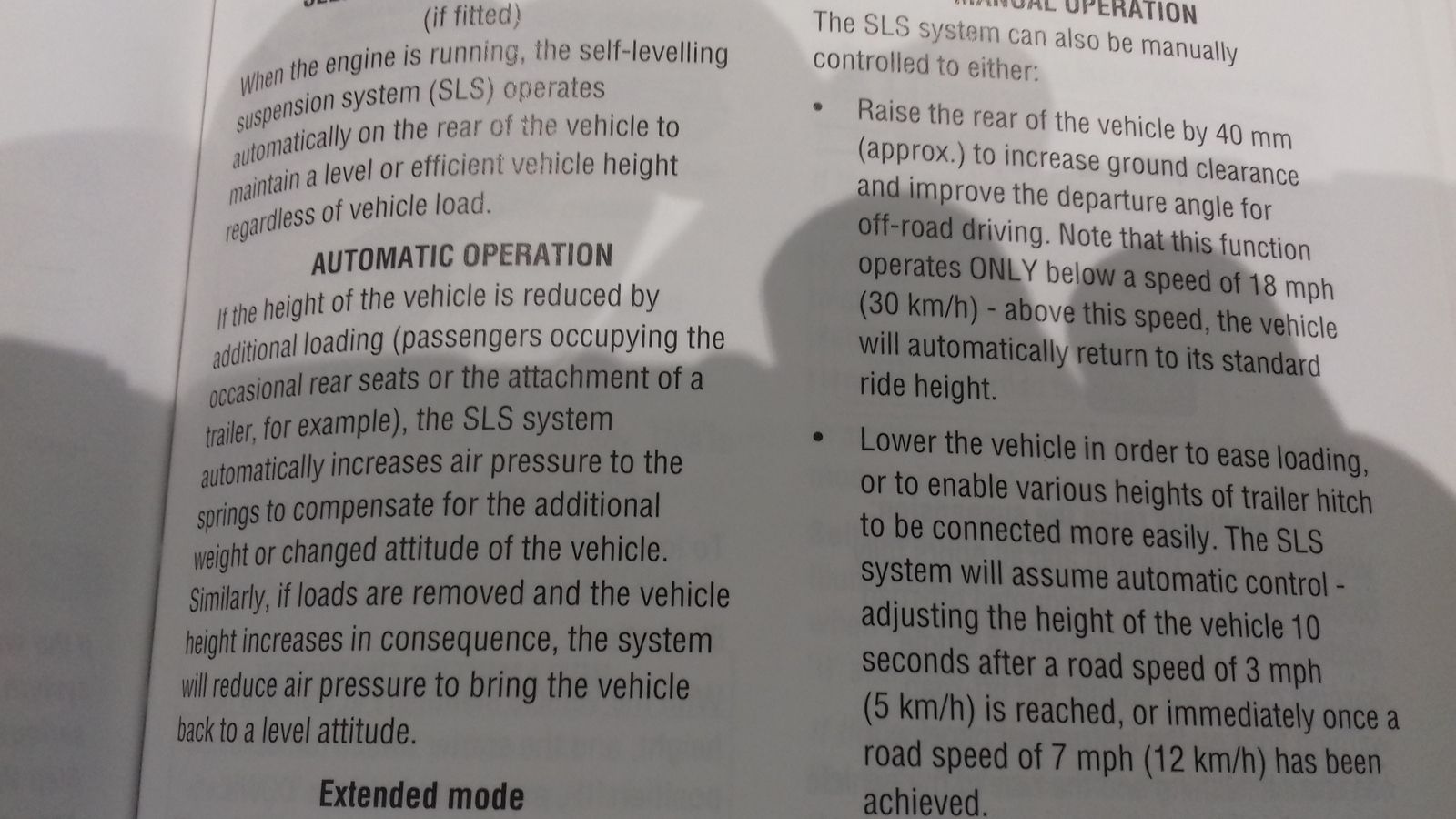

View attachment 147358

Click to expand...

Have read that and do not see how you can interpret it that way. Un less you have removed a significant load that allows the suspension to raise above a threshold.

Cheers

Think our does it everytime

And this
https://www.landyzone.co.uk/land-rover/disco-ii-air-suspension-–-the-definitive-guide.61211/

Not sure 20mm is going to make a big difference to getting into a D2 tbh.

Cheers

Quirks and saftey , so normal operation then and as interpreted on other sites an aid to exiting and entering the car ? Iv not actually taken a tape measure to it but it does raise and lower as stated.

biketeacherdave said:

Quirks and saftey , so normal operation then and as interpreted on other sites an aid to exiting and entering the car ? Iv not actually taken a tape measure to it but it does raise and lower as stated.

Click to expand...

I know mine does, by about 15 to 20mm when I open a rear door, after it is switched off. Always struck me as a idiosyncrasy of the system.

But not what I would call an aid to entry ,LOL.

Cheers

You must have longer legs than me then lol

neilly said:

Not sure 20mm is going to make a big difference to getting into a D2 tbh.

Cheers

Click to expand...

I find that parking with the driver's door next to the kerb aids in entry and egress from the Disco.

To lower it to make it easier to get in you need to buy and programme an additional plip.
Griff

Hit a bump and light came on then went off, no errors.

Will get new sensors and try those
