Disco 2 Air again ,replaced filter housing what next ?

Hi
This is my first post but have been very grateful to Landyzone for loads of help on the car reading other peoples how to's etc..
Wondering if someone can point me on what to do next !!
Have a air in fuel problem
Changed injector harness and clean out red plug regularly ( now no oil at plug )
this fixed the problem for some time. But its back lol

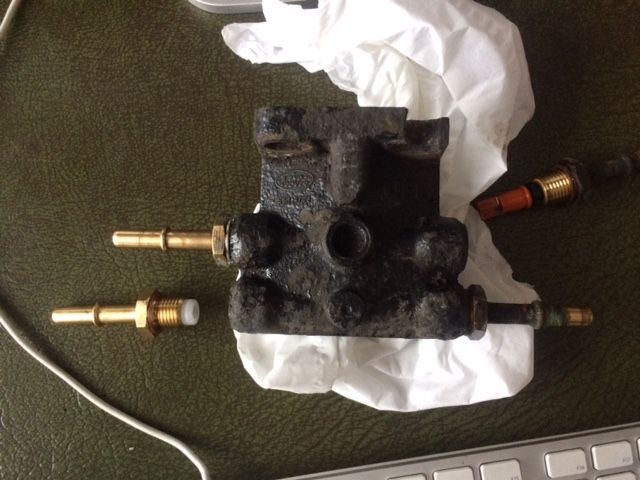

Now and have replaced the filter housing for new one with air bleed valve and none return valve in the same positions as original one taken off see pic.
Question is the red non return valve in correct position as all diagrams i can find show rear near chassis?
also after priming air has gone from system its only when i run the car it returns when i start up again
Any help gratefully received
cheers
Dom

This post has some good pointers, read it all the way through.

Unfortunately it appears the piccies were deleted during the remodel.
https://www.landyzone.co.uk/land-rover/td5-fuel-pressure-problem.161412/page-3

Cheers

Also ,

Have you watched these vids? there are 3 of them.



Cheers

neilly said:

This post has some good pointers, read it all the way through.

Unfortunately it appears the piccies were deleted during the remodel.
https://www.landyzone.co.uk/land-rover/td5-fuel-pressure-problem.161412/page-3

Cheers

Click to expand...

Thank you for quick reply will do

I know these are for a TD5 defender, but as far as I know they are the same. ( I may be wrong....)

Because it does look like your non return valve for what good a replacement does is in a different place.




Cheers

Cheers Neilly will look at all these vids
going to have a good look around fuel pump and pipes along chassis tomorrow , then new injector washers and o rings
never done this before but found some how to on the web, just need fan spanner and torque wrench
Do you know if its possible to replace fuel pipes without dropping tank ?
Cheers
Dom

And another one with a bit of info.


Cheers

I'm affraid that you'll need new injector copper washers (and seals)

Thanks sierrafery
I have read that this common fault after 100,000 miles as with injector harness . thinking now to do injectors first then tank out to check pipes after if not resolved
cant see any fuel leaks anywhere (unless its very small hole somewhere ).
Car only seems to get air in when driven holds pressure in fuel lines sitting on drive ,so suppose combusted gases make sense
Suppose will have to brave it and have a go with injectors
Cheers all
Dom

I second that, new seals will cure your problem.

Hi Guys

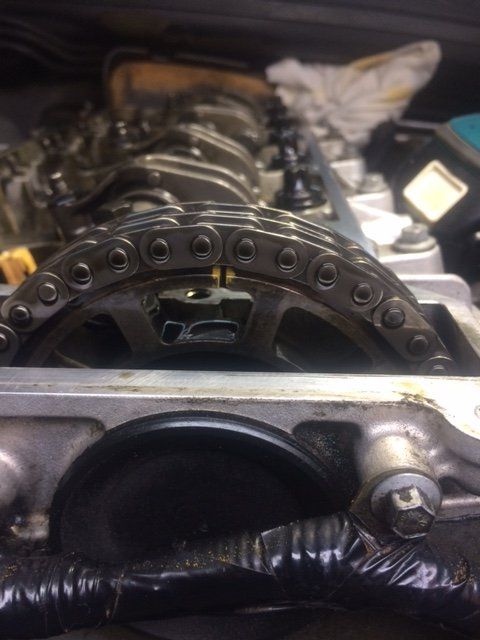

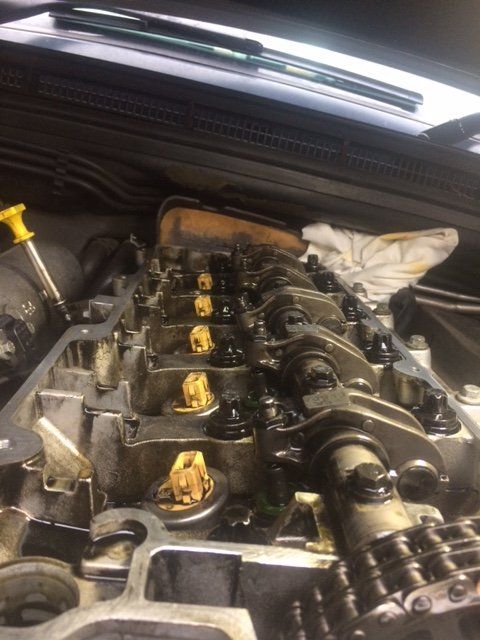

Can anyone help iam trying to fit seals today and have turn engine to marks on timing chain but the no1 rocker isn't set at highest point?
was wondering if iam missing sometime as never done this before and dont want to mess up, i can see the timing pin slot from above

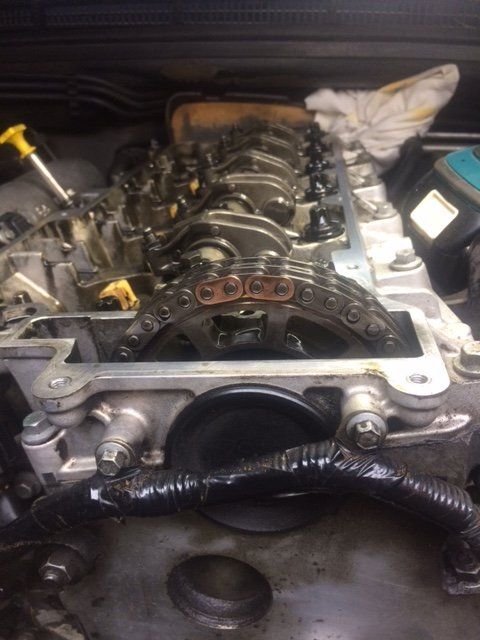

ive turned engine with ratchet a couple of times to see if there is another mark and there is several single copper coloured links
any help appreciated ( pics attached)
Cheers Dom

See this http://www.discovery2.co.uk/Injector Seals.html and compare with what you did

Hi Sierrafery
Thanks for reply iam using this as a step by step which is very helpful

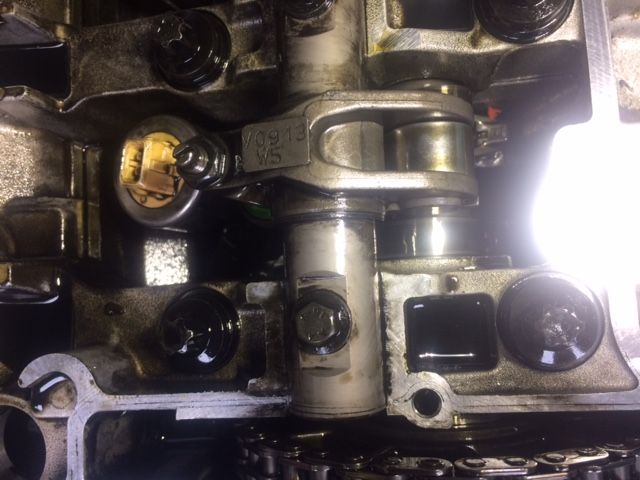

I havent yet replaced the seals or removed rocker shaft and was looking at how its set now and looks as if no1 is not at highest point when i line up timing mark
When i replace and go to setting each injector should i just make sure they are at highest point
thanks again
Dom

When you adjust injectors unscrew few tuns the adjuster and when the side of the rocker which is on the injector's plunger is at the lowest point screw in the adjuster untill you feel that the plunger reached the bottom then unscrew 1 full turn and tighten the locknut... that's all i know i dont know anything about why nr 1 is not at highest point, maybe the adjuster is too tight and the injector side can't go down more though this could haave ruined the injector.... i'm not the man to answer about mechanics

Thank for reply will see how it goes

Hi All
injector seals replaced now and have started her up seems fine, only driven around the block will have a good run out tomorrow

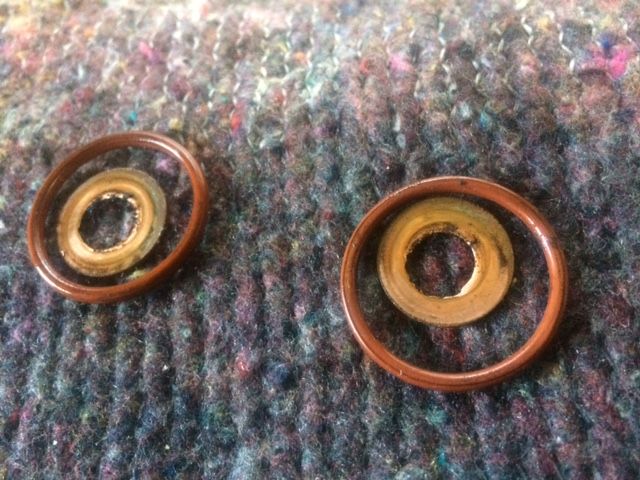

looking at the pic of the seals they needed doing so fingers cross .
Big thank you to everyone on here
Dom
