Other aerodynamics

Discussion in 'Range Rover' started by gstuart, Jun 14, 2018.

< Previous Thread | Next Thread >
  1. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,537
    Likes Received:
    4,621
    Location:
    Swanley , Kent

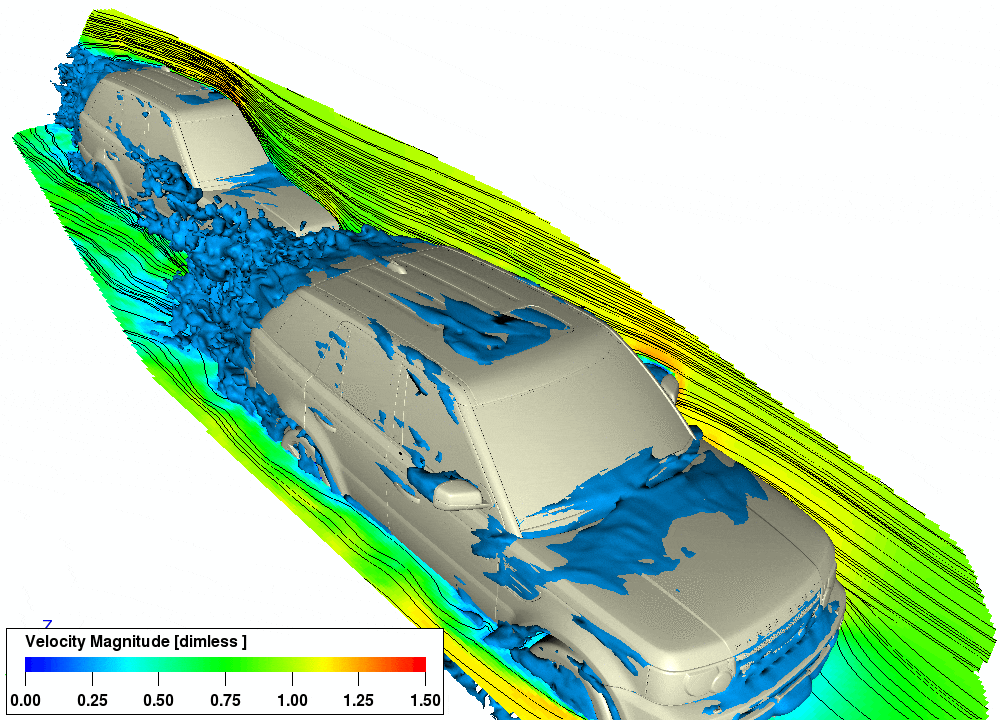

    thought this was really interesting , maybe i need to get out more :)

    is that a FFRR


  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,988
    Likes Received:
    5,967
    Location:
    Preston Lancs.
    Drag increases as a square of speed. So if you had a 100 BHP car that did 100 MPH, if you wanted it to attain 200 MPH you would need a 400 BHP engine.

  3. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,537
    Likes Received:
    4,621
    Location:
    Swanley , Kent
  4. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    18,537
    Likes Received:
    4,621
    Location:
    Swanley , Kent
    sort of understand what ur saying and of course how complicated it can become , ie where u can use aerodynamics to work in ur favour in a design

  5. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,988
    Likes Received:
    5,967
    Location:
    Preston Lancs.
    Well you could design it so it automatically changes air in the vehicle, so you would not need the ridiculous no smoking with kids in the car rule. But then again you would be drawing traffic fumes in to replace the evacuated fag smoke. And that has far more carcinogens in it than you would ever get from fag smoke so would defeat the object slightly. :D:D

    gstuart likes this.
  6. oakey

    oakey Active Member

    Joined:
    Dec 26, 2010
    Posts:
    664
    Likes Received:
    84
    Location:
    Mull of Kintyre
    Not to mention the particulates

  7. ovalandrover

    ovalandrover Well-Known Member

    Joined:
    Oct 21, 2010
    Posts:
    1,394
    Likes Received:
    135
    well it just goes to prove that land rovers have the same resistance as a house brick

    Grrrrrr and gstuart like this.
  8. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire
    Worse than that, drag is a force so the power requirement has to be multiplied by the speed again, so the power requirement to shove a vehicle through the air is proportional to the cube of the speed.

    Phil

    davidsmith1307 likes this.
  9. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,696
    Likes Received:
    1,674
    Location:
    Berks/Surrey/Hants border
    I reckon on the salt lake flats, with no wind, and a half hour to get there, I might just squeeze a ton out of my TD5 although probably a bit less. I may need to fold the mirrors in.
    Assuming the bhp is still around 122, does that mean 488bhp will get it to 200? (Hypothetically as it would start disintegrating at 110 anyway)
    Or should I just get a JATO and fix it to my rear wheel?

  10. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire
    Taking your average family runabout as an example, the Bugatti Veyron has a drag coefficient of 0.36 and a frontal area of 2.07m^2 (according to Wikipedia).

    At 250mph (i.e. 111.76m/s) the aerodynamic drag will therefore be 0.5*1.23*0.36*2.07*111.76^2 - assuming an air density of 1.23kg/m^3

    That comes out at 5724N, which translates to a drag power of 5724*111.76/1000 = 639.7kW. Assuming a driveline efficiency of 94%, that’s equivalent to an engine power requirement of 639.7/0.94 = 680.6kW or 913bhp.

    If Bugatti wanted to increase Vmax by (say) just 10mph, from 250 to 260mph, the new engine power requirement is :

    0.5*1.23*0.36*2.07*116.23^3/(1000*0.94) = 765.6kW or 1027bhp

    So the extra 10mph on top speed would require an additional 114bhp from the engine!

    Phil

    Note - This ignores rolling resistance drag (generally taken as around 1.5% of the vehicle weight) because this is insignificant at high vehicle speeds compared with aerodynamic drag – though it is significant at low vehicle speeds.

    frog hopper and pete12345 like this.
  11. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,988
    Likes Received:
    5,967
    Location:
    Preston Lancs.
    No it's exactly that. You would need four times the power to do twice the speed. ;)

  12. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire
    Drag force is proportional to the square of the speed. Drag power is proportional to the cube of the speed. 100bhp for 100mph would require 800bhp for 200mph.

    Phil

  13. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,000
    Likes Received:
    1,274
    Location:
    Buckinghamshire, UK. ('95 DT)
    Sorry, just to get this straight in my head:drag resistance is cubed but frontal resistance, i..e square area hitting front on to direction of travel is squared?

  14. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,173
    Likes Received:
    405
    Location:
    sud ouest France
    Why would you smoke in the car with your kids?:eek:

    tomcat59alan likes this.
  15. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,787
    Likes Received:
    1,584
    Location:
    wirral and triquivijate
    Why would you smoke,period?:confused:

    gold rover and Mark Piercy like this.
  16. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,696
    Likes Received:
    1,674
    Location:
    Berks/Surrey/Hants border
    This sounds more realistic I think, 400bhp is not an uncommon power output these days and not many achieve 200mph

  17. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire
    It’s important to distinguish between the aerodynamic resistance due to drag, which is a force, and the power required to overcome that drag

    Power = Force x Velocity

    So, the power required at the wheels to overcome the aerodynamic drag force is directly proportional to the drag coefficient and also to the frontal area. In other words, if you double the drag coefficient or the frontal area you will double the power required to overcome the drag

    With the speed, however, the power requirement is proportional to the cube of the velocity, so if you double the speed you will require 8 times the amount of power at the wheels to overcome it

    I used the Veyron example above just to illustrate how sensitive this is, at very high vehicle speeds. An additional 114bhp is required to increase the top speed by just 10mph

    Phil

    davidsmith1307 and Grrrrrr like this.
  18. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,988
    Likes Received:
    5,967
    Location:
    Preston Lancs.
    Why not?

  19. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,787
    Likes Received:
    1,584
    Location:
    wirral and triquivijate
    Because they should be in school,preferably a boarding one.;):D

    norseman, gold rover and sheriff like this.
  20. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,988
    Likes Received:
    5,967
    Location:
    Preston Lancs.
    Yep you are right got my squares triangles and hexagons mixed up a bit there. ;);):D

    frog hopper likes this.
