300tdi pic request

Now I have started to put my D1 project back together I need a picture location of the brake bias valve
it sits some where on the nearside inner wing behind the abs unit, I bought this with no brake pipes
so I need some help to which way it sits & which way the pipes go to & from it if anyone has the time
to post the info.

I also have some multi plugs & a vacuum unit with missing pipes also on the nearside which go
somewhere ??

Ta much Kev

kevstar said:

Now I have started to put my D1 project back together I need a picture location of the bias valve
it sits some where on the nearside inner wing behind the abs unit, I bought this with no brake pipes
so I need some help to which way it sits & which way the pipes go to & from it if anyone has the time
to post the info.

I also have some multi plugs & a vacuum unit with missing pipes also on the nearside which go
somewhere ??

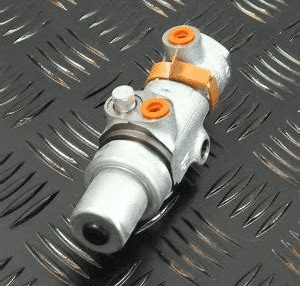

Ta much KevView attachment 151440

Click to expand...

I've got three on the drive at home not sure how many have got abs though, I can have a look when I finish work

Marmaduke said:

I've got three on the drive at home not sure how many have got abs though, I can have a look when I finish work

Click to expand...

Cool nice one im going to bin the abs anyway

kevstar said:

Cool nice one im going to bin the abs anyway

Click to expand...

Sorry cocker I didn't get home til late

Marmaduke said:

Sorry cocker I didn't get home til late

Click to expand...

No worries matey

kevstar said:

No worries matey

Click to expand...

This is the only thing on the inner wing with pipes coming out

Marmaduke said:

This is the only thing on the inner wing with pipes coming out

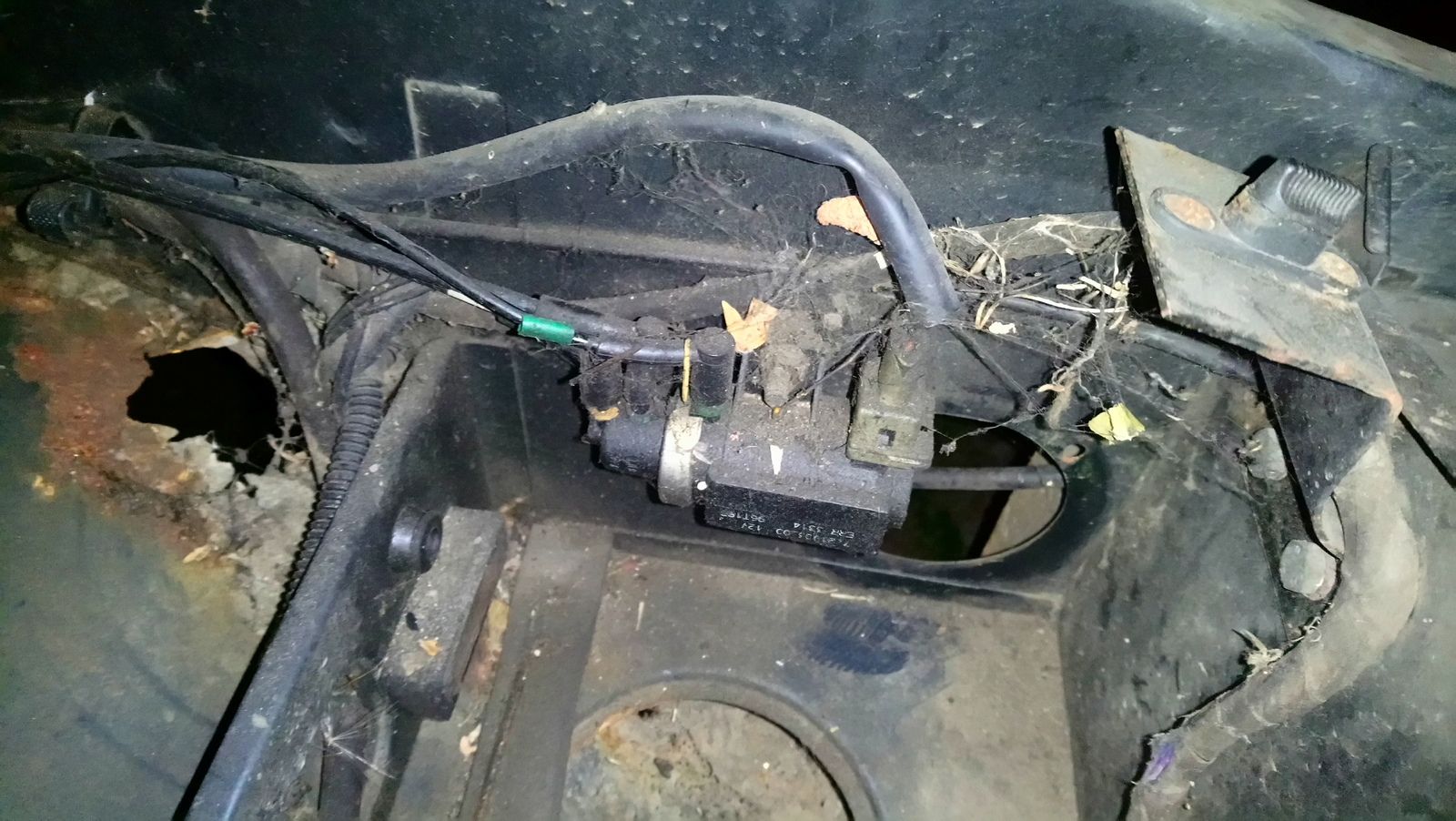

View attachment 151544

Click to expand...

Ah I need to find pipes for that as well, they are missing (what is it??)

Ok so it doesn't go on the inner wing ?? it must go somewhere between the back brakes & the master cylinder lol

Ta much

I'll have a gander tomorrow, one of the pipes goes to the air box and one went to the egr valve

Marmaduke said:

I'll have a gander tomorrow, one of the pipes goes to the air box and one went to the egr valve

Click to expand...

Nice one thanks very much

Im doing my brake pipes tomorrow anyone know where the brake compensator/bias valve sits
& which pipes go to the front & rear ???

kevstar said:

Im doing my brake pipes tomorrow anyone know where the brake compensator/bias valve sits
& which pipes go to the front & rear ???

Click to expand...

The item above is the Emission Control Valve ERR 3314.

As you have said the abs system is going in the bin the pipes plus the valve are different, there are a few diagrams in this link.
https://allbrit.de/select.cfm?PAGE=E04&CAR=L4&SPRACHE=EN

discool said:

As you have said the abs system is going in the bin the pipes plus the valve are different, there are a few diagrams in this link
https://allbrit.de/select.cfm?PAGE=E04&CAR=L4&SPRACHE=EN

Click to expand...

Cheers for that, its the bias valve location im really needing, all im doing is cutting out the
abs so the pipes will be the same from the master going through the valve & to the rear
(basically missing out the abs unit)

kevstar said:

Cheers for that, its the bias valve location im really needing, all im doing is cutting out the
abs so the pipes will be the same from the master going through the valve & to the rear
(basically missing out the abs unit)

Click to expand...

First thing in the morning I’ll look at the position of my valve and let u know but it’s on an abs system

discool said:

First thing in the morning I’ll look at the position of my valve and let u know but it’s on an abs system

Click to expand...

Cool nice one

kevstar said:

Cool nice one

Click to expand...

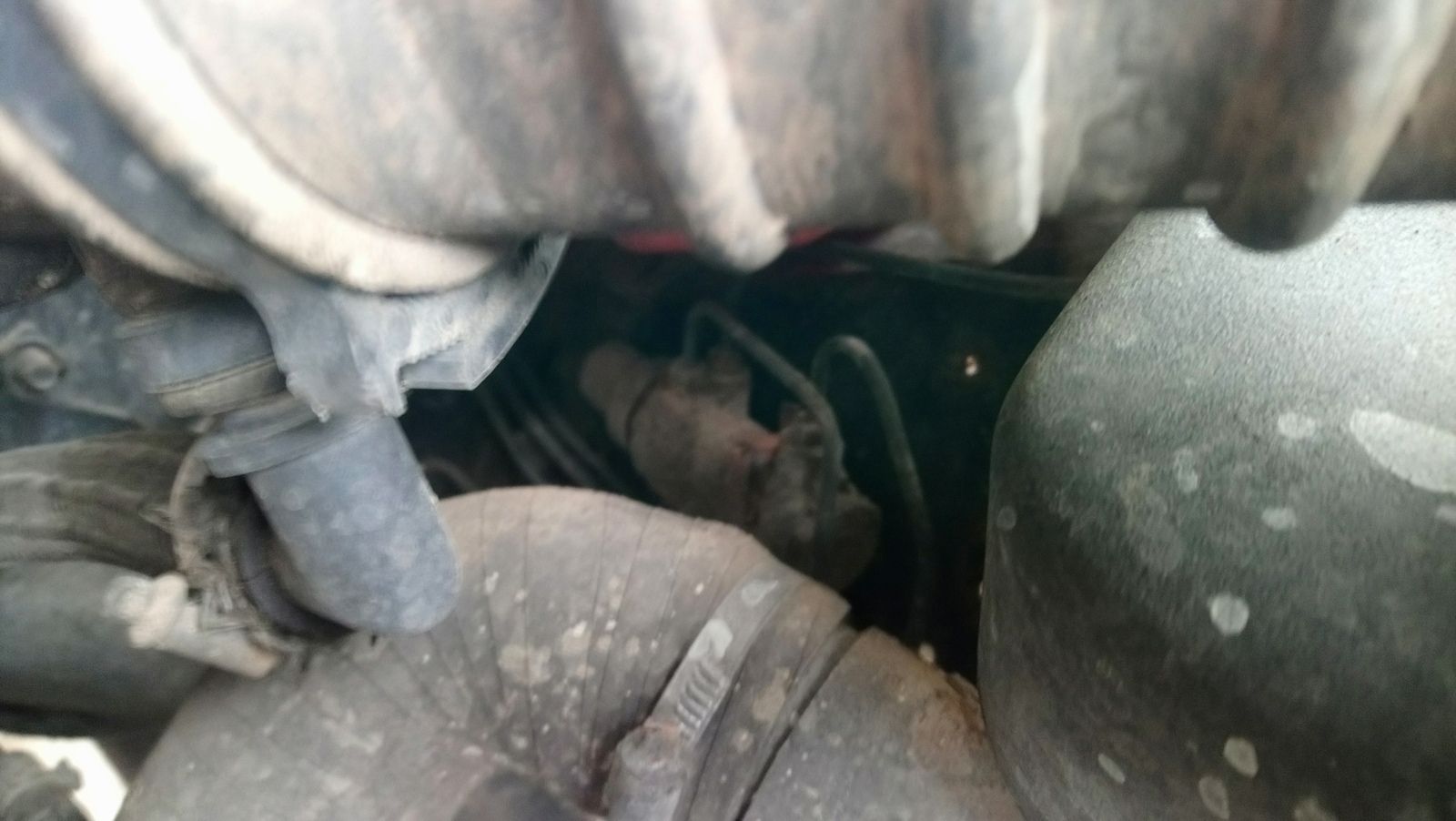

Is this what you want?

Anyway brakes, the balance valve is low down at the rear of the N/S inner wing. Unfortunately photos don’t seem to load this morning.

discool said:

Anyway brakes, the balance valve is low down at the rear of the N/S inner wing. Unfortunately photos don’t seem to load this morning.

Click to expand...

Ta much matey I just guessed where it went & made all new brake pipes to suit
