300tdi engine rebuild crank locking SOLID

Discussion in 'Defender 90 / 110 / 130' started by martys0uth, Feb 16, 2017.

  1. martys0uth

    martys0uth Active Member

    Joined:
    Jul 1, 2015
    Posts:
    170
    Likes Received:
    25
    Location:
    The Wirral, Merseyside
    Well, me and my dad have been rebuilding a 300tdi we got from breaking a disco.

    Tbh in hindsight the engine did not need it but it's going to be 'last engine that goes in the 90' kinda thing.

    Shells didn't need re-doing, so it was a nice new rings etc.

    Upon putting the pistons back in with correct corresponding big end sequences, we loosely put the con rods in and then continued to Torque the bolts to correct spec, we did piston number 1 to correct spec and went to turn the engine over with a breaker bar and hey presto, the engine is locked up completely solid, off one piston?!

    Anyone else experienced this? the engine was a runner before we pulled it and had a very small puff of smoke.
    It was that bad that combined with it being cold, it snapped a 20" breaker bar!!

    We took the pistons out and proceeded to clean all the bearings, making sure we got any and all dirt off, and then smeared a small (like 2-3 drips of oil) amount of oil on the bearing in case it was the metal on metal contact causing it to stick.

    Still can't do anything with it and completely bewildered!

  2. martys0uth

    martys0uth Active Member

    Joined:
    Jul 1, 2015
    Posts:
    170
    Likes Received:
    25
    Location:
    The Wirral, Merseyside

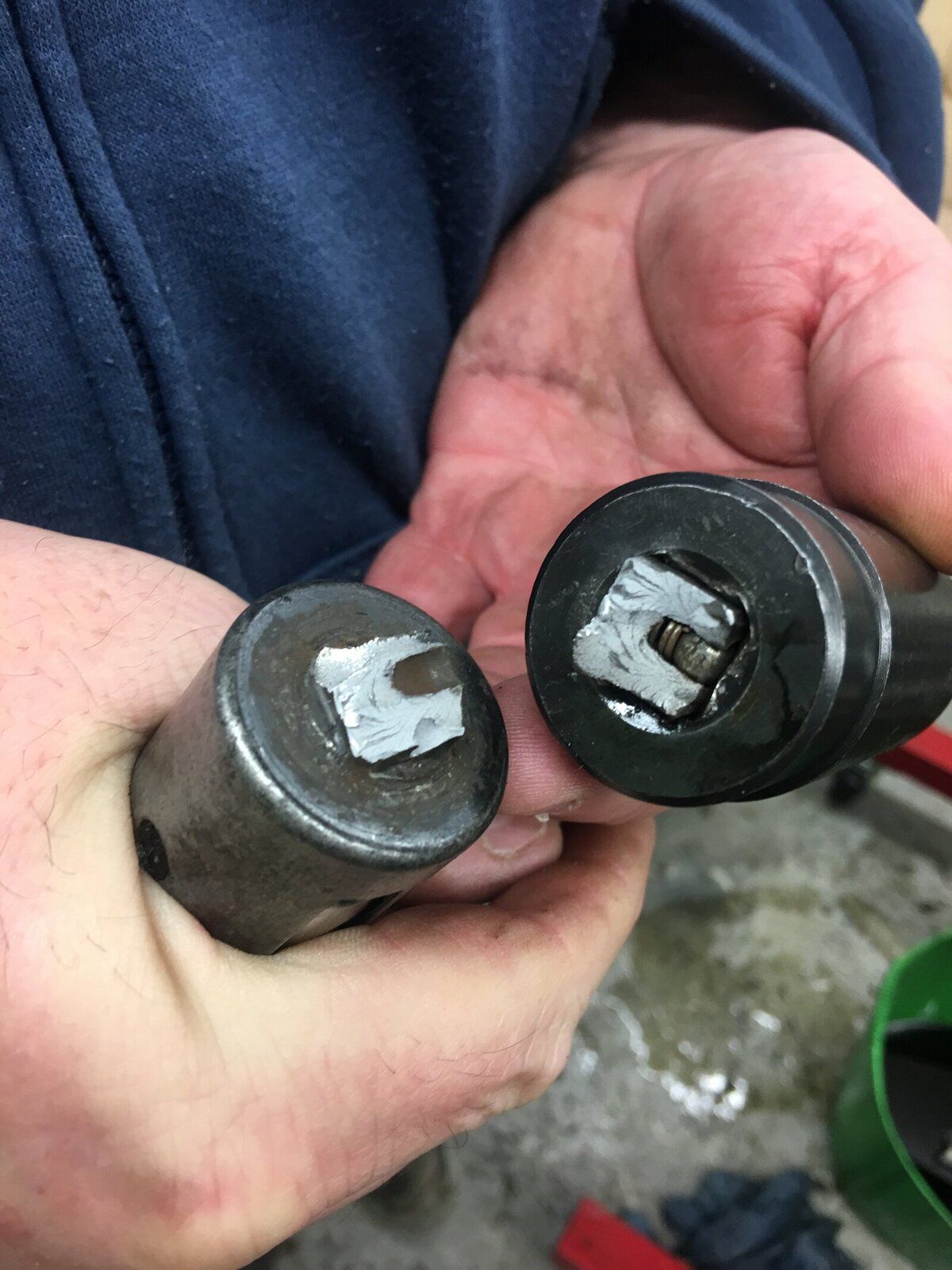

    The breaker!


    Attached Files:

  3. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    14,205
    Likes Received:
    750
    Location:
    Surrey - Near the middle, close to some green bits
    Is the head still on?

    If so, could it be valves fouling the piston from moving up further?

    If not, I trust the piston hasn't protruded so far as a ring has popped over the top of the block and jammed up (unlikey if you say you have fitted the cap and torqued up, but yer never know!

  4. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    5,127
    Likes Received:
    447
    Location:
    Far away from you!!
    Your comment about oil is interesting - I hope you are putting it together with assembly lube as you bolt it up and not just assembling dry?

    neilly likes this.
  5. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    5,169
    Likes Received:
    611
    Location:
    essex and beyond
    2 or 3 drips of oil, they need to be swimming with oil, and get some oil in the crank with a squidgy oil can, and did you oil the Pistons and rings with copious amounts of oil before fitting?

    Turboman, flat and neilly like this.
  6. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    14,205
    Likes Received:
    750
    Location:
    Surrey - Near the middle, close to some green bits
    I use this stuff.....

    [​IMG]

    Turboman and flat like this.
  7. GATSO

    GATSO Well-Known Member

    Joined:
    Aug 20, 2014
    Posts:
    654
    Likes Received:
    101
    tried that stuff once ,,,,missus still said it was tight ,,,,;);)

    Al2O3 and Saint.V8 like this.
  8. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    4,668
    Likes Received:
    696
    Location:
    North of the Wall
    ha, ha. That's cheered me up. lol

  9. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    5,679
    Likes Received:
    1,380
    Location:
    Near the land of 'Me Duck'
    The inside of the bores also need a liberal coating of oil and two or three drops is nowhere near enough :rolleyes:

    Turboman likes this.
  10. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    22,922
    Likes Received:
    12,212
    Location:
    March, Cambs., or On The Cut.
    An ounce of lubrication is worth a ton of pressure. :) Popular saying in bovine obstetrics!

    OP, are you sure the nice new rings were the right size for the pistons, and correctly installed on the piston?

  11. SpringDon

    SpringDon Well-Known Member

    Joined:
    Oct 1, 2010
    Posts:
    1,757
    Likes Received:
    353
    Location:
    Somerset
    I've just got some of that! For years I used moly paste type ones in a tube. Then I go to get some more and it was "nobody uses that anymore, grandad".
    How the world moves on.

    Marmaduke likes this.
  12. Gazbo

    Gazbo Well-Known Member

    Joined:
    Dec 23, 2010
    Posts:
    2,030
    Likes Received:
    1,098
    Location:
    Cooktown, North Queensland, Australia.
    You may have the big end cap on back to front.
    Did the crank turn ok in the mains prior to tightening #1 big end cap.
    Are the big end shells correctly inserted in the rod, i.e. tangs seated correctly.

    Flossie likes this.
  13. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    6,529
    Likes Received:
    1,107
    Location:
    Kent
    +1 for big end cap and if you have fitted it back to front and its so tight engine wont turn with a bar I would say new shells needed, also did you keep the caps with their rods?

  14. martys0uth

    martys0uth Active Member

    Joined:
    Jul 1, 2015
    Posts:
    170
    Likes Received:
    25
    Location:
    The Wirral, Merseyside
    Thanks for all the replies.

    yes, when all 4 pistons are in loose they all turn over super smooth without any effort at all.

    Yeah the crank is perfect prior to the big end cap being tightened. all shells from what I can see are okay, they have a little nib sticking out so it's only possible to go in one way, caps are the correct cap for the con rod etc.

    it got to the point where my dad has taken a piston and conrod with the cap to a engineering shop to see if it was out of line or something, but they are perfect no whiff of them bent or anything.

  15. martys0uth

    martys0uth Active Member

    Joined:
    Jul 1, 2015
    Posts:
    170
    Likes Received:
    25
    Location:
    The Wirral, Merseyside
    We looked at the shells, thought they'd only need replacing if there's wear to them I.e. Copper colouring. The shells literally looked perfect. Kept them together however would it make the difference if the cap shell was in the piston side and vice versa?

  16. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    48,164
    Likes Received:
    4,471
    Location:
    Preston Lancs.
    Sorry to have to state the obvious, but before you start stripping and rebuilding things it is far better to know what you are doing. If you snapped that breaker bar trying to turn the engine you have done something seriously wrong.:D

    Turboman and Gazbo like this.
  17. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    48,164
    Likes Received:
    4,471
    Location:
    Preston Lancs.
    Come on Ant, i would like to see how he got the pistons out to change the rings and back in with the head on. :D:D

    Gazbo likes this.
  18. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    14,205
    Likes Received:
    750
    Location:
    Surrey - Near the middle, close to some green bits
    Come on Tony.....

    Head off.....pull pistons....replace rings.....replace pistons....head on.....turn engine....jams up....

  19. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    48,164
    Likes Received:
    4,471
    Location:
    Preston Lancs.
    Come on Ant. Why would you fit head before fitting con rods to crank and ensuring things are free. There are certain ways of doing things you know that. ;);)

    Gazbo likes this.
  20. martys0uth

    martys0uth Active Member

    Joined:
    Jul 1, 2015
    Posts:
    170
    Likes Received:
    25
    Location:
    The Wirral, Merseyside
    I'm not saying I'm an expert in engine re builds by far, dad's a lot more knowledgeable than me... But to clarify the head is not on ;)

    Going to redouble check the caps when I'm in there tonight but I'm pretty confident they are correct cause they are stamped with numbers :p
