300 tdi. Crank, is it going to cause problems??

Discussion in 'Land Rover Discovery' started by simonmc73, Jul 19, 2012.

  1. simonmc73

    simonmc73 New Member

    Joined:
    Aug 25, 2011
    Posts:
    86
    Likes Received:
    0
    Location:
    Outside Bournmouth, Dorset

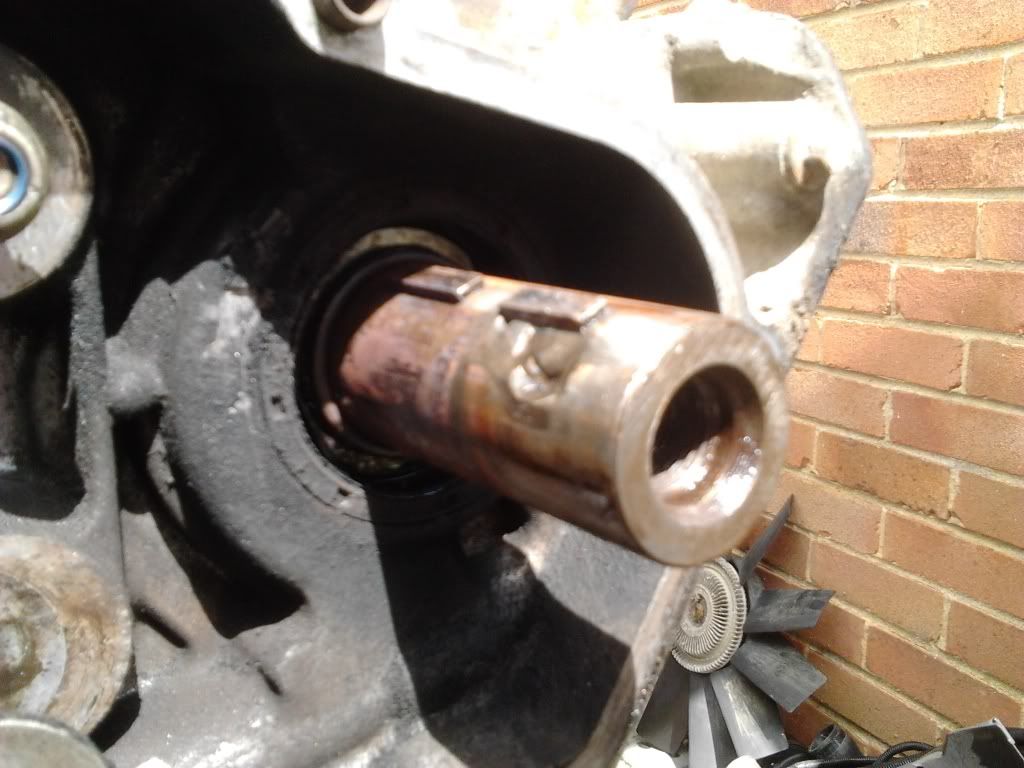

    Well finally got back to doing my engine. This what i found after getting the crank pully off.
    [​IMG]

    Now it looks like the woodruff key as been welded in to repair some damage. Is this going to cause problems with the strip down, as the rest of the crank seems in fine fettle?

    Simon

  2. simonmc73

    simonmc73 New Member

    Joined:
    Aug 25, 2011
    Posts:
    86
    Likes Received:
    0
    Location:
    Outside Bournmouth, Dorset
    Well it didnt. Managed to get it all striped down to bare block this afternoon, and cleaned bits in the parts washer or if they were small enough the ultra sonic cleaner. Hopefully i will find somewhere suitable to degreese & pressure wash it down, where the wife wont moan about mess. Then its paint the block and start to rebuild with nice clean parts.

    Simon

  3. Paul D

    Paul D Glass rep for South Yorkshire Events Planner

    Joined:
    Jun 3, 2007
    Posts:
    12,332
    Likes Received:
    307
    Location:
    Doncaster
    Jeez, not seen that before. I always thought the point of a woodruff key was that under extreme pressure they break and can be replaced .. be a bit hard to replace one that's welded in!!

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    62,704
    Likes Received:
    1,586
    Location:
    louth lincs
    key is just a cheap way of securing two parts ,rear key is the most important ,as long as front pulley has something to lock against and cant chatter it will be okay

  5. simonmc73

    simonmc73 New Member

    Joined:
    Aug 25, 2011
    Posts:
    86
    Likes Received:
    0
    Location:
    Outside Bournmouth, Dorset
    Fortunatly the back key is fine. Should have some time today to get the block cleaned and painted. Then i can start building back up over the next week or so as time and SWMBO allows!!
