200tdi

Discussion in 'Defender 90 / 110 / 130' started by ProcrastinatorFraser, Jun 29, 2016.

< Previous Thread | Next Thread >
  1. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    So a few of you may be aware i'm converting my n/a to a tdi soon.
    I was planning on fitting a 300tdi until i managed to find a 200tdi for quite cheap just today, i'm going to get it tomorrow!
    Only thing is it does not have a turbo or exhaust manifold. Don't suppose anyone has one lying around they would like to get rid of?
    Or, will the turbo and manifold from a 300tdi fit the 200tdi?
    Engine sounds a right bargain at 300euros missing a starter motor and the bits mentioned above.

  2. gse1986

    gse1986 Active Member

    Joined:
    Nov 27, 2011
    Posts:
    718
    Likes Received:
    13
    Location:
    Sweden
    I'm not sure whether the two are interchangable, I will see if I can pull it up on parts catalogue shortly.

    You did give me a fright though - my 200tdi is sat on my rebuilt defender missing those three parts, I just had to go out and check someone hadn't nicked it - luckily it's still there!

    Doesn't seem so:

    err678 - outlet manifold - most places advertise this as 200tdi outlet manifold...

    err1435 - inlet manifold

    Then turbo - seems to be a few choices of standard and uprated on ebay - though you've got all the addon bits too:
    http://www.retroanaconda.com/landrover/parts_books/90/3_engine_25TD_200_p172-261.pdf

    pg 248 there

    Last edited: Jun 29, 2016
  3. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    Don't think i'll be sourcing my inlet manifold from john craddocks!
    Thanks for the part numbers though!

  4. Pricilla

    Pricilla Active Member

    Joined:
    Nov 1, 2010
    Posts:
    226
    Likes Received:
    6
    Location:
    Gloucestershire
    300tdi exhaust manifold and turbo should fit but youll need new 300 oil feed pipes a new 300 inlet manifold and have to do something with the downpipe to get around the engine mount

    i think steve parker might have a primary exhaust pipe that looks as though it might fit.....youll need to check

  5. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    I will have a 300tdi inlet exhaust manifolds and a turbo, i'll buy some new oil feed hoses and i'm sure i'll be able to do something for a downpipe. Thanks!

  6. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,328
    Likes Received:
    2,882
    Location:
    Near the land of 'Me Duck'
    On the off chance that the pipes are expensive drop me a PM as I've got a goosed engine that you can have a set from

  7. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    Thanks, which pipes might they be?

  8. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,328
    Likes Received:
    2,882
    Location:
    Near the land of 'Me Duck'
    Oil feed pipes off a 300 block that run to and from the turbo

  9. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    I should have some lying around somewhere, but thanks for the offer :)

  10. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,328
    Likes Received:
    2,882
    Location:
    Near the land of 'Me Duck'
    No worries, let me know if you haven't

  11. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,187
    Likes Received:
    2,914
    Location:
    Kent
    Im always suspicous when used engines have no starter motor fitted!

  12. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    I know what I'm getting in to with this one, it has a blown head gasket. He wanted an extra 80 euros for a starter so didn't take his offer

  13. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    Well as it turns out this engine does have inlet and exhaust manifolds but is missing a turbocharger. I think what I should do is fit a 300tdi exhaust manifold and turbo instead of trying to source a replacement defender 200tdi manifold.
    Don't suppose anyone has a discovery manifold and turbocharger surplus to requirements at a reasonable price?

  14. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France

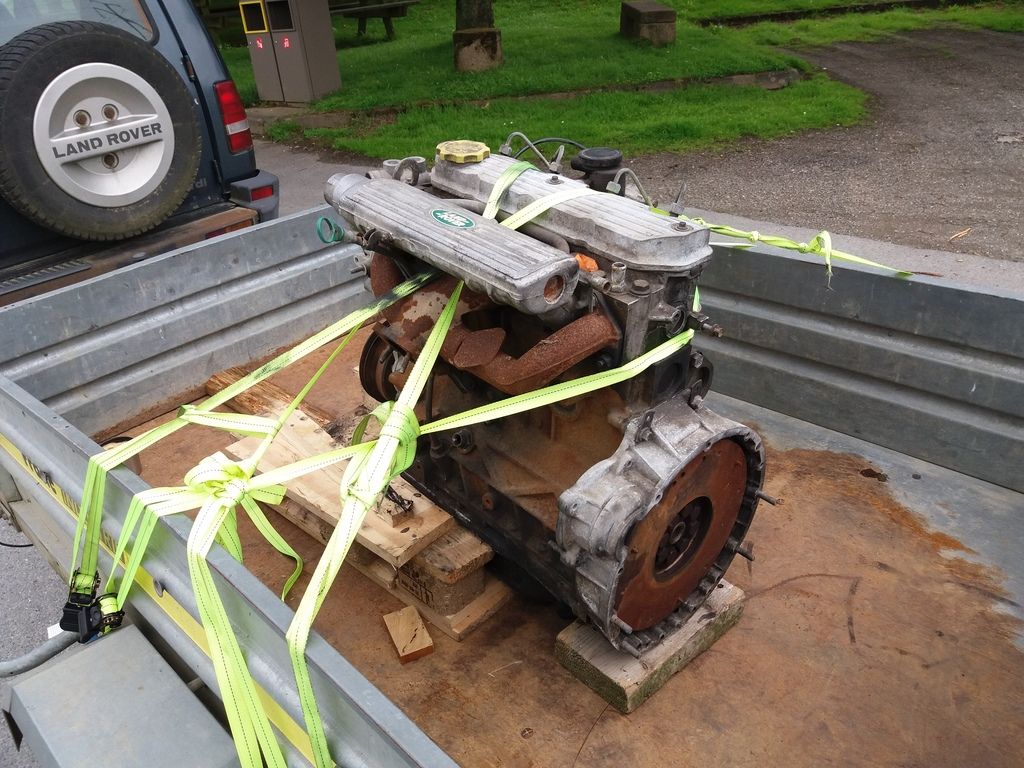

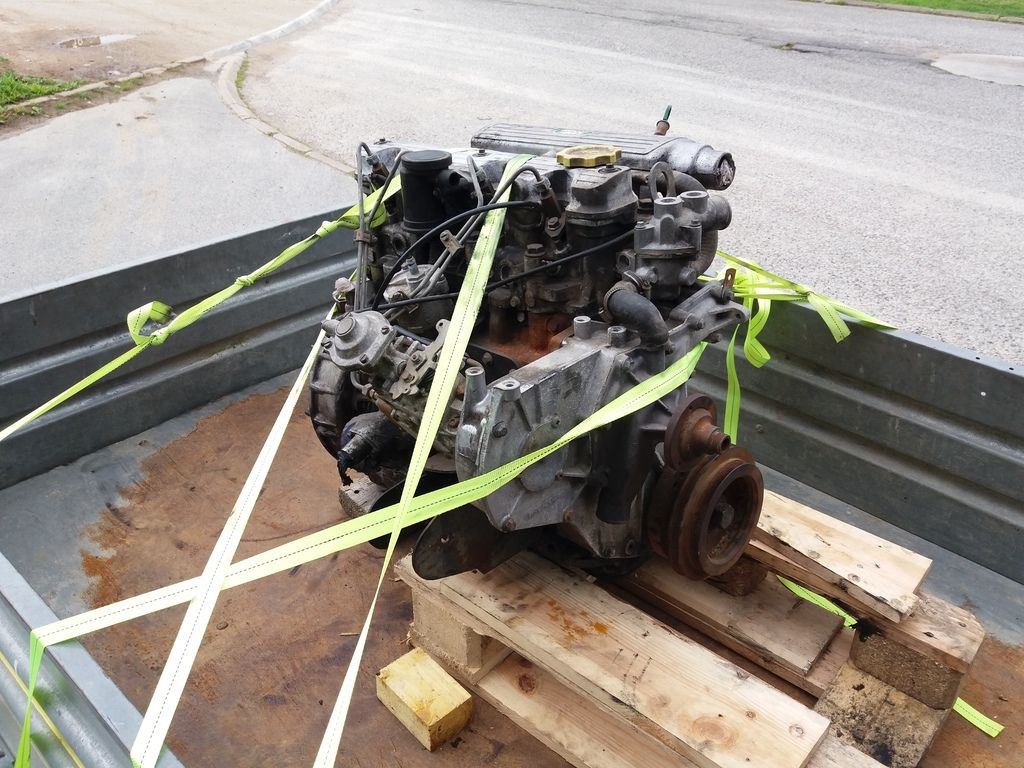

    So here she is! as it turns out she's only missing a turbo, but i will be replacing the manifolds for 300TDI disco ones.
    [​IMG]

    [​IMG]

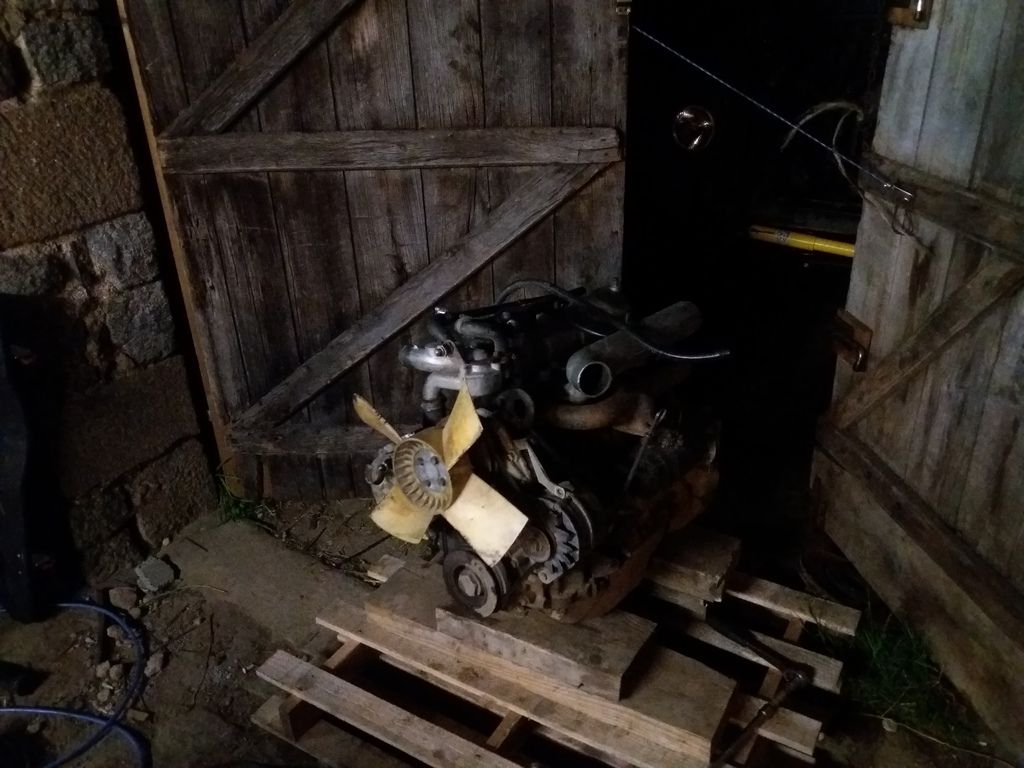

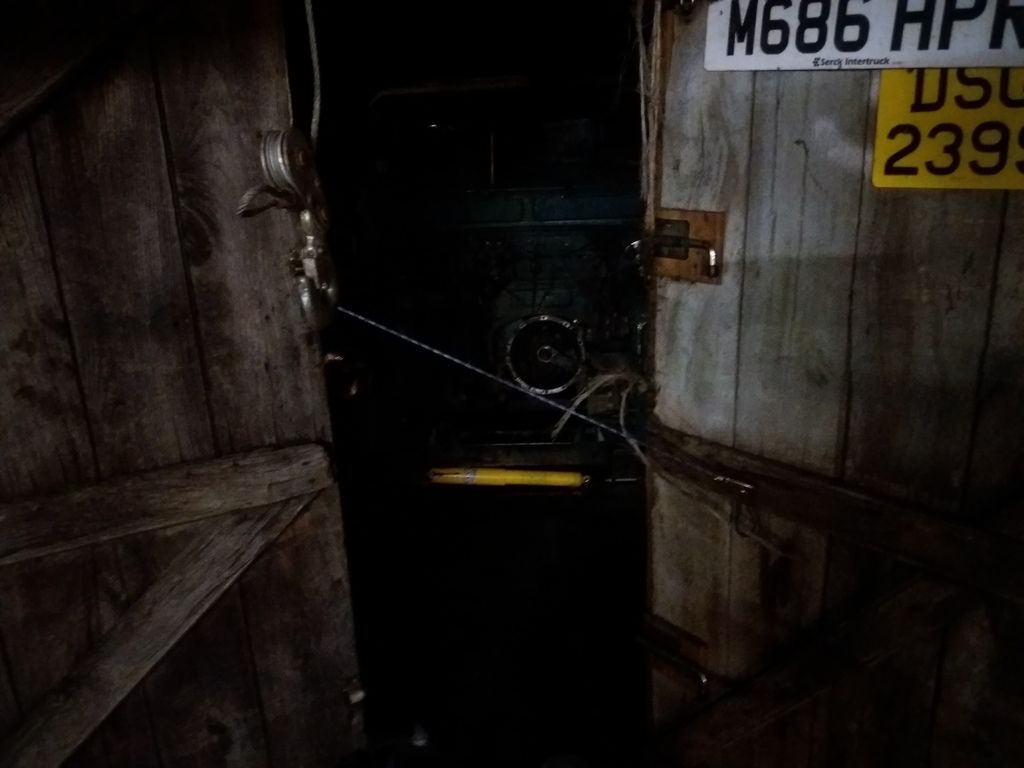

    As soon as i got home, i worked on getting the old 2.5 n/a lump out, and i managed to remove it in a matter of hours.
    [​IMG]

    [​IMG]

  15. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    Managed to find a Garrett turbocharger along with a 300tdi discovery exhaust manifold today at a reasonable price, quite pleased with that.
    In other news, the 200tdi is now fitted in the engine bay and hooked up to the LT77 having replaced the flywheel cover and such. After that, pulled the head off to reveal, as the previous owner said, a blown head gasket. Other than that it turns freely and the bores look lovely and smooth. Good news so far :)

  16. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,985
    Likes Received:
    1,857
    Location:
    Far away from you!!
    That's a disco 200tdi - Steve Parker should have the conversion bits

    What exhaust you going to use?

  17. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    I think i will be using the standard 90 exhaust, except i will use the 300tdi downpipe and modify it to fit around the engine mount.

  18. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,187
    Likes Received:
    2,914
    Location:
    Kent
  19. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
  20. ProcrastinatorFraser

    ProcrastinatorFraser Active Member

    Joined:
    Jan 25, 2015
    Posts:
    770
    Likes Received:
    32
    Location:
    France
    So the conversion is well under way. Radiator is fitted, electric fan fitted, engine to be put back together, but while i am waiting for parts i thought i'd get everything ready.
    A lot of stuff has been done but i don't know what to do about an air filter. The original one won't fit, and i can't seem to put it anywhere else, so what have you done?
