200TDI fan belt query please.

westone · May 7, 2019

Hi,
I am trying to equip my Series 3 with its 200TDI engine with a range of parts.So thought the two belts would be good.I have the alternator one, but am trying to get the one for the Crankshaft ,water pump and the the pulley which i think is for the power steering,I have 2 pulleys on this.One goes to the alternator.

I have tried but keeping getting nowhere and wondered if anyone can tell me a part number and source for a good quality one please? I have a Discovery alternator.
The other one I bought is a Gates one.
Thank you.

Shippers · May 8, 2019

post a pic always helps...

tottot · May 8, 2019

You have it the wrong way around. One short belt goes from crank pully to power steering pump and a longer one goes crank pully water pump/fan to alternator.
You may find the disco alternator is a bit much for the thin single v belt See "Max alt S3" post.

Blackburn · May 8, 2019

Shippers said:
post a pic always helps...

https://www.ebay.co.uk/itm/Landrove...m2157ffe54c:g:-m0AAOxygo9Q8xR9&frcectupt=true

westone · May 8, 2019

Thank you for the link, all ordered.

My Old Landy · May 8, 2019

tottot said:
You have it the wrong way around. One short belt goes from crank pully to power steering pump and a longer one goes crank pully water pump/fan to alternator.
You may find the disco alternator is a bit much for the thin single v belt See "Max alt S3" post.

My 200tdi is out of a disco and the short belt goes from steering pump to alternator, the longer belt goes from crank to water pump and steering pump.

Shippers · May 8, 2019

My Old Landy said:
My 200tdi is out of a disco and the short belt goes from steering pump to alternator, the longer belt goes from crank to water pump and steering pump.

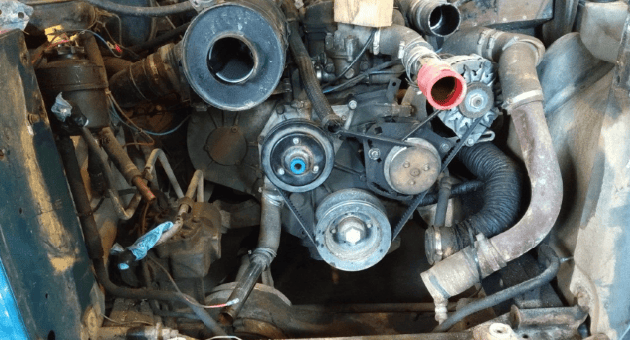

View attachment 177470

Thats the pics I was meaning thanks @My Old Landy ...new someone would come up trumps...I can do only classic V8 stuff...

tottot · May 8, 2019

Aha, disco 200.

westone · May 8, 2019

Thank you for the picture, that looks like mine from the top.I checked pulleys all in line. So looking forward to getting the belts and will have a trial run with them.
