Can anyone tell me if you can just change the remote rf reciever in the headling by just swapping the parts or does it need plugging in a diagnostic machine. Dealer has confirmed its the rf reciever at fault .also is it hard to get at in the headlining thanks

Plus 1 what @brianp38dse has said

if i remember correctly , after fitting the RF receiver u leave the engine running for a min of 6 x mins

u may have a bad connection to the rf unit

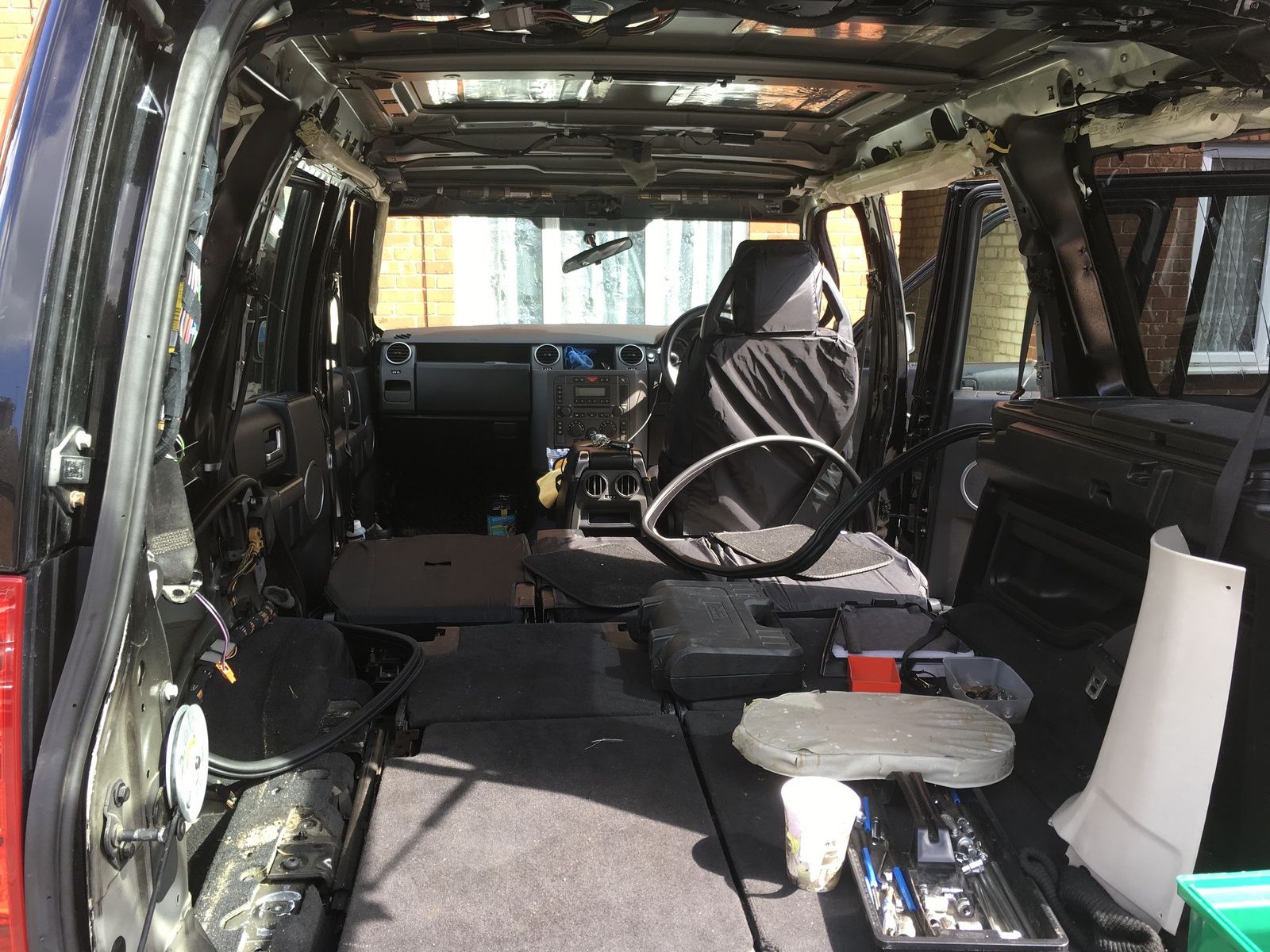

i’ve taken a headliner out of mine but it’s a D3 so i don’t know how it compares , not for the faint hearted due to risk of it bending , so have to ensure u support it , make sure u hands are spotless any marks and are a pig to get out

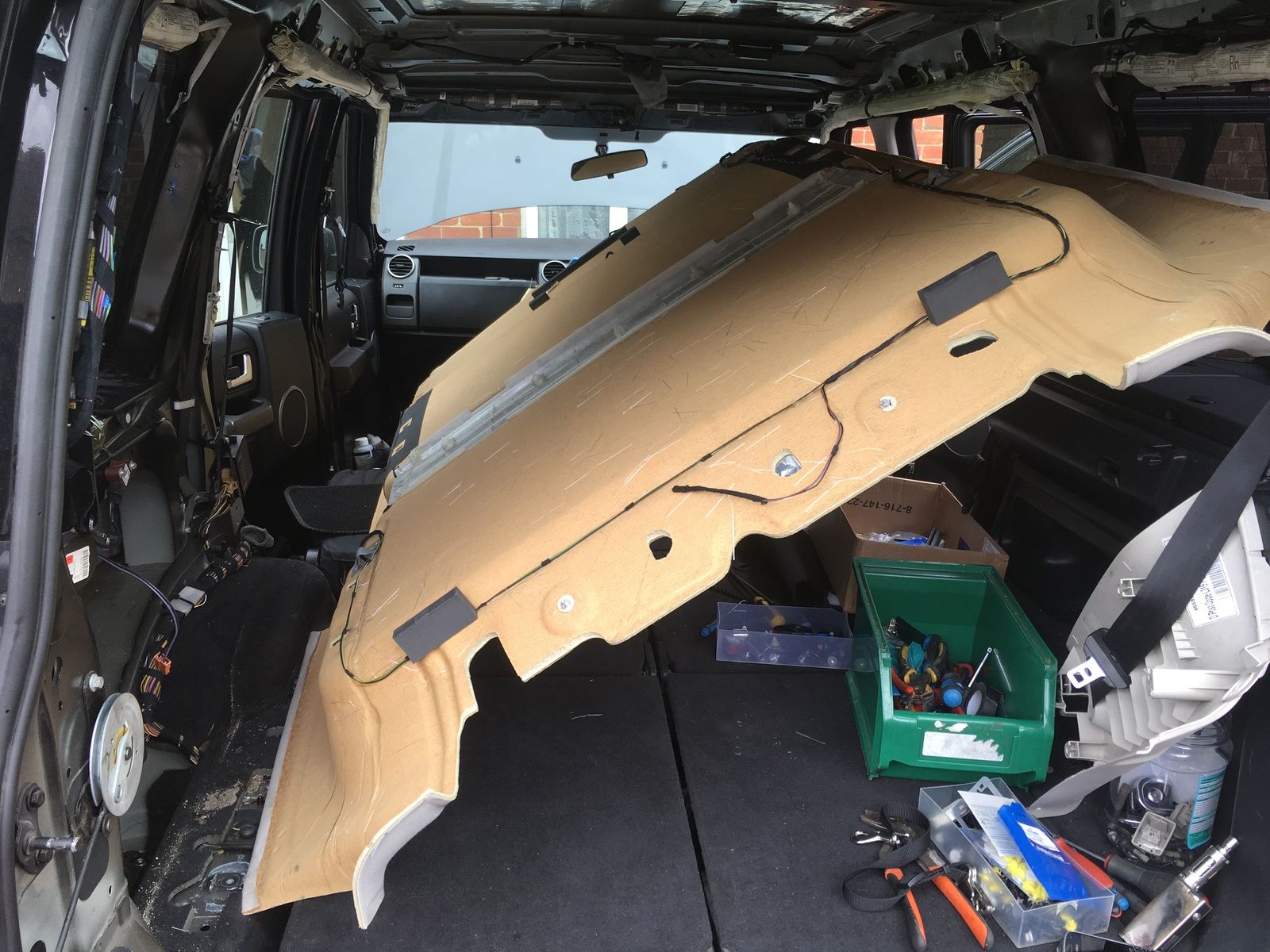

i removed mine completely as i was fitting new airbags , but u should be able to just rest the headliner on top of the seats

am trying to remember where the rf unit is exactly fitted , will have a look through some pics for u


Last edited:

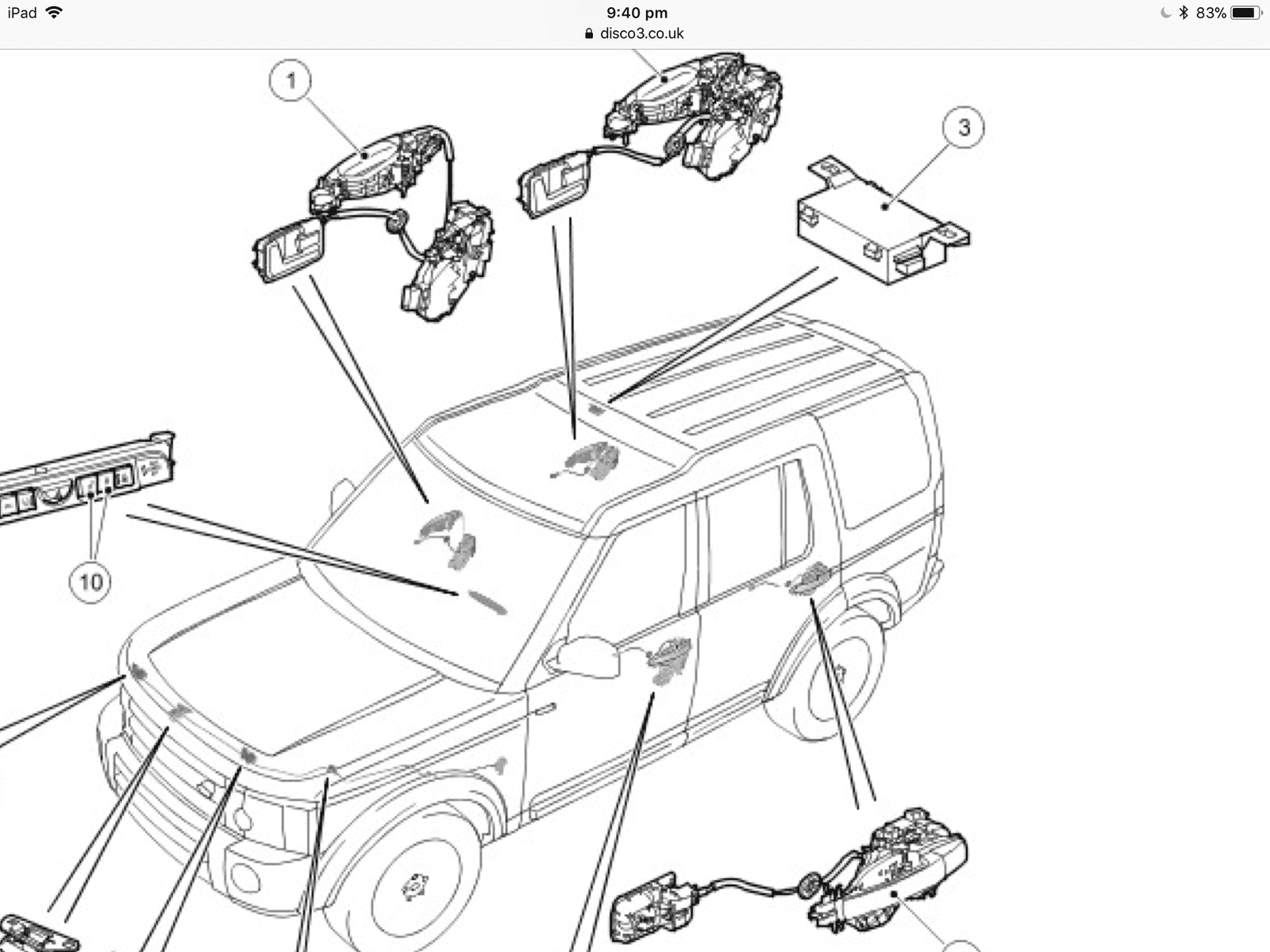

rf receiver on mine is located in line with the B pillars, No.3 in the pic

but have a look at the sport in case it’s somewhere else, if it is in the same location i’m wondering if u can reach it from removing the centre light ???

plse let us know how u get on
