2006 RR l322 instrument cluster test procedure ?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Andy_R

New Member
Posts
5
I was wondering if anyone could please tell me the correct procedure for a instrument cluster self test on a 4.2 RR l322 2006 model ?
I have looked at other procedures and tried them but they dont seem to work for some reason ?

I get as far as "Check Control Ok" but thats it ?

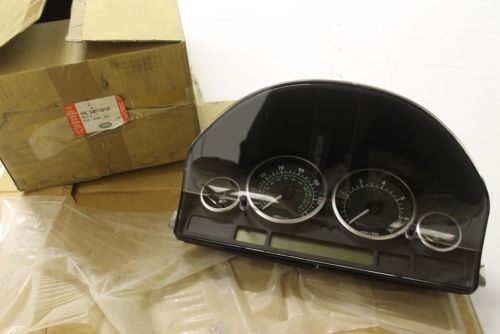

i have attached a picture of a instrument cluster the same as mine as im sure you are aware there are different versions

many thanks


Attachments

  • $_12.JPG
    21 KB · Views: 332
That looks like the 2002-2005 BMW IKE Instrument Cluster....(Scratch that - maybe not)

The BMW Test is to press and hold the Check Control Button for 7 seconds....then select Test Nr. 21...add the digits together, and then select Test Nr. 1 and enter that number...this unlocks the diagnostics....

I have a Display Self Test Vid on youtubbbbeeee - https://www.youtube.com/watch?v=aL9DD0p-eyM

but yours is the Ford designed version from 2006...which has a different cluster and doesn't run on the BMW system

Last edited:
That looks like the 2002-2005 BMW IKE Instrument Cluster....(Scratch that - maybe not)

The BMW Test is to press and hold the Check Control Button for 7 seconds....then select Test Nr. 21...add the digits together, and then select Test Nr. 1 and enter that number...this unlocks the diagnostics....

I have a Display Self Test Vid on youtubbbbeeee - https://www.youtube.com/watch?v=aL9DD0p-eyM

but yours is the Ford designed version from 2006...which has a different cluster and doesn't run on the BMW system

Very interesting youtube link:)
