P38A 2001 V8 Inlet Manifold Fitting

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

PastyMuncher83

Active Member
Posts
249
Location
South Somerset
Looking for some help finding a plastic fitting that screws into the inlet manifold on a Thor V8.

After having to do the annoying job of replacing o/s exhaust manifold gasket again , my own fault for re-using the old gasket last time, I damaged a plastic connector whilst climbing on the engine to torque up some of the manny bolts.

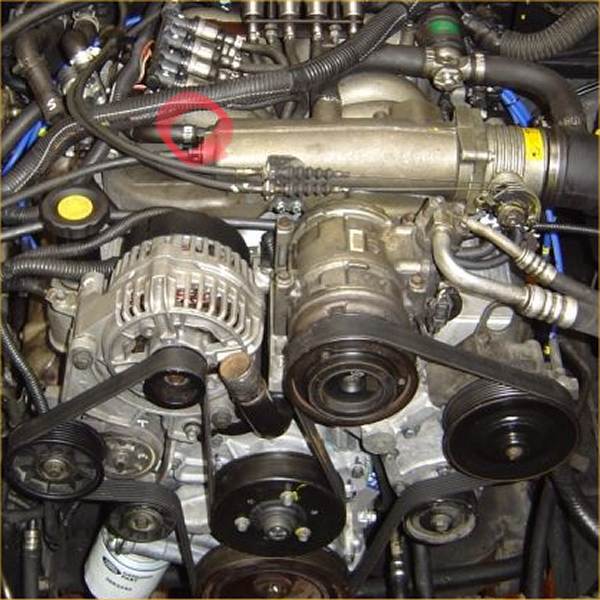

I have looked on parts sites and in Rave but can’t find a part number for the fitting I broke. It is circled in the attached picture, and feeds a breather pipe to the top of the o/s rocker cover.

It’s also got a small pinhole in the centre ID so not just a case of visiting my local hardware shop!

Can anyone help me out with a part number or place to source a new one?

Thanks


Attachments

  • 3A588A6E-CFB5-4B84-8FB2-5D41B1786C5B.jpeg
    63.5 KB · Views: 140

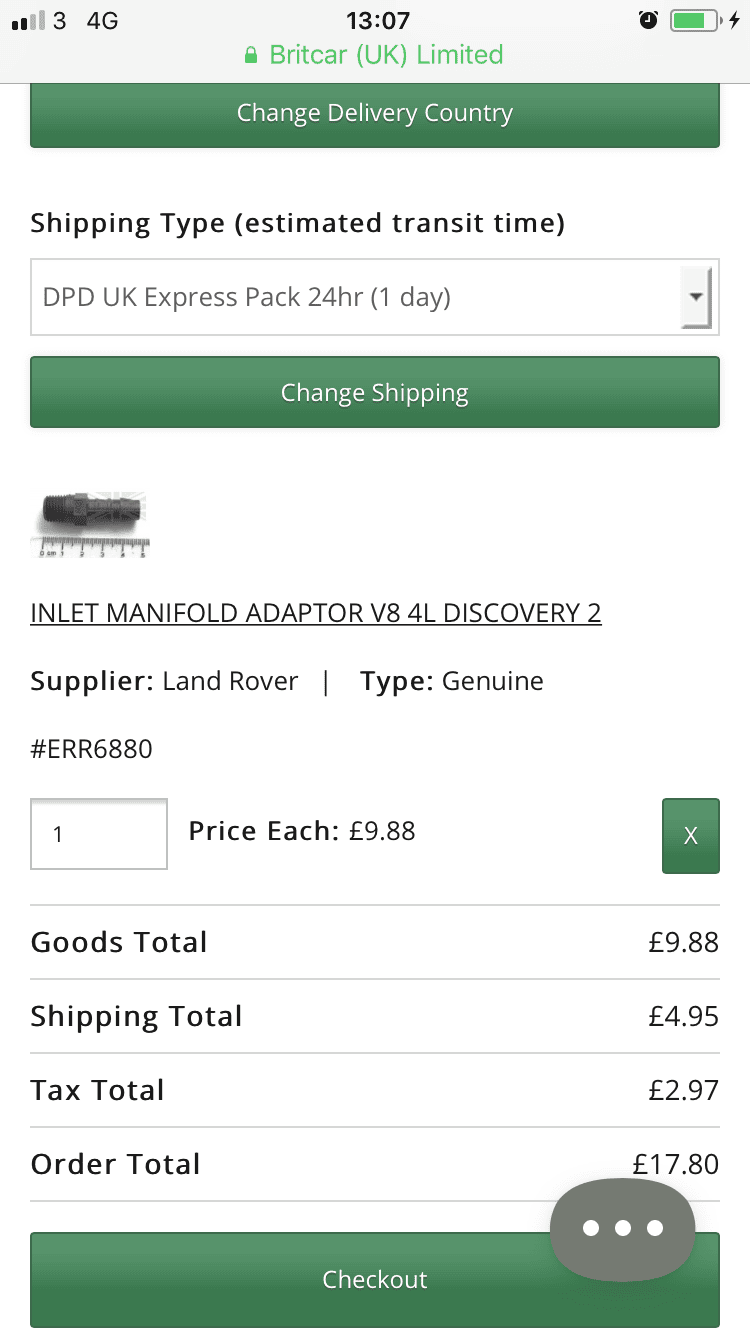

Thanks Guys have a second hand one on order.

It seems the internal diameter is reduced to the size of a pin hole so didn’t want to get something made up in case it was important!
