2 inch Receiver Front Bumper

Discussion in 'Defender 90 / 110 / 130' started by Mac90, Feb 11, 2019.

< Previous Thread | Next Thread >
  1. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
    Hi there!

    So I'm looking for a front bumper for a 110 300tdi (non air con) with a 2 inch hitch receiver, as the yanks call it. I want to use it for a few reasons, but it has to be capable of withstanding the forces of a demountable winch set up.

    Does anyone know any suppliers? I've found a steering guard with one integrated, but I think this might be a little low to the grounds for my needs. http://www.extreme4x4.co.uk/Store/P...f-steering-guard-with-built-in-shunt-receiver

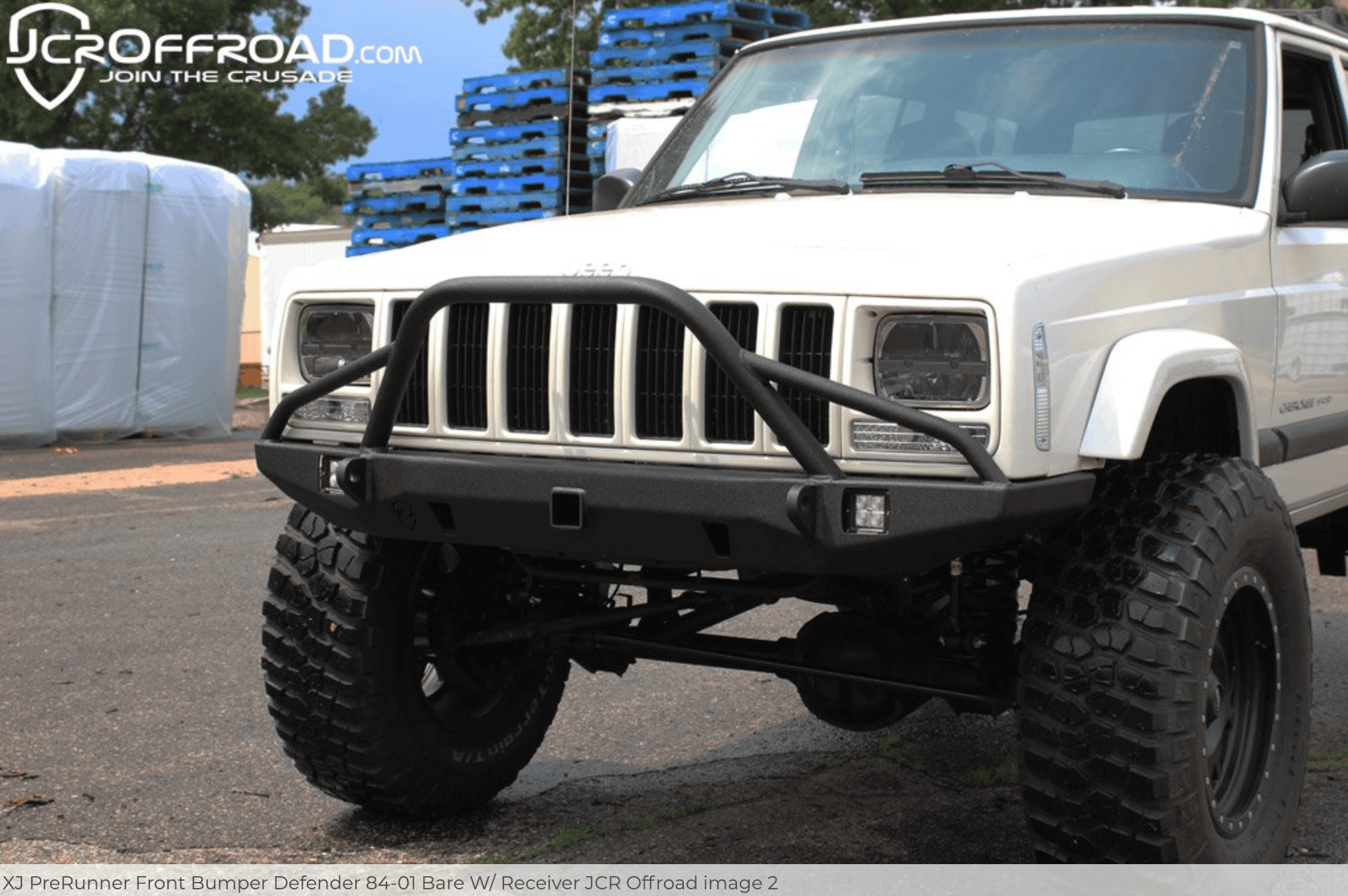

    Here is a pic of the kind of thing that I'm after for reference, with the 2 inch receiver in the centre of the bumper, . Sorry for poisoning the site with a pic of a JEEP!!!!
    Screenshot 2019-02-11 at 10.16.48.png

  2. leeds

    leeds Active Member

    Joined:
    Jul 23, 2010
    Posts:
    245
    Likes Received:
    75
    I am not aware of a Defender bumper made with a 2" receiver build in .

    The standard Defender bumper is typically made from 3-5mm mild steel.

    A winch mounting plate system is typically made from 8-10mm mild steel.

    To fit a demountable winch on a 2" receiver mounted on a front Defender bumper would be a special one off job as you would need a big spreader plate between the front chassis leg.

    Doable at a cost but since a special order it would be money upfront.


    Brendan

    Mac90 likes this.
  3. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,822
    Likes Received:
    1,696
    Location:
    Far away from you!!
    Why do you want to fit a demountable winch by the way?

    Wouldn’t it actually end up being a pain in the butt lugging it on and off? They aren’t light and trying to do that while your stuck etc might be a right faff

  4. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    3,703
    Likes Received:
    2,886
    Location:
    Wiltshire
  5. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,822
    Likes Received:
    1,696
    Location:
    Far away from you!!
    No way, I have a mod spec one on my mod spec defender and it’s not a recovery point for anything serious, it’s only reinforced around the pin - not the bumper mounts so its possible to banana your front bumper if you use it as a recovery point.
    It’s meant for either straight bar pulling on roads or for shunting trailers about etc

    I don’t use mine, I use the jate rings on the chassis and a strop to make a Y pull

    Last edited: Feb 11, 2019
    Mac90 and Hicap phill like this.
  6. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    3,703
    Likes Received:
    2,886
    Location:
    Wiltshire
    Thanks @flat
    Looks like it's a make your own then for the OP then ;)

    Mac90 and flat like this.
  7. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    16,502
    Likes Received:
    7,181
    Location:
    Oxfordshireness
    Contact someone like Dixon fabrications. They might be able to do something on one of their std bumpers.

    Cheers

    Mac90 and adrian hogg like this.
  8. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,391
    Likes Received:
    250
    Location:
    Lost
    They are designed for the numpty drivers who can’t reverse trailers into parking/service bays. The army has loads of them. I wouldn’t use it for anything really.

  9. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,822
    Likes Received:
    1,696
    Location:
    Far away from you!!
    Nope it don’t, apart from zip tying a poppy on for rememberance day. Otherwise I don’t use it either.

  10. windy81

    windy81 Active Member

    Joined:
    Jul 28, 2014
    Posts:
    128
    Likes Received:
    68
    I would be interested in this too.
    As much of a pain it would be to mount it, for the sake of having it in the cabin in a dry environment appeals to me for it would be for emergencies only.
    Not only that i have a 2" receiver on the back so in essence i could chose either front or rear giving much greater flexibility.
    I can only see advantages. And i would be interested in a light winch, not these massive fast ones that can pull Mars into earths orbit.

  11. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    1,917
    Likes Received:
    645
    Location:
    Warwick
    No winch with a load rating capable of recovering a bogged down defender will light. Even with a synthetic rope they are inherently heavy items. Some are lighter than others (I have a husky which is very heavy worm drive) but when mounted the receiver carrier tray it is not going to be a light combination and will potentially need two people to mount it even in good conditions.

    Mac90 likes this.
  12. windy81

    windy81 Active Member

    Joined:
    Jul 28, 2014
    Posts:
    128
    Likes Received:
    68
    I had a quick gander and ATV winches, a around 40KG :eek:
    the 6t ones more akin to a defender are arond 70KG :eek::eek:

  13. windy81

    windy81 Active Member

    Joined:
    Jul 28, 2014
    Posts:
    128
    Likes Received:
    68
    Still if you use a pulley block or 2, the small winch would give you the pulling power of the big one.
    I've honestly never used a winch or ever seen anyone use one so I might be dreamin

  14. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    1,917
    Likes Received:
    645
    Location:
    Warwick
    Just another thought, If you are going to have a demount-able one that is carried in the vehicle taking up space you might as well get a Tirfor, good strong and far more versatile. And they are probably just as much physical effort during the recovery as loading the electric one to the receiver would be!

    Mac90 and flat like this.
  15. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
    Cost of having 2 winches, security of them being nicked off the vehicle, longevity of condition, being able to keep inside the vehicle.

  16. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
  17. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
    I've messaged Douglass motors about it and they are looking into it for me. They make a rear bumper that is Dixon bates tested, so they would be aware of the loads required.

    https://www.douglassmotors.co.uk

  18. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
    Yahtzee!!!! That is a fair weight!!! Definitely something to consider!

  19. Mac90

    Mac90 Member

    Joined:
    Jul 17, 2012
    Posts:
    28
    Likes Received:
    8
    Location:
    Wiltshire / Dorset / Scotland
    http://www.extreme4x4.co.uk/Store/P...f-steering-guard-with-built-in-shunt-receiver

    This spreads the load between the chassis legs, and is marketed as for a detachable winch tray. I would just like something integrated into a bumper.

  20. windy81

    windy81 Active Member

    Joined:
    Jul 28, 2014
    Posts:
    128
    Likes Received:
    68
    This winch wouldn't be a bad compromise. 40Kg is 2 cement bags, no problemo.

    [​IMG]

    Mac90 likes this.
