12N trailer electrics - white connector?

Stufer · May 8, 2012

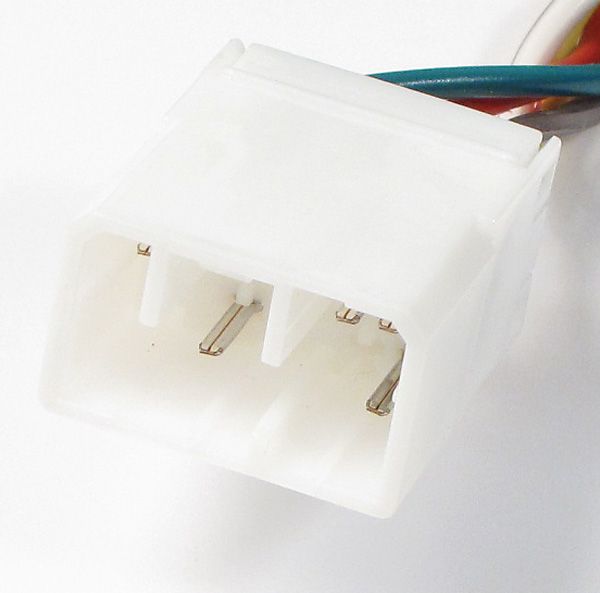

Being somewhat of a tight arse lately, rather than buy one off ebay for 30 quid, I'd like to make up the trailer electrics to connect to the 12N plug that sits behind the RH rear light cluster. (Not interested in 12S connection). So I just need the white connector, the wire and the trailer socket. Surprisingly, I don't seem to be able to find a part number for the white connector that is needed to connect to the existing plug behind the light cluster, or where to get one from. I don't want to just bypass the plug and splice into the wires either, I never like using those bloody scotch lock things. I think I'm correct in saying that the connector looks like the one below.

Any advice appreciated on where to get one.

Datatek · May 8, 2012

Just cut it off and crimp (or solder) your wires on direct. Never use Scotchlock.

Stufer · May 9, 2012

Cheers Keith, I think I will try individual push on crimps.

Sent from my ST15i using Tapatalk 2

vaughanwilson · May 9, 2012

Hi there,

the white plugs are commercially avaialble - just not from Land Rover Dealers.

If you wait till this evening I'll send the supplier details & plug reference to you

Stufer · May 9, 2012

Cheers mate, that would be very much appreciated

micky22 · May 9, 2012

if the white connector has not already been used the other half of the connector will be on thete just take it off there wont be any pins in it but they are cheap to buy from any automotive electrical supplier

Stufer · May 9, 2012

Thanks for that, I really should take a look at what I've got before I start asking questions, but it's been peeing down so long I haven't got round to it!

vaughanwilson · May 9, 2012

Hi there,

as promised you need a Multilock 12 way connector.

These are available from Simtekuk:

Simtek (UK) - For All Your Automotive Connectors

They also sell a range of other plugs including Superseal plugs as also used on P38's.

Stufer · May 9, 2012

Thanks very much for this, I'll have a good browse through it tomorrow at work. Once again the good folks of Landyzone come to the rescue!!

:beer:
