110 Rebuild - what is this bracket?

mick 1986 · Jan 6, 2019

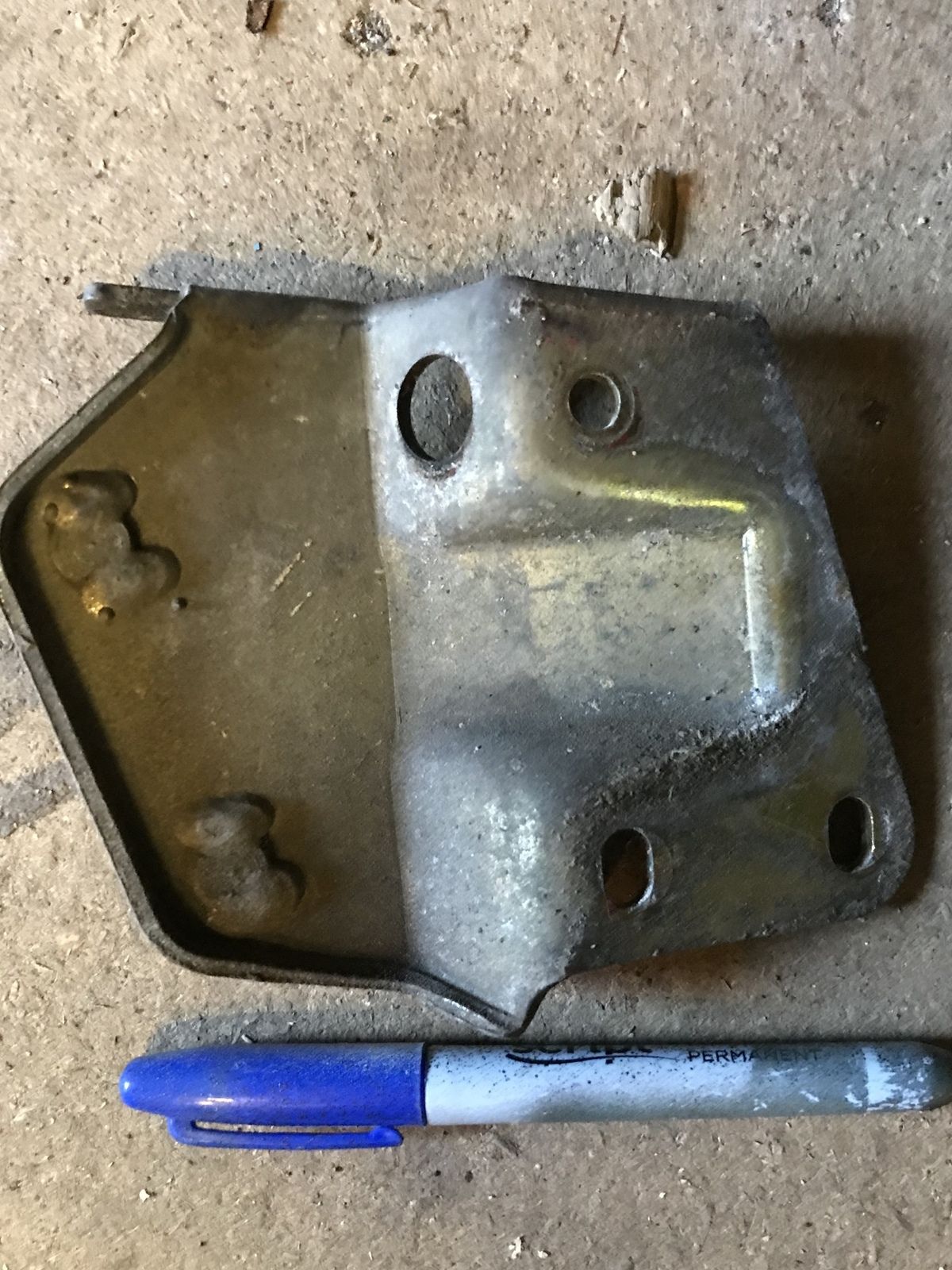

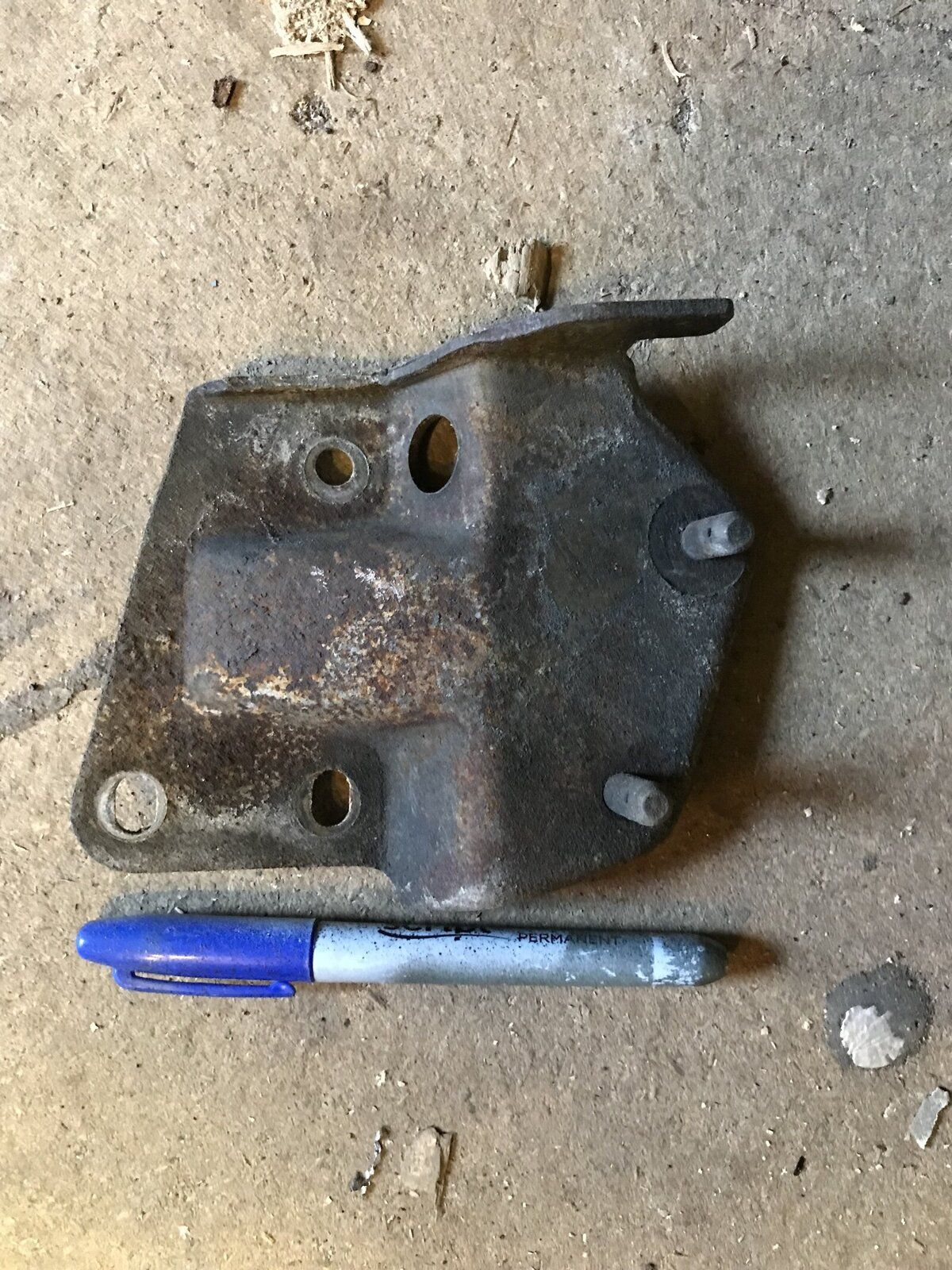

I am at a point that I need to sort the bodywork into some sort of order for the rebuild. While sorting through a box of fitting for the doors, wings, bonnet, and grill, I have came across this bracket. It’s not in a bag that is labelled up from the strip down, which leads me to think I didn’t take it off. I can’t work out where it goes. I have a feeling it’s something to do with the front wings to radiator.

Anyone got any ideas? Sharpie for scale.

doriz · Jan 6, 2019

No idea, but you clearly need a tool cleaning day as that Sharpie is minging

jamesmartin · Jan 6, 2019

mick 1986 said:
I am at a point that I need to sort the bodywork into some sort of order for the rebuild. While sorting through a box of fitting for the doors, wings, bonnet, and grill, I have came across this bracket. It’s not in a bag that is labelled up from the strip down, which leads me to think I didn’t take it off. I can’t work out where it goes. I have a feeling it’s something to do with the front wings to radiator.

Anyone got any ideas? Sharpie for scale.

View attachment 166637

View attachment 166638

its for the bonnet stay drivers side front of wing

mick 1986 · Jan 6, 2019

jamesmartin said:
its for the bonnet stay drivers side front of wing

Thanks James, much appreciated!

mick 1986 · Jan 6, 2019

doriz said:
No idea, but you clearly need a tool cleaning day as that Sharpie is minging

It was left in “the spray booth” for a few days. It doesn’t work now.

mick the builder · Jan 6, 2019

jamesmartin said:
its for the bonnet stay drivers side front of wing

He'll now know what that flat bit of 2' steel hinged in the middle is for now aswell.

mick 1986 · Feb 20, 2019

jamesmartin said:
its for the bonnet stay drivers side front of wing

Hi @jamesmartin

Do you know of any photos showing the location of the bracket please? I think I have located the 3 holes it mounts to, but I don’t think it’s needed for my bonnet stay. Mine locates on the slam panel.

Is this bracket for the “flat bar” type bonnet stays??? Hence the post by @mick the builder above?

tottot · Feb 20, 2019

You have the one piece stay that folds to a clip under bonnet then?

mick 1986 · Feb 20, 2019

tottot said:
You have the one piece stay that folds to a clip under bonnet then?

Yes. I think that’s why that bracket confused me in the first place.

flat · Feb 20, 2019

The solid bar stay is much better imo, it doesn’t cut off fingers or try to decapitate you
