H

henrythelandy01

New Member

• May 13, 2024

• #1

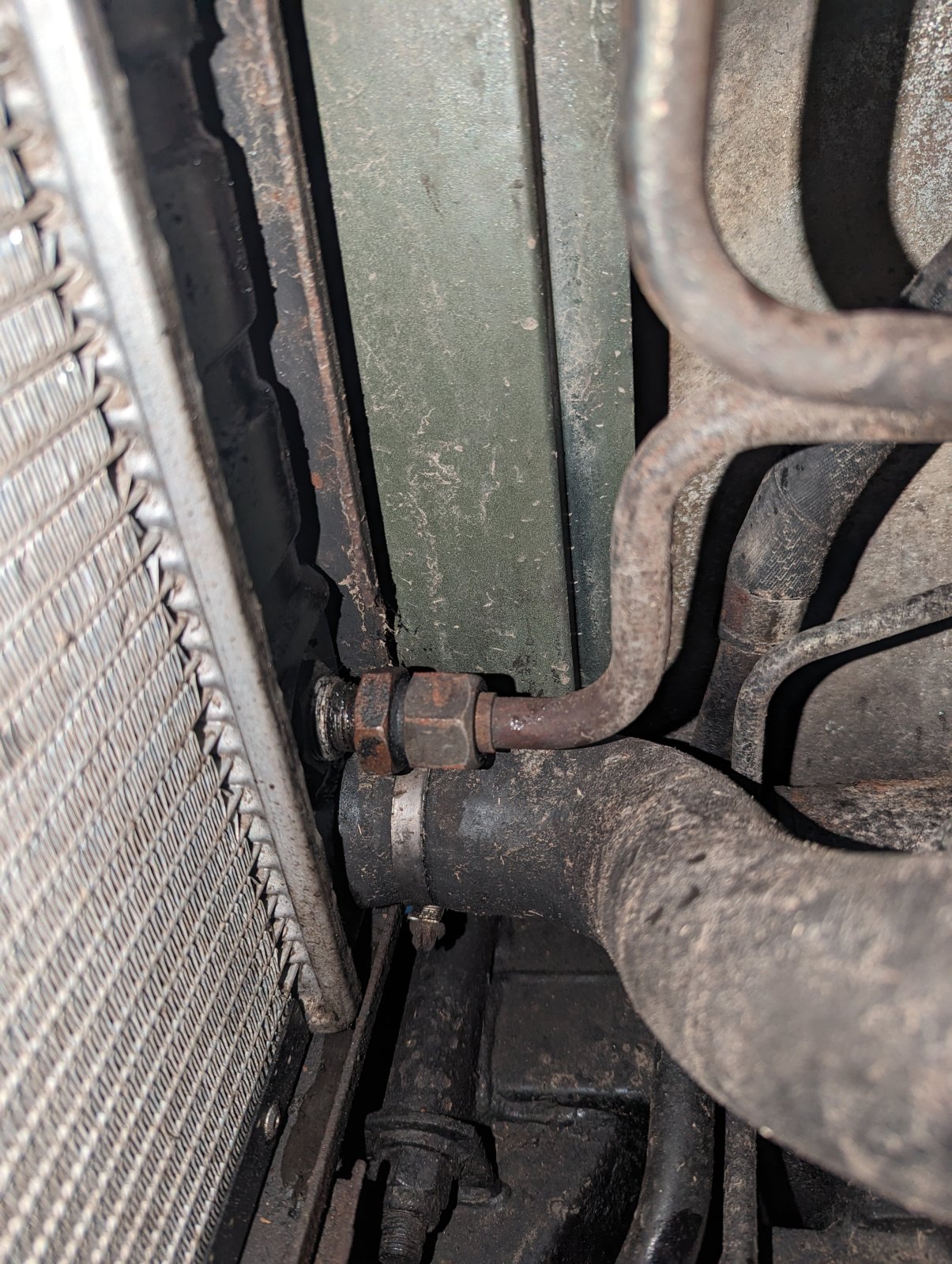

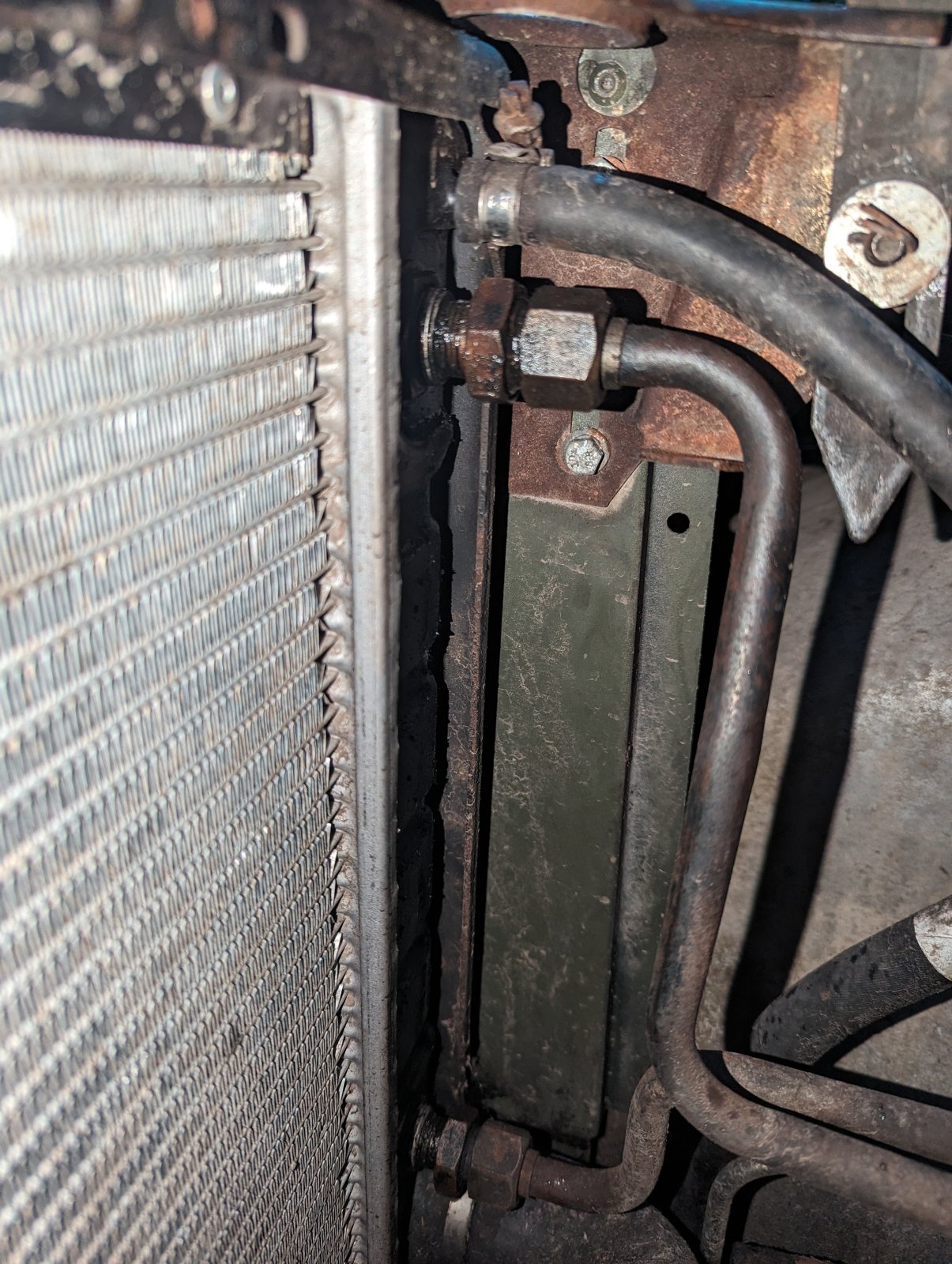

Hi everyone. I've been scratching my head about my oil radiator. The unions seems to have some sort of conversion which keep coming loose and causing an oil leak.
I have a 200tdi with a conversion from a TD before my ownership and I think it was done in a bit of a rush. Anyone know what's going on here? Is it a converter for the old TD pipes. What should it look like? I notice that on the radiator side, the holes are of a larger diameter so something must be up. How can I fix it and what parts do I need?

Thanks everyone



Attachments

•

  393.3 KB · Views: 39
•

  416.5 KB · Views: 31

miktdish

Guns n Chainsaws

Full Member

• May 13, 2024

• #2

Am not sure I fully understood what you are saying.
Do you mean that there is an adaptor that goes between the oil cooler pipe and the oil cooler radiator, ie the pipe screws into the adaptor and the adaptor into the radiator, and that one or the other keeps loosening ?



L

lynall

Well-Known Member

Full Member

• May 13, 2024

• #3

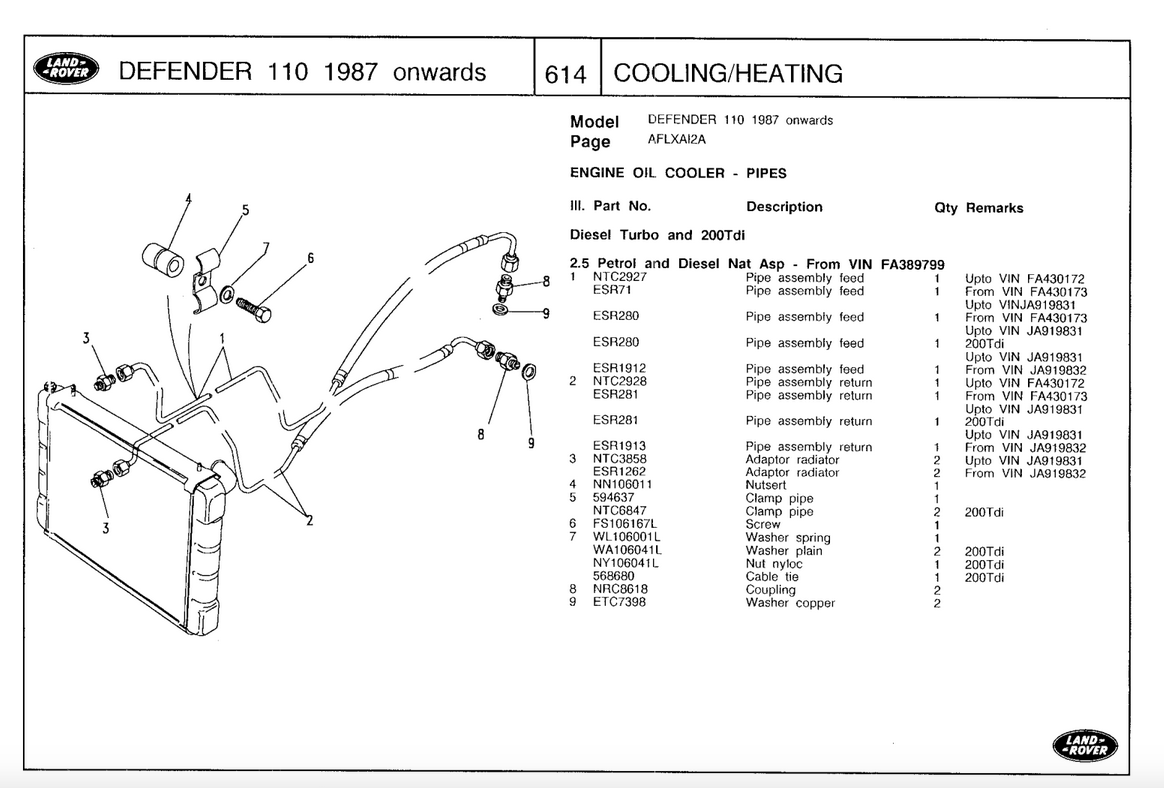

They look standard to me.
Iirc 200tdi seals on a taper and later 300 ones use an o ring.
So where the male/male union screws into the rad it might benefit from some thread sealant.

Note td and 200tdi seem to use exact same set up, apart from all the separate updates depending on vin.



Last edited: May 13, 2024

H

henrythelandy01

New Member

• May 14, 2024

• #4

Thank you both, I see now that this is standard. Sorry for the dumb question, very new to all this and all my mates who are helping me are 300tdi blokes so they don't have a clue about some of this



miktdish

Guns n Chainsaws

Full Member

• May 14, 2024

• #5

This is a good site to visit.

Engine Oil Cooler Diagrams - Find Land Rover parts at LR Workshop

Browse 7 Land Rover Engine Oil Cooler Diagrams, including Oil Cooler, Oil Cooler Pipes, Oil Cooler Pipes, Oil Cooler Pipes, Oil Cooler Pipes, Oil Cooler Pipes

www.lrworkshop.com



L

lynall

Well-Known Member

Full Member

• May 14, 2024

• #6

henrythelandy01 said:

Thank you both, I see now that this is standard. Sorry for the dumb question, very new to all this and all my mates who are helping me are 300tdi blokes so they don't have a clue about some of this

Click to expand...

Tbh most 300 owners do not have a clue about anything, otherwise why woud they have bought a 300!



H

Hicap phill

Well-Known Member

• May 14, 2024

• #7

henrythelandy01 said:

Thank you both, I see now that this is standard. Sorry for the dumb question, very new to all this and all my mates who are helping me are 300tdi blokes so they don't have a clue about some of this

Click to expand...

There are no stupid questions. Feel free to ask anything.

Make sure them adapters into the radiator are tight.



A

Anaconda

Well-Known Member

• May 14, 2024

• #8

How about a bit of PTFE tape on the threads if that is where it is leaking from.
I do have a vague memory of being some different adapters. Mind you if they were already there I guess they are correct.
