Defender - fusebox

Hi would anyone be able to put up a pic of their 1998 300tdi fusebox which shows the correct fuses in the right places and a pic of the fuse diagram in the back of the fuse cover please???

I've got a diagram in the back of the fuse cover - but i think its from a later model and want to make sure i've got the right fuses in the right places.

Cheers
Daz

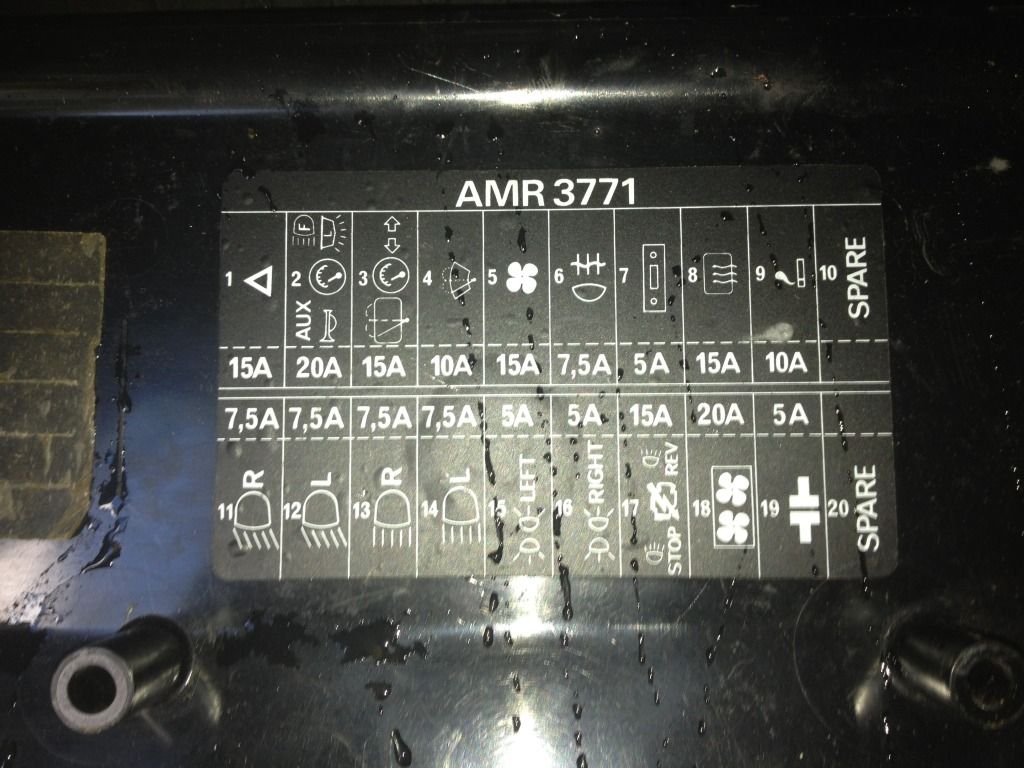

Here ya go

ps mines a 96

NICE 1 !!!!!
Thanks a lot mate

Yep the drawing on the back cover is totally different to the one i've got!
I'll print it off and stick it on
Cheers
Daz

mines the same as that, but if you have factory fitted alarm/immob 10 is a 20A, 20 is a 5A mines also a 96

Just notest some of my fuses are not rated right need to go sort that out..

Yep noticed that
Thanks a lot though mate!
Had a few electrical snags this morning: no indicators/no interior light/no horn

Turns out that fuse number 2 had popped - looked ok but tested it and it was gone!

Thanks again
Daz

Allyipod said:

Here ya go

Click to expand...

#bringingbackthedead

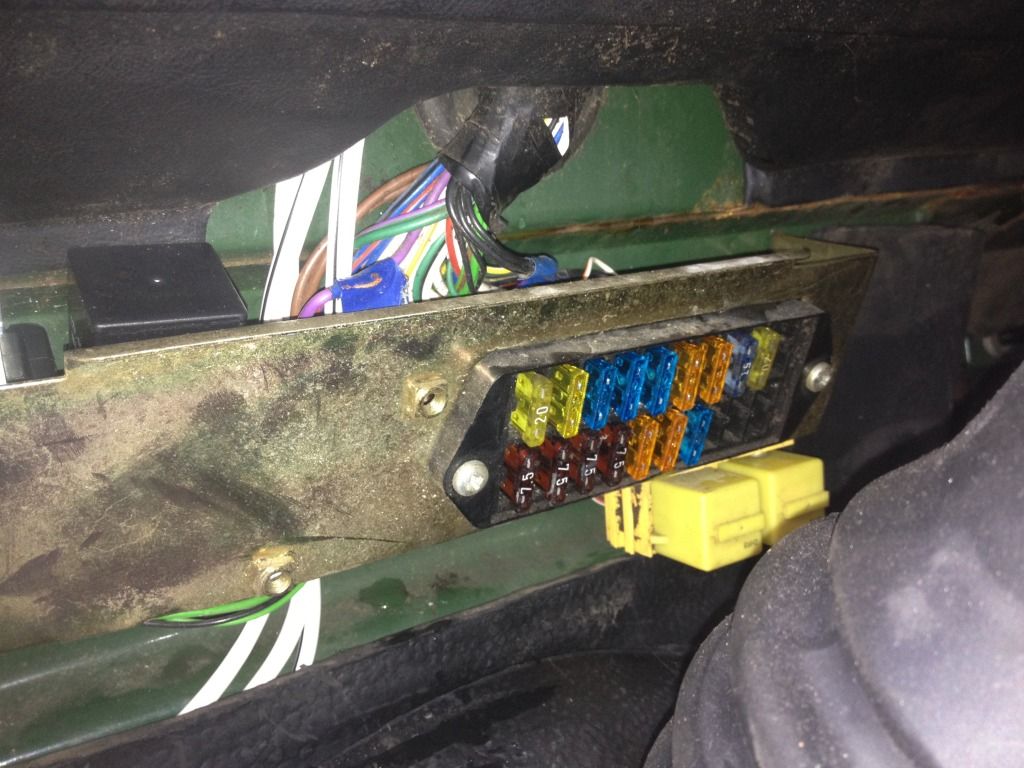

but having some lectricimical probs at the mo. can anyone tell me what the two yellow relays in the 2nd pic are for? I'm going with headlights and starter??
